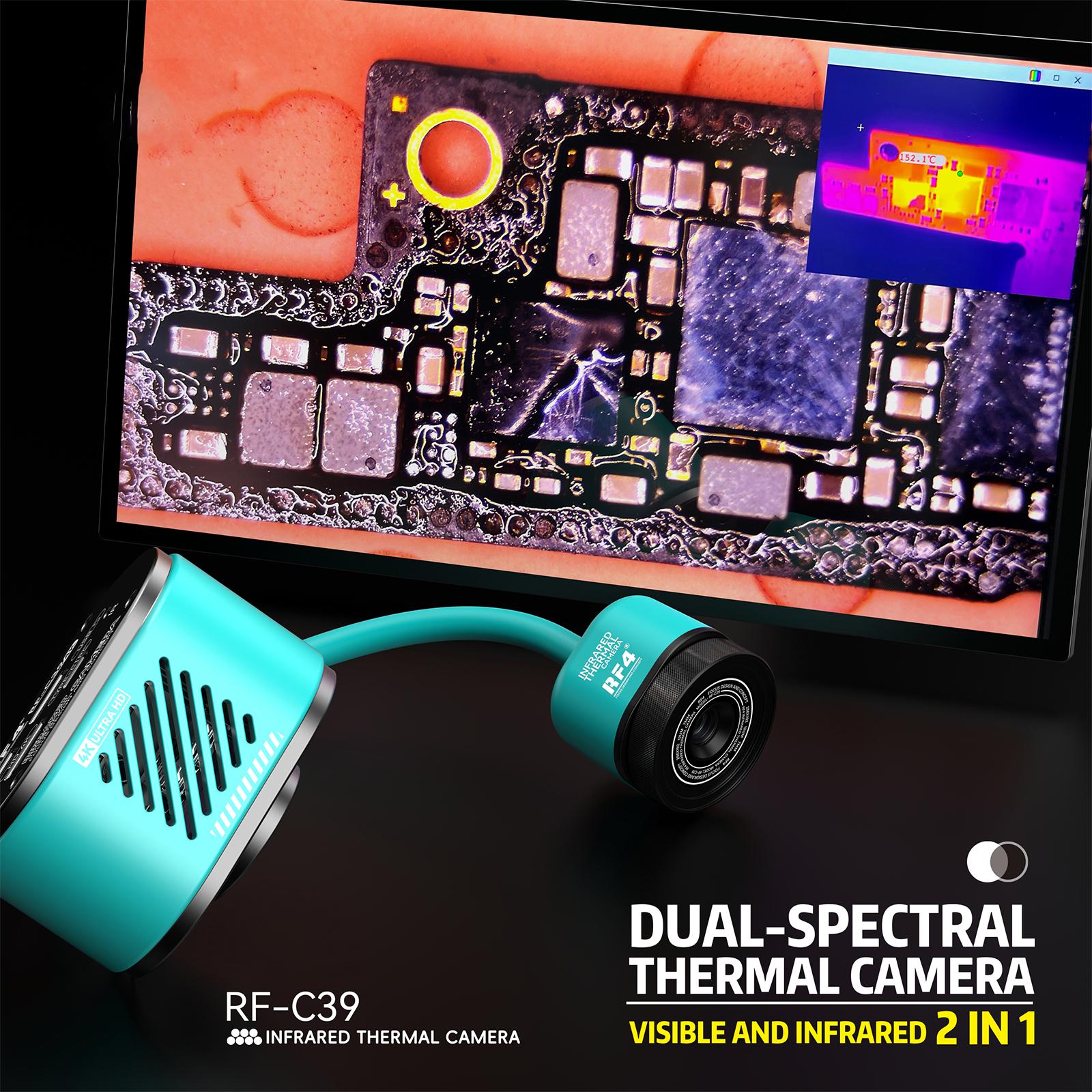

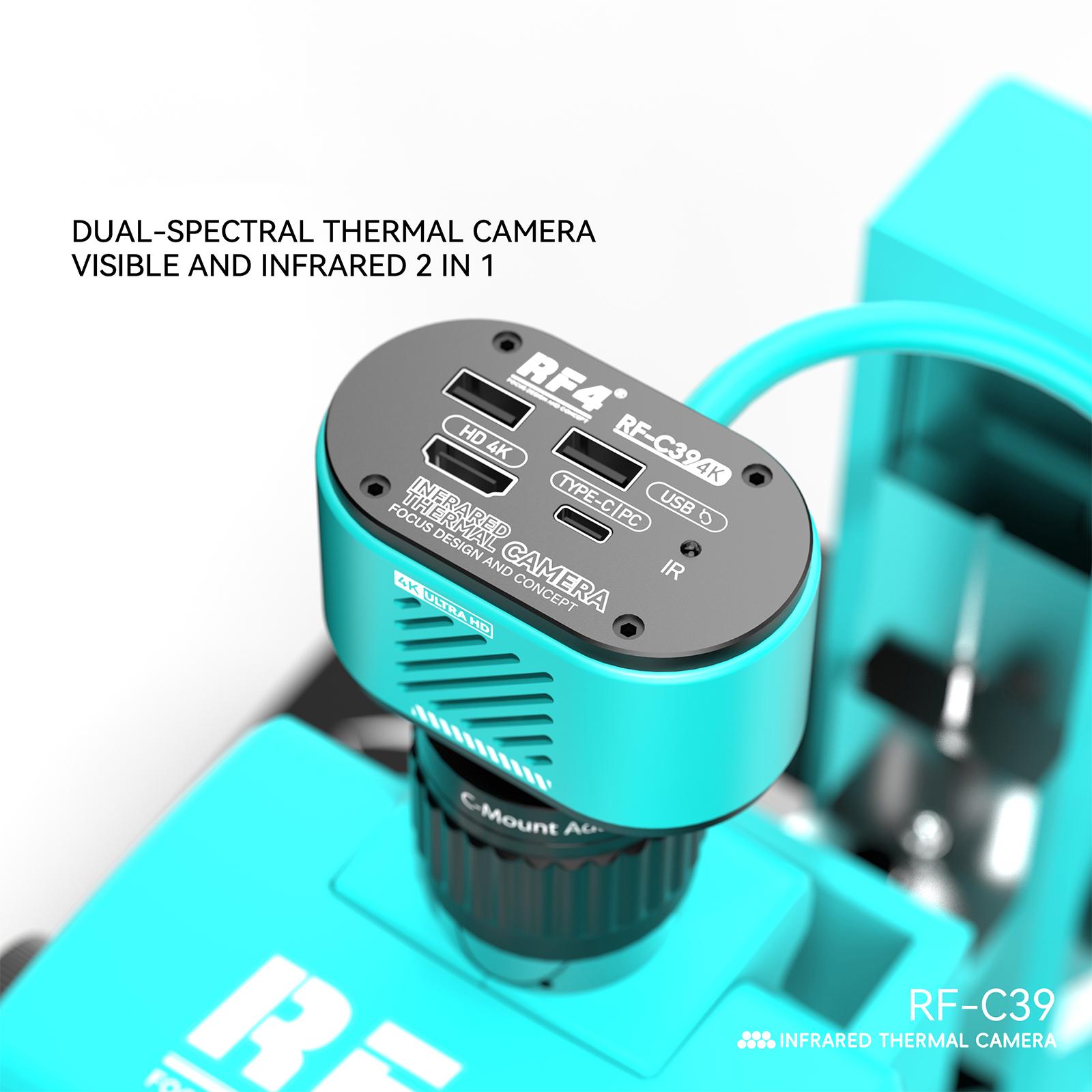

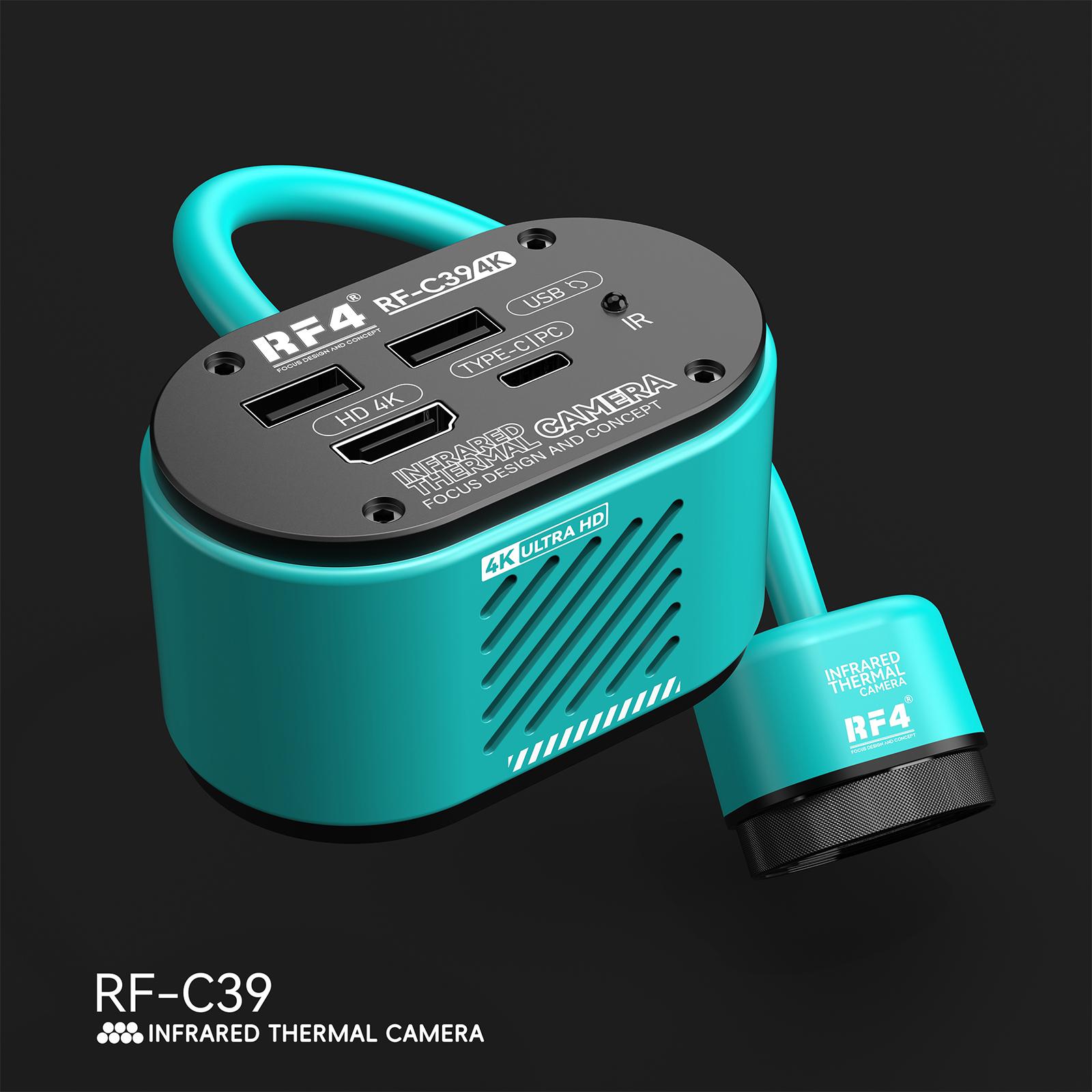

RF4 RF-C39 2 in 1 4K Visible and Infrared Dual-Spectral Thermal Camera for PCB Fault Detector(Blue)

Product Description

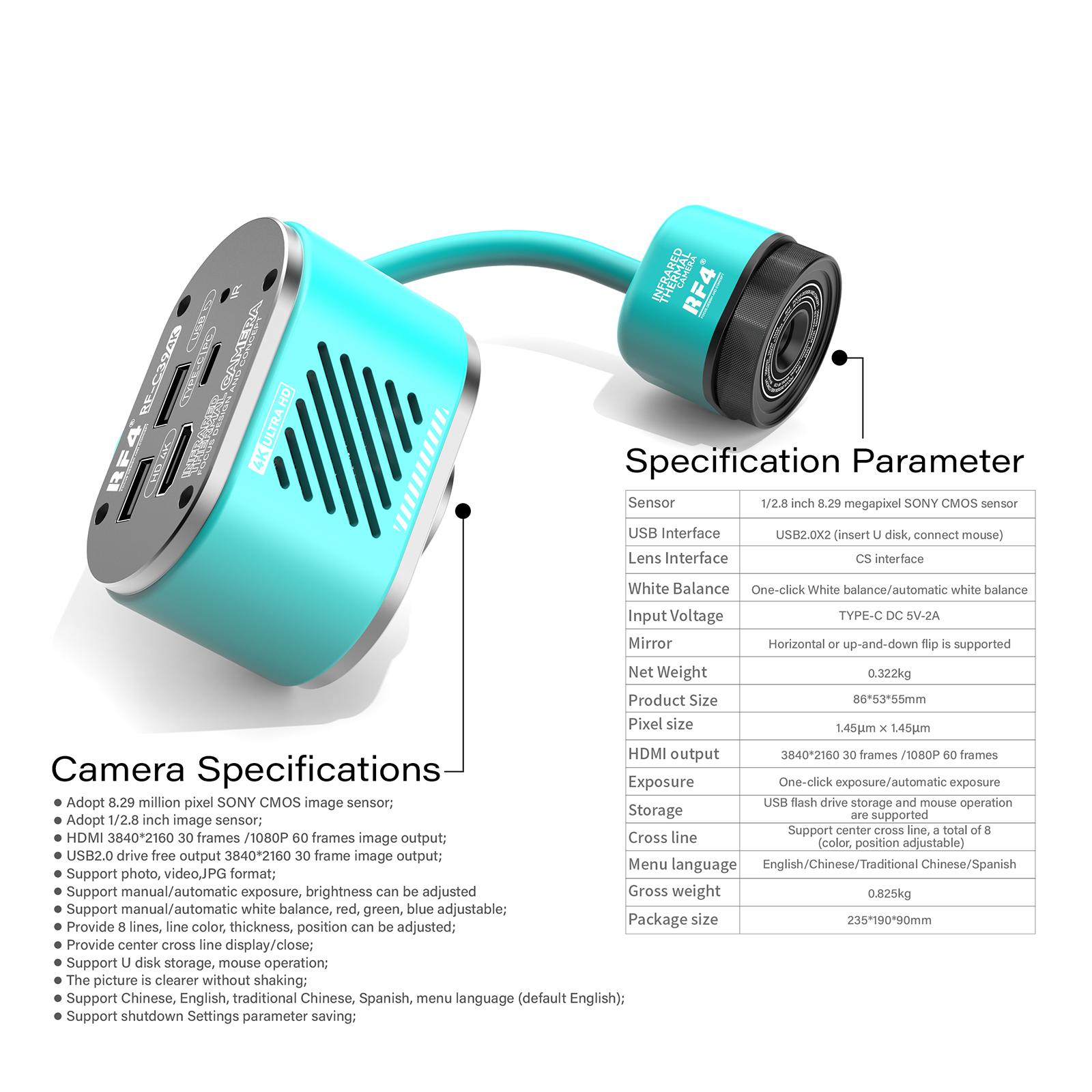

Features: 1. Adopt 8.29 million pixel SONY CMOS image sensor 2. Adopt 1/2.8 inch image sensor 3. HDMI 3840 x 2160 30 frames /1080P 60 frames image output 4. USB2.0 drive free output 3840 x 2160 30 frame image output 5. Support photo, video, JPG format 6. Support manual/automatic exposure, brightness can be adjusted 7. Support manual/automatic white balance, red, green, blue adjustable 8. Provide 8 lines, line color, thickness, position can be adjusted 9. Provide center cross line display/close 10. Support U disk storage, mouse operation 11. The picture is clearer without shaking 12. Support Chinese, English, Traditional Chinese, Spanish, menu language (default English) 13. Support shutdown Settings parameter saving Specification: 1. Sensor: 1/2.8 inch 8.29 megapixel SONY CMOS sensor 2. USB Interface: USB2.0 x 2 (insert U disk,connect mouse) 3. Lens Interface: CS interface 4. White Balance: One-click White balance/automatic white balance 5. Input Voltage: Type-C DC 5V-2A 6. Mirror: Horizontal or up-and-down flip is supported 7. Net Weight: 0.322kg 8. Product Size: 86 x 53 x 55mm 9. Pixel size: 1.45um x 1.45um 10. HDMI output: 3840 x 2160 30 frames /1080P 60 frames 11. Exposure: One-click exposure/automatic exposure 12. Storage: USB flash drive storage and mouse operation are supported 13. Cross line: Support center cross line, a total of 8 (color, position adjustable) 14. Menu language: English/Chinese/Traditional Chinese/Spanish Package Includes: Thermal Camera x 1

Specifications

SKU

EDA009536801A

Category

Mobile Parts › Repair Tools › Others

Weight

0.829 kg

Delivery

Standard delivery
