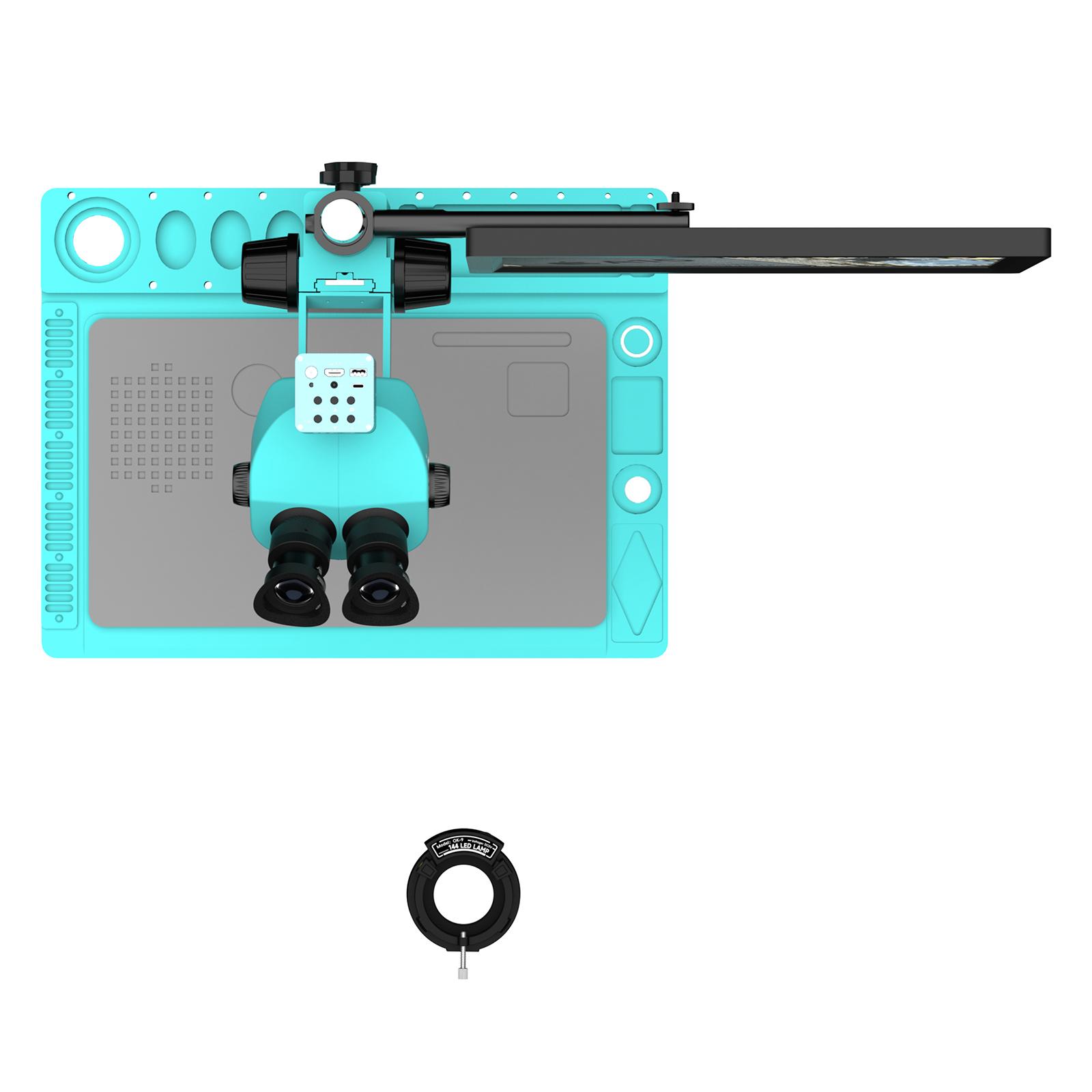

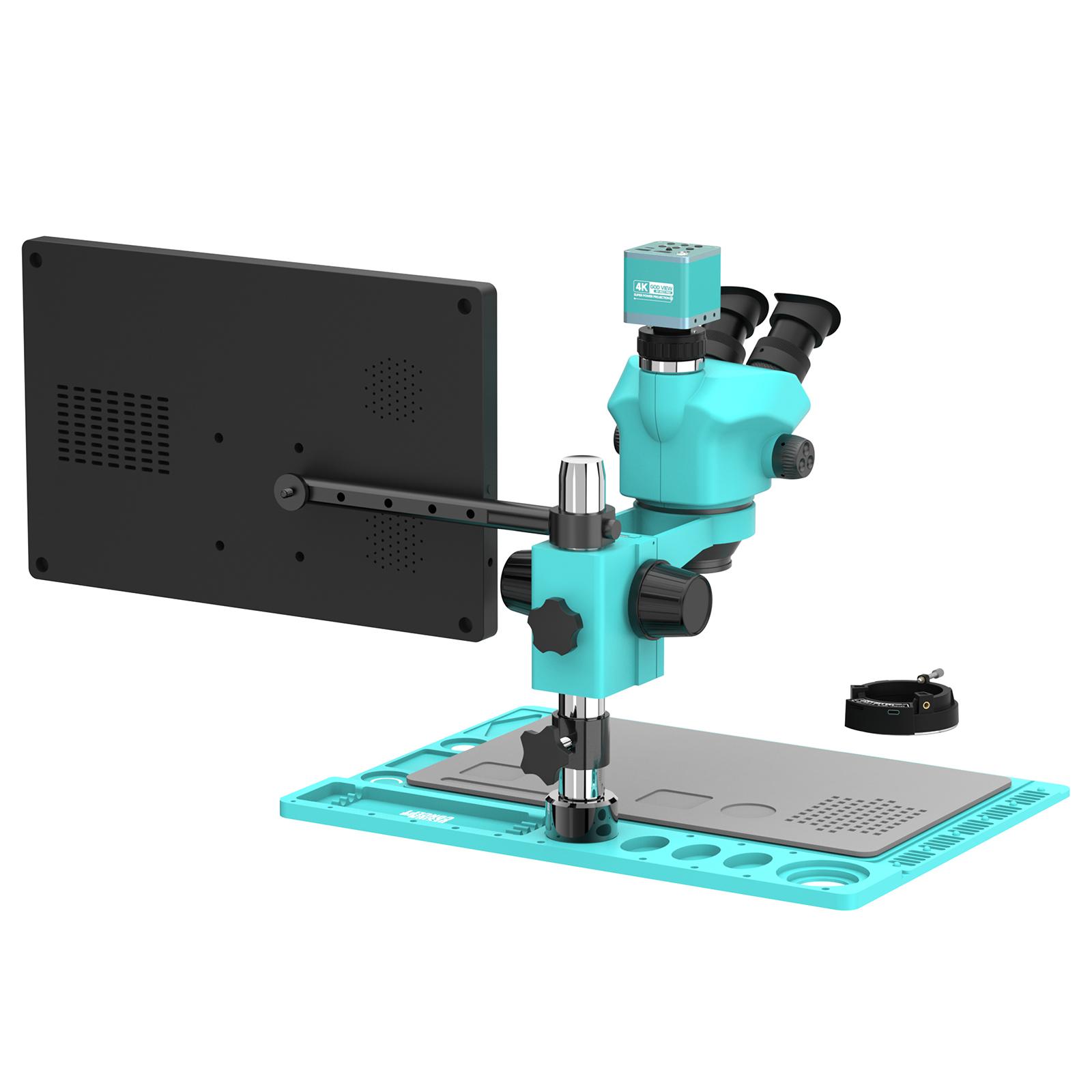

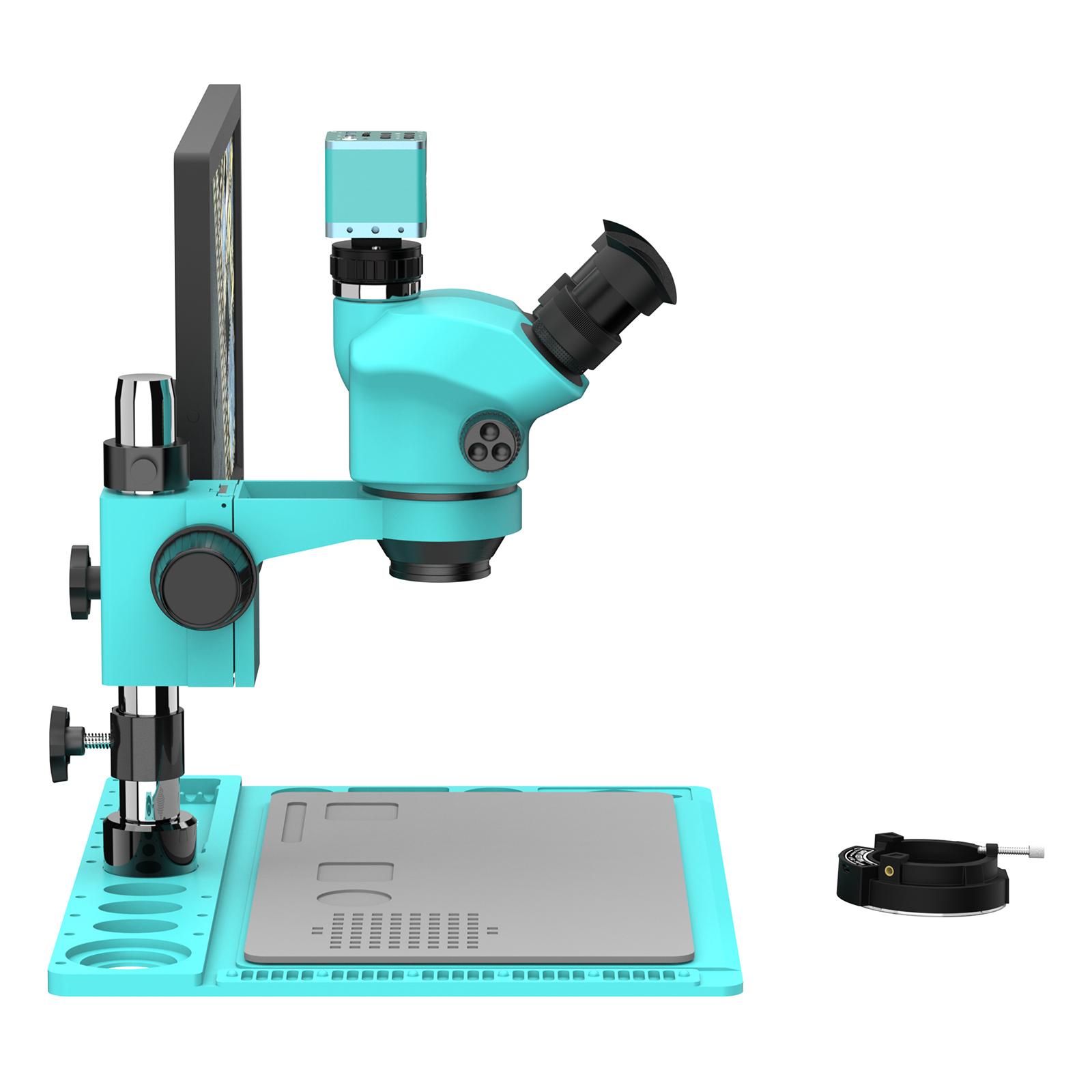

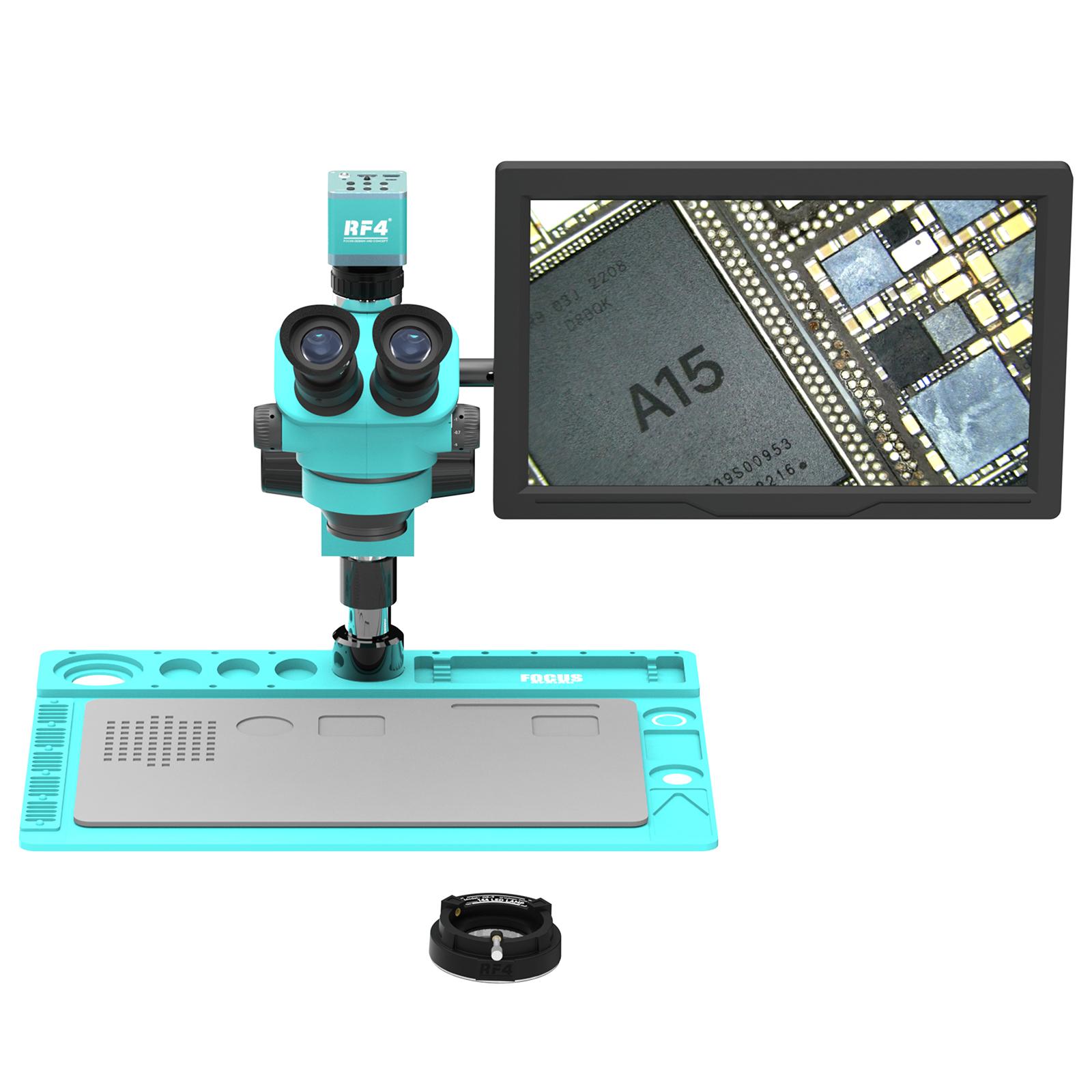

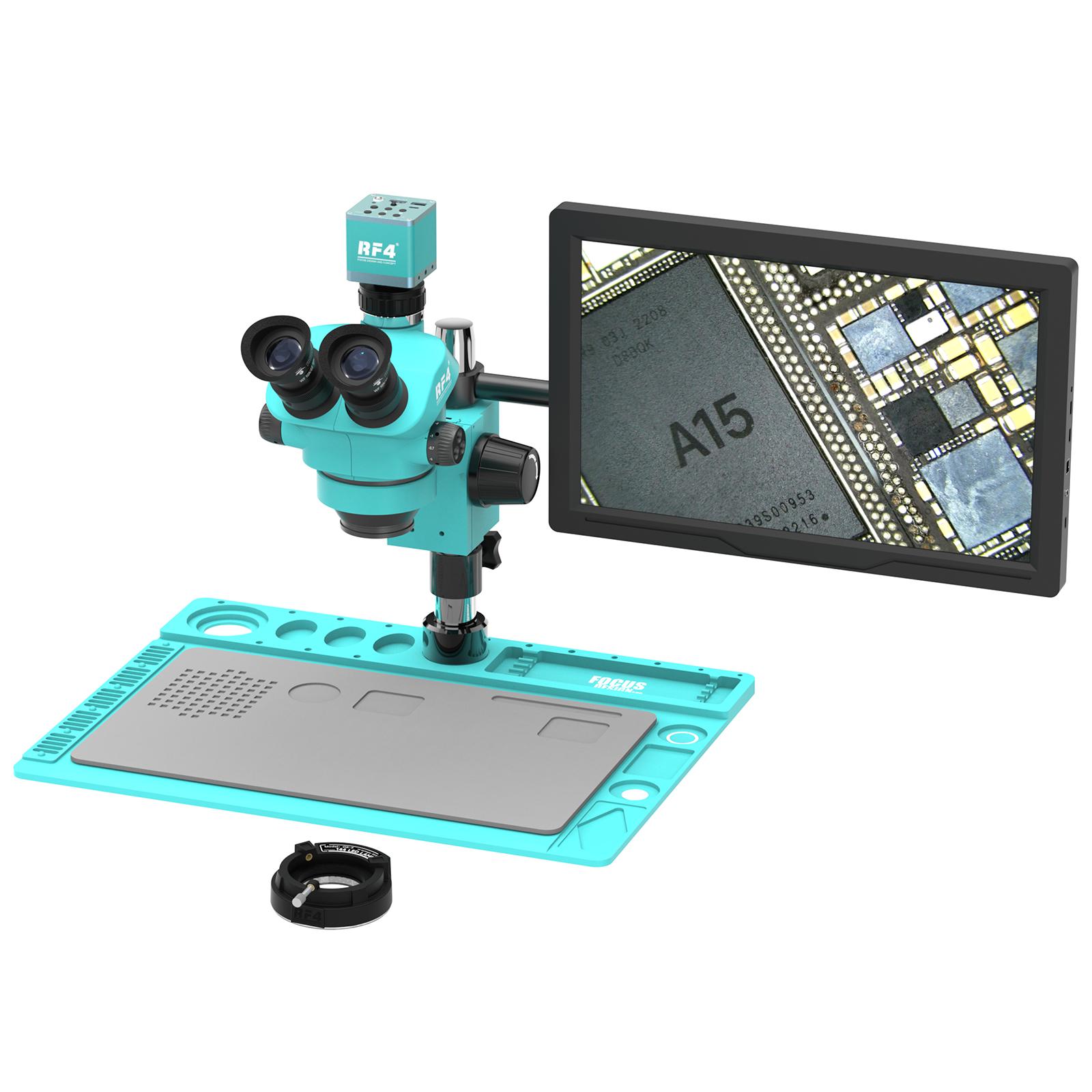

RF4 RF7050TVD2-4KC1-M156 7-50X Electronic Trinocular Microscope with 15.6-inch 4K Monitor & 4K Camera

Product Description

Specification: 1. Magnification: Continuous zoom 7X to 50X 2. Head: 45-degree inclined 360-degree swiveling trinocular 3. Eyepiece: WF10X/22MM 4. Objective: 0.7-5.0X 5. Camera connector: 0.5X 6. Camera: 4K camera 7. Monitor and eyepiece: Synchronous zoom 8. Stand: 410 x 300mm 9. Accessories: 144 adjustable led light & dust proof Lens 10. Monitor: 15.6-inch 4K ultra HD monitor Support Parameters: 1. Column aperture: 32mm 2. Lens aperture: 76mm 3. Center distance: 155mm 4. Lifting range: 50mm Base Parameters: 1. Base size: 410 x 300mm 2. Pillar: 240mm x 32mm 3. Silicone pad size: 330 x 198mm Wide-angle Eyepieces 10X/22: 1. Magnification: 10X 2. Wide field of view 22mm 3. Matching size : 30mm 4. Applicable models: Stereoscopic, fixed and continuous magnification microscopes 0.5X CTV Len: 1. The material is all metal, the black part is aluminum alloy, and the silver part is copper chrome-plated bayonet 2. The adapter ring can use LCD to focus, this kind of focus method is manual focus 3. The adapter has a transparent mirror inside, which can help the microscope display and the other display to achieve synchronous zooming Monitor: 1. 15.6-inch 4K ultra HD monitor 2. Resolution ratio: 3840 x 2160 30Hz 3. Support for input resolution: 3840 x 2160 30Hz; 1920 x 1080 60Hz 4. Proportion of the screen: 16:9 144 LED Ring Light: 1. Input: AC 100~240V 50/60Hz 2. Output: DC 12V, Max 700mA 3. Number of lights: 144 LEDs 4. Inside diameter: 60mm Package includes: 1. Microscope x 1 2. Aluminum Alloy Plate 3. 144 LED Light x 1 4. Silicone Pad x 1 5. Dustproof lens x 1 6. 0.5X CTV Lens x 1 7. Display x 1 8. 4K CCD Camera x 1

Specifications

SKU

SPT4250

Category

Mobile Parts › Repair Tools › Microscope Magnifier Series

Weight

8.504 kg

Delivery

Standard delivery
