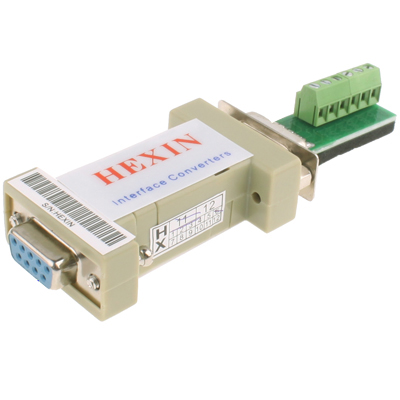

RS-232 to RS-422/ RS-485 Data Converter

Product Description

1) Serial port feature: Concurrently compatible with RS-232C, RS-485/RS-422 standard of EIA/TIA 2) Electric interface: RS-232 interface is DB9 interface (female). RS-485/RS-422 interface is DB9 interface (male), or RJ-45 interface. DB9 needle (male) interface can adapt to patch panel, and through binding post it is convenient to wire routing 3) Protection rate: 600W surge protection 4) Signal indication: Indicator lights TXD,RXD,POWER 5) Work methods: RS-422 asynchronous full duplex. RS-485 asynchronous half duplex 6) Transmission media: RS-485 is using a pair of twisted pairs, R-422 is using a pair of twisted pair 7) Transmission distance: 0-5,000M (115200bps~9600bps) 8) Work environment: -25C to 70°C, relative humidity: 5% to 95% 9) Power Input: DC 9V/350mA

Specifications

SKU

S-PC-0235

Category

Computer & Networking › Computer Cables & Connectors › RS485 / RS232 Series

Weight

0.105 kg

Delivery

Standard delivery
