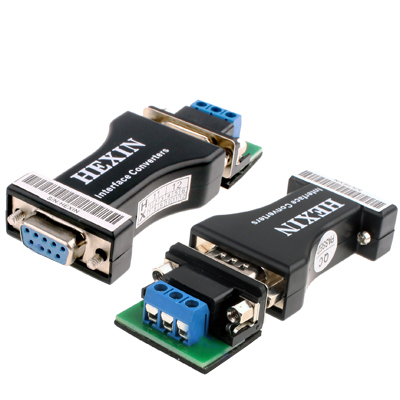

RS-232 to RS-485 Data Communication Converter

Product Description

1) Serial port feature :Concurrently compatible with RS-232C, RS-485 standard of EIA/TIA 2) Electric interface: Db9 hole interface of RS-232C end, DB9 pin connector of RS-485 end, compatible with post 3) Work methods: asynchronous half duplex 4) Transmission media: common wire, double wire or UTP or shielding Line 5) Transmission distance: 5 meters (RS-232 end) 1.200 meters (RS-485 end) 6) Work environment: -10°C to 85°C, relative humidity: 5% to 95% 7) Signals: RS-232: TXD, RXD, RTS, CTS, DTR, DSR, DCD, GND; RS-485: Date+, Date-, GND 8) Transfer rate: 300-115200BPS

Specifications

SKU

S-PC-0234

Category

Computer & Networking › Computer Cables & Connectors › RS485 / RS232 Series

Weight

0.05 kg

Delivery

Standard delivery
