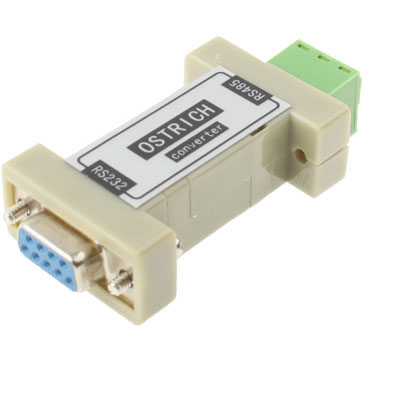

RS232 to RS485 Industrial Data Converters

Product Description

1. Serial Features: Interface is compatible with EIA / TIA RS - 232C , RS - 485 standard 2. Electrical Interface: RS -232C end D89 pass port, RS - 485 terminal D89 needle -shaped connector, with the terminal ( three wires) 3. Work: Synchronous half-duplex 4. Transmission media: wire, twisted pair or shielded cable 5. Transfer rate: 300 - 115200BPS 6. Transmission distance : 5m ( RS -232 terminal), 1200m (RS - 485 side ) 7. Communication protocols: Transparent 8. Working environment: -10 - 85 degrees Celsius;relative humidity: 5% - 95% 9. Signal - RS-232 : the TXD , RXD , RTS, the CTS, DTR, DSR, DCD, GND; - RS-485 : Date+, Date-, GND 10. Size: 7x3.5x1.3cm 11. Weight: 22g

Specifications

SKU

S-PC-0242

Category

Computer & Networking › Computer Cables & Connectors › RS485 / RS232 Series

Weight

0.102 kg

Delivery

Standard delivery
