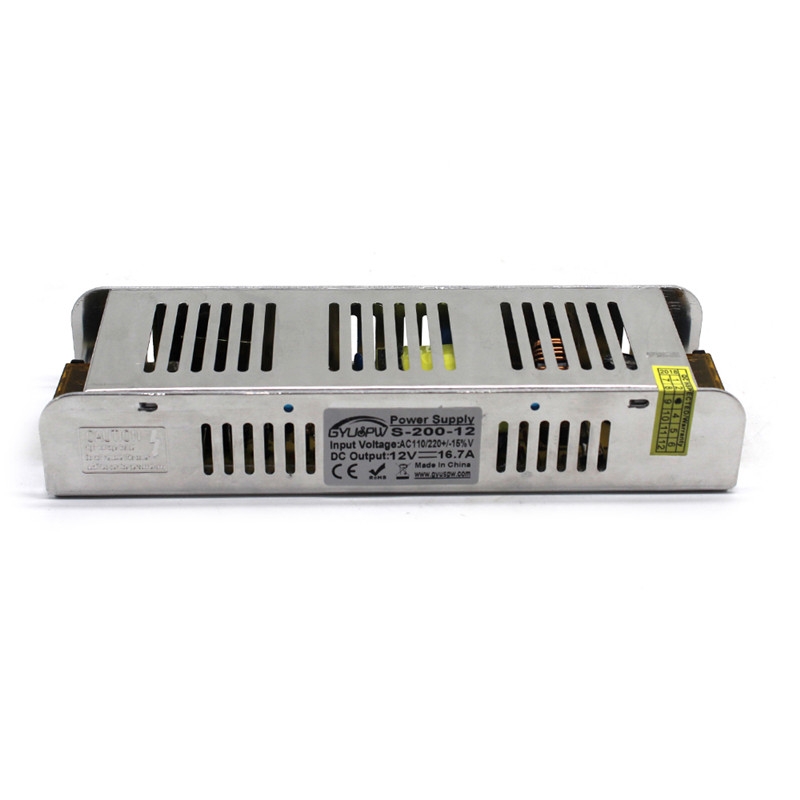

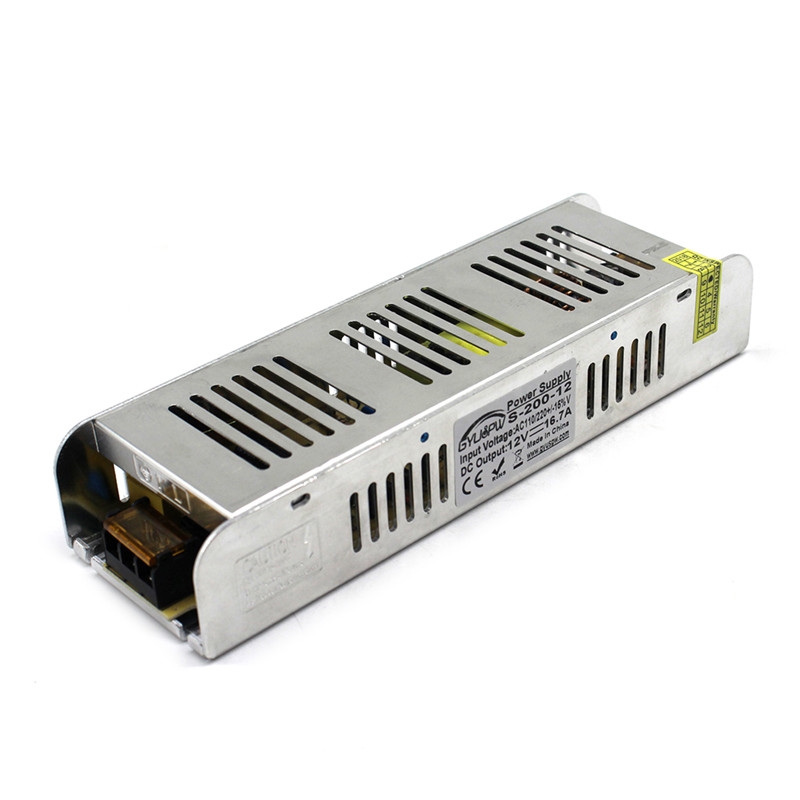

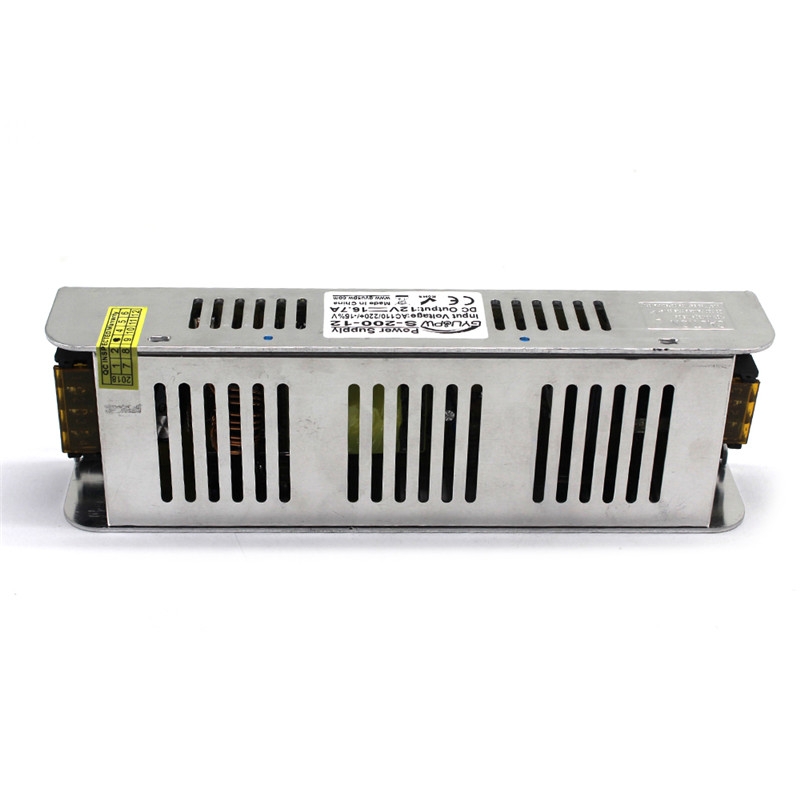

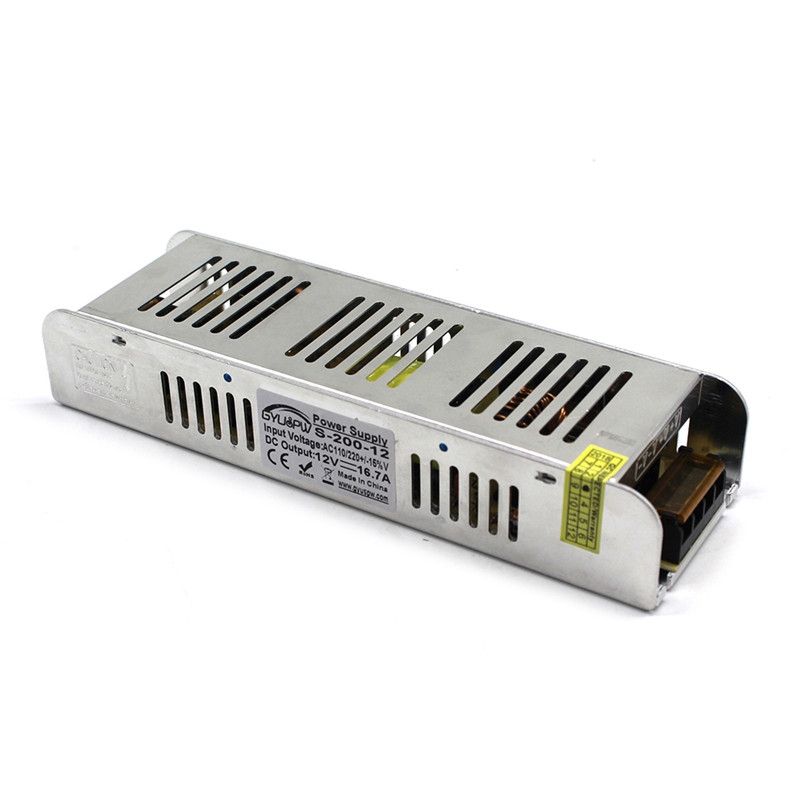

S-200-12 DC12V 200W 16.7A DIY Regulated DC Switching Power Supply

Product Description

1. Stable transformer inductor, all-copper coil, fast heat dissipation. 2. High-capacity electrolytic capacitor, high temperature resistance of 105 degrees Celsius, long working time under full load, stable operation and long life. 3. Filter ring capacitors, the circuit work is more stable, and the interference of variable pulsation ripples to the electronic circuit is reduced at the same time. 4. Large mA fuse to effectively protect the circuit. 5. Parameters: Input voltage: AC110-220V Output voltage: DC12V Current: 16.7A Power: 200W Max Efficiency: more than 80% Output adjustable voltage range: +/-5% Frequency: 50-60Hz Leakage current: less than 1mA/230V Temperature coefficient: +/-0.03%/degree Celsius (0~50 degrees Celsius) Start, rise, hold time: 200ms, 50ms, 20ms Shock resistance: 10～500Hz, 2G 10min, /1 cycle, duration 60 minutes, each axis Protection: Overload, overvoltage, overcurrent, short circuit protection Voltage resistance Between input and output: 1.5KvAC input and shell; 1.5KvAC output and shell; 0.5KvAC Working temperature and humidity: -10~+60 degrees Celsius, 20%~90%RH Storage temperature and humidity: -20~+85 degrees Celsius, 10%~95%RH Dimensions: 224x71x40mm Weight: 0.45KG

Specifications

SKU

EDA003661501

Category

In Car › Power Inverter › Step-down Transformer

Weight

0.579 kg
