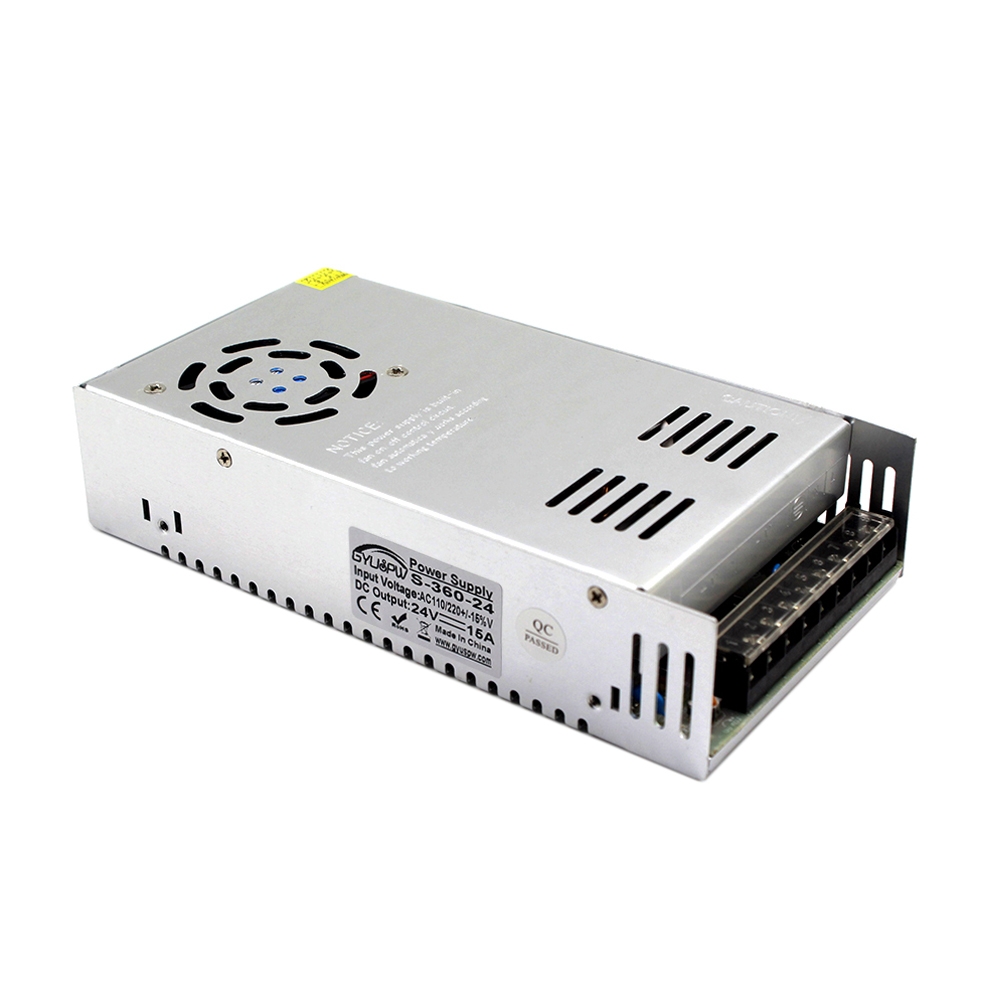

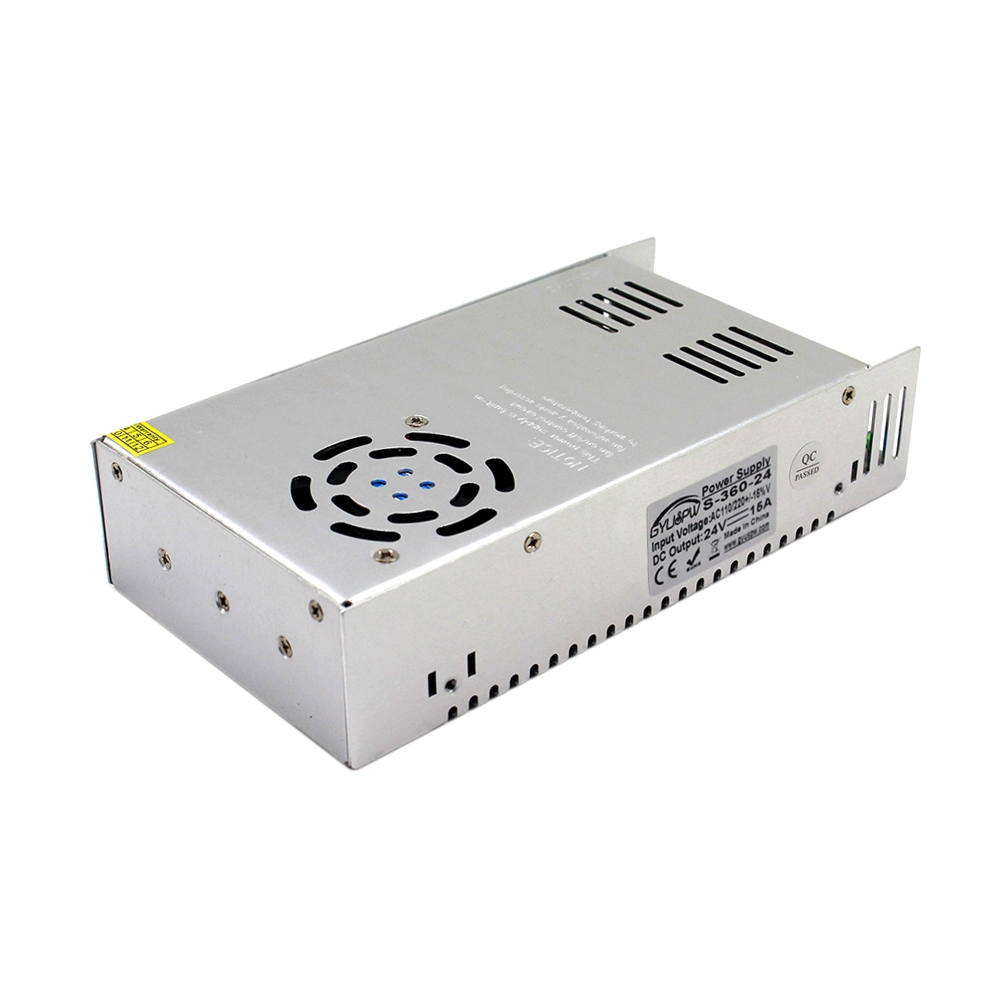

S-360-24 DC24V 15A 360W Light Bar Regulated Switching Power Supply LED Transformer, Size: 215 x 115 x 50mm

Product Description

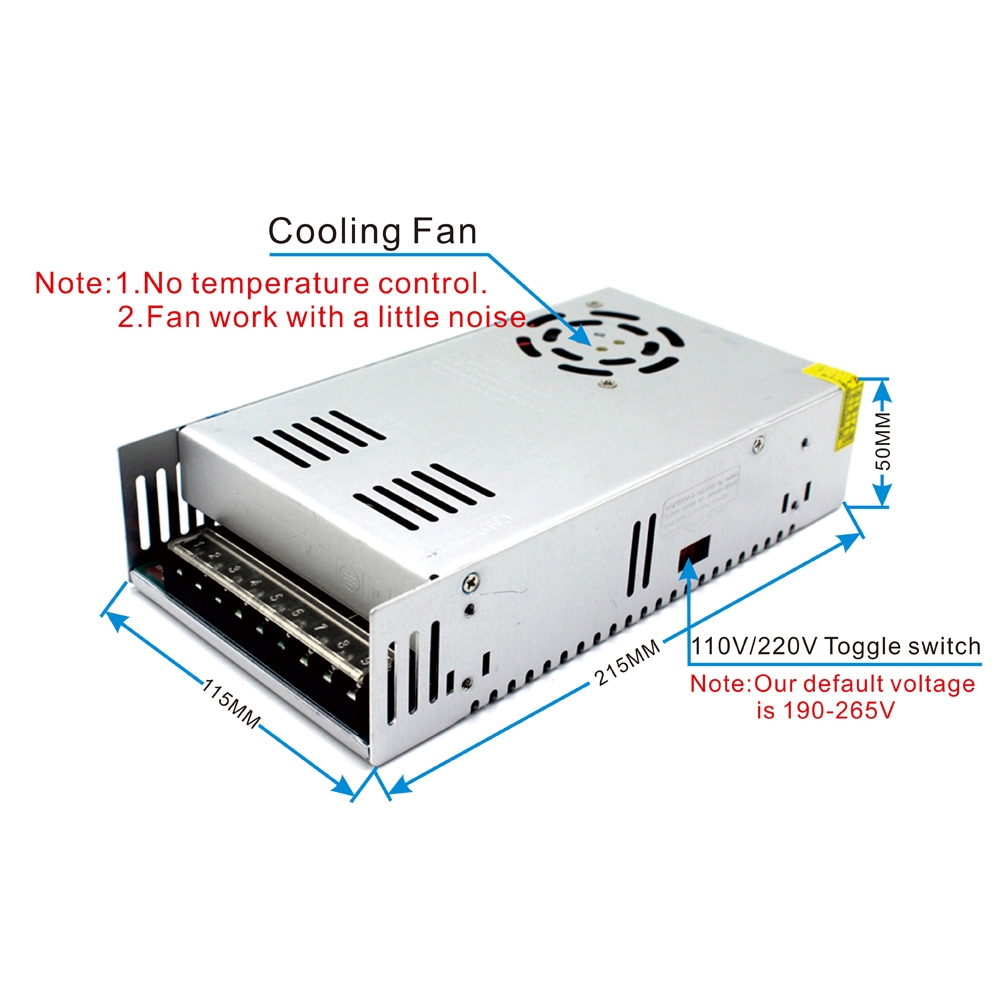

1. All products have passed the full power aging test to provide safety and stability. 2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product. 3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V) 4. Output voltage: DC24V 15A 5. Difference range: +/- 1% 6. Power: 360W 9. Output adjustable voltage range: +/- 5% 10. Frequency: 50-60Hz 11. Leakage current: less than 1mA / 230V 12. Temperature coefficient: +/- 0.03%/degree Celsius 13. Start, rise, hold time: 200ms, 50ms, 20ms 14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis 15. Protection: overload, overvoltage, overcurrent, short circuit 16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC 17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH 18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH 19. Dimensions: 215 x 115 x 50mm

Specifications

SKU

EDA002067711

Category

Home & Garden › LED Accessories › Power Supplies

Weight

0.717 kg

Delivery

Standard delivery
