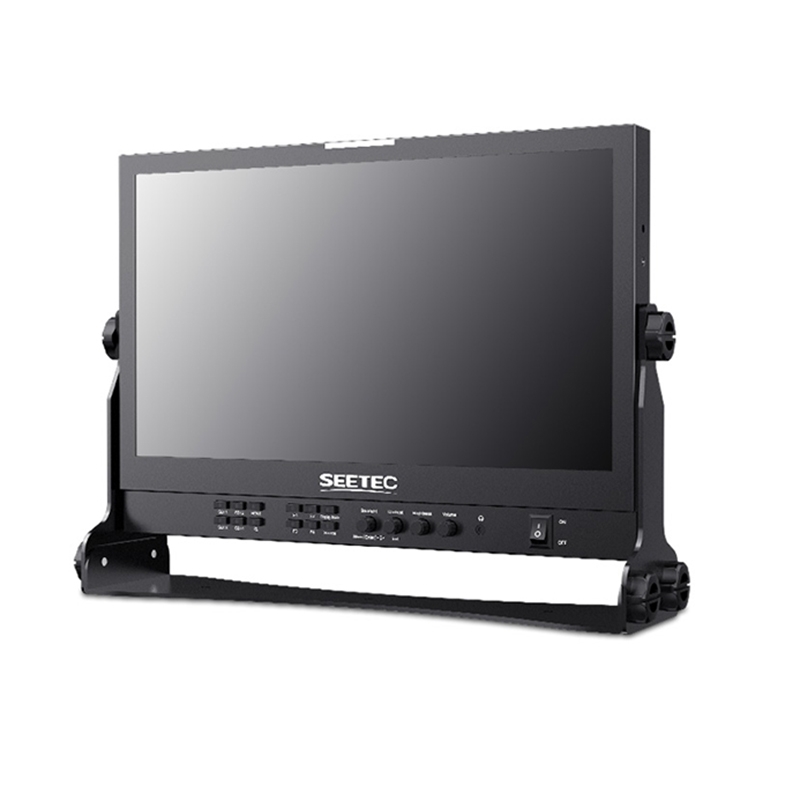

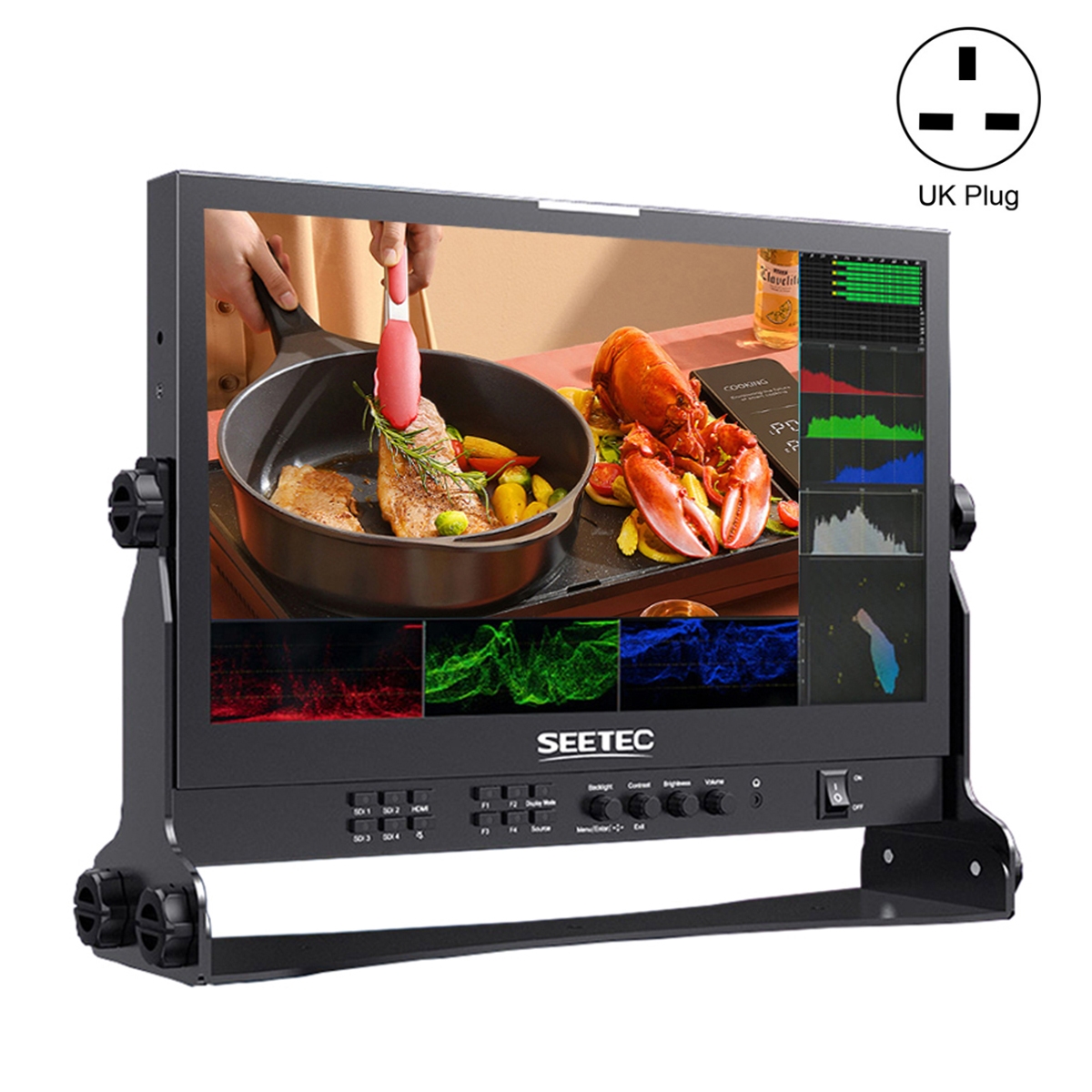

SEETEC ATEM156S 15.6 inch 3G-SDI HDMI Full HD 1920x1080P Multi-camera Broadcast Monitor(UK Plug)

Product Description

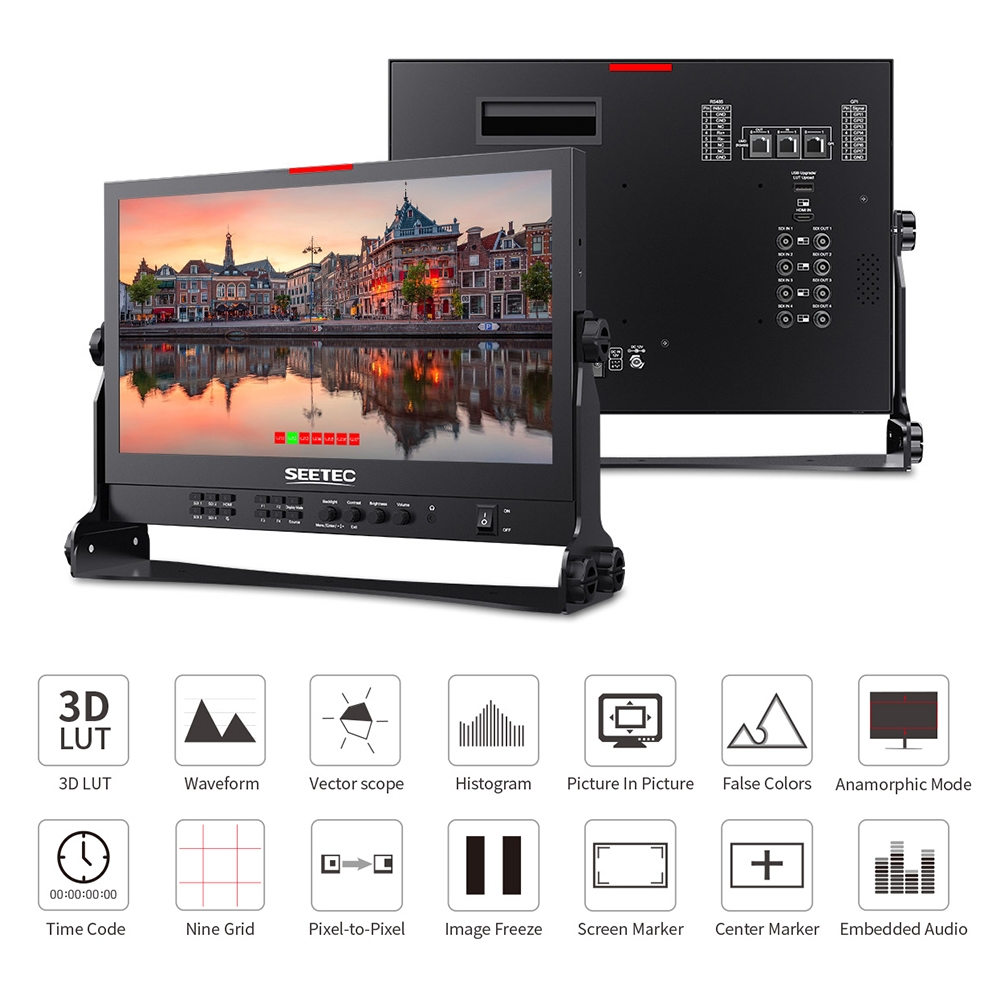

Features 1. Built-in Multi camera Delog LUTs 2. User 3DLUTs upload via USB (up to 36) 3. Support GPI control 4. Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol 5. Support TALLY 6. Support 16-ch embedded audio meters display 7. Histogram 8. HDR 9. Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus) 10. False Colors 11. Zebra (70IRE, 80IRE, 90IRE) 12. Timecode Display 13. Picture in Picture (Adjustable Horizontal or Vertical Wipe Position) 14. Under Scan, Over Scan 15. Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag) 16. Pixel to Pixel 17. Center Marker 18. Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user) 19. Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1) 20. All Waves 21. Parade (RGB Parade, Y, YUV Parade) 22. Image Freeze 23. Selectable Color Temperature Presets Specifications Display Screen 1. Model: ATEM156S 2. Screen Size: 15.6 inch IPS 3. Color Depth: 16.7M 4. Resolution: 1920 x 1080 pixels 5. Pixel pitch: 0.17925(W) x 0.17925(H) mm 6. Aspect Ratio: 16:9 7. Brightness: 200cd/m2 8. Contrast Ratio: 800:1 9. Backlight: LED 10. Viewing Angle: 85 degrees /85 degrees (L/R) 85 degrees /85 degrees (U/D) Input 1. 4 x 3G-SDI: 3G-SDI (support 2K) 2. 1 x HDMI: HDMI (support 1080P) 3. 1 x RS485: RS485 4. 1 x GPI: GPI 5. 1 x USB: USB (upgrade and LUT import) Output 1. 4 x 3G-SDI: 3G-SDI (support 2K) 2. 1 x RS485: RS485 Audio - Audio: Stereo Headphone SDI Support Format: - 720p (60/59.94/50/30/29/25/24/23.98) - 1080i (60/59.94/50) - 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) - 2048x1080i (60/59.94/50) - 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) HDMI Support Format: - 480i/576i/480p/576p - 720p (60/59.94/50/30/29.97/25/24/23.98) - 1080i (60/59.94/50) - 1080p (60/59.94/50/30/29.97/25/24/23.98) General 1. Input Voltage: DC 12V 2. Power Consumption: Less than or equal to 21W 3. Working Temperature:0 degree C~50 degree C 4. Storage Temperature:-20 degree C~60 degree C 5. Unit Size: 372L x 262H x 28.4D (mm) (W/O bracket) 6. Unit Weight: 1.81kg Package List 1. Monitor x 1 2. SDI Cable x 1 3. Mini HDMI Cable x 1 4. V-mount Battery Plate (default to mount on device) x 1 5. Sunshade x 1 6. U-shape Bracket x 1 7. Power Adapter x 1 8. User Manual x 1

Specifications

SKU

DCA1818UK

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

3.504 kg
