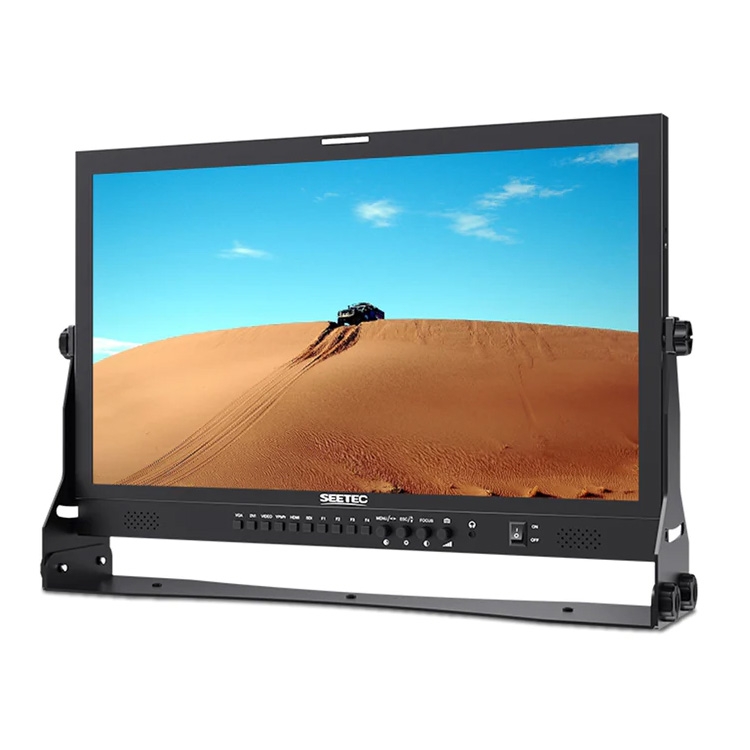

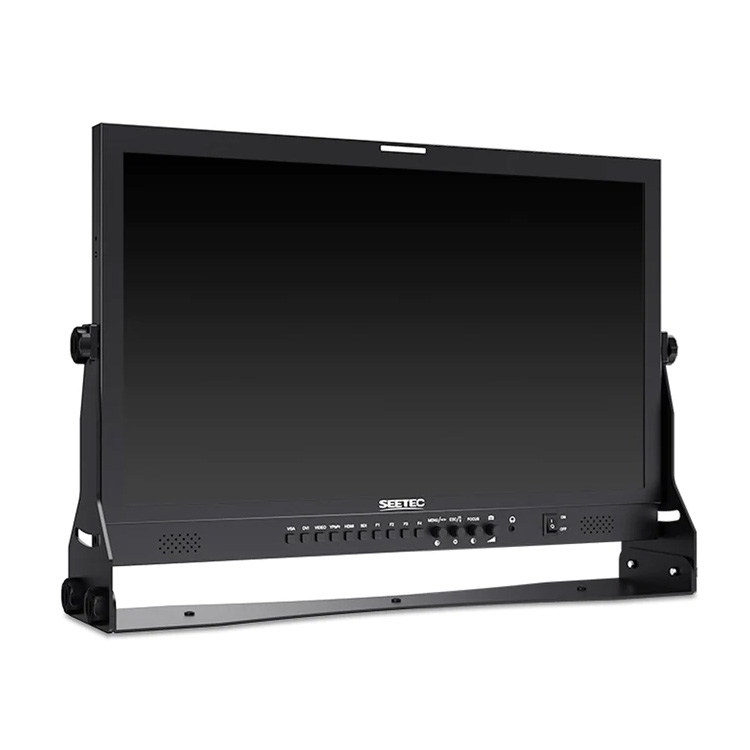

SEETEC P238-9HSD 23.8 inch 1920x1080 IPS Full HD 3G-SDI 4K HDMI Pro Broadcast LCD Monitor(UK Plug)

Product Description

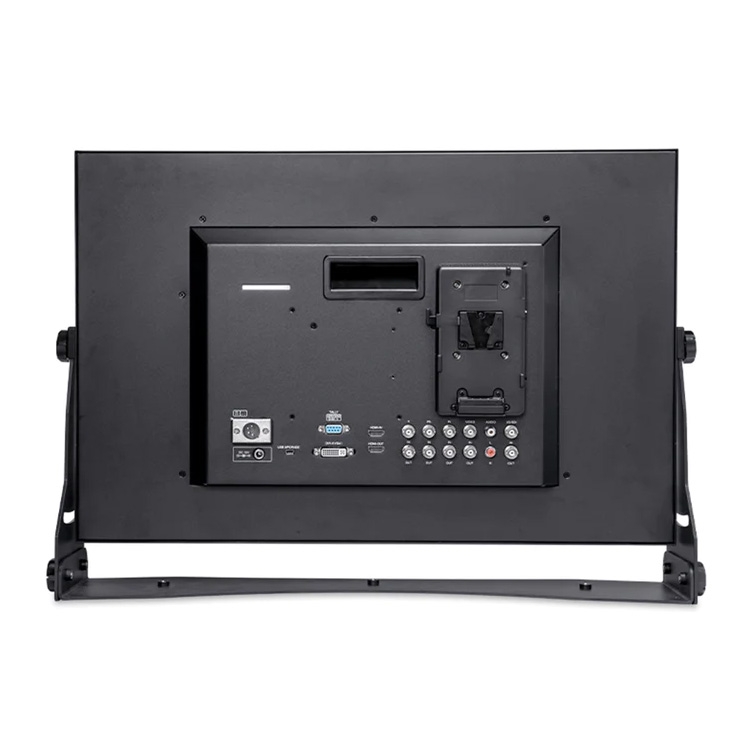

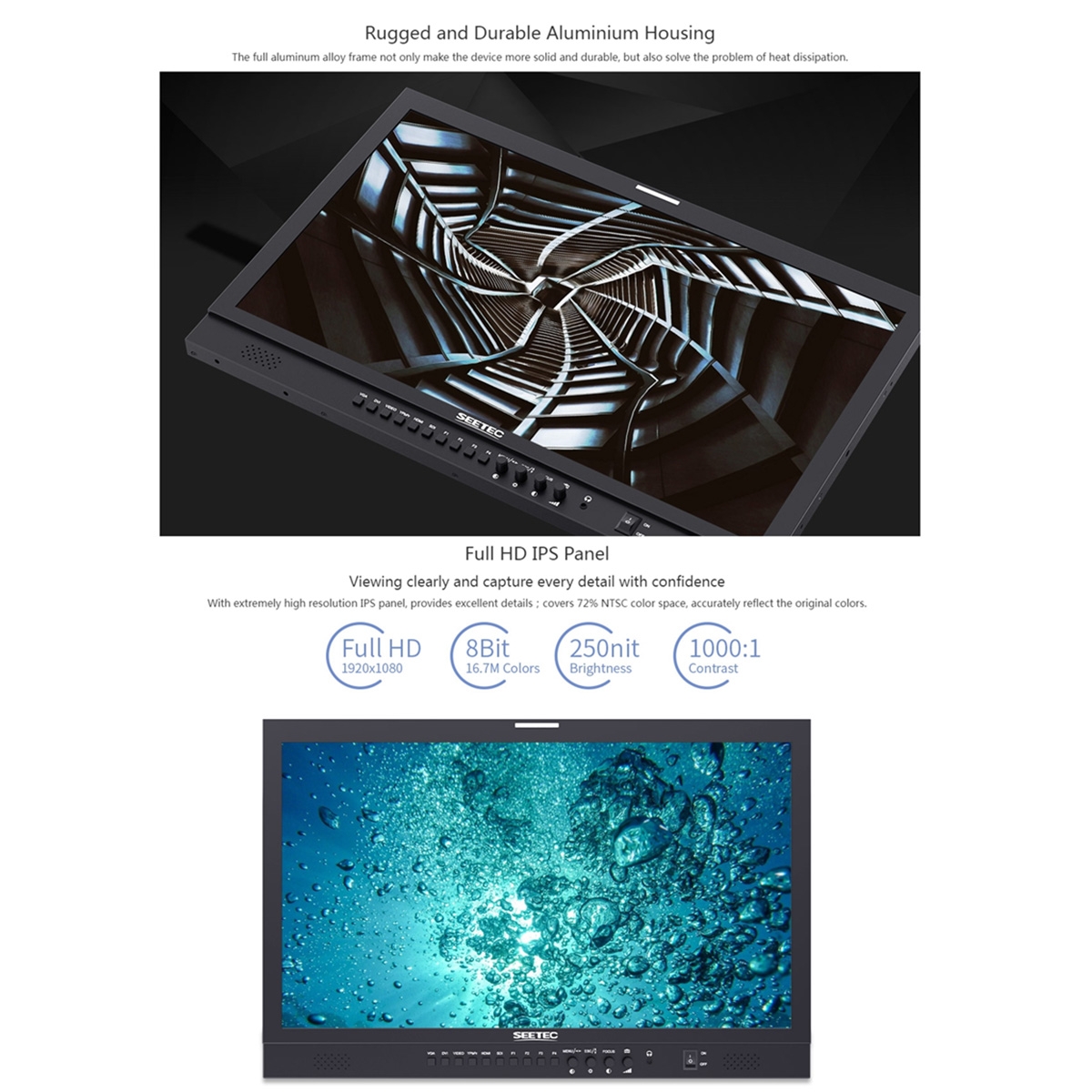

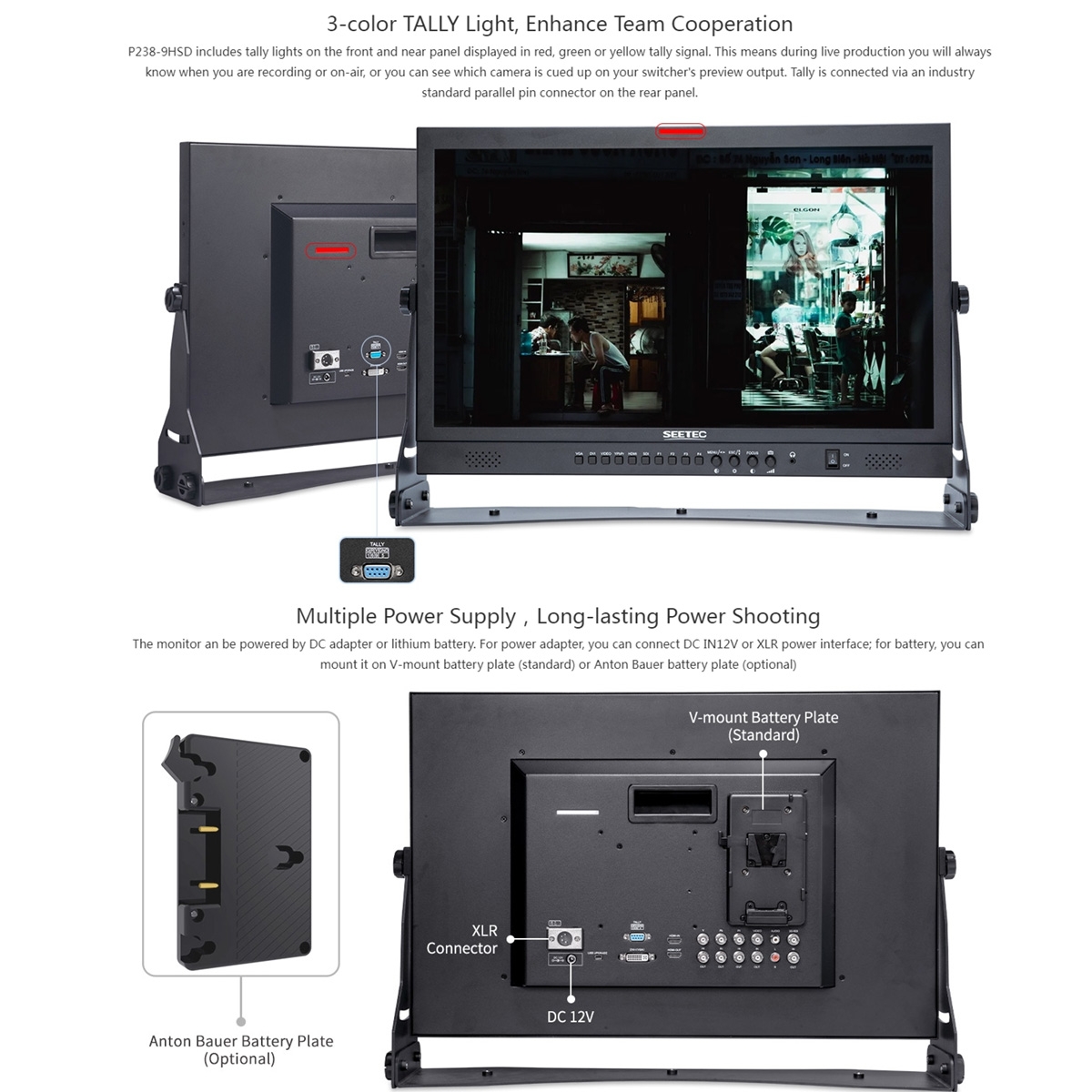

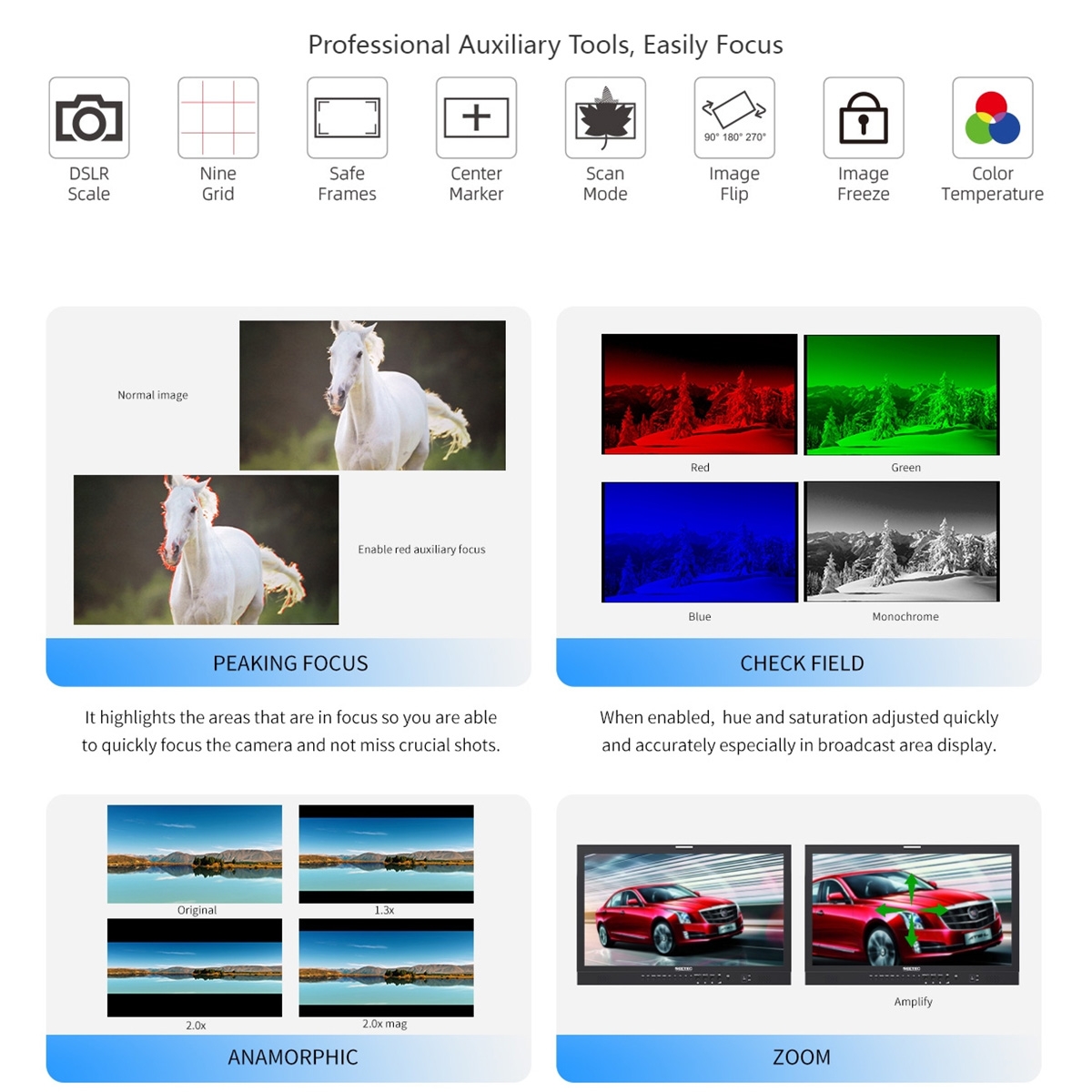

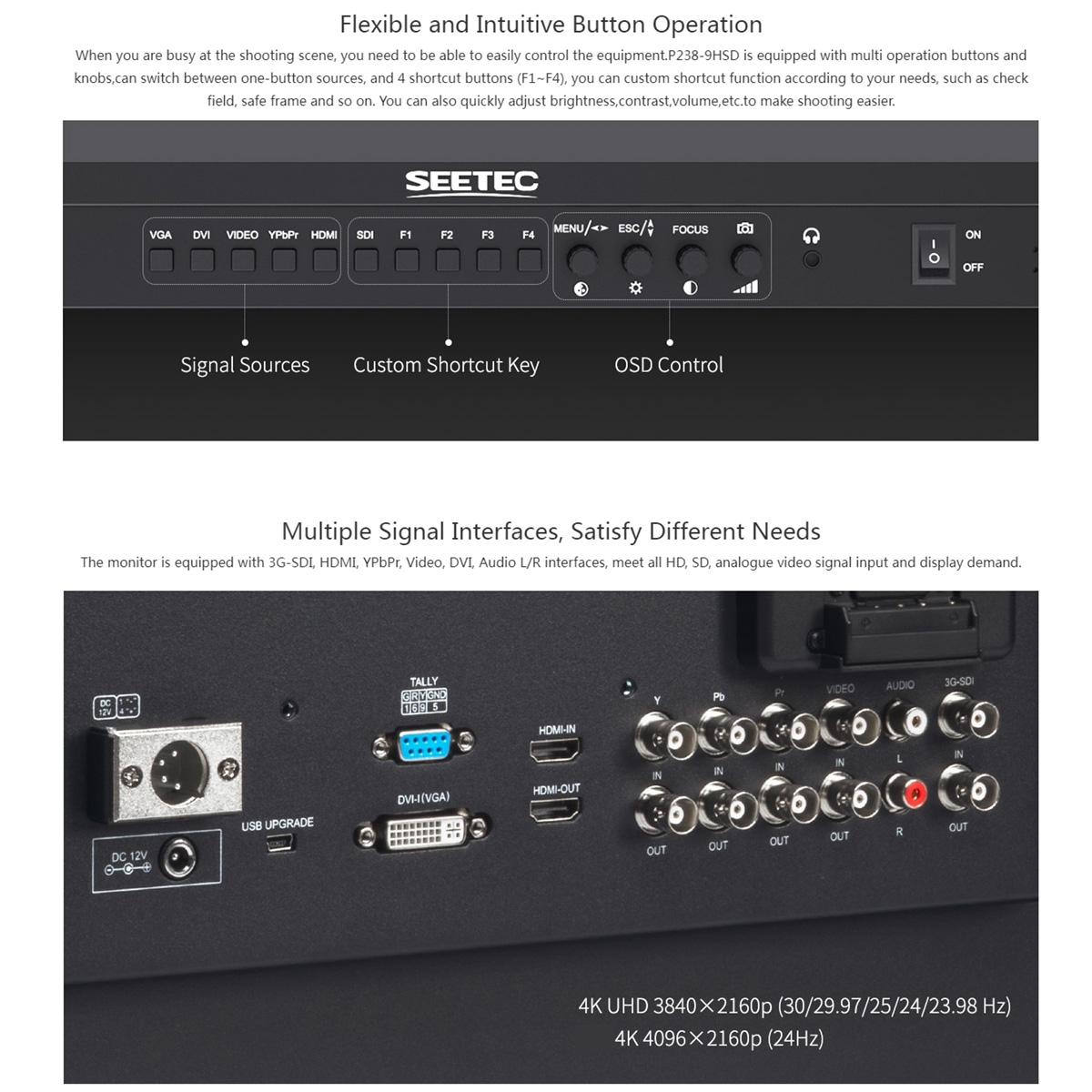

Features: 1. Wide view angle, Full HD 1920x1080, bright, colorful display 2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs 3. Special Features: - Peaking Focus Assist (Red highlight over parts of the monochrome image in focus) - Check Field (Red, Green, Blue, Mono) - Camera Mode - Pixel to Pixel - Center Marker - Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) - Image Flip (Horizontal, Vertical, Hor&Ver) - Image Freeze - Zoom All - U/D & L/R Zoom 4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker 5. Built-in LED tally indicators (Red, Green, Yellow) 6. Power using included 12-volt supply or use standard 4-pin XLR Specifications: Display Spec. 1. Model: P238-9HSD 2. Screen Size: 23.8 inch IPS 3. Color Depth: 16.7M (8-bit) 4. Resolution: 1920x1080 pixels 5. Pixel Pitch: 0.2745 (H) x 0.2745 (V)mm 6. Aspect Ratio: 16:9 7. Brightness: 250cd/m2 8. Contrast Ratio: 1000:1 9. Backlight: LED 10. Viewing Angle: 89degrees/89degrees/(L/R); 89degrees//89degrees/(U/D) Input - 1 x BNC: 3G-SDI - 1 x HDMI: HDMI - 3 x BNC: YPbPr - 1 x DVI-I: DVI-I - 1 x BNC: Video - 2 x RCA: Audio(L/R) Output - 1 x BNC: 3G-SDI - 1 x HDMI: HDMI - 3 x BNC: YPbPr - 1 x BNC: Video Audio - Audio: Stereo Headphone, Speaker SDI Support Format - 480i/576i - 720p(60/59.94/50/30/29/25/24/23.98) - 1080i(60/59.94/50) - 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) HDMI Support Format - 480i/576i/480p/576p - 1080i (60/59.94/50) - 720p (60/59.94/50/30/29/25/24/23.98) - 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) - 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz) Standard Accessories: 1. Mini HDMI Cable x 1 2. V Battery Plate (default to mount on device) x 1 3. 3A Power Adapter x 1 4. Tally Kit x 1 5. U-shape Bracket x 1 6. Operation Manual x 1

Specifications

SKU

EDA005656401A

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

8.404 kg

Delivery

Standard delivery
