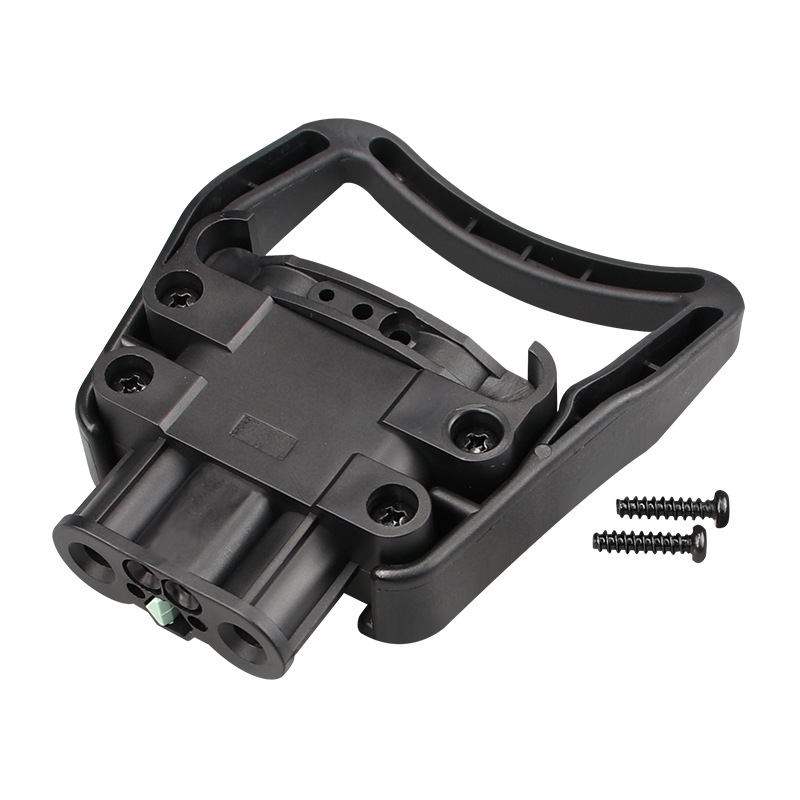

SHENGENDI SIN 80A 150V Forklift Charging Plug Battery Battery Power Current Connector(Female-end)

Product Description

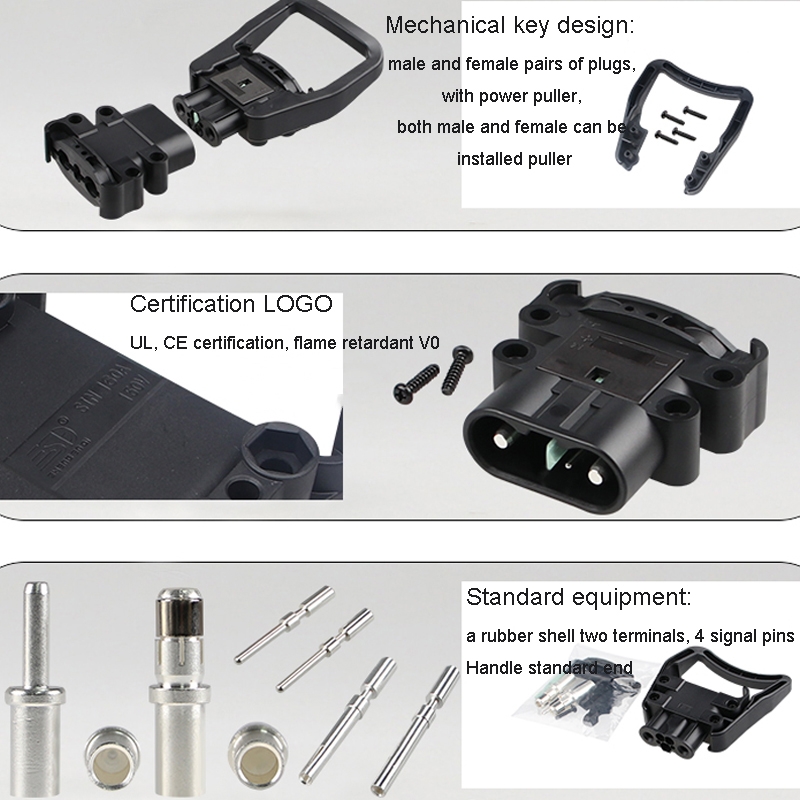

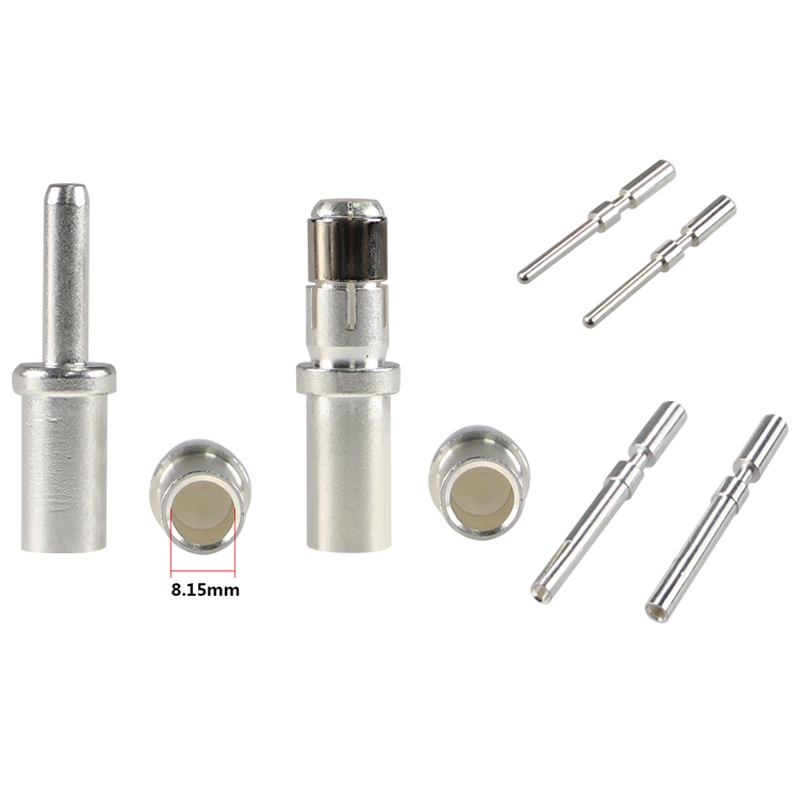

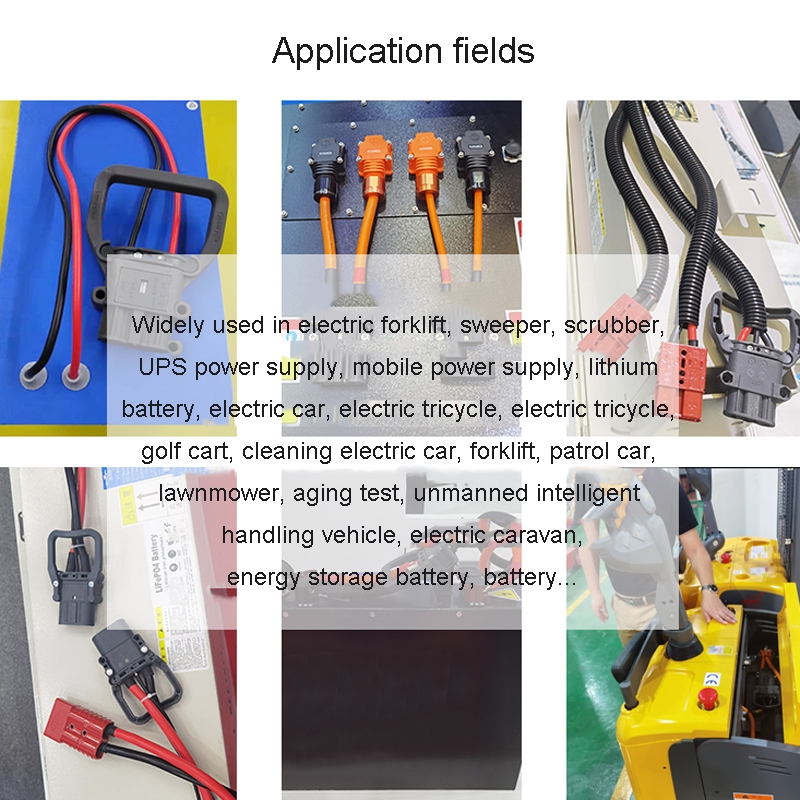

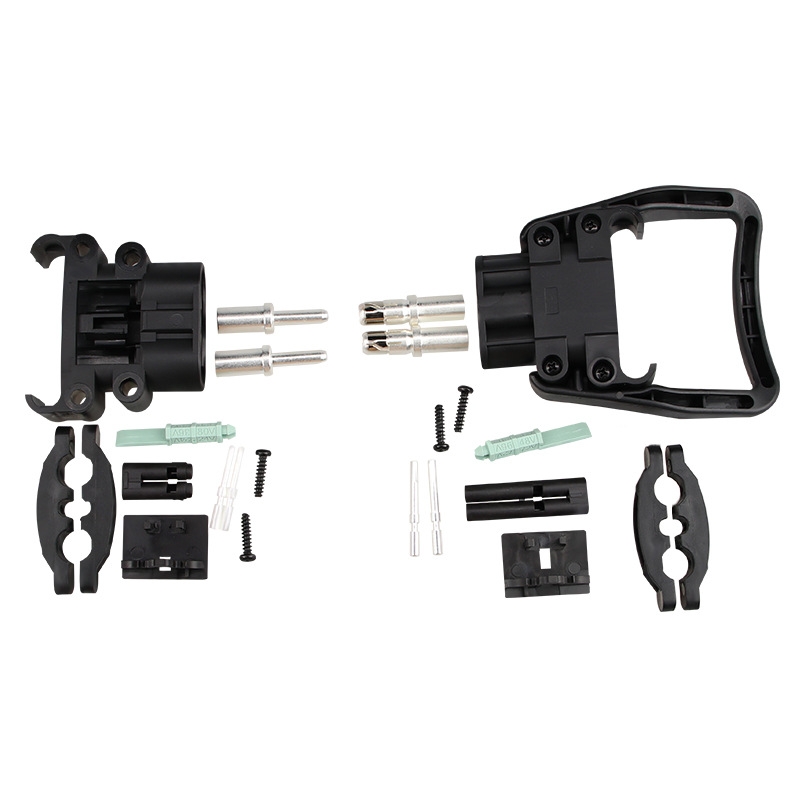

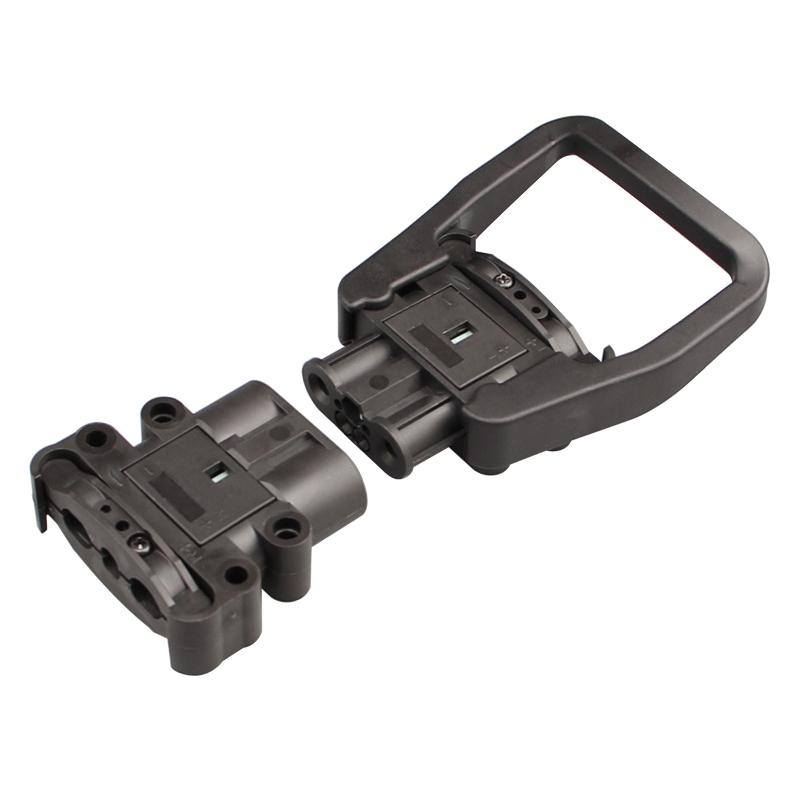

1. Shell material: PA6 94V-0 2. Contact material: silver-plated copper 3. Contact type: fixed contact 4. Cable introduction angle: 180 degrees 5. Flame retardant: UL 94V-0 6. Temperature resistance:-35-110 degree Celsius 7. Rated current: 80A 8. Rated voltage: 150V 9. Interface type: AC/DC 10. Application: forklift power supply, storage battery, lithium battery, lead-acid battery charging plugs 11. Mechanical key design, male and female plug, male and female can be installed on the pull handle, each end of the standard two terminals with four signal pins, with the help of the insertion and removal of the pull handle 12. Wire specification: 2.3mm-8.2mm

Specifications

SKU

TBD0604284801A

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.504 kg

Delivery

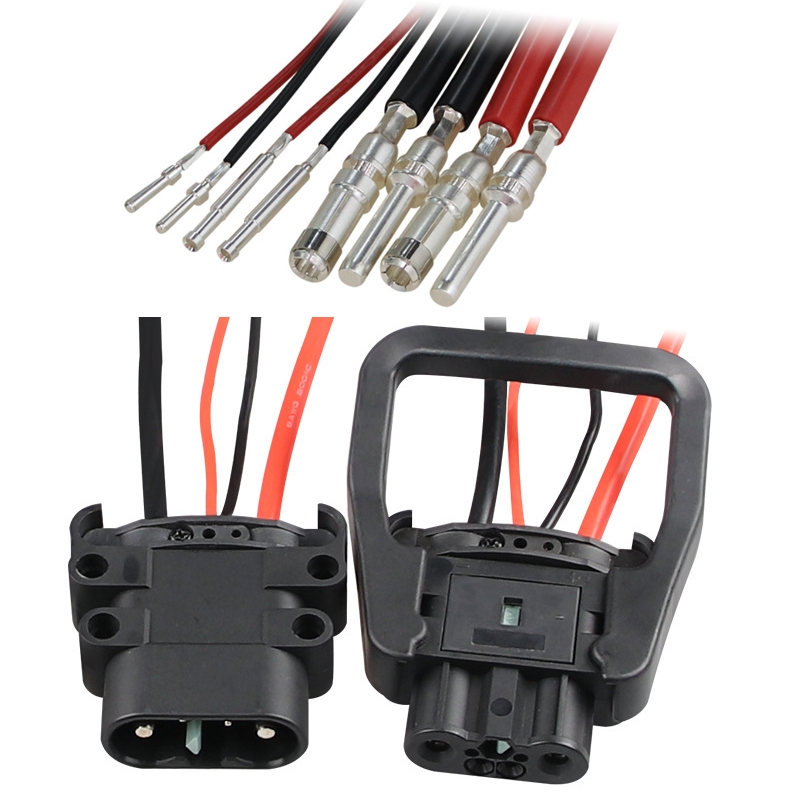

Standard delivery
