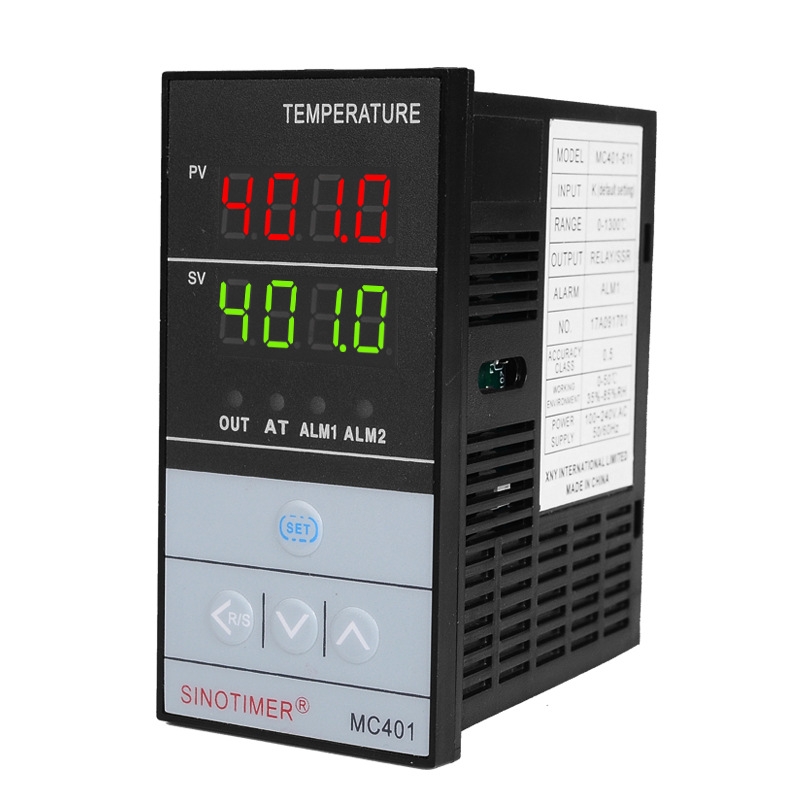

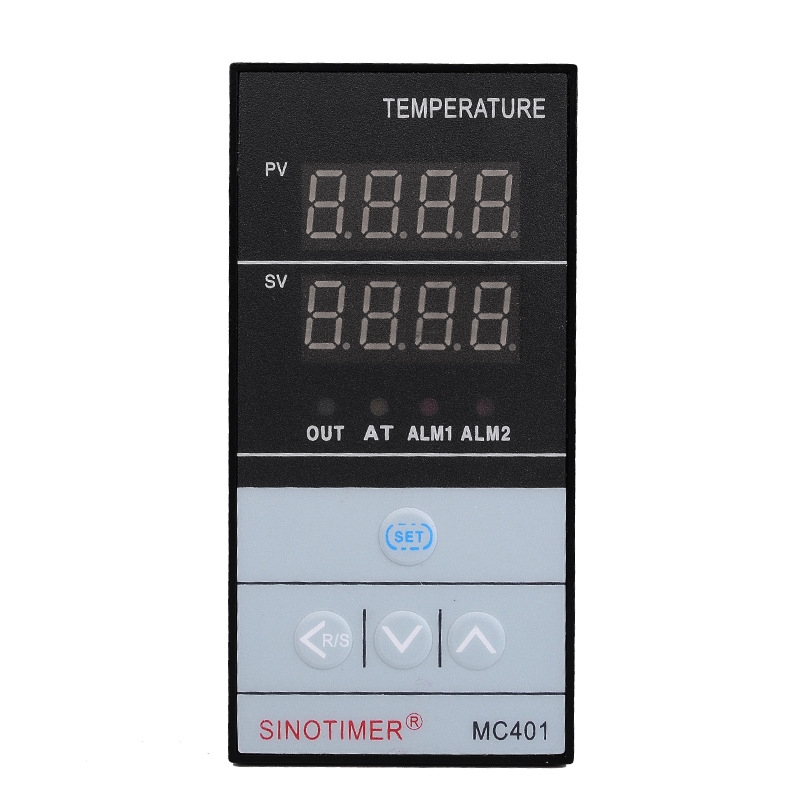

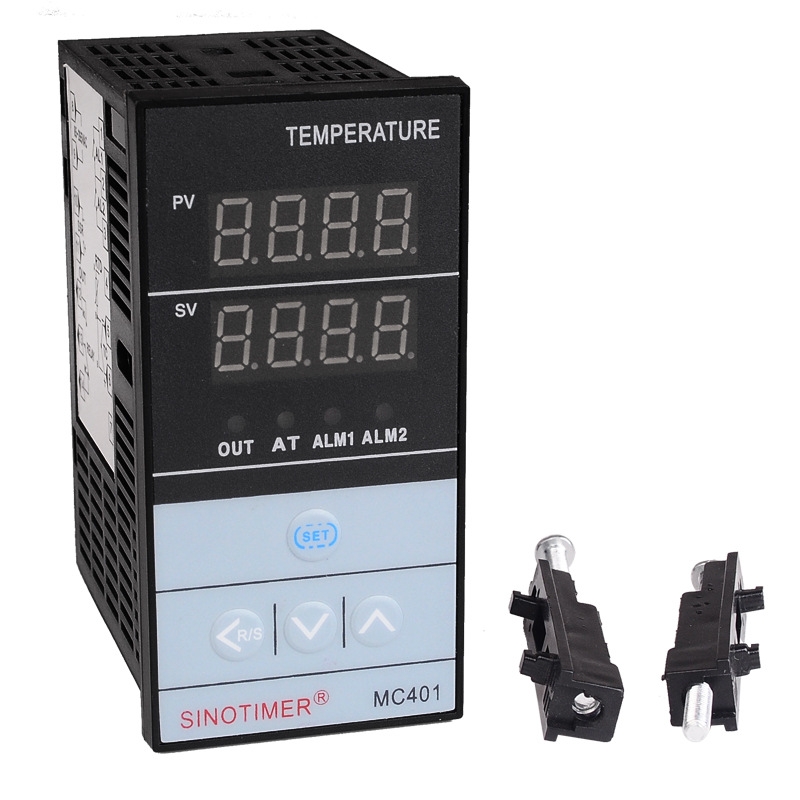

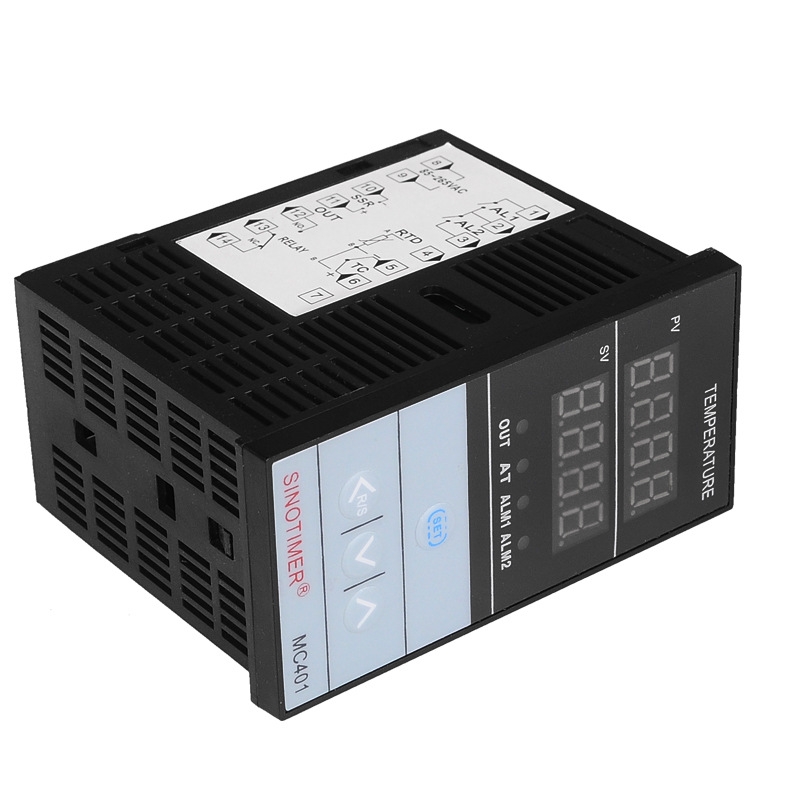

SINOTIMER MC401 Universal Input Short Case PID Intelligent Temperature Controller Meter Heating Cooling Relay SSR Solid State Output

Product Description

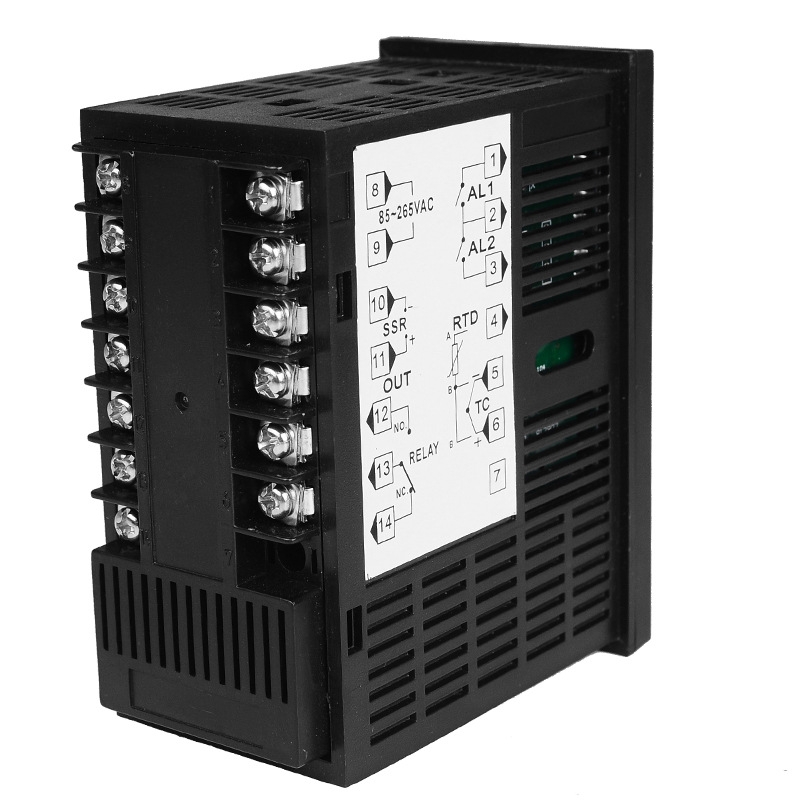

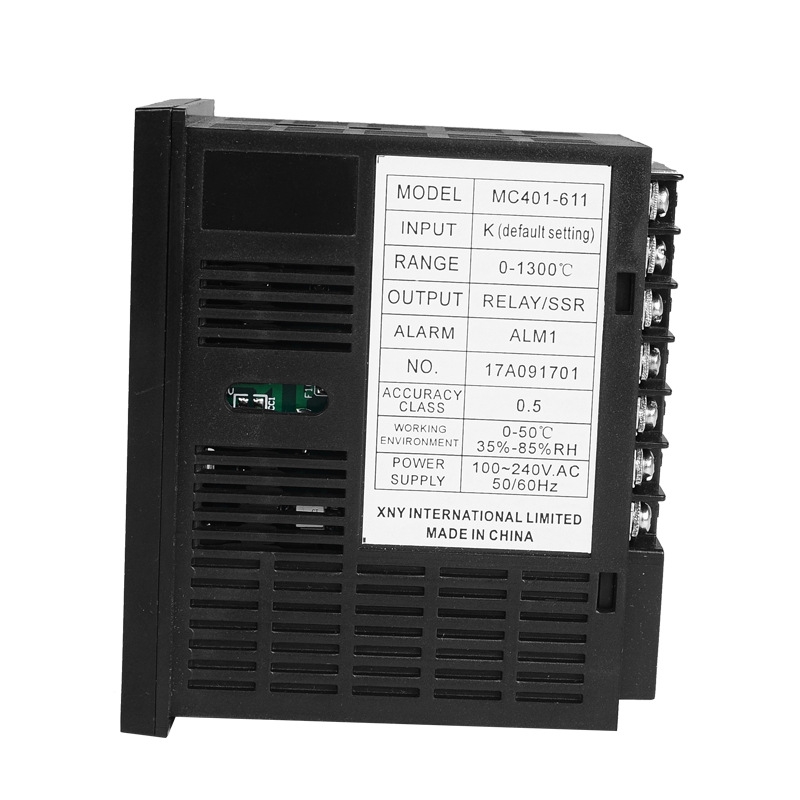

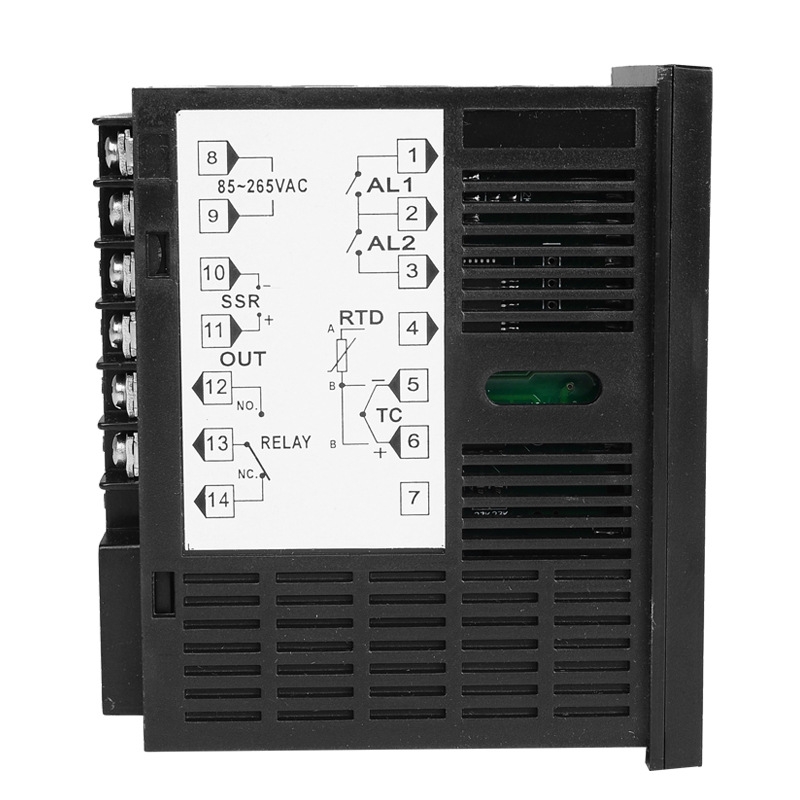

1. Measuring range: 0-1300 degrees Celsius 2. Measurement accuracy: 0.5%FS 3. Display mode: LED 4. Input: universal input, K/E/J/N/S/T/R/B/Pt100 and other signals, can be changed by yourself 5. Resolution: 0.1 6. Temperature display: degrees Fahrenheit / degrees Celsius 7. power input: AC 100-240V 50/60Hz 8. Operating environment: 0-50 degrees Celsius, 35%-85% RH 9. Opening size: about 4.5 x 9.2cm 10. Overall size: about 4.8 x 9.6 x 8.5cm Features: 1. Universal input, can change the input signal at will 2. Fahrenheit or Celsius temperature can be switched as required 3. 1 set of control outputs (relay/SSR integrated), free to use relay outputs or SSR outputs 4. Thermometer signal input, with decimal point digital display 5. Using anti-interference chip, liquid crystal display, simple and clear

Specifications

SKU

TBD06046024

Category

Consumer Electronics › Test Equipment › Thermostat & Thermometer

Weight

0.214 kg

Delivery

Standard delivery
