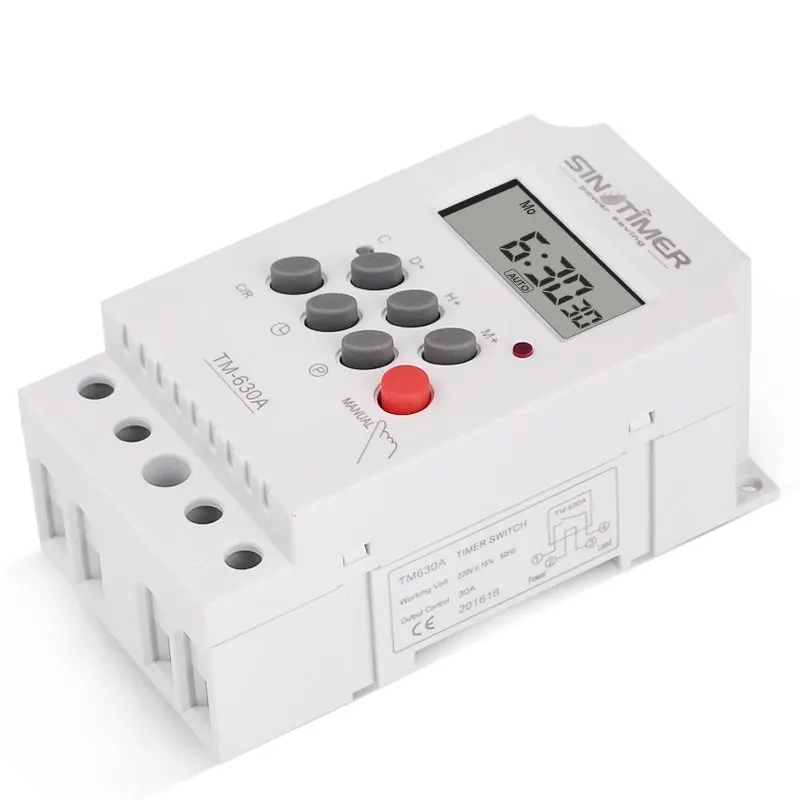

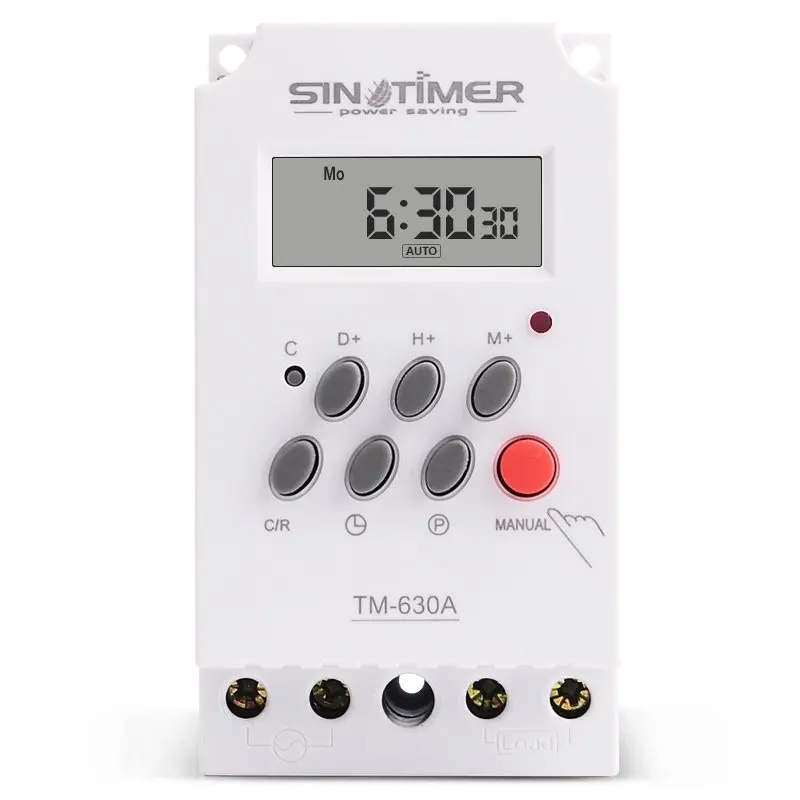

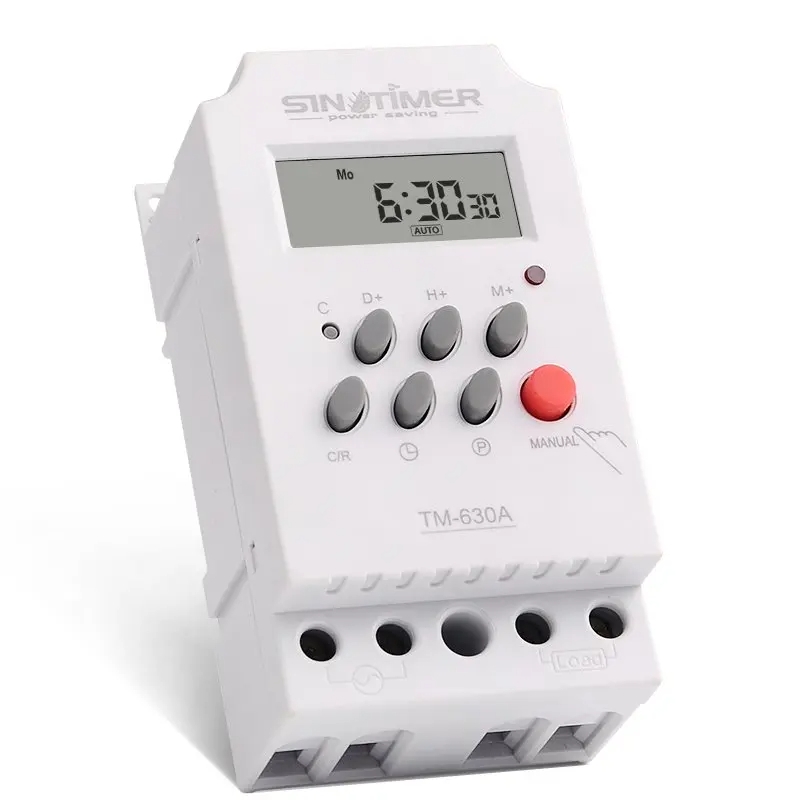

SINOTIMER TM630A-4 12V DC Timer Switch Din Rail Digital Weekly Programmable Time Relay

Product Description

Features: 1. 6500 Watts/30 Amps 2. 24 Hours/7 Days per Week Programmable 3. Internal Battery for Memory Backup in Case of Power Failure 4. Weekly Automatic Time Error +/- 30 Seconds 5. Repeating Program with 17 On/Off Settings and Manual On/Off Settings Parameters: 1. Temperature Range: -20 to 50 Degrees Celsius 2. Power Supply: 12V DC/AC 3. Power Consumption: 3.5 VA (Maximum) 4. Display: LCD 5. Switch Contacts: 1 Changeover Switch 6. Programs: 17 On/Off Daily or Weekly 7. Hysteresis: 2 Seconds/Day (25 Degrees Celsius) 8. Minimum Interval: 1 Minute 9. Capacity: 30(16) 250V AC 10. Power Failure: 60 Days 11. Timer Range: 1 Minute~168 Hours 12. Rechargeable battery: 1.2V 40Ma 13. Average error: 1s/24h, 25 degrees Celsius

Specifications

SKU

TBD06049869

Category

Consumer Electronics › Plugs & Sockets › Switch

Weight

0.154 kg

Delivery

Standard delivery
