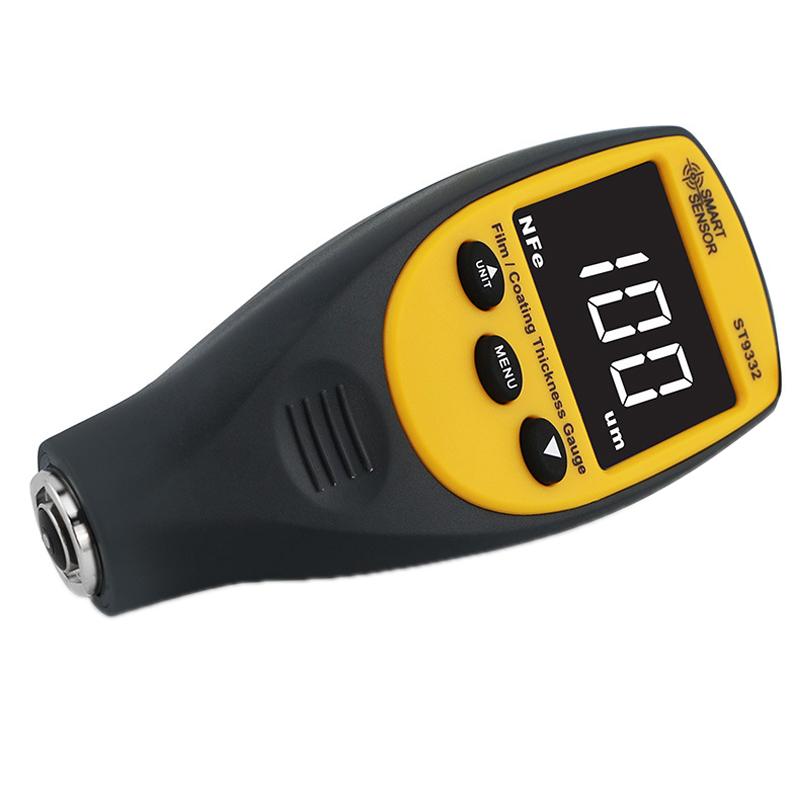

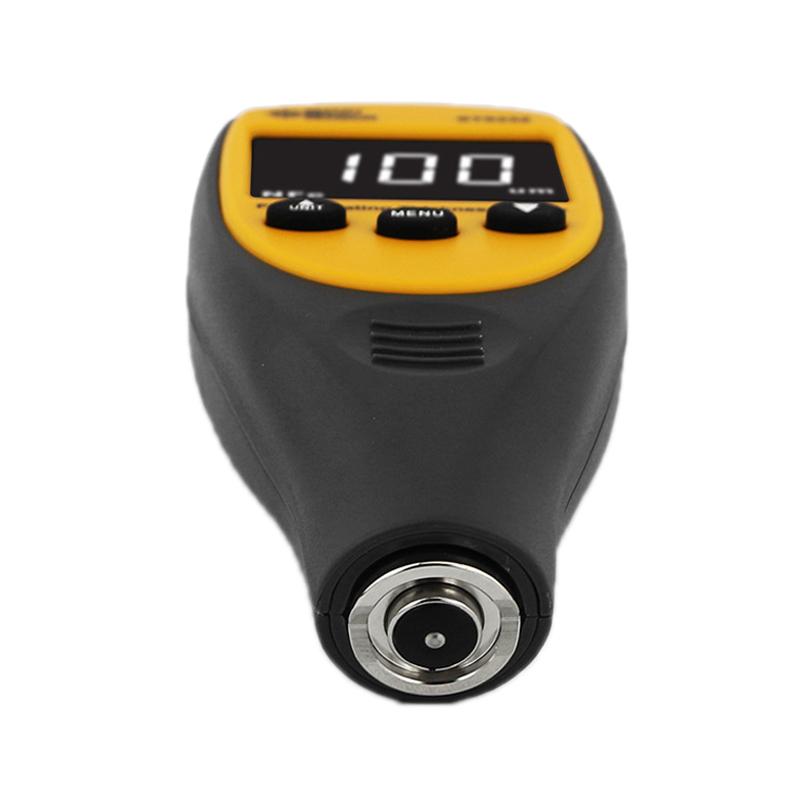

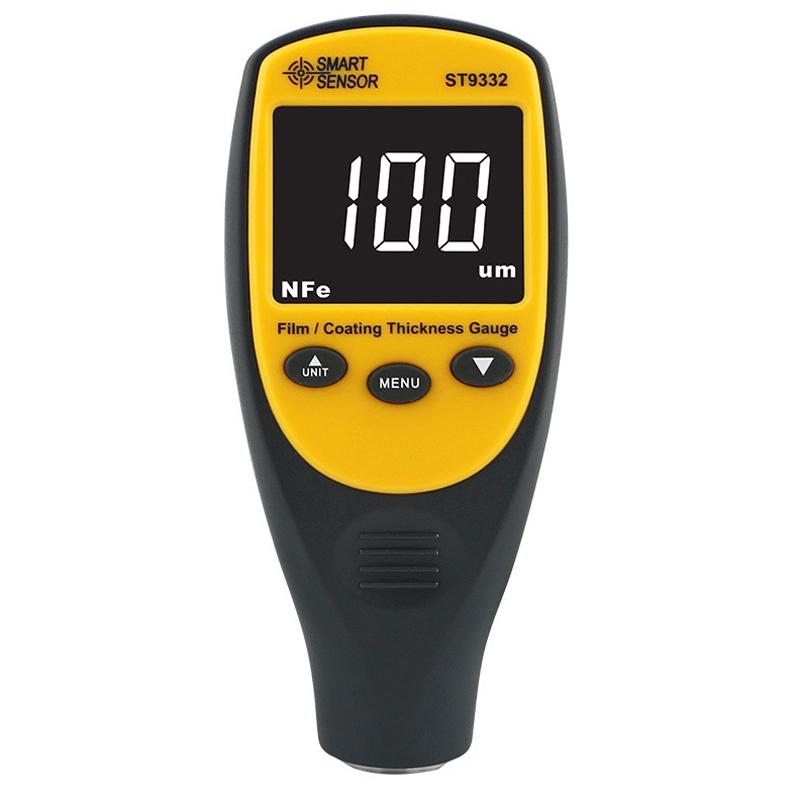

SMART SENSOR Automotive Iron And Aluminum Paint Coating Thickness Gauge(ST9332)

Product Description

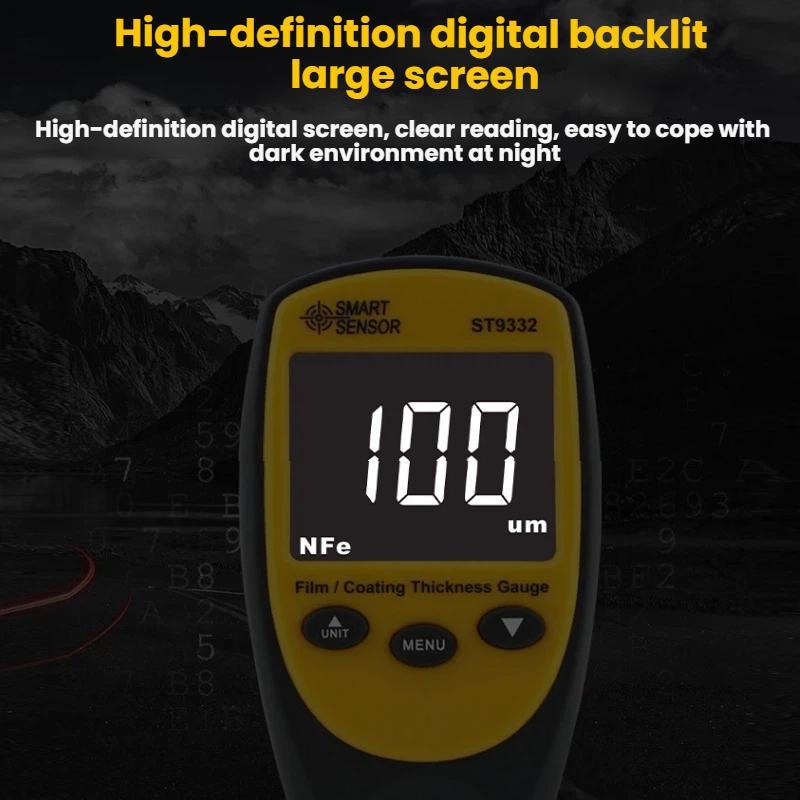

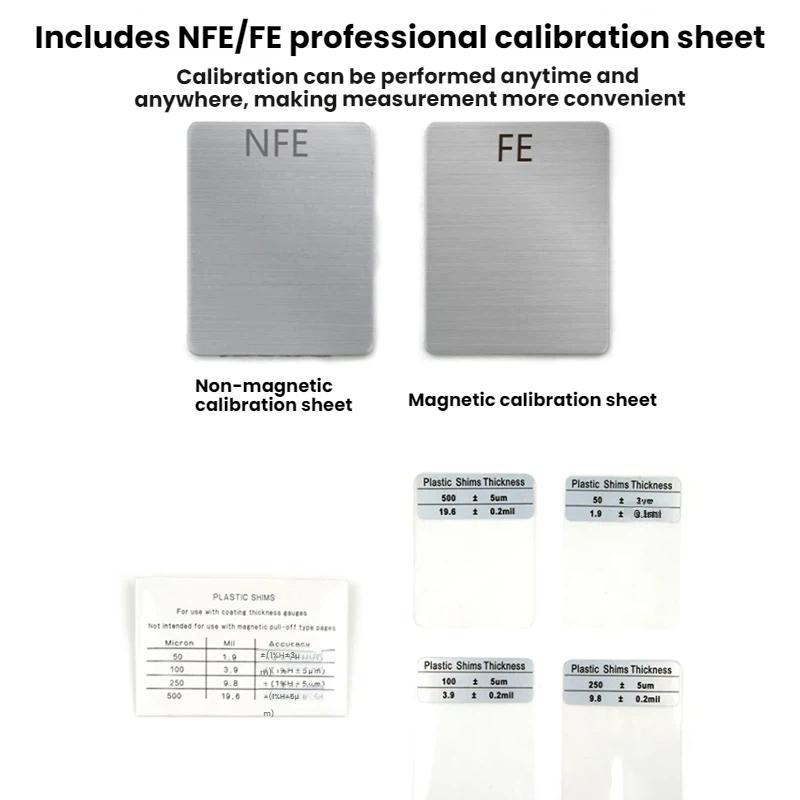

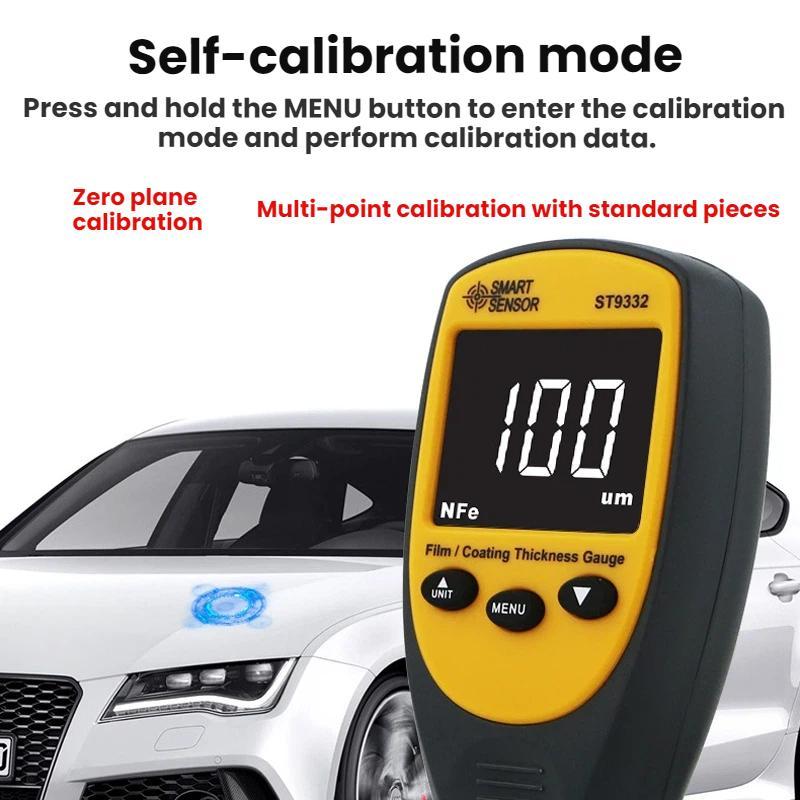

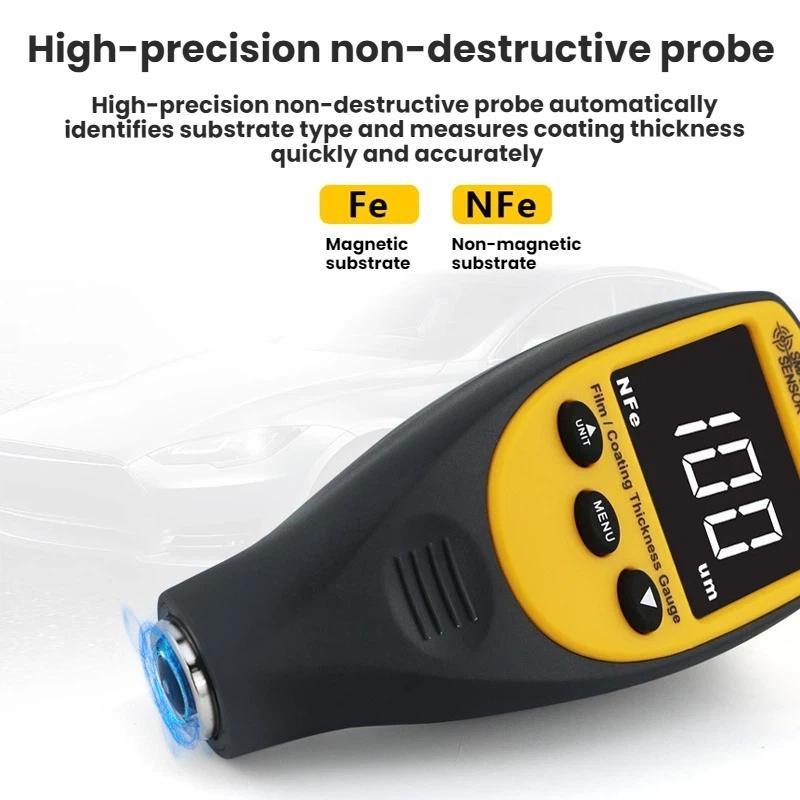

1. Measuring range: 0μm - 1700μm 2. Measurement principle: magnetic and eddy current thickness measurement 3. Resolution: 0.1μm (0 - 99μm) 1μm (100 - 1700μm) 4. Measurement repeatability: 1μm 0-500μm / 2μm 500-1500μm 5. Measuring area (minimum): magnetic 25x25mm; non-magnetic 25x25mm 6. Curvature (minimum): convex 5mm; concave 30mm 7. Substrate thickness (minimum): magnetic 0.2mm; non-magnetic 0.05mm 8. LCD backlight: yes 9. Low battery warning: yes 10. Zero calibration: yes 11. Basic calibration: yes 12. Single/continuous measurement: yes 13. Auto power off: yes 14. Unit conversion: yes 15. Operating environment: 0-50°C 16. Power supply: 2 x 1.5V AAA batteries (not included) 17. Data storage: 20 data sets 18. Automatic calibration: calibrates based on five different calibration substrates: 0/50/100/250/500 19. Includes NFE/FE professional calibration sheets for convenient calibration anytime, anywhere 20. Press and hold the MENU button to enter calibration mode, which allows for calibration data, zero calibration, and multi-point calibration using standard sheets 21. High-definition digital screen with backlight for clear readings, perfect for dark environments 22. High-precision, non-destructive probe automatically identifies substrate type for fast and accurate coating thickness measurements 23. Dimensions: 123 x 55.6 x 28.8 mm

Specifications

SKU

TBD0606377101A

Category

Consumer Electronics › Test Equipment › Coating Thickness Gauge

Weight

0.481 kg
