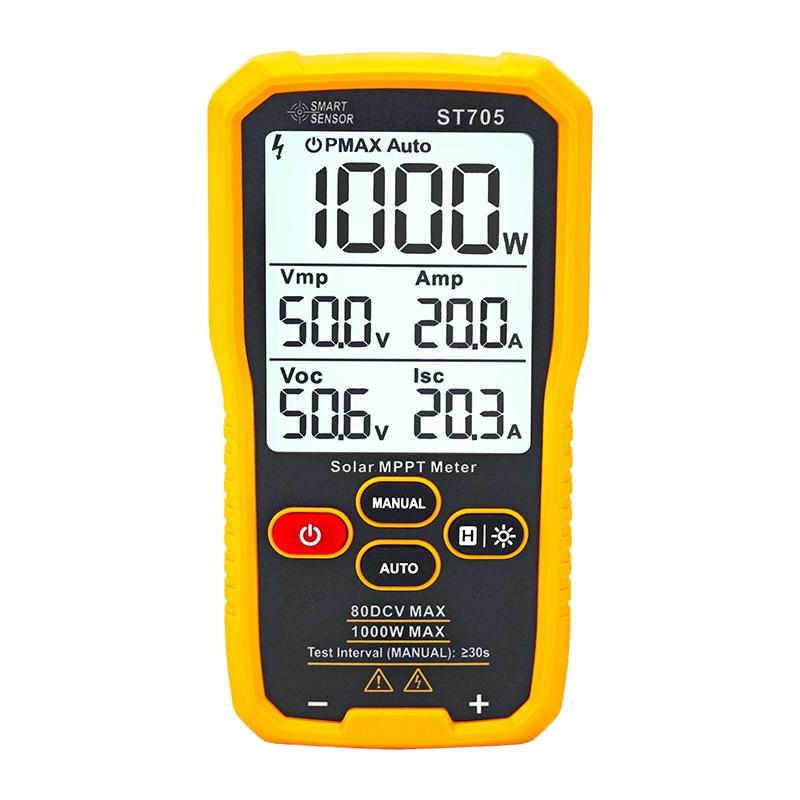

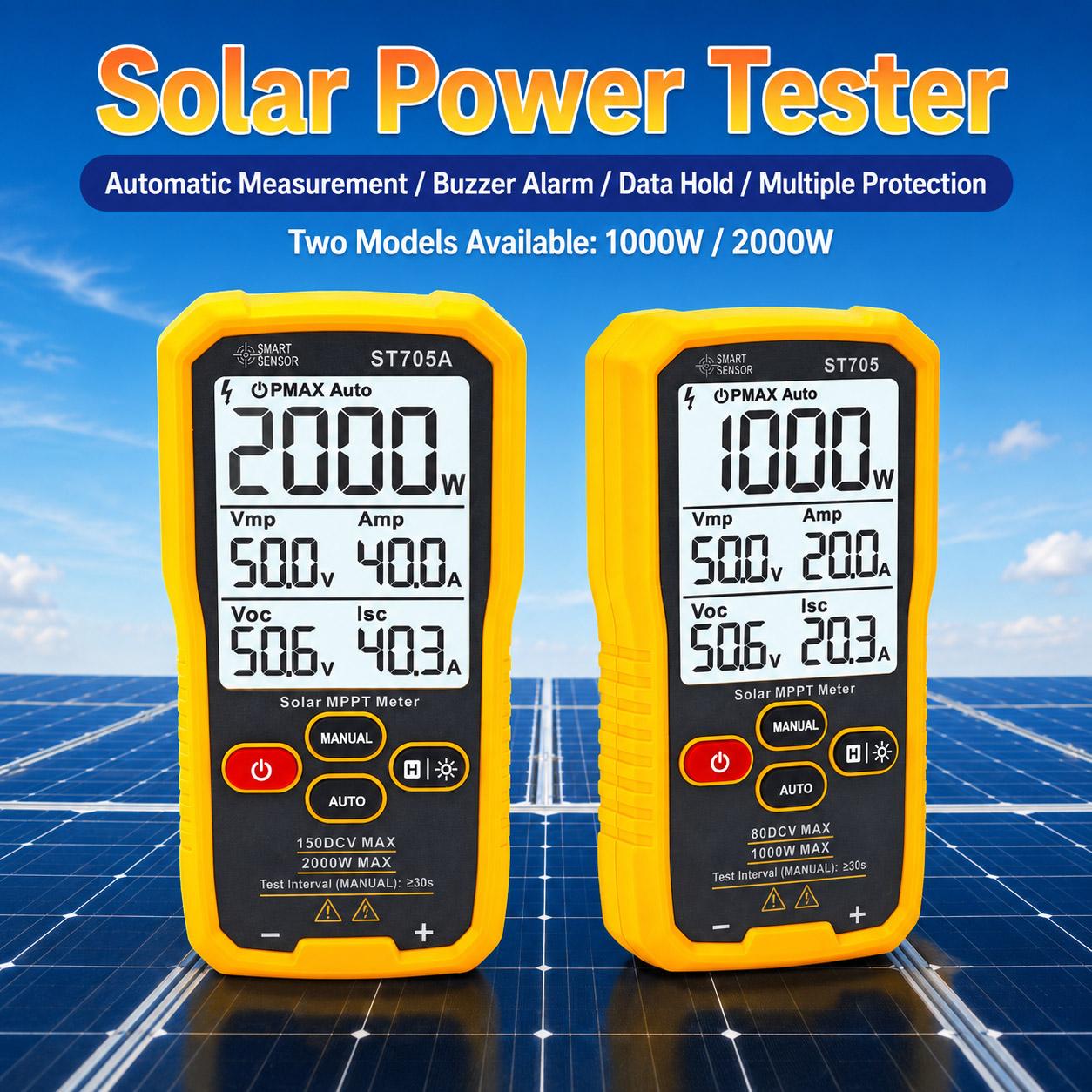

SMART SENSOR ST705 1000W Solar Panel Tester Meter MPPT Photovoltaic Multimeter (Yellow)

Product Description

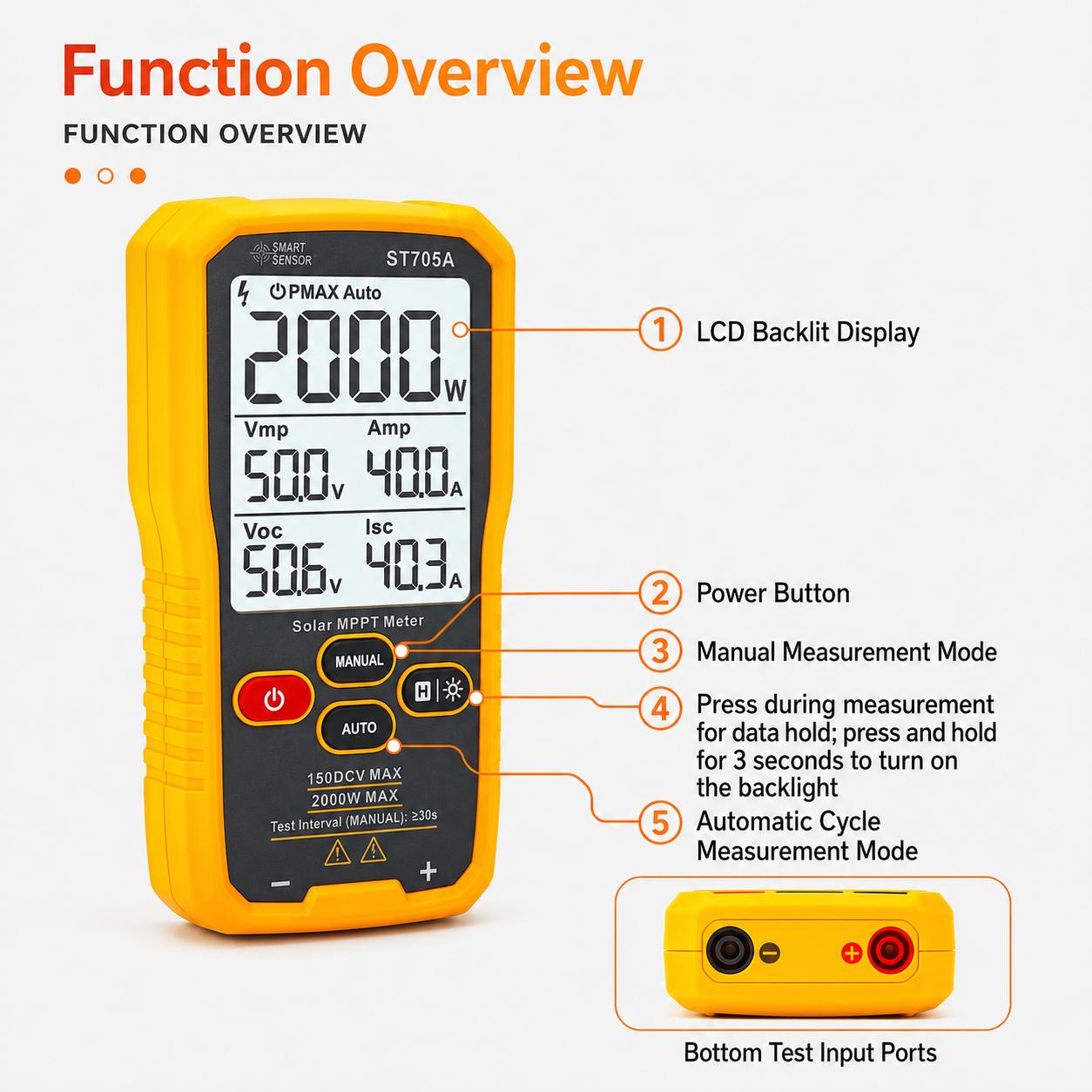

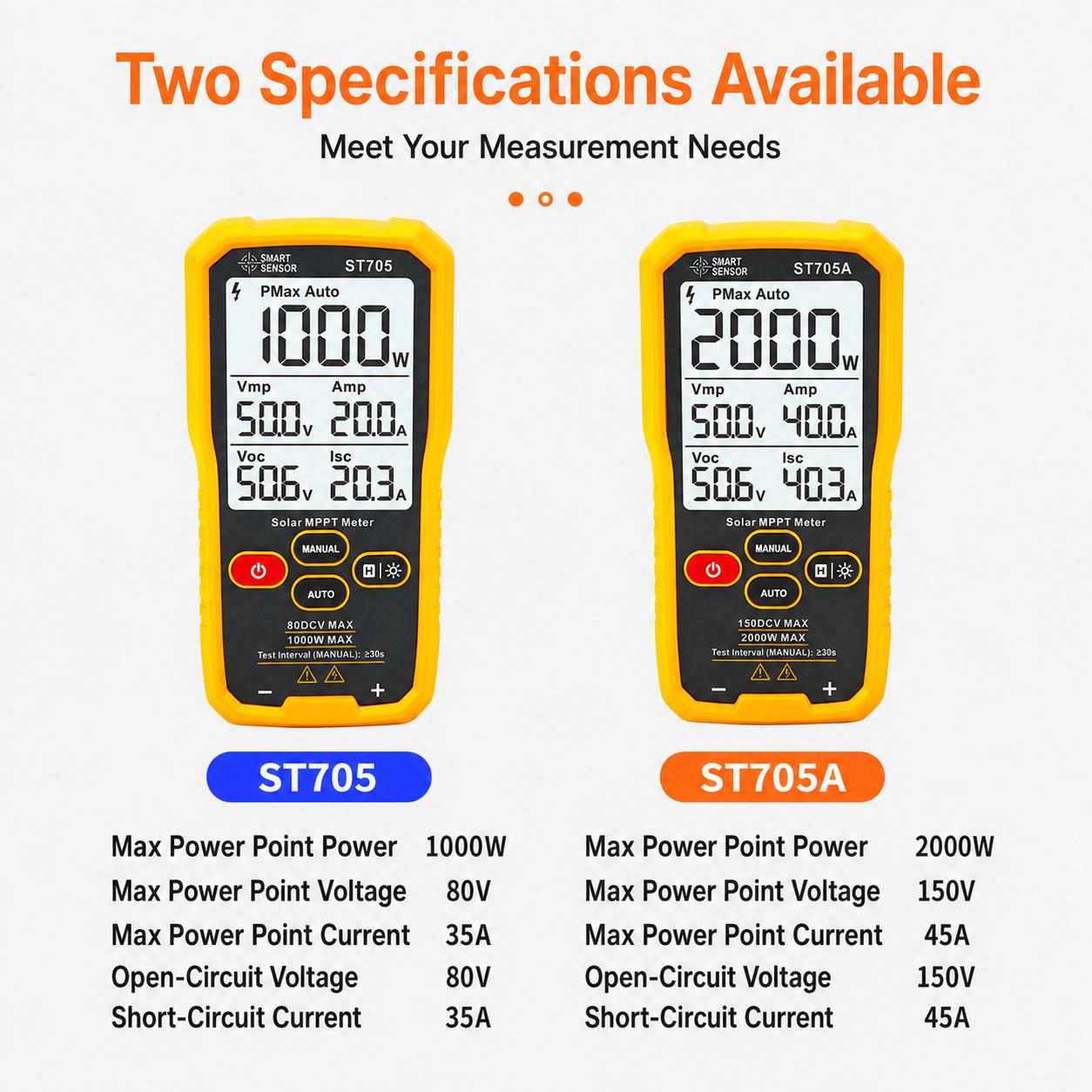

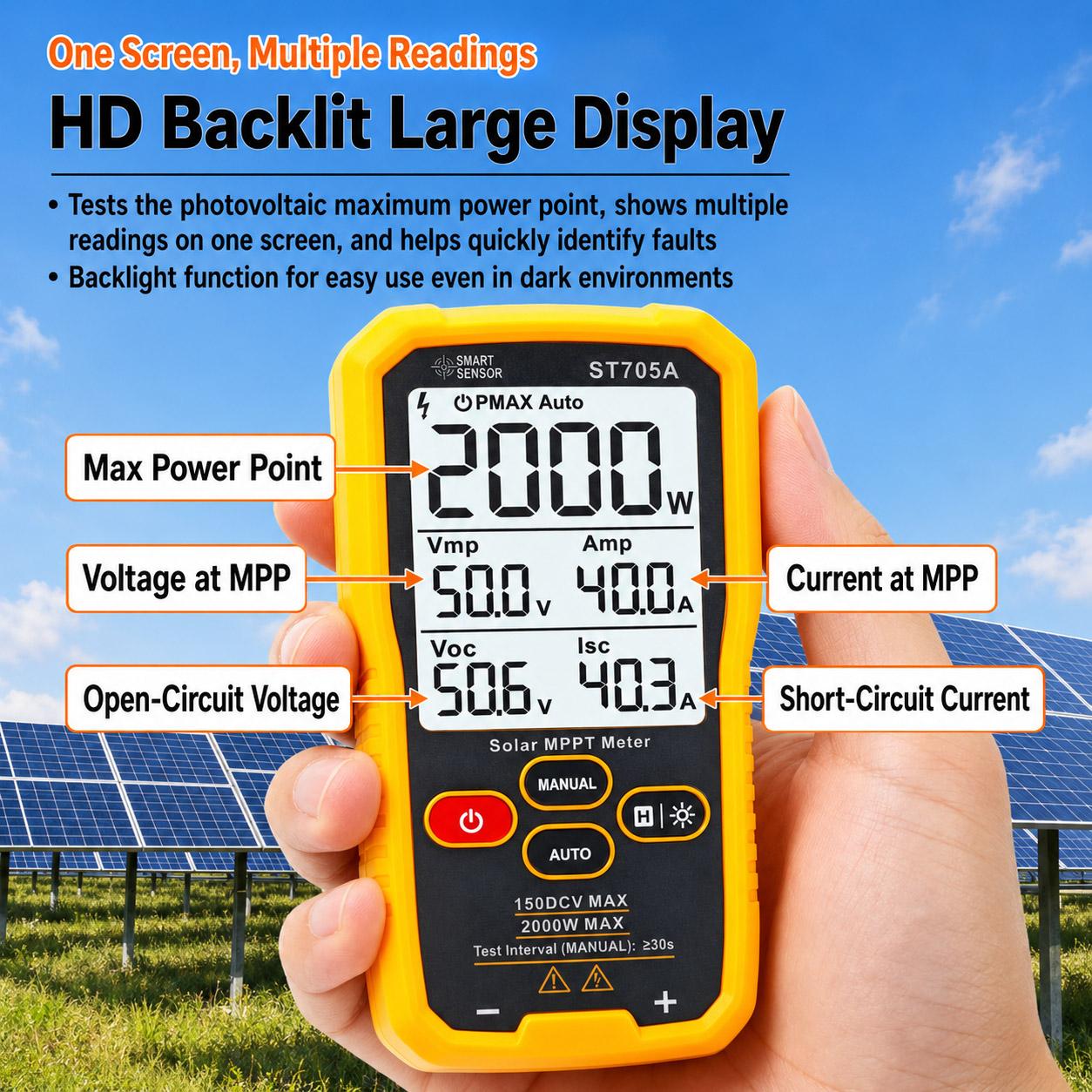

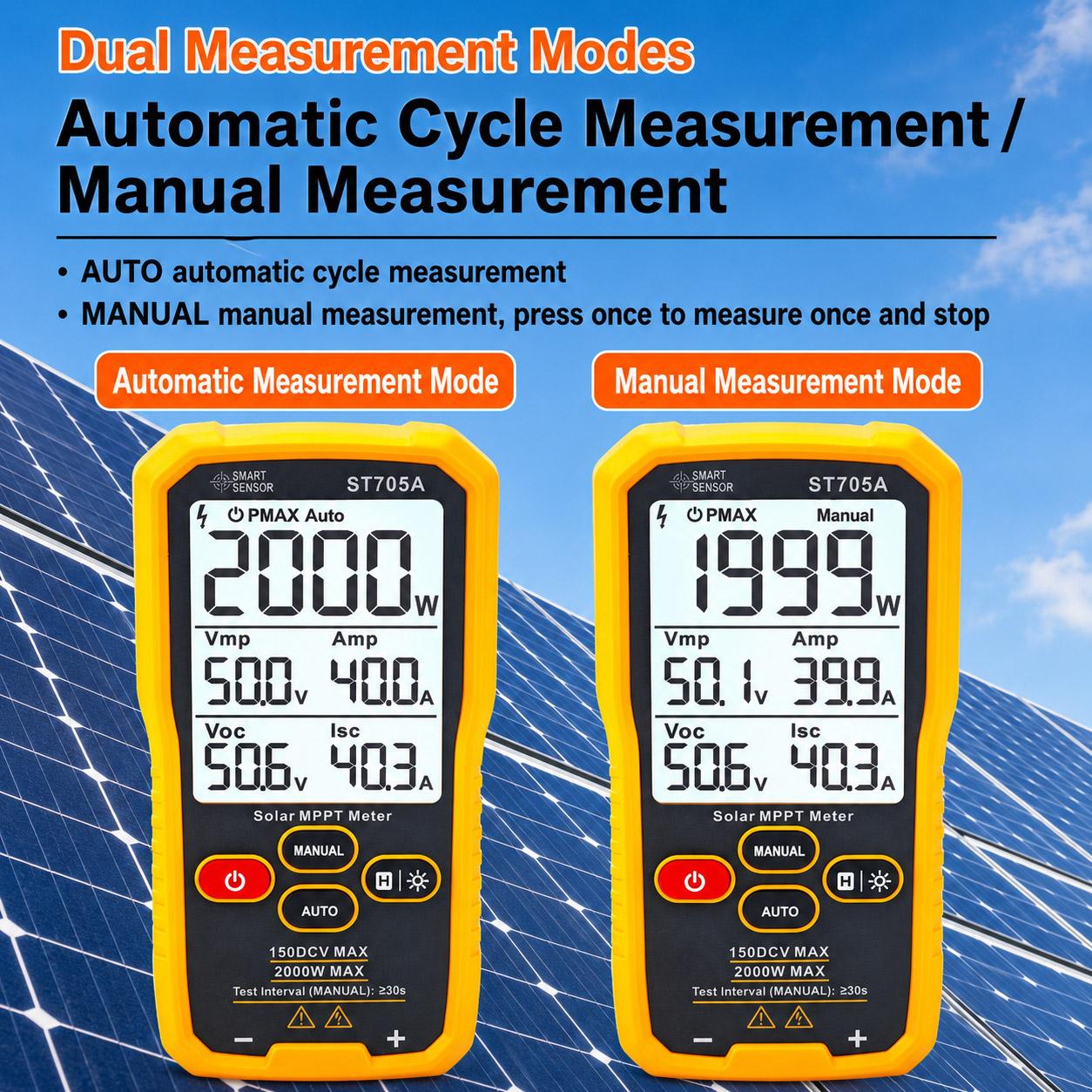

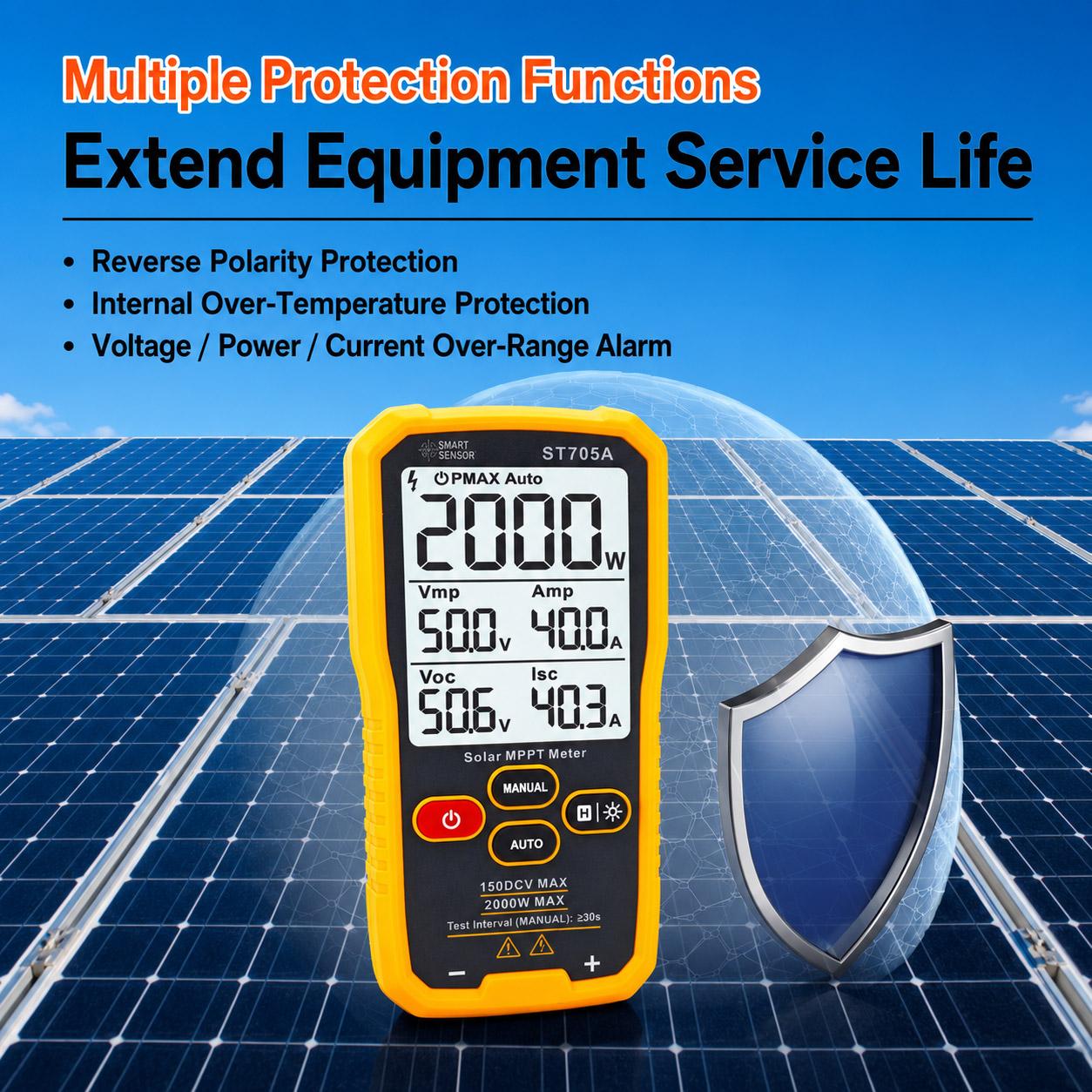

Features 1. MPPT detection: when pressing the AUTO MPPT test button, the instrument automatically adjusts the test interval time according to the current power value and refreshes the digital display. 2. Manual MPPT detection: when pressing the manual MPPT test button, the instrument starts a scan of the maximum power point and refreshes the digital display. 3. Open circuit voltage realtime display: the open circuit voltage will display on the large LCD screen at any time, giving you a better experience. 4. Large LCD display with backlight: the upgraded screen adopts large LCD with backlight, you can turn on or turn off the screen with your like. 5. Multi-protections: over-voltage protects, over-temperature protects, over-current protects and over-rated power protects. 6. Wide applications: this multimeter can be widely used by PV panel manufacturers, PV panel distributors, PV panel installers, PV panel users and PV panel fans. Specifications 1. Model: ST705 2. Max Power Point Power (W) Pmax: 1000W, 0.1W resolution, less than or equal to 800W, +/-(1.0%+5) accuracy 3. Max Power Point Voltage (V) Vmp: 80V, 0.1V resolution, greater than or equal to 810W, +/-(1.0%+5) accuracy 4. Max Power Point Current (A) Amp: 35A, 0.1A resolution, +/-(1.0%+5) accuracy 5. Open Circuit Voltage (V) Voc: 80V, 0.1V resolution, +/-(1.0%+5) accuracy 6. Short Circuit Current (A) Isc: 35A, 0.1A resolution, +/-(1.0%+5) accuracy 7. Sampling Rate: 3 times/second 8. Over-range Alarm: Buzzer alarm and on-screen symbol prompt 9. Over-temperature protection: Supported 10. Reverse polarity protection: Supported 11. Low battery warning: Supported 12. Measurement mode selection: Manual measurement mode (MANUAL) / Automatic measurement (AUTO) 13. Data hold: Supported 14. Automatic shutdown: 10 minutes 15. Operating temperature: 0-40 degrees Celsius 16. Storage temperature and humidity: -10 - 60 degrees Celsius; less than or equal to 80% 17. Pollution degree: 18. Altitude: 19. Standards: 20. Power supply: AAA 1.5V x 3 (excluding) 21. Dimensions: 142.5 x 76 x 32mm 22. Weight: 188g Package List 1. Main unit x 1 2. Dedicated interface wrench x 1 3. MC4 dedicated test cable x 1 4. Lanyard x 1 5. Instruction manual x 1 6. Cloth bag x 1 7. Certificate of conformity x 1 8. Packaging box x 1

Specifications

SKU

HC8061Y

Category

Consumer Electronics › Test Equipment › Other Tester Tool

Weight

0.468 kg

Delivery

Standard delivery
