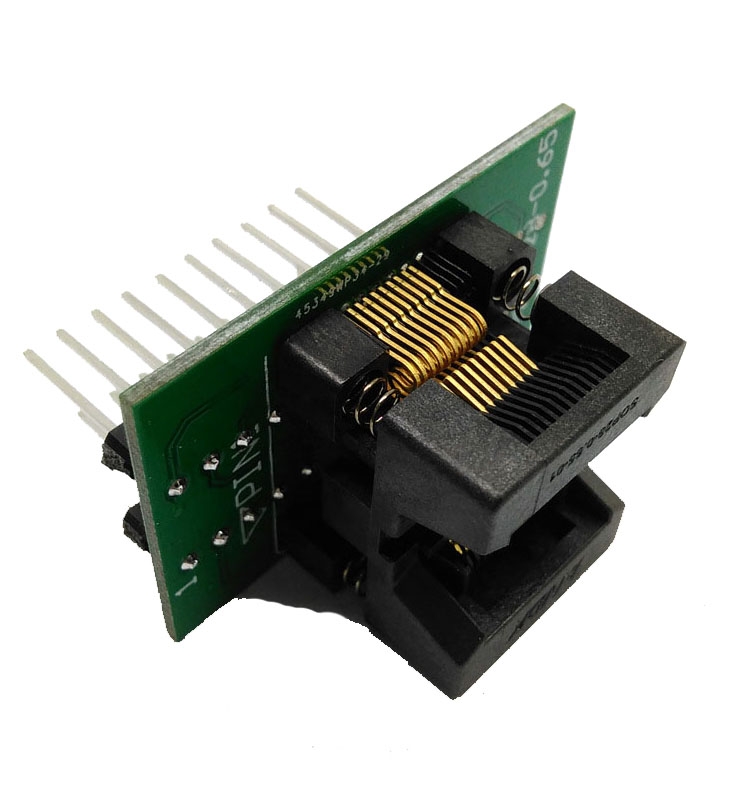

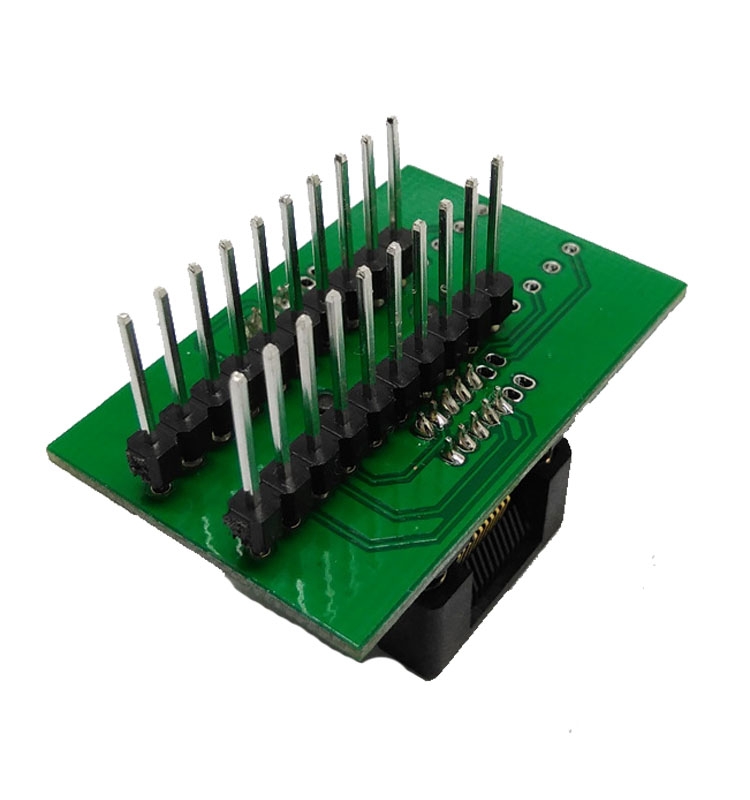

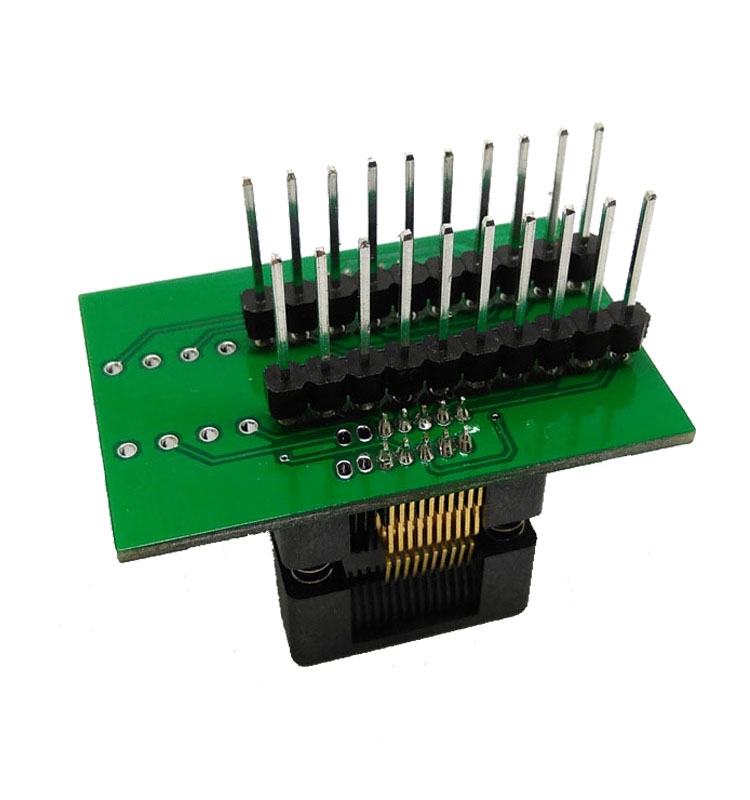

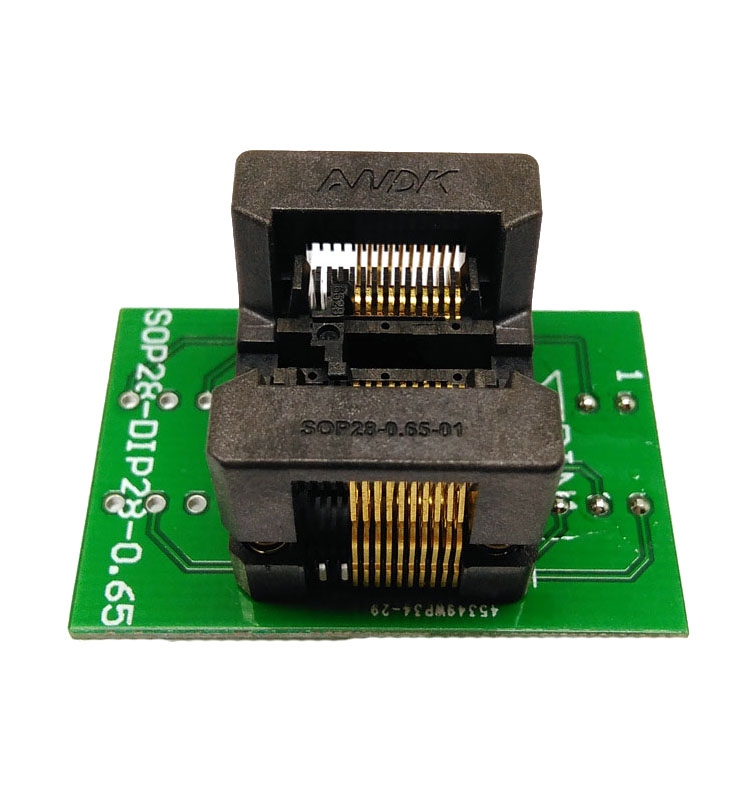

SSOP20 TSSOP20 OTS-28-0.65-01 Chip Gold-Plated Dual Contact Pin Adapter Socket

Product Description

1. Type: Test Block 2. Working frequency: High frequency 3. Application: Integrated Circuit IC 4. Contact impedance: Less than 25 milliohms 5. Production process: Injection molding 6. Features: Fire retardant/flame retardant 7. Contact material: Beryllium copper shrapnel 8. Insulator material: PEI, PPS 9. Number of cores: 20 10. Working temperature: -65～155 degrees Celsius 11. Lead spacing: 0.65mm 12. Service life: 20,000 times 13. Adaptation chip body width: 4.4mm Features: 1. Using double contact technology, the contact is more stable 2. The seat shell is made of special engineering plastic, which has high strength and long life. 3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity 4. Thick gold plating layer, thick contact plating, ultra-low contact impedance, high reliability

Specifications

SKU

TBD05546855

Category

Consumer Electronics › Electronics Module › MCU Tools

Weight

0.024 kg

Delivery

Standard delivery
