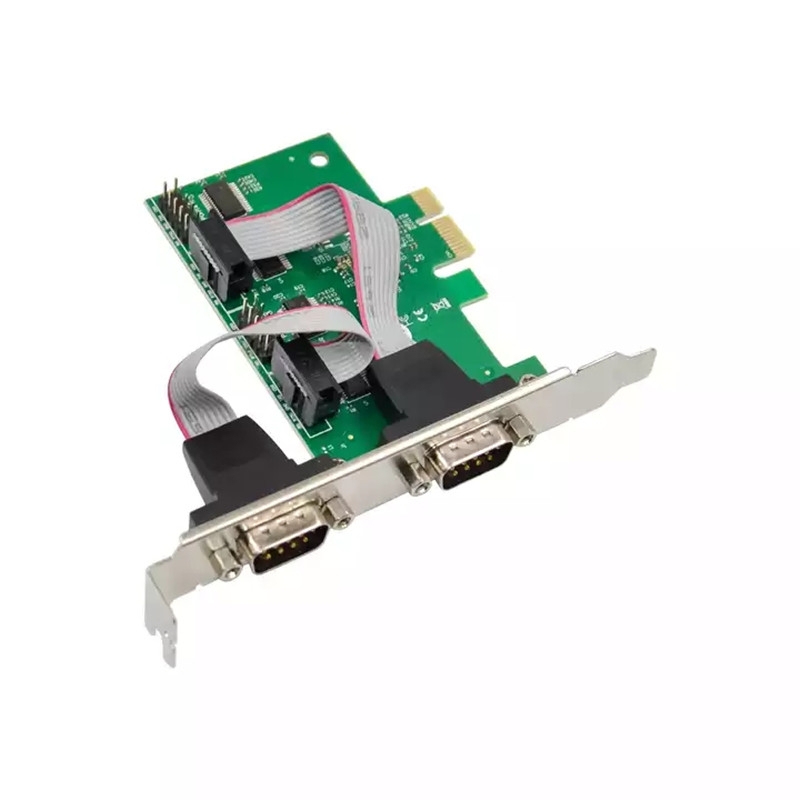

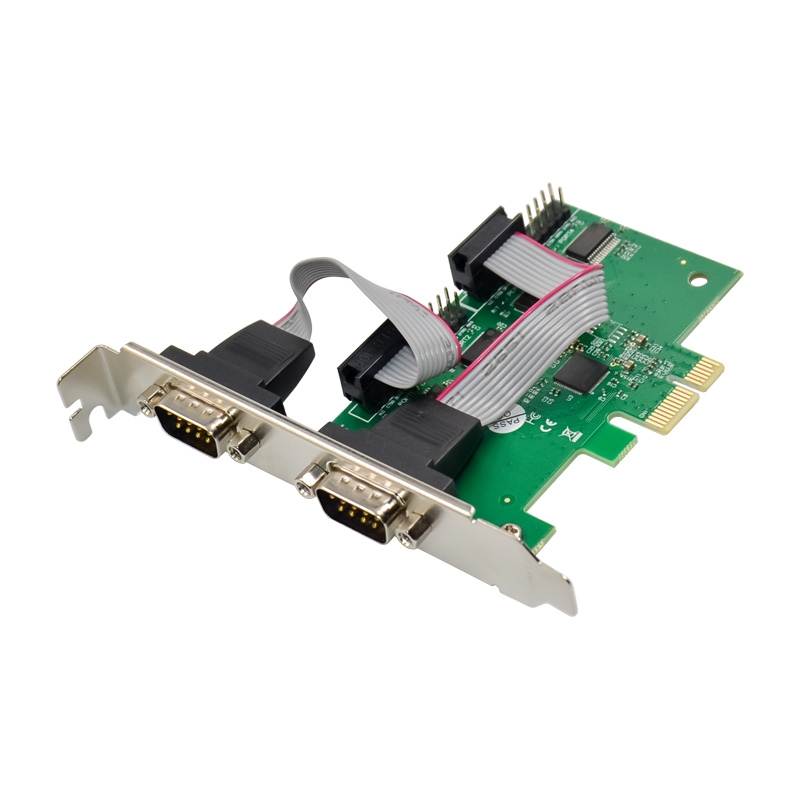

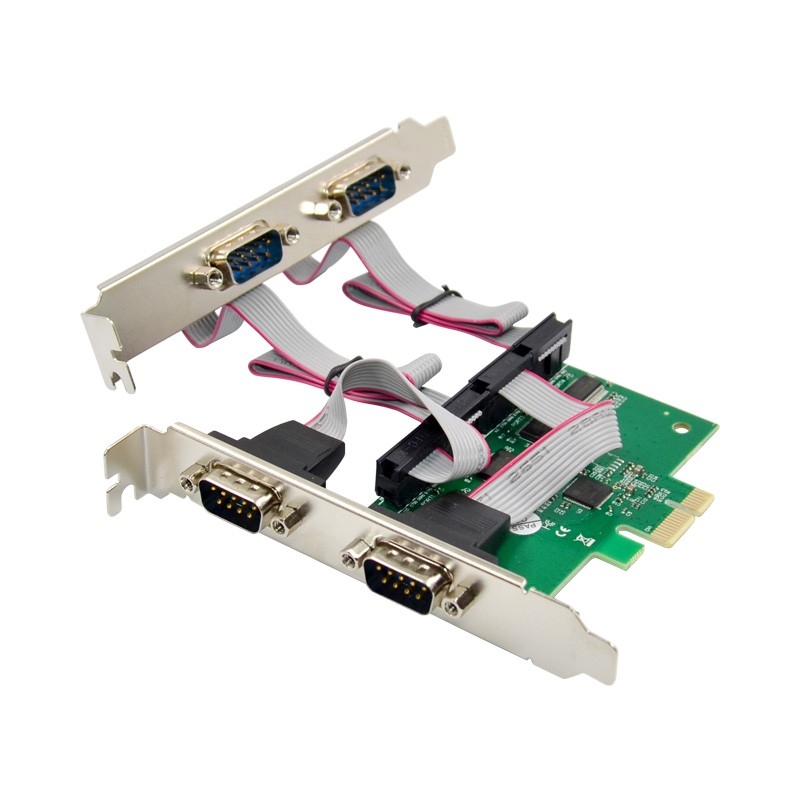

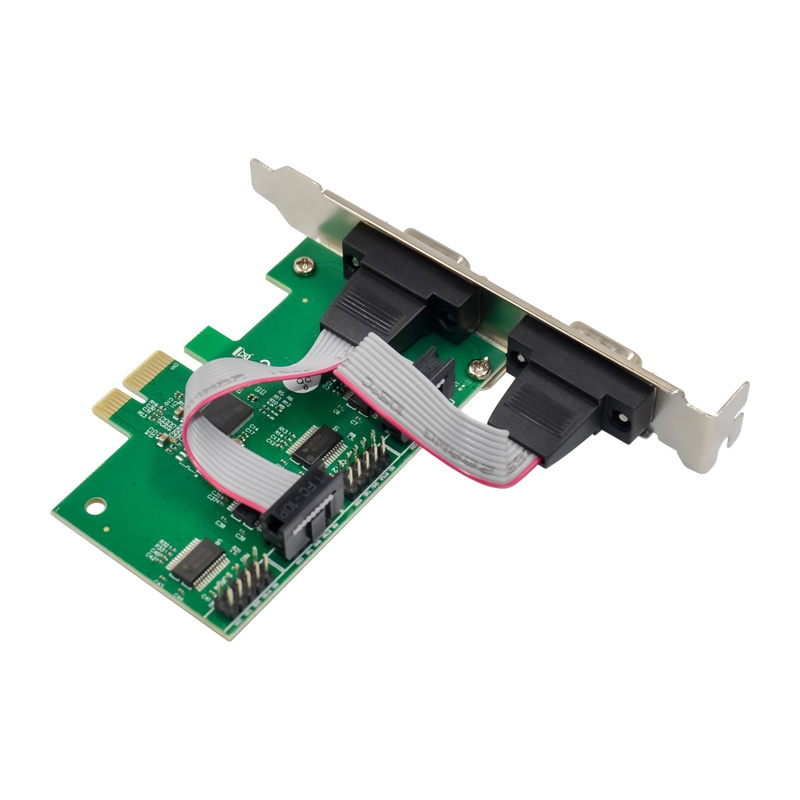

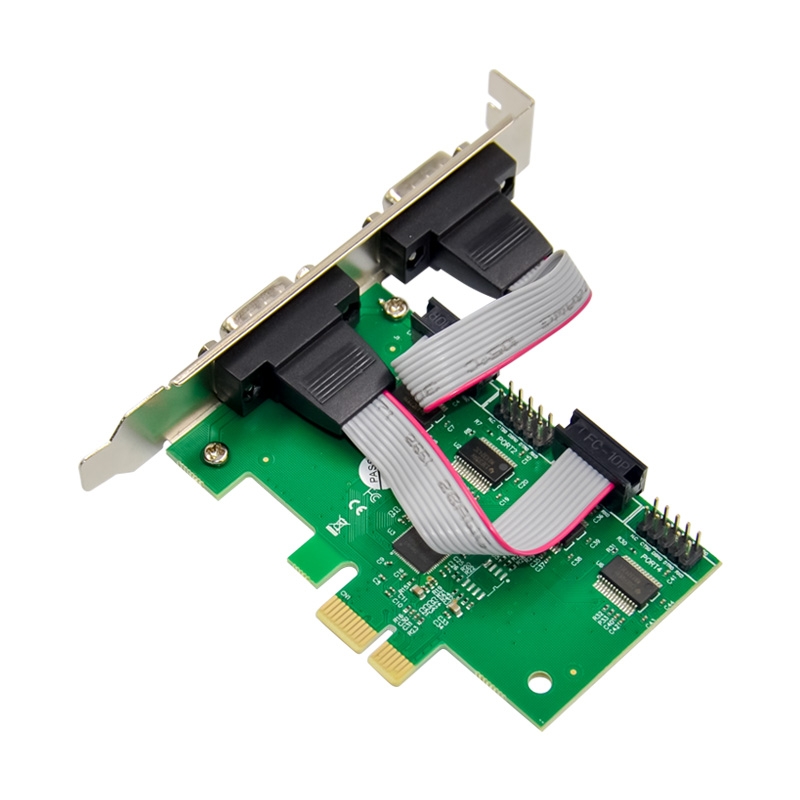

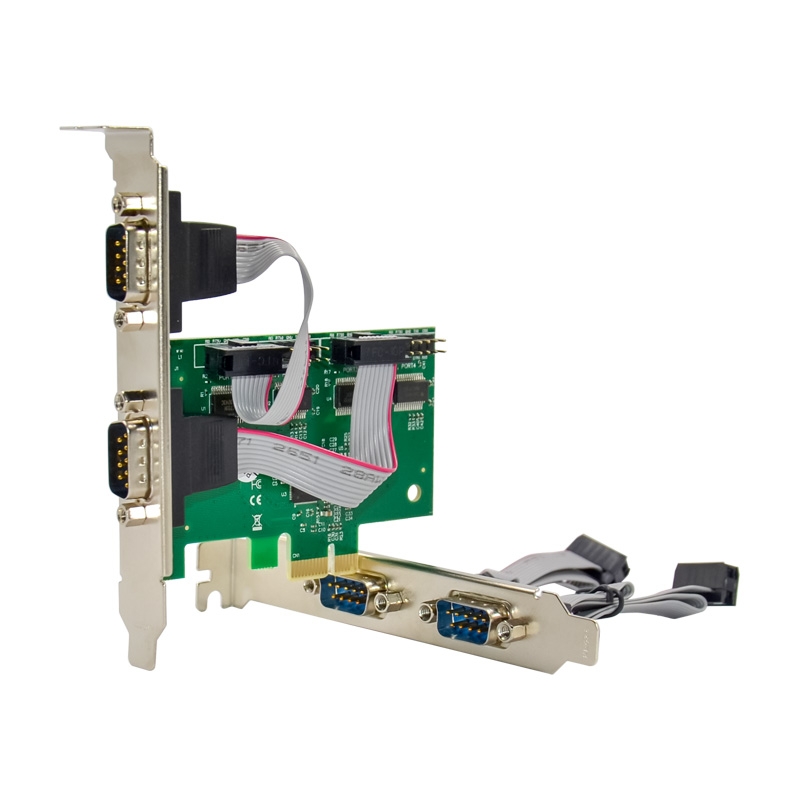

ST318 Serial Controller Card 4 Ports PCI Express Multi System Applicable Controller Card

Product Description

1.Fully compliant with PCI-Express Base Specification Revision1.1 2.Single-lan PCI-Express with throughput up to 2.5Gbps 3.Compatible with industrial standard 16C550\16C552\16C554 and 16C750 UART 4.On chip 256-byte depth FIFO in transmit, receive path of each port 5.Support for bi-directional data transmission, the transmission speed up to 2M bytes support 6.The built-in SIR infrared codec, support 2400bps to 115200bps baud rate IrDA infrared communication 7.Supports 5-6-7-8-bit serial format 8.Support 1 or 2 Stop bit operation 9.Built-in SPP,PS/2,EPP,ECP compatibles with IEEE1284 Printing Protocol

Specifications

SKU

SYA0019747

Category

Computer & Networking › Memory Cards & SSD › Card Adapter

Weight

0.204 kg

Delivery

Standard delivery
