SUMOCHEPIN SMCP1153 Motorcycle Tire Pressure Monitor Locomotive External Tire Pressure Detector

Product Description

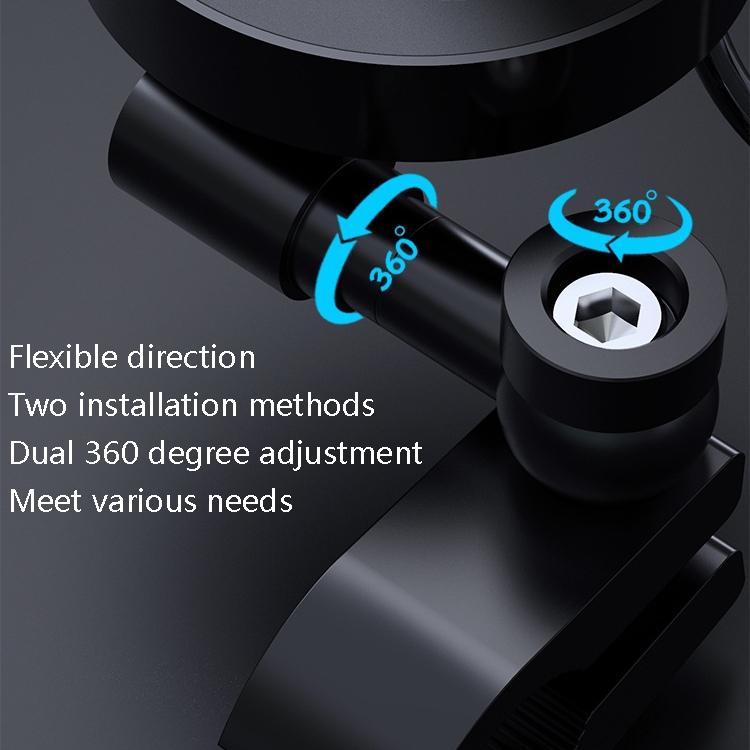

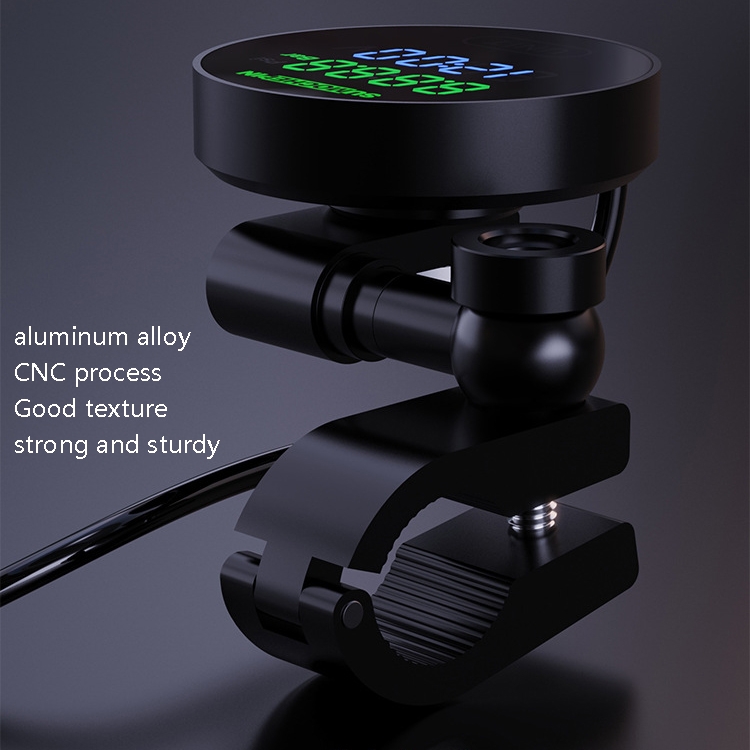

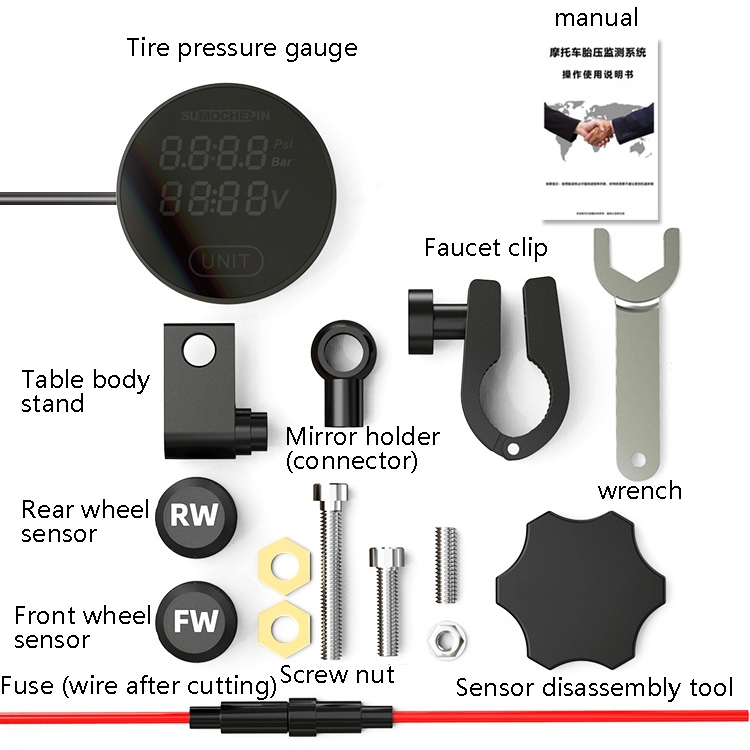

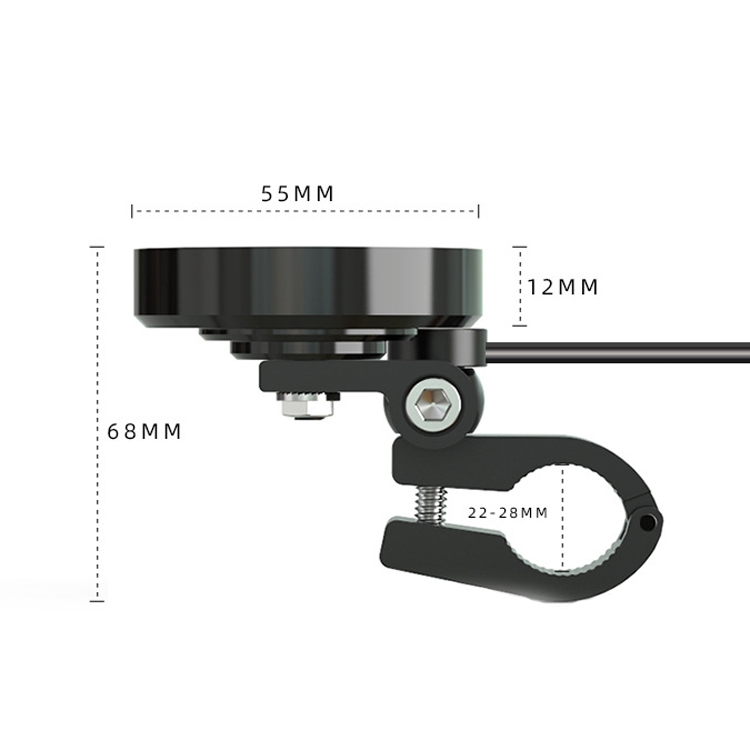

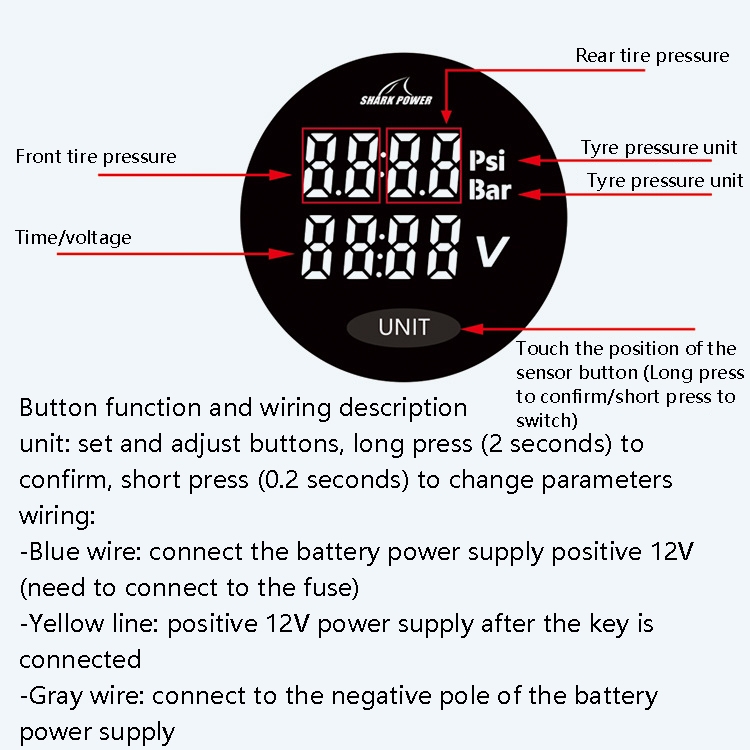

1. Material: aluminum alloy 2. Application: Motorcycle 3. Voltage: DC 12V 4. Function: tire pressure, voltage, time 5. Battery: contains 1 CR1632 button battery 6. Installation pipe diameter: about 22-28mm 7. Weight: about 300 grams 8. Size: about 6.8x5.5x1.2 cm Features: 1. Aluminum alloy material, CNC technology, good texture, strong and durable 2. Acrylic panel, efficient light transmission, good lighting effect, smooth surface 3. LED high-brightness light, can be clearly visible in the sun, dual-color light, better effect at night 4. Flexible direction adjustment, two installation and fixing methods, dual 360-degree direction adjustment to meet various needs 5. Safe and waterproof, can be used in rainy days Button function and wiring description: 1. unit: set and adjust buttons, long press (2 seconds) to confirm, short press (0.2 seconds) to change parameters 2. Wiring: -Blue wire: connect the battery power supply positive 12V (need to connect to the fuse) -Yellow line: positive 12V power supply after the key is connected -Gray wire: connect to the negative pole of the battery power supply packing list: -Tire pressure gauge x1 -Manual x1 -Faucet clip x1 -Wrench x1 -Watch body stand x1 -Mirror holder (connector) x1 -Rear wheel sensor x1 -Front wheel sensor x1 -Screw nut x6 -Sensor disassembly tool x1 -Fuse (wire after cutting) x1

Specifications

SKU

TBD06016253

Category

In Car › Diagnostic Scan Tools › Tire Pressure Gauges

Weight

0.354 kg

Delivery

Standard delivery
