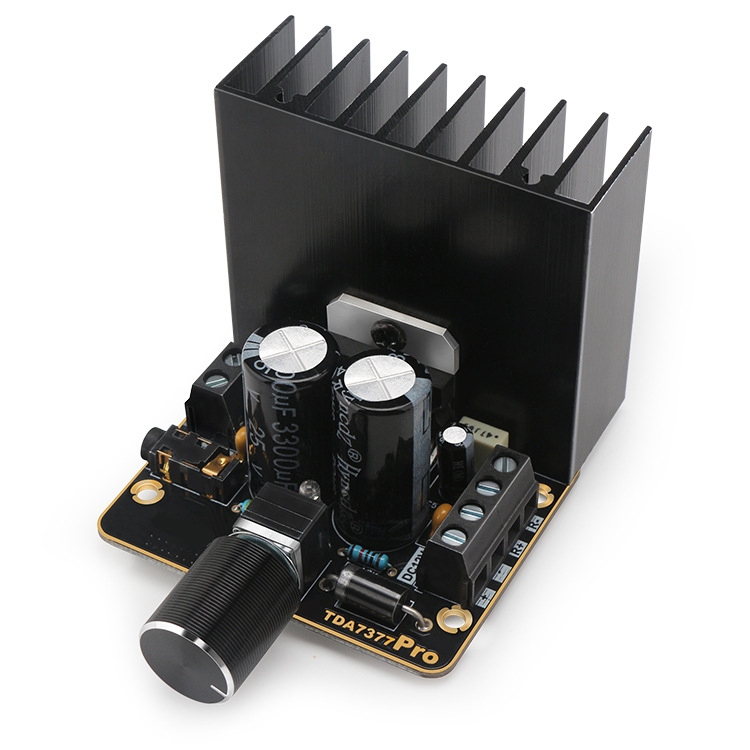

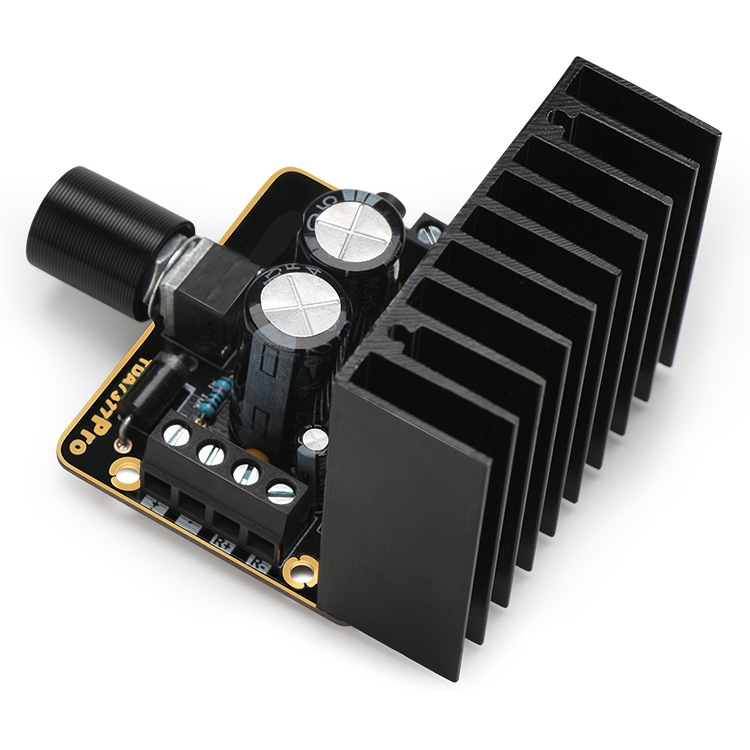

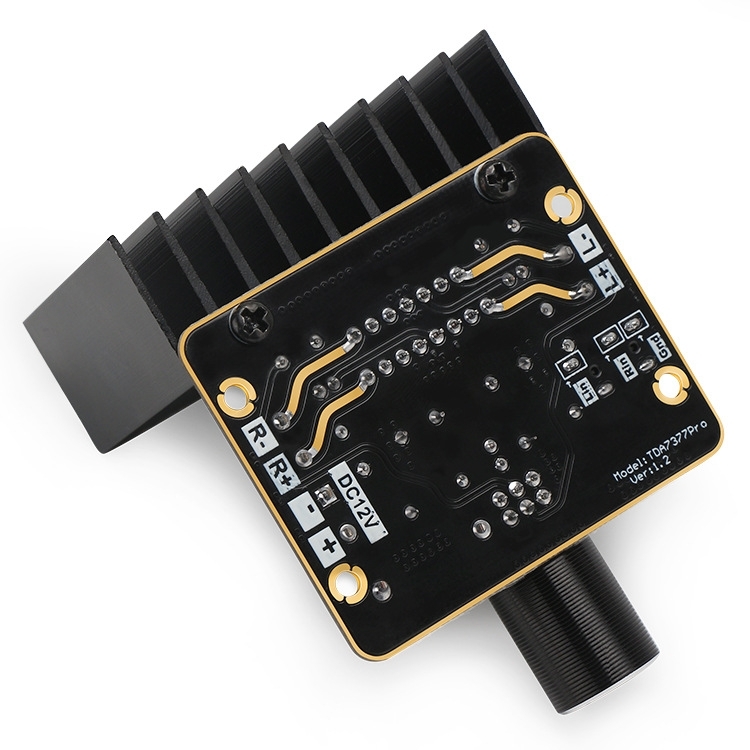

TDA7377 DIY Speaker Power Amplifier Module 12V Dual Channel Stereo 30Wx2 Car Power Amplifier Board

Product Description

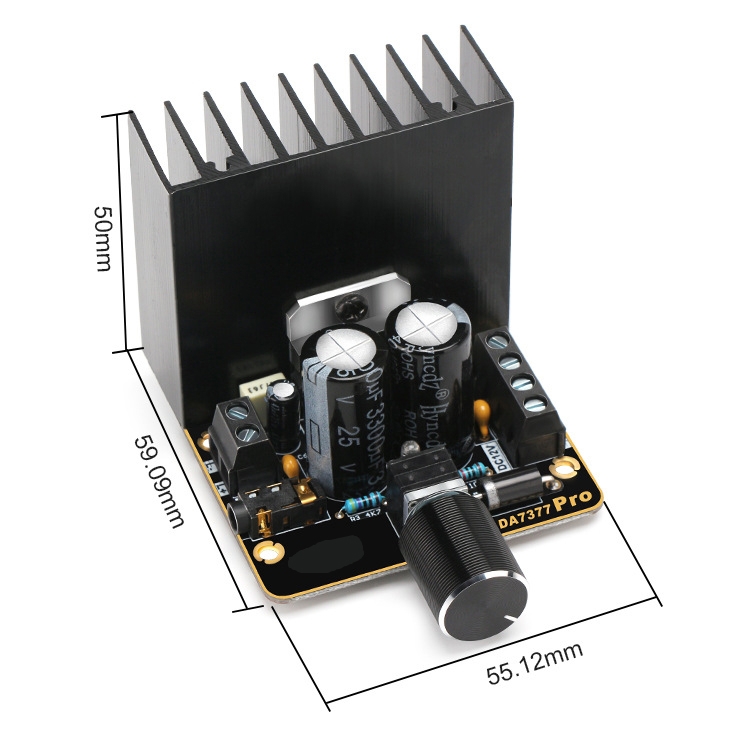

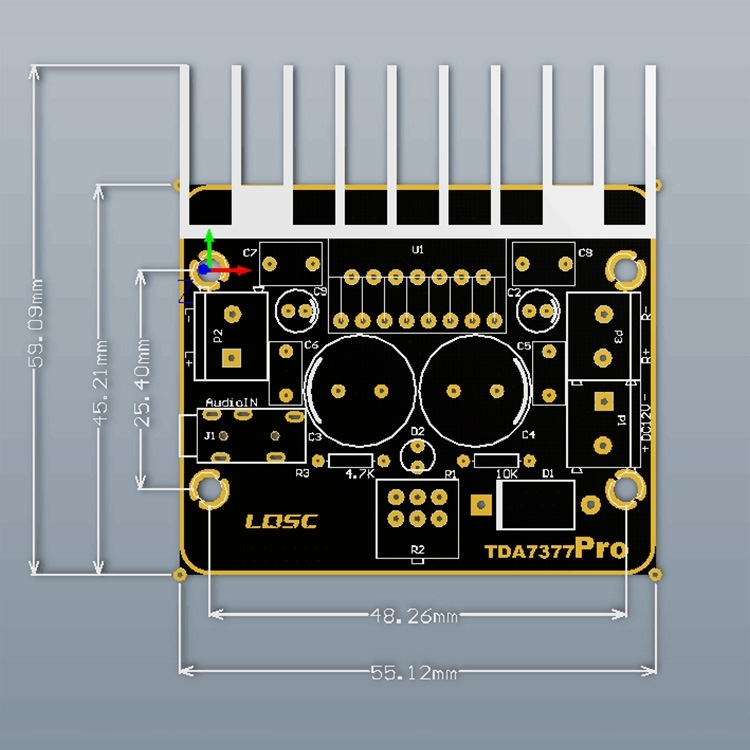

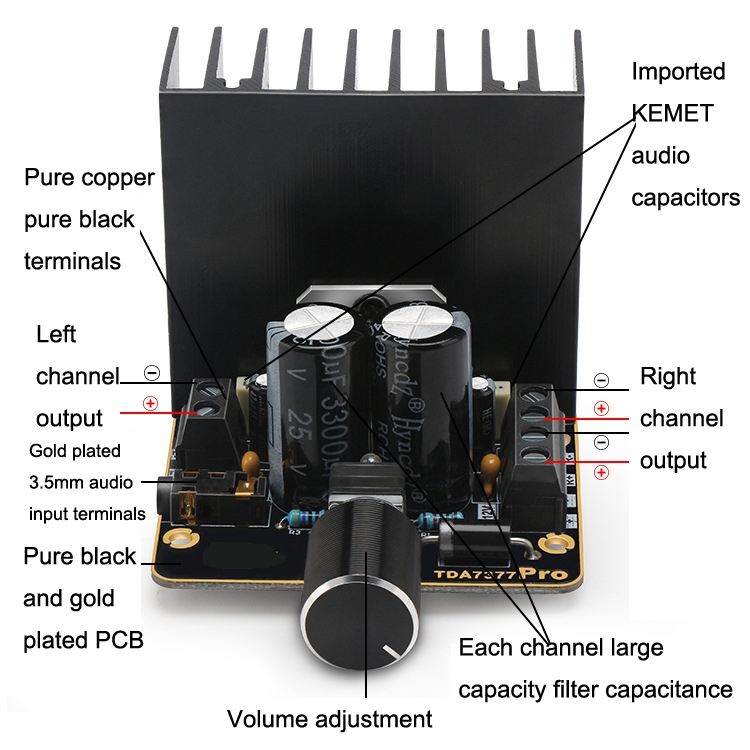

1. Pure black and gold plated circuit board, imported KEMET audio capacitors, high capacity filter capacitors per channel plus monolithic filter capacitors 2. Pure black copper terminals, gold plated audio input terminals 3. Protection: power input reversal protection, short circuit, over-current, overheating 4. Power supply voltage: DC12-18V 5. Input method: 3.5mm audio input 6. Output power: 2 x 30W 4-8 ohm speakers 7. Potentiometer knob opening: 7mm 8. PCB size: 55.12x45.21mm 9. Overall (including heat sink): 55.12x59.09x50mm 10. Net weight: 80g

Specifications

SKU

TBD06032702

Category

Consumer Electronics › DIY Parts & Components › Breadboard / Amplifier Board

Weight

0.104 kg

Delivery

Standard delivery
