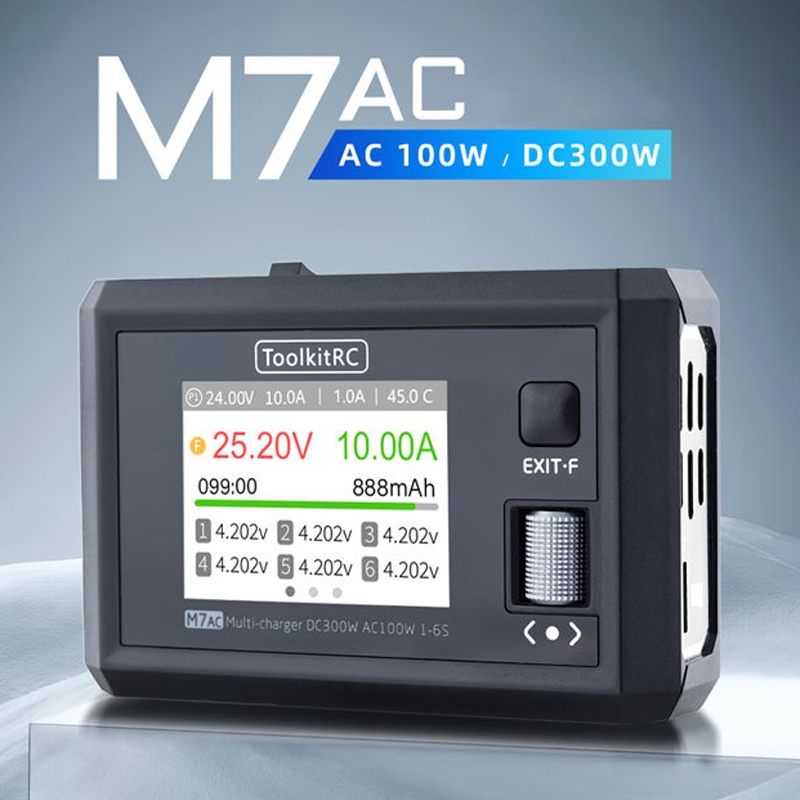

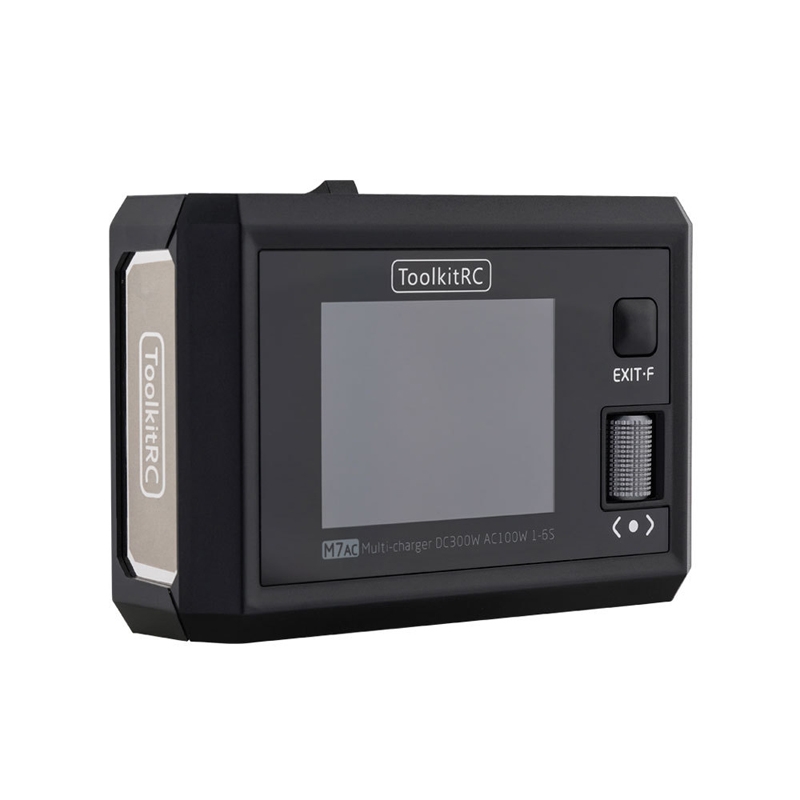

ToolkitRC M7AC Airplane And Car Model Li-Po Battery Balance Charger(EU Plug)

Product Description

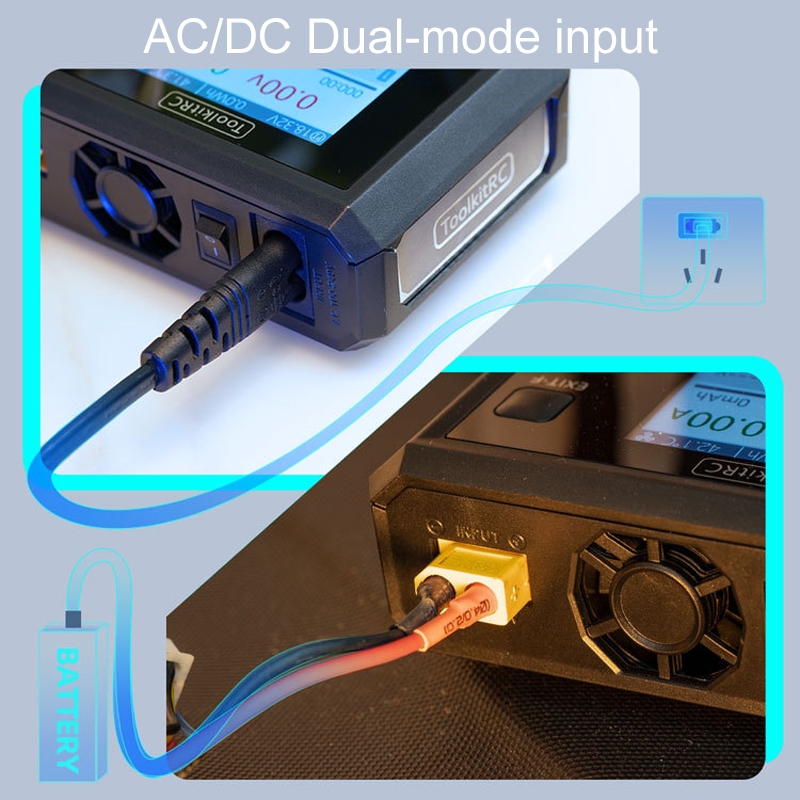

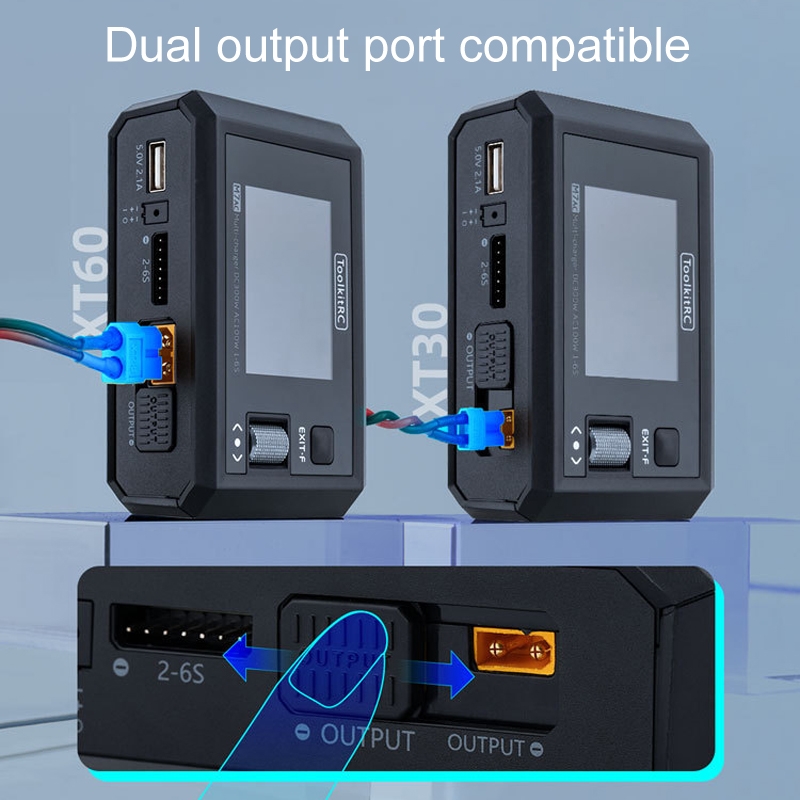

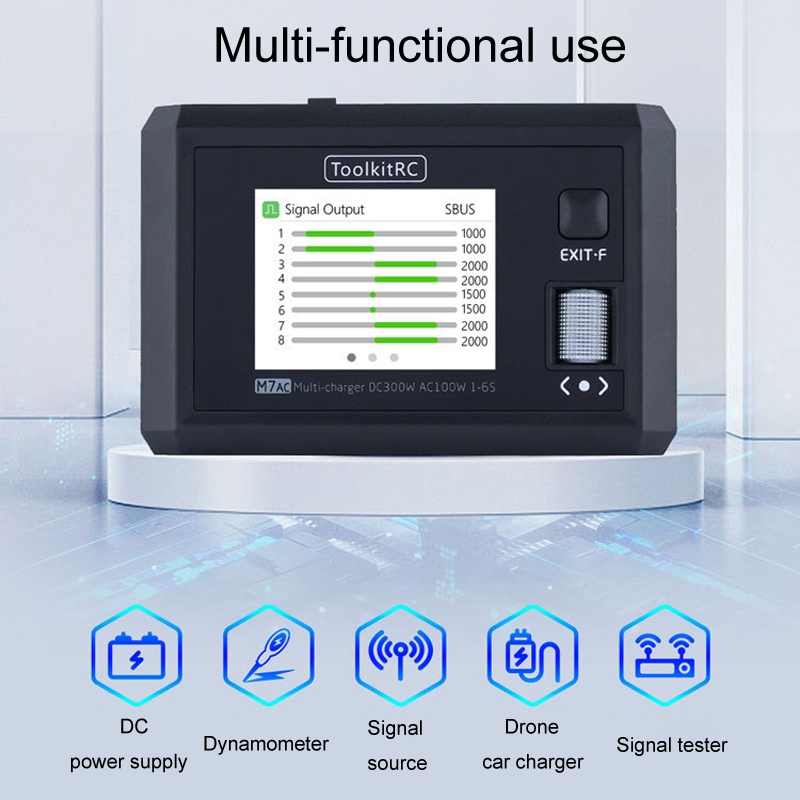

1. Dual-mode input, AC/DC two input power supply mode 2. Dual output port compatible, XT30/XT60 integrated design 3. Mini size, multi-function integration, to cope with a variety of testing needs 4. Customizable voice announcement, practical and convenient Parameters: 1. Input voltage: AC100-240V MAX1.5A; DC7-28V MAX 20A 2. Battery type: LiPo/ LiHV/ LiFe/ Lion/ LTO 1-6S; NiMh 1-16S Pb 1-10S 3. Charging power: 0.1-15A 300W 4. Discharge power: 0.1-15A 300W; 0.1-3A 15W 5. USB: 2.1A 5.0V 6. PWM measurement: 500us-500us 20-1000Hz 7. PPM measurement: 880us-2200us x 8CH 20-50Hz 8. SBUS measurement: 880us-2200us x 16CH 20-100Hz 9. Voltage measurement: 1.0-5.0V 6S 10. Internal resistance measurement: 1-100mR 6S 11. ESC measurement: 0.1A -15A MAX 300W 12. PWM output: 880us-2200us 20-400Hz 13. PPM output: 880us-2200us x 8CH 50Hz 14. SBUS output: 880us-2200us x 16CH 74Hz 15. Power supply: 0.11-25A 1.30V mode: CC+CV 16. Display: IPS 2.4 inches, pixels 320 x 240 17. Size: 112 x 73 x 38mm 18. Weight: 245g

Specifications

SKU

TBD0604937501A

Category

Game Accessories › Toy Battery & Charger › Charger

Weight

0.384 kg

Delivery

Standard delivery
