TR-8011 AC 220-240V Light Control Sensor Automatic Light DIP Switch, Detection Range: 10m

Product Description

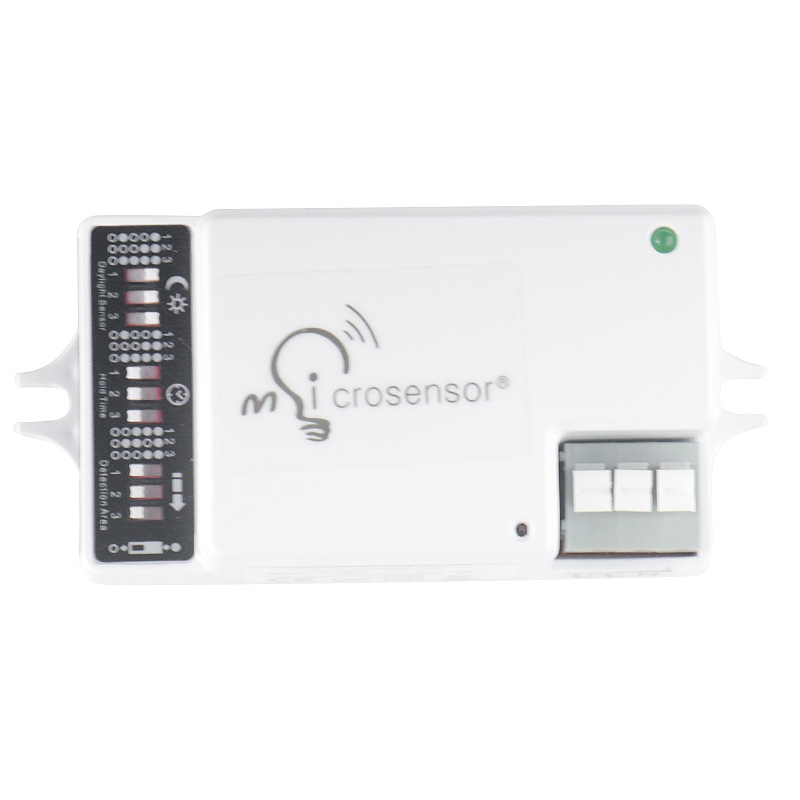

Features 1. The product can turn on or turn off light according to ambient-light. 2. Ambient-temperature and humidity can not affect it. 3. It is not only convenient but also practical. 4. Detection range: 10m (10%/30%/50%/80%/100%). 5. Delay time: 5s/15s/3min/5min/10min. 6. Light control: 5/10/30/100/disable. 7. Microwave frequency: 5.8GHz +/-75MHz. 8. Transmit power: Dial Switch Instructions 1. Light control setting Light response threshold 5 stalls to choose from, 5Lux,10Lux,30Lux,100Luxand disable, respectively, optical control of a brightness sensor to setthe threshold values as defined. 2. Delay setting Delay setting with 5 stalls to choose from, namely 5S,15S,180S,300S,600S;after induction, the output signal will remain within a preset time,detected during the mobile signal, delay will be included. 3. Sets the distance Distance setting with 5 stalls to choose from, namely10%,30%,50%,80%,100%; based on actual usage, choose a different distance.

Specifications

SKU

S-LED-5346

Category

Home & Garden › LED Accessories › LED Controller

Weight

0.09 kg

Delivery

Standard delivery
