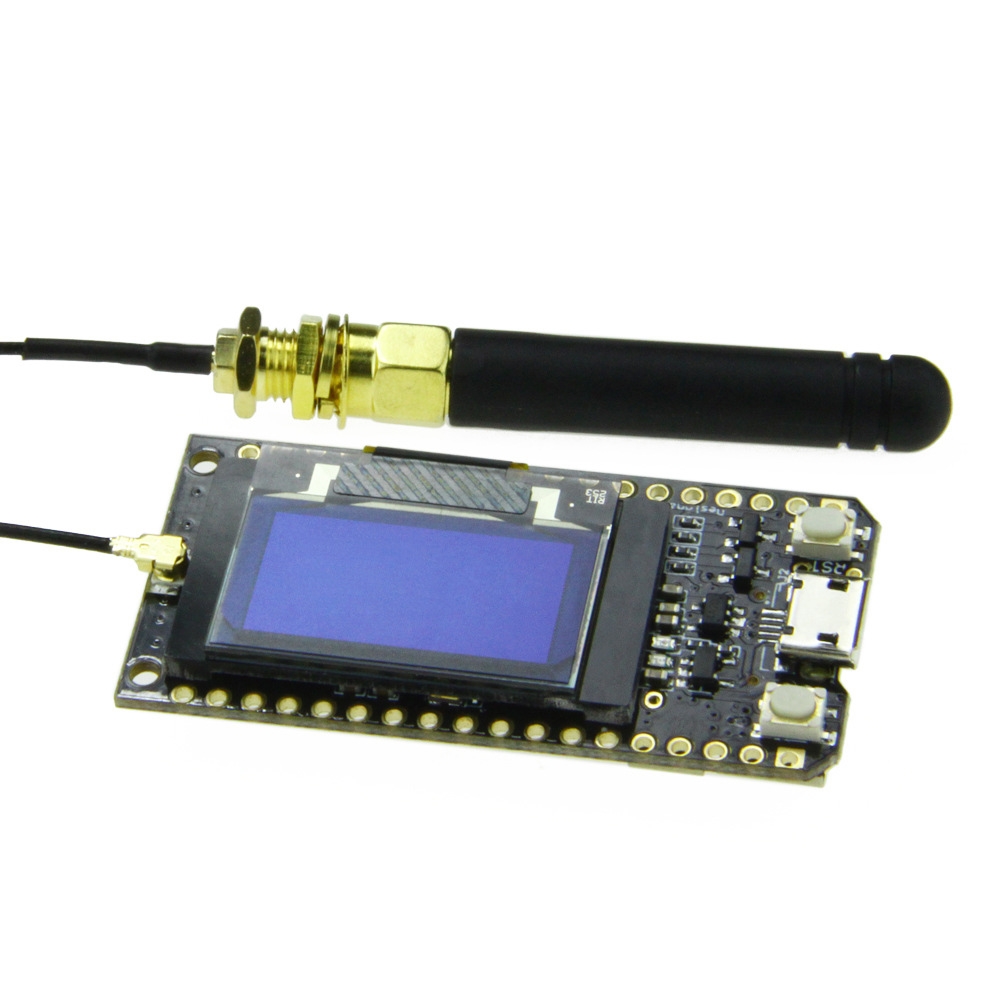

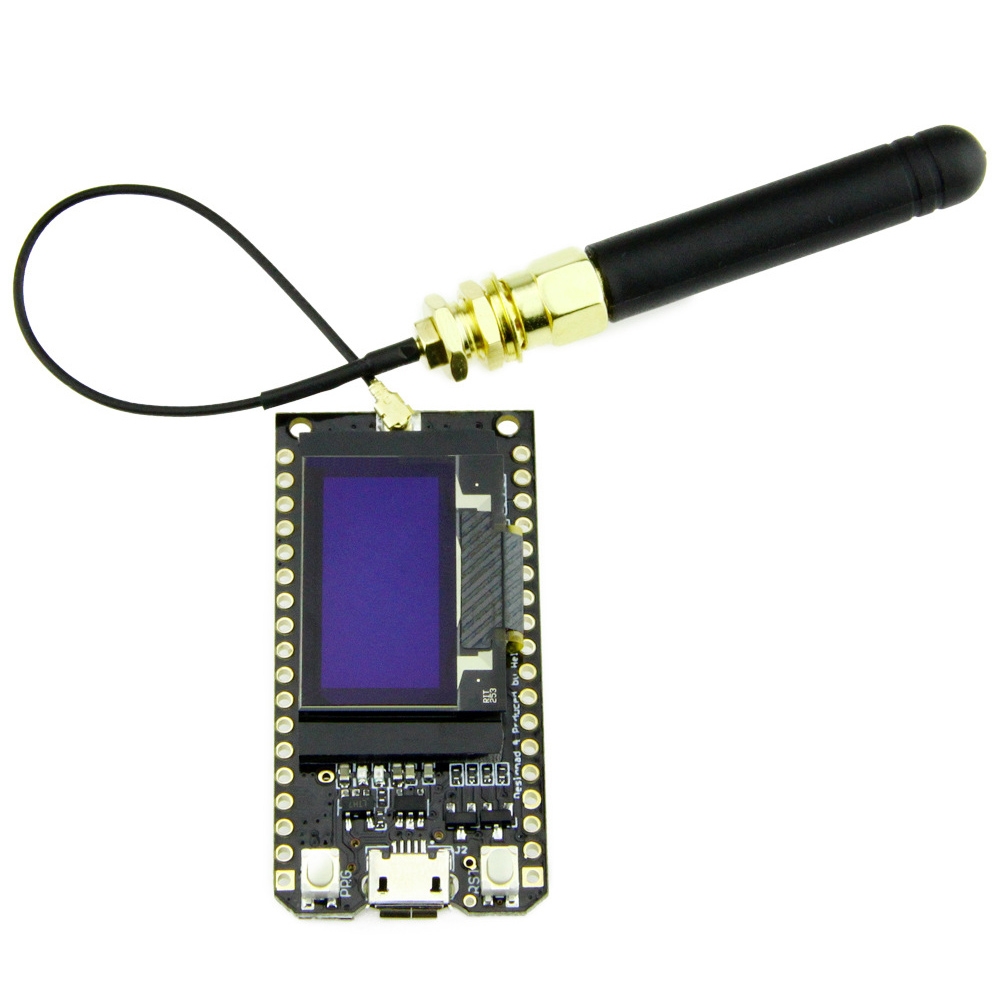

TTGO LORA32 ESP32 LoRa OLED 0.96 inch Blue Screen Bluetooth WIFI 868MHz Discovery Board

Product Description

1. The 868/915MHz antenna needs to be in connection with the IPEX interface (if the antenna is not connected, it may damage the LoRa chip) 2. Lithium battery charge and discharge circuit, when the battery is full, the blue LED will stop working. When using, pay attention to the positive and negative of the battery, otherwise it will be damaged! 3. With IO port touch screen touch signal input, you need to add the 100nF pull-down capacitor to this pin 4. This product is a SX1276 chip based on ESP32 WIFI increased OLED, namely LoRa remote modem, 868-915MHz frequency, high sensitivity is over-148dBm, + 20dBm output power, high reliability, long transmission distance 5. The onboard 32MB Flash wi-fi antenna, 0.96 inch blue OLED display, lithium battery charging circuit, CP2102 interface and USB serial chip, the perfect support for Arduino development environment, can be used for program checking and product development is very easy and fast. 6. Operating voltage: 3.3V to 7V 7. Operating temperature range: -40 Degrees Celsius to + 90 Degrees Celsius 8. Support for Sniffer software protocol analysis, Station, SoftAP, and Wi-Fi Direct modes 9. Data rates: 150Mbps @11n HT40., 72 Mbps @11n HT20, 54 Mbps @11g, 11 Mbps @11b 10. Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n 11. Receiver sensitivity up to -98dBm 12. UDP sustained throughput of 135Mbps

Specifications

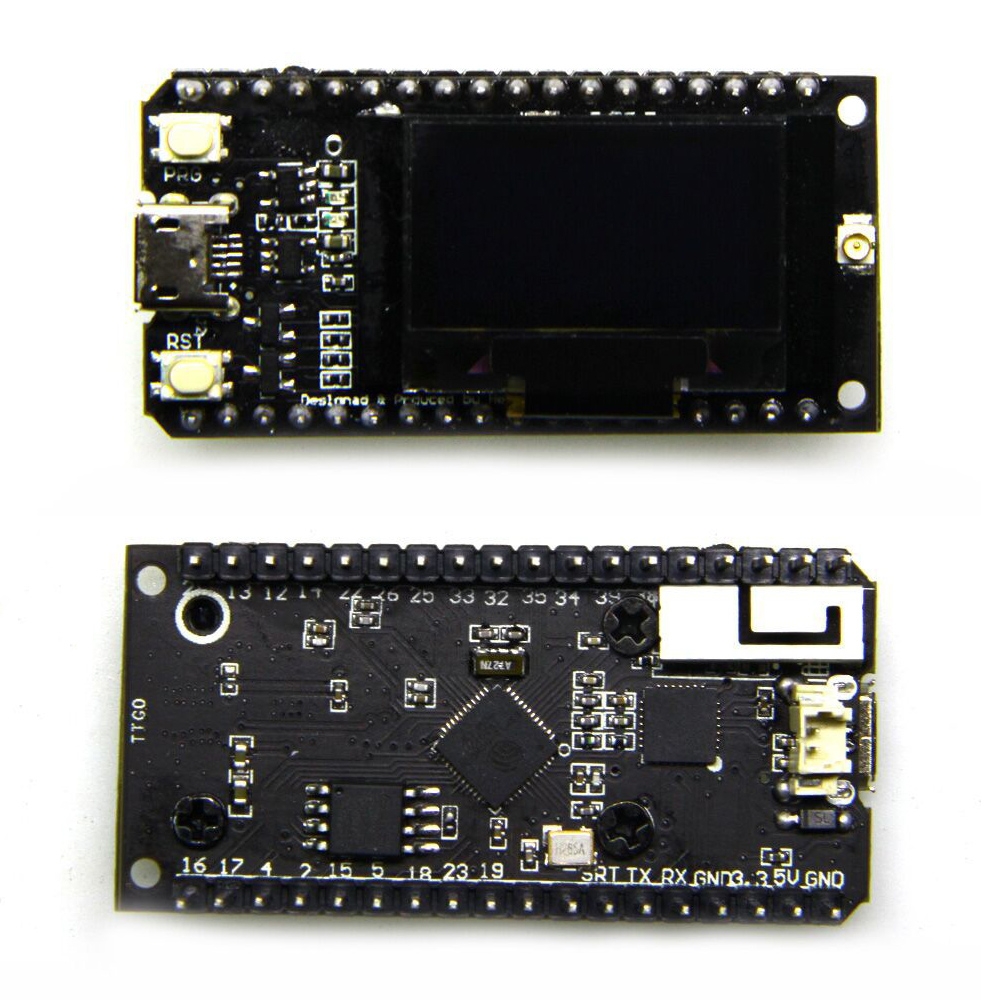

SKU

DIY6143

Category

Consumer Electronics › DIY Parts & Components › Module

Weight

0.137 kg

Delivery

Standard delivery
