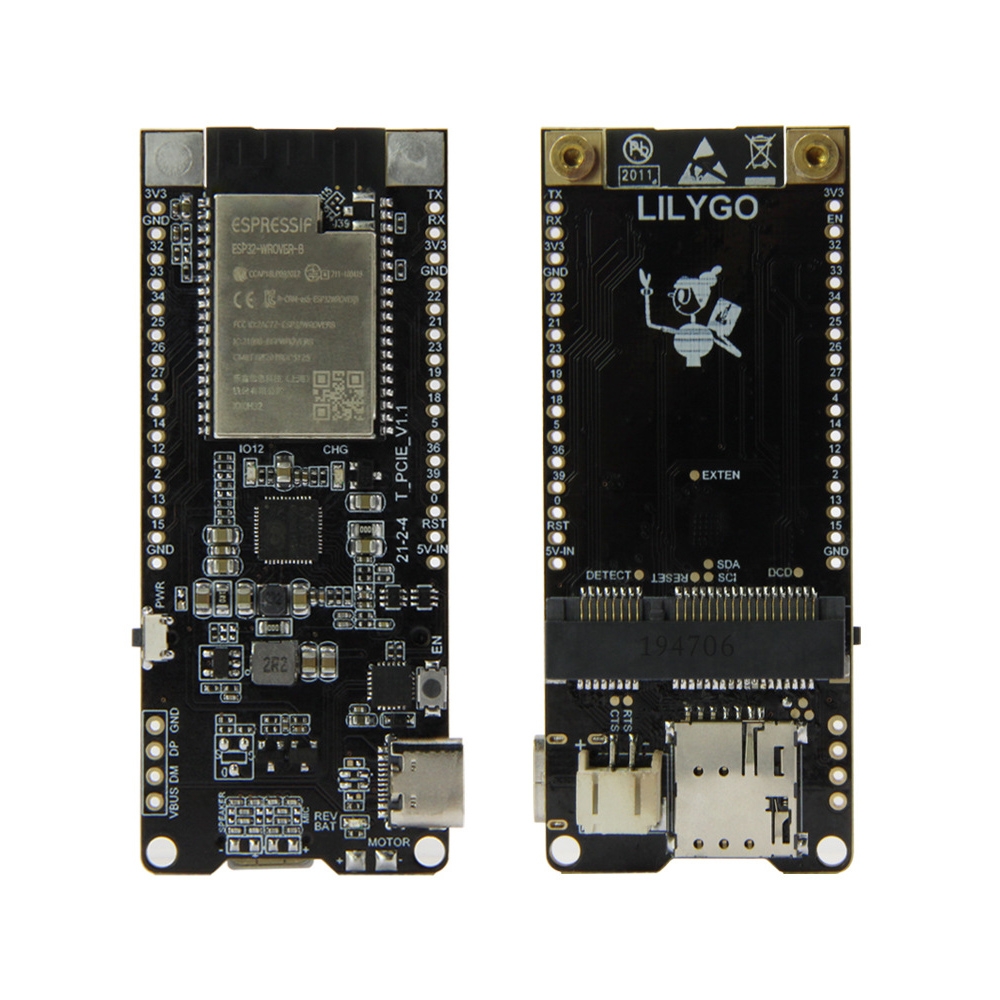

TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module 16MB Hardware Composable Development Board

Product Description

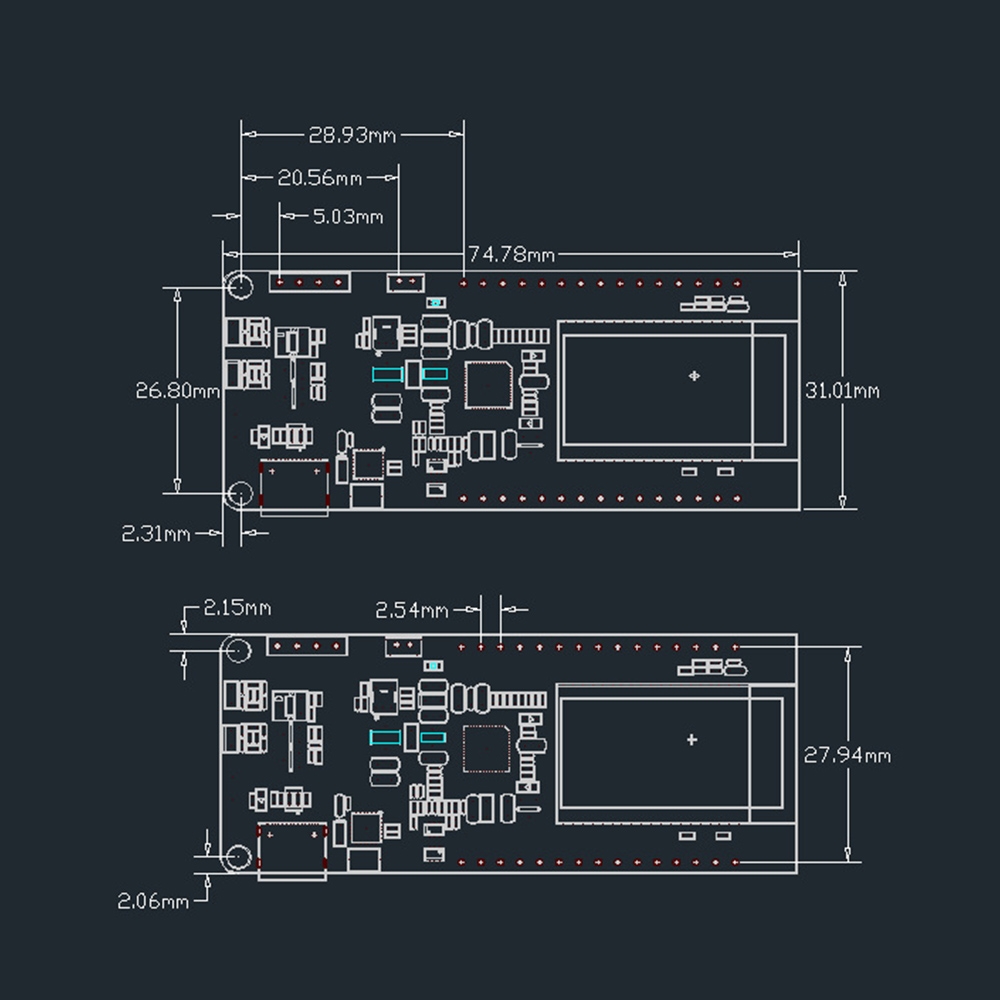

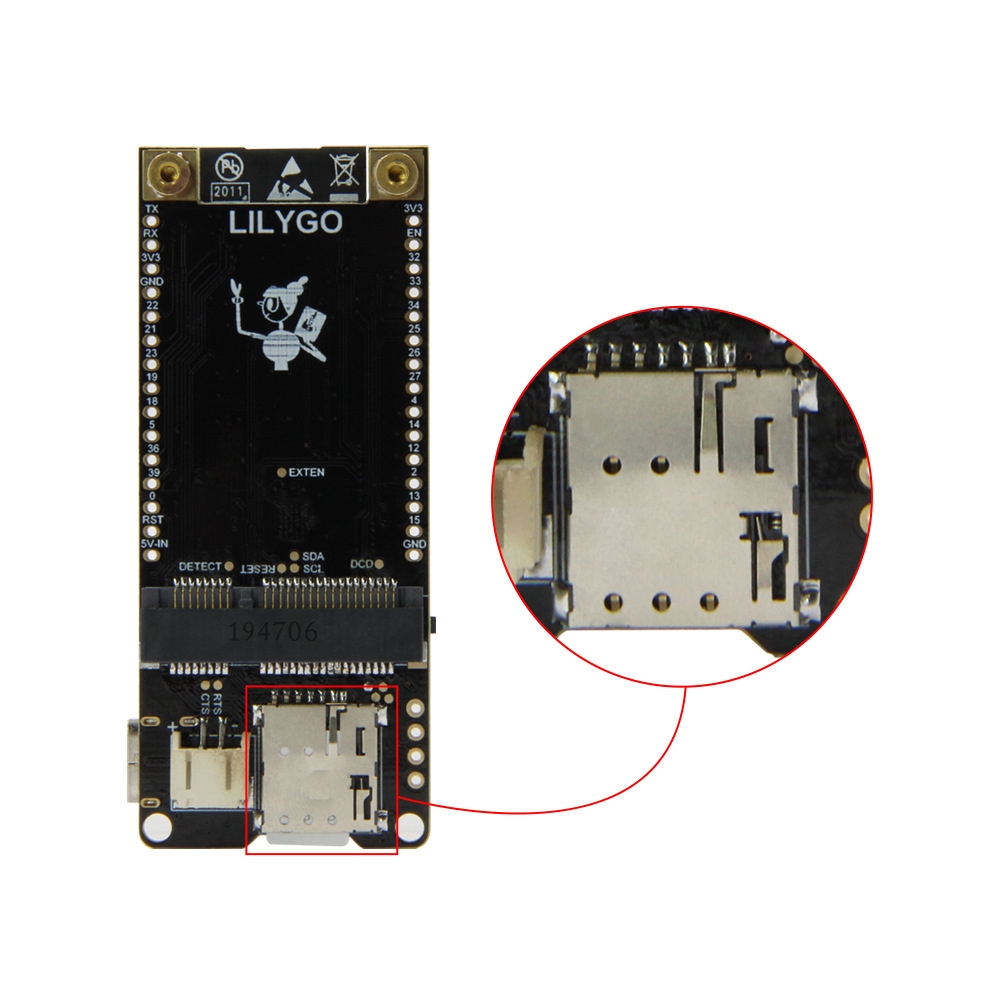

Hardware specifications 1. Chipset: ESP32-WROVER-B, AXP192 power management chip 2. Flash: 16MB 3. Static SRAM: 8MB 4. SRAM: 520 kB SRAM 5. Button: PWR power switch, reset 6. USB to TTL: CP2104 7. Vehicle clock: 40MHz crystal oscillator 8. Peripheral equipment: SIM Nano card slot, Mini PCIE card slot 9. Antenna: Onboard antenna (default) 10. Working voltage: 2.7V to 3.6V 11. Sleep current: About 700ma 12. Operating temperature range: -40 degrees Celsius ~ + 85 degrees Celsius 13. Dimensions: 75 x 33 x 10.5 mm 14. Weight: 14.5g Power Specifications 1. Power input: USB 5V / 1A 2. Charging current: 500 mA 3. Battery input: 3.7-4.2V 4. Charging IC: AXP192 5. JST connector: 2-pin 2.0mm 6. USB: Type C wireless online 1. Standard: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip) 2. Protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU aggregation, support 0.4uS guard interval 3. Frequency range: 2.4GHz-2.5GHz (2400M-2483.5M) 4. Transmit power: 22dBm 5. Communication distance: 300m Bluetooth 1. Protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards 2. Radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm, Class-2&Class-3 transmitter AFH 3. Audio: CVSD&SBC audio Software specifications 1. Wi-Fi mode: Workstation / SoftAP / SoftAP + Station / P2P 2. Security mechanism: WPA / WPA2 / WPA2-Enterprise / WPS 3. Encryption method: AES / RSA / ECC / SHA 4. Firmware upgrade: UART download/OTA (download and write firmware via network/host) 5. Software development: support cloud server development / SDK for user firmware development 6. Network protocol: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT 7. User configuration: AT + command set, cloud server, Android / iOS app 8. Operating system: FreeRTOS Packing list 1. T-PCIE 16MB x 1 2. Charging cable x 1 3. Needle Pin x 2

Specifications

SKU

DIY5121

Category

Consumer Electronics › DIY Parts & Components › Module

Weight

0.049 kg
