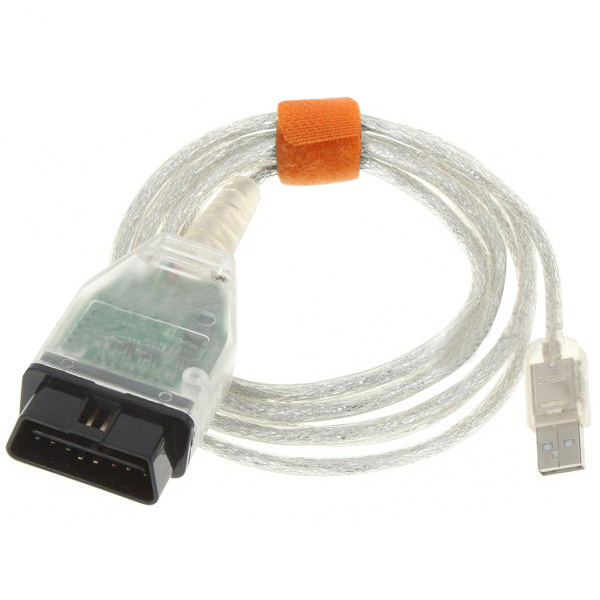

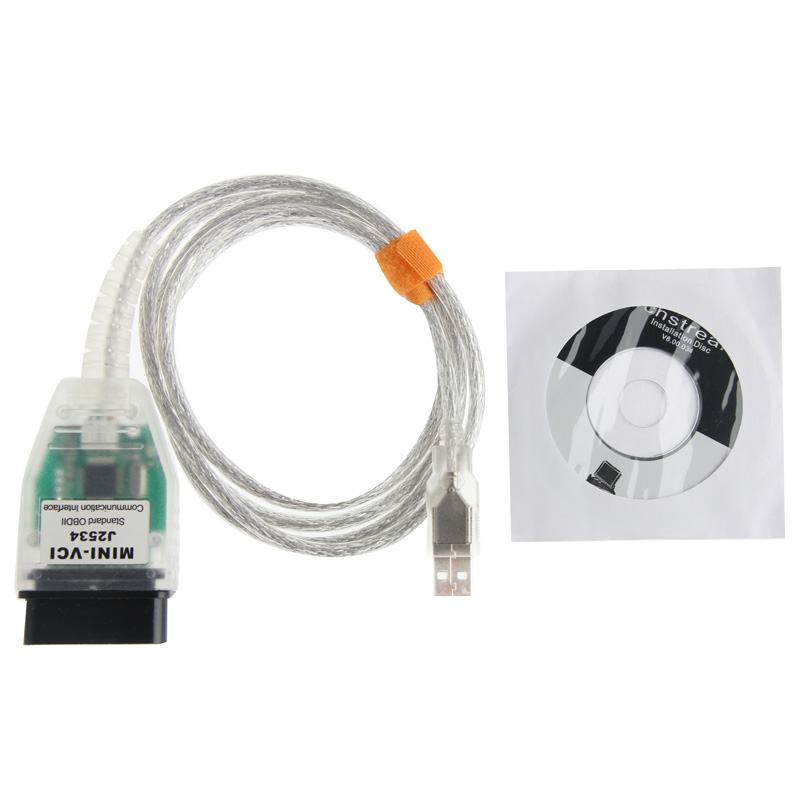

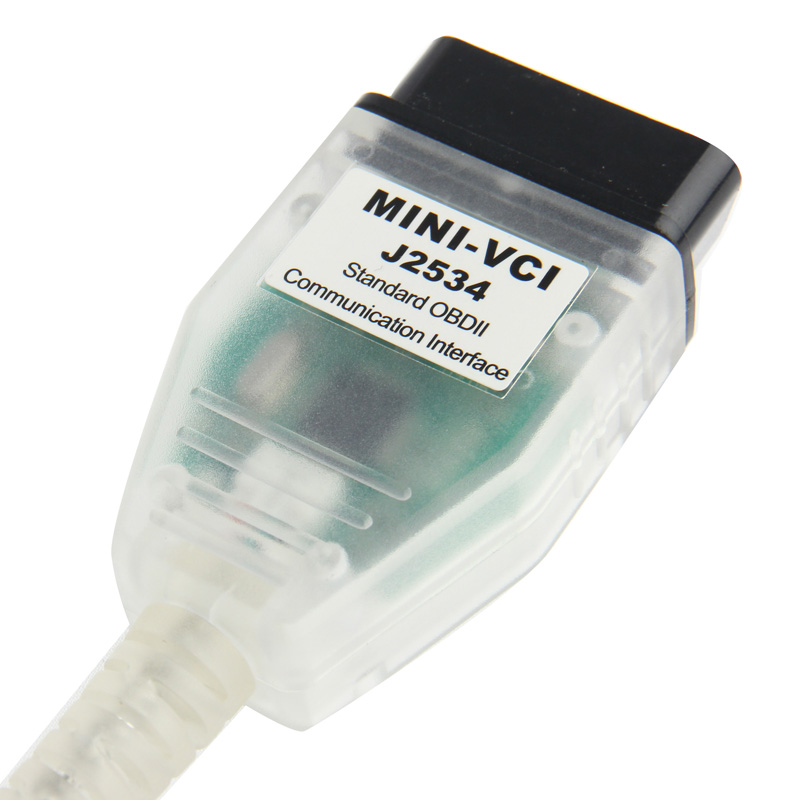

USB VCI J2534 OBDII Car Diagnostic Cable for Toyota, Length: 2m

Product Description

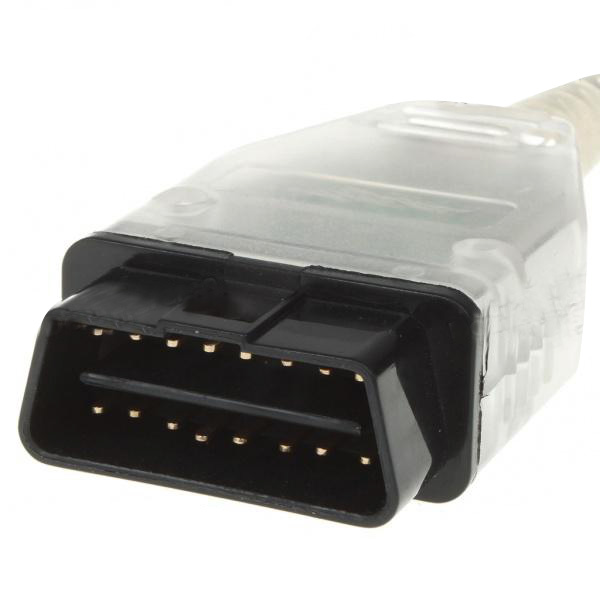

1) Material: Plastic 2) Function: Diagnostic 3) Compatible Make: Toyota 4) Protocols Supported: K-Line ISO 9141 / KWP 2000 ISO 14230-4 / SAE J1850 PWM / SAE J1850 VPW / CAN 2.0B ISO 11898 / CAN ISO 15765-4 5) System Supported: Windows 2000 / XP / Vista / Win 7, Mac OS X 10.3.6 or above version 6) Cable Length: 2m 7) Diagnose Interface: 16-pin 8) Operating Voltage: 12 V 9) Other Features: Supports Toyota TIS OEM diagnostic software; High performance with ARM CPU inside; Supports protocols: K-Line ISO 9141 / KWP 2000 ISO 14230-4 / SAE J1850 PWM / SAE J1850 VPW / CAN 2.0B ISO 11898 / CAN ISO 15765-4; High reliability of products using SMD chip; Supports all the diagnostic communication protocols needed for Toyota (since 1996)

Specifications

SKU

S-CMS-9239

Category

In Car › Diagnostic Scan Tools › Cables & Connectors

Weight

0.19 kg

Delivery

Standard delivery
