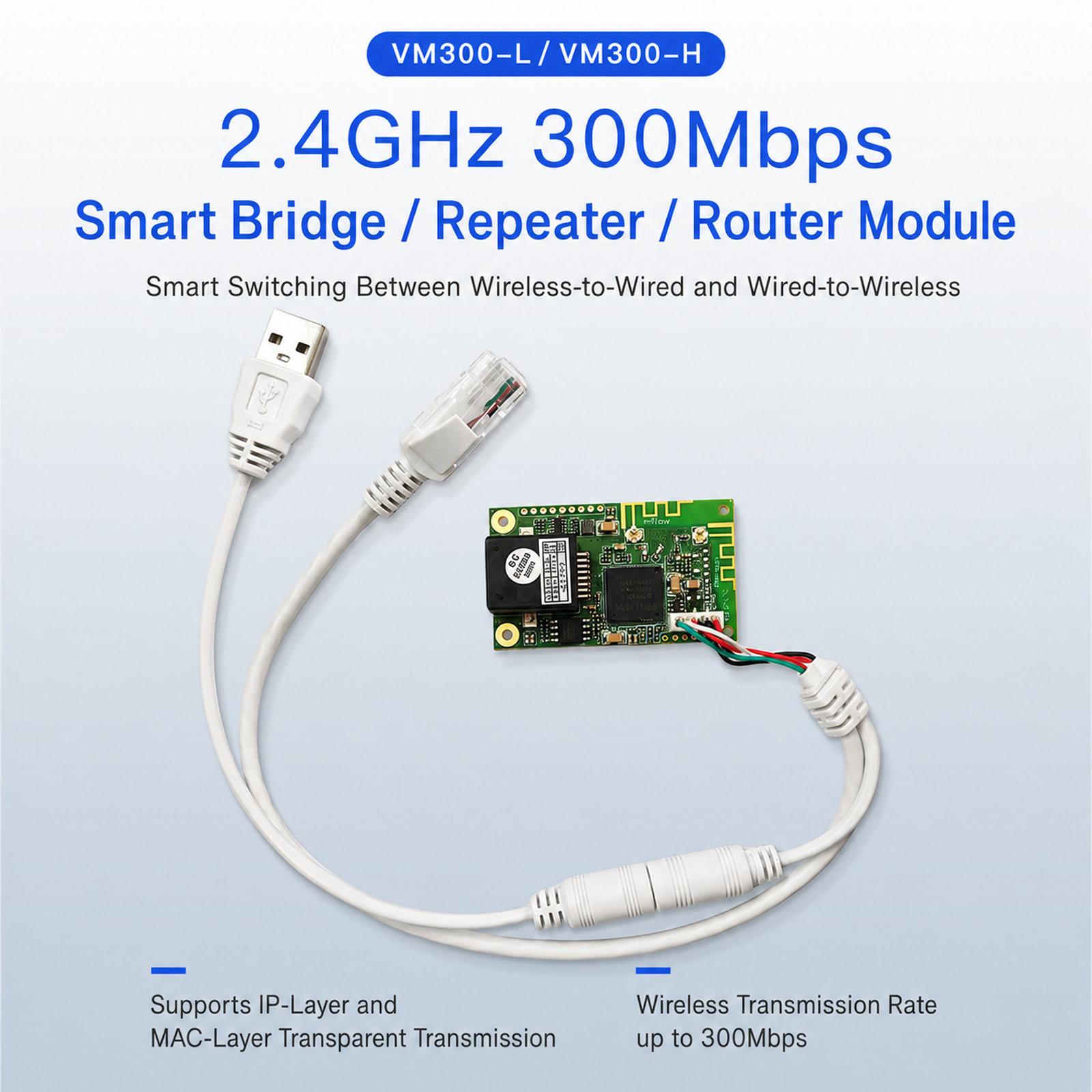

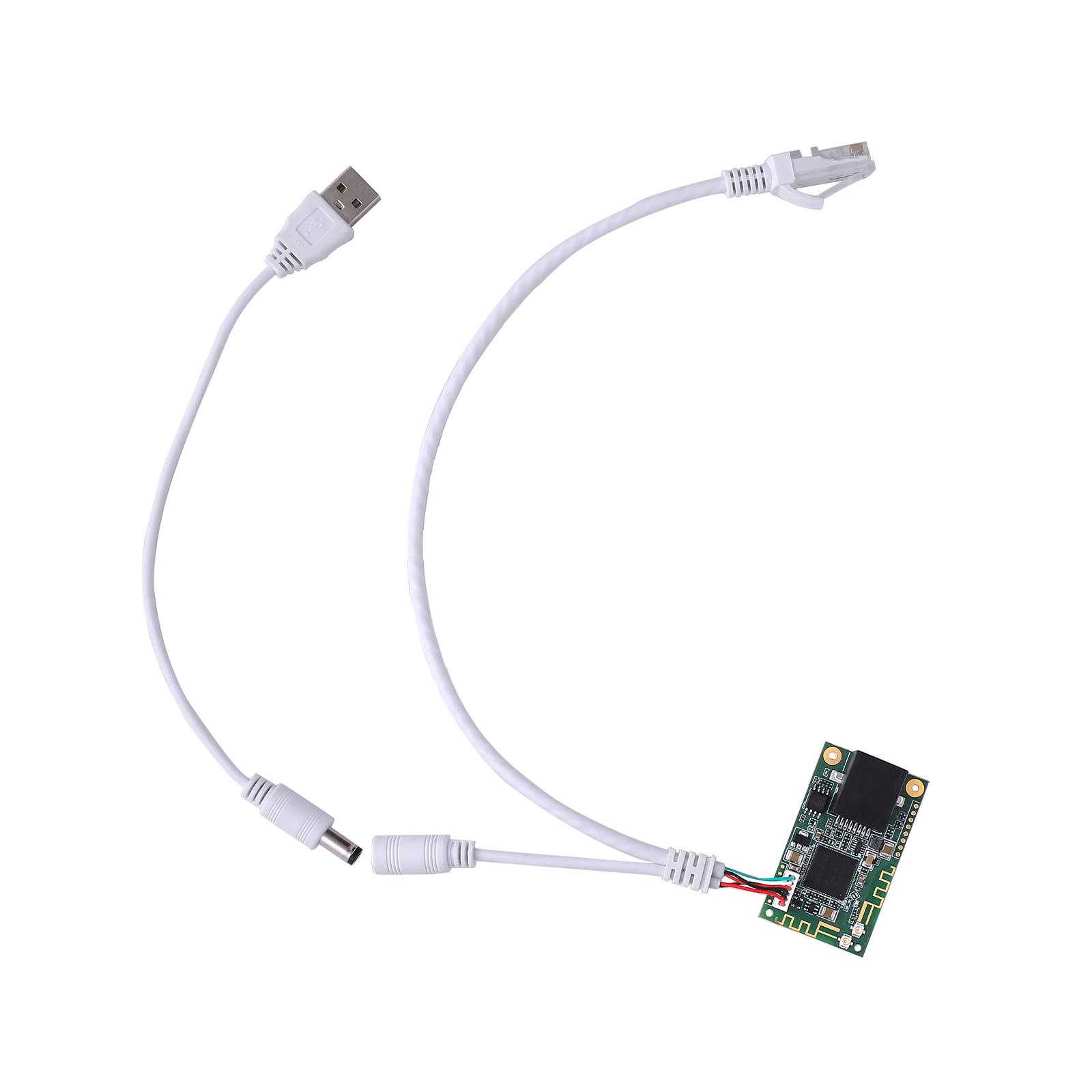

VONETS VM300-L Mini 2.4G 300Mbps WiFi Router Bridge Module TTL Serial To Ethernet Repeater

Product Description

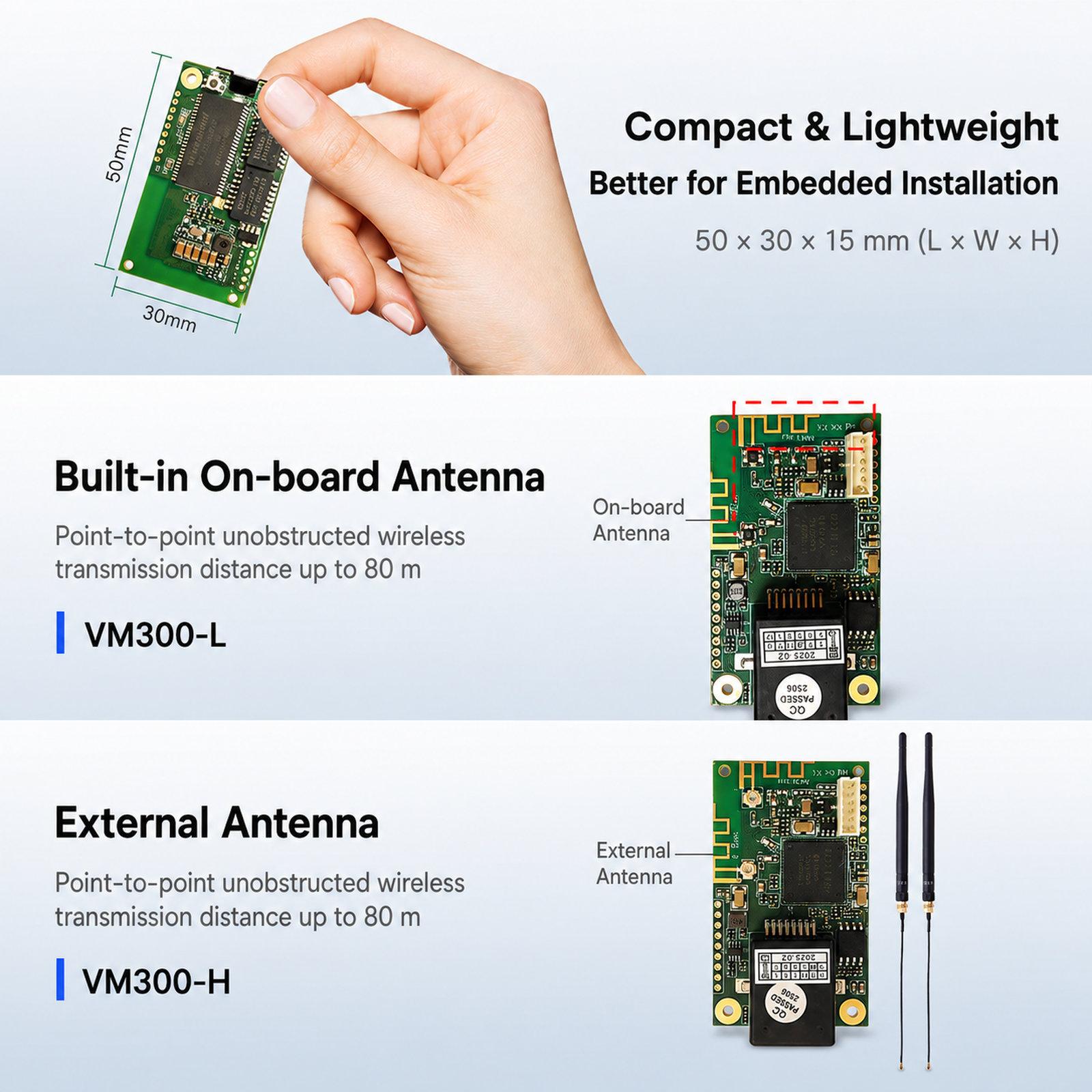

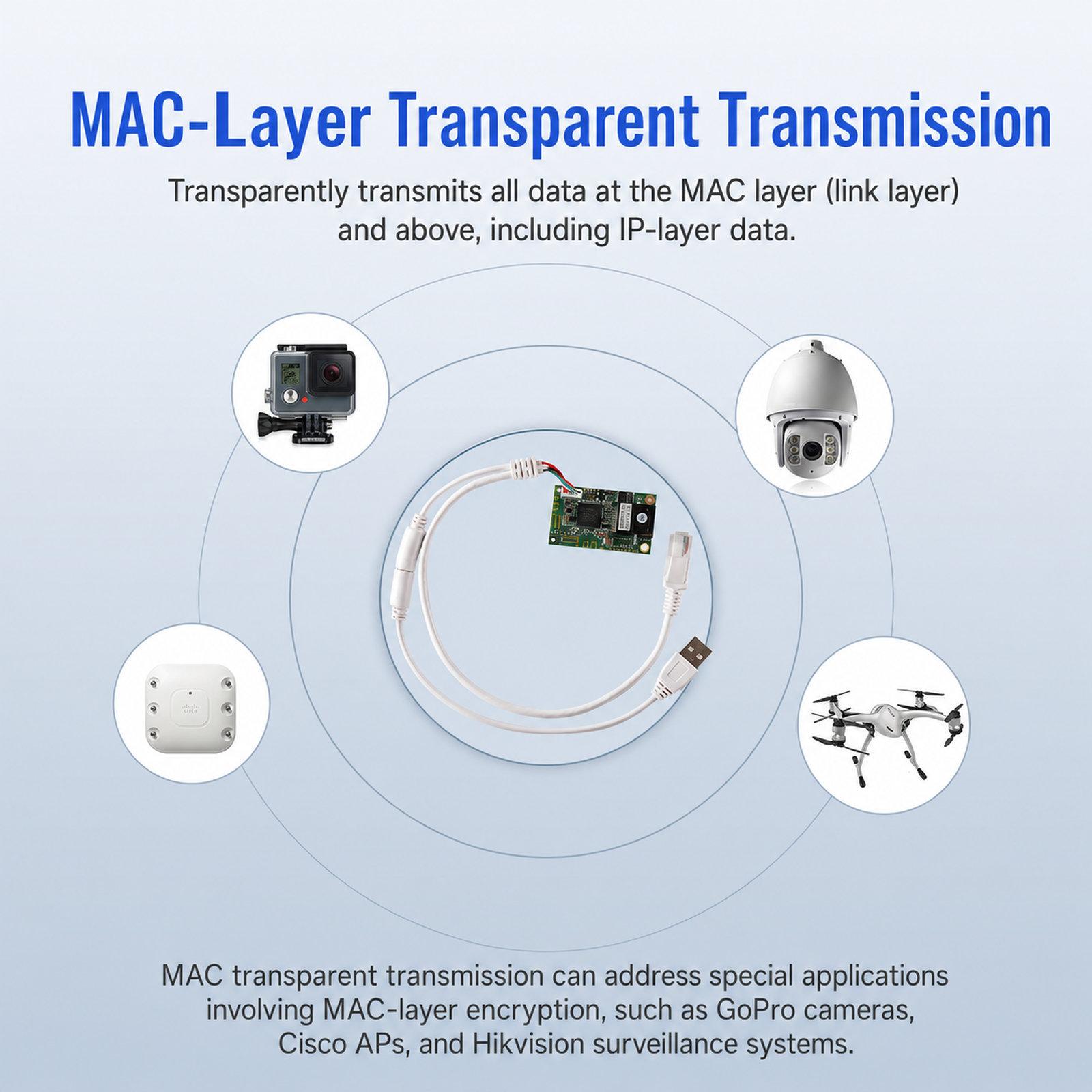

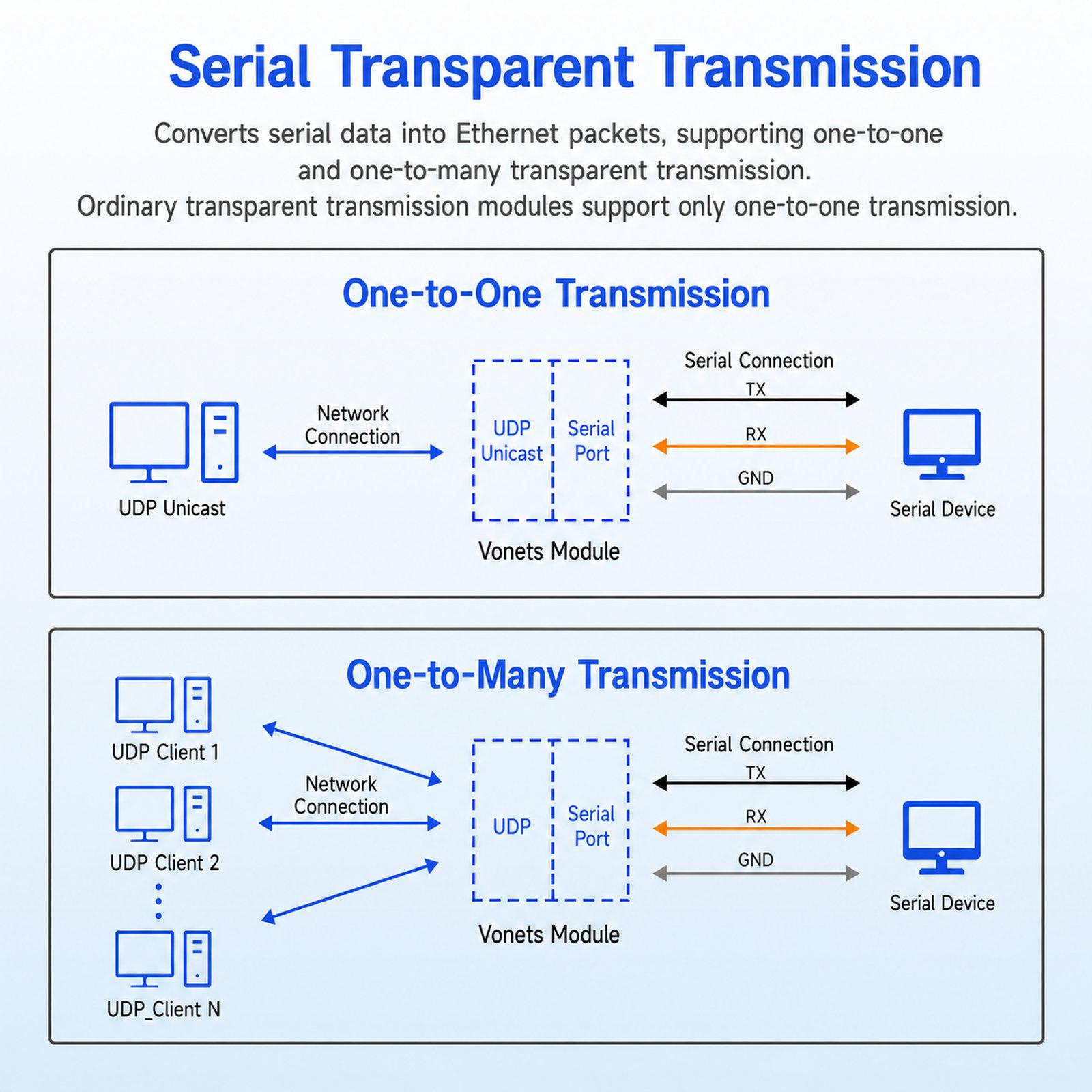

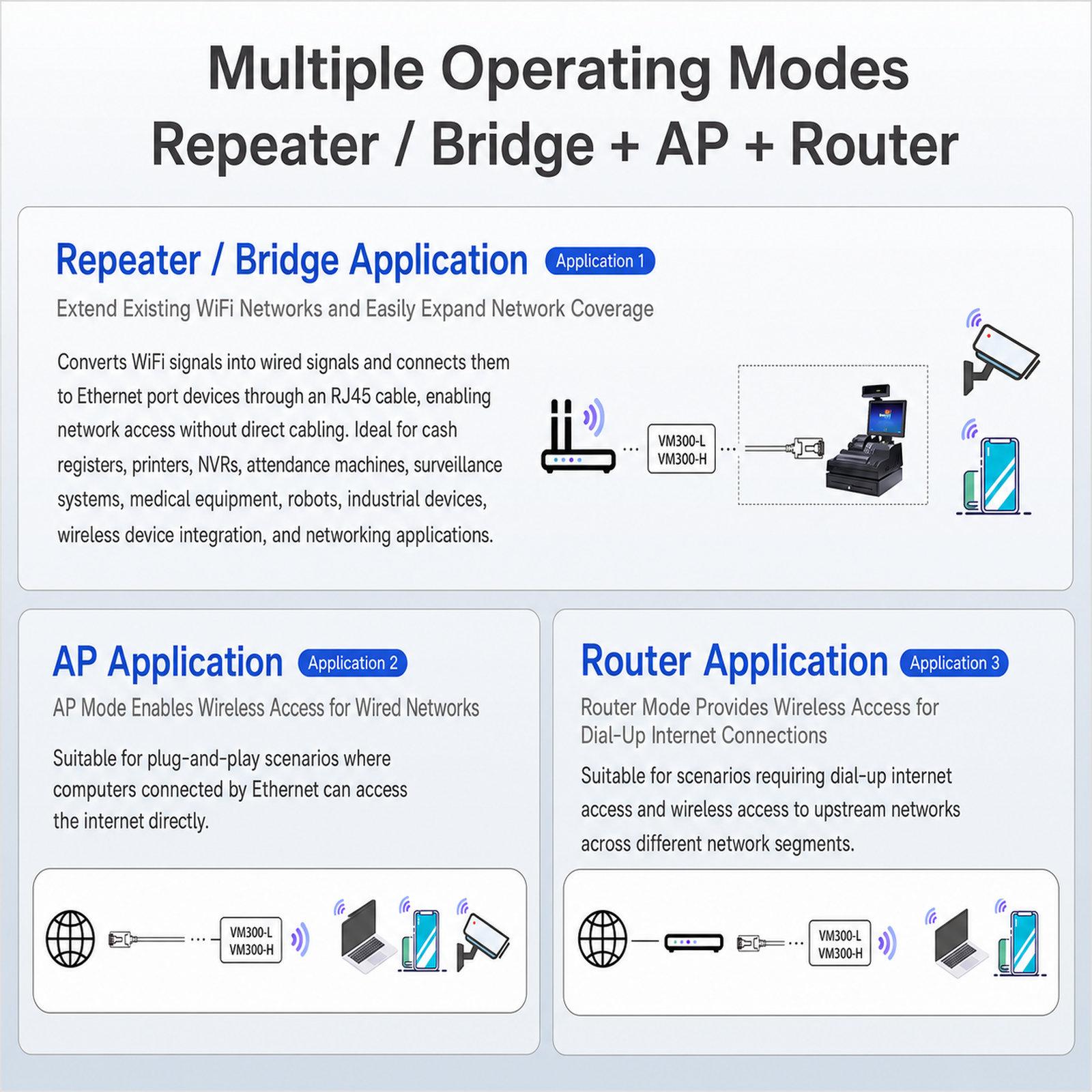

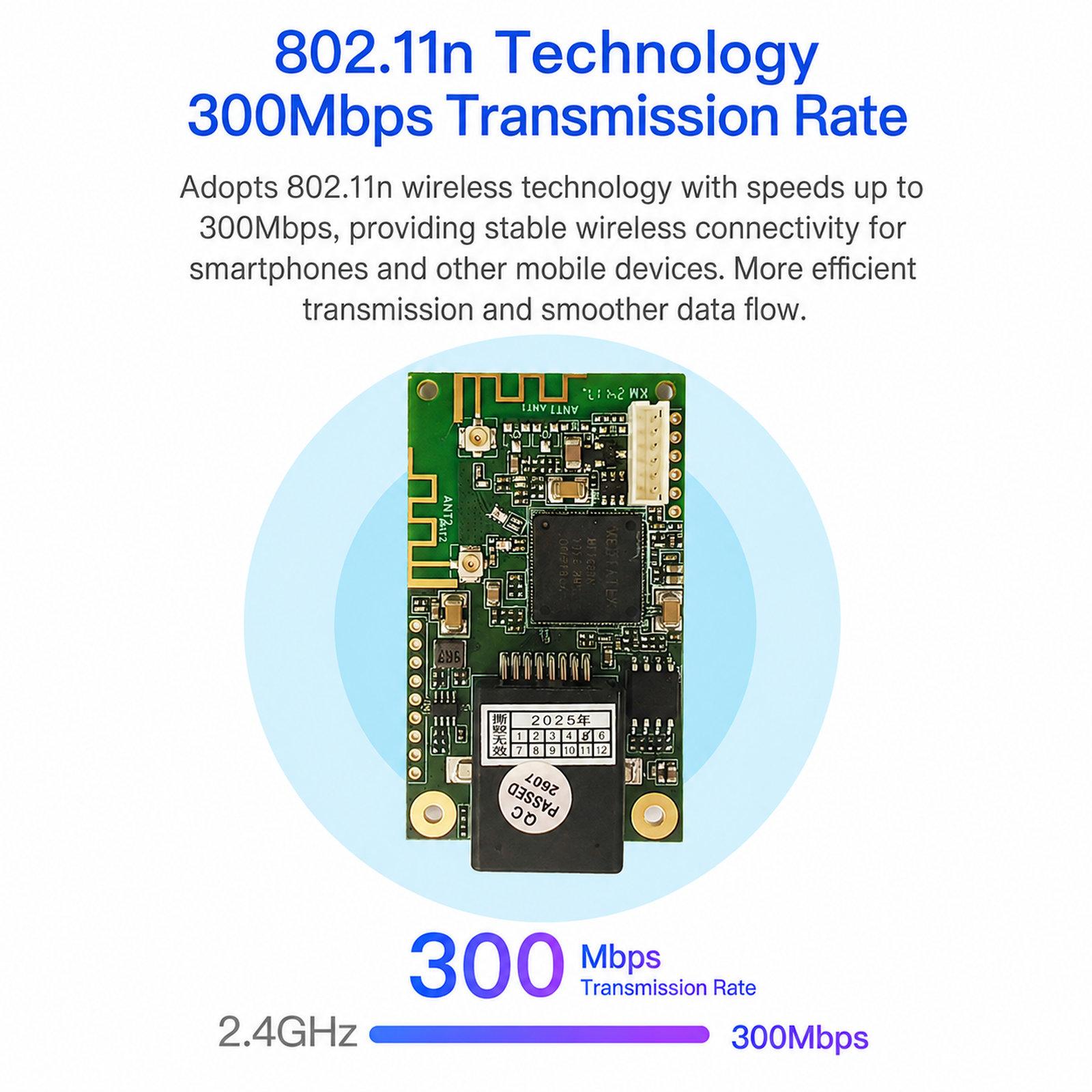

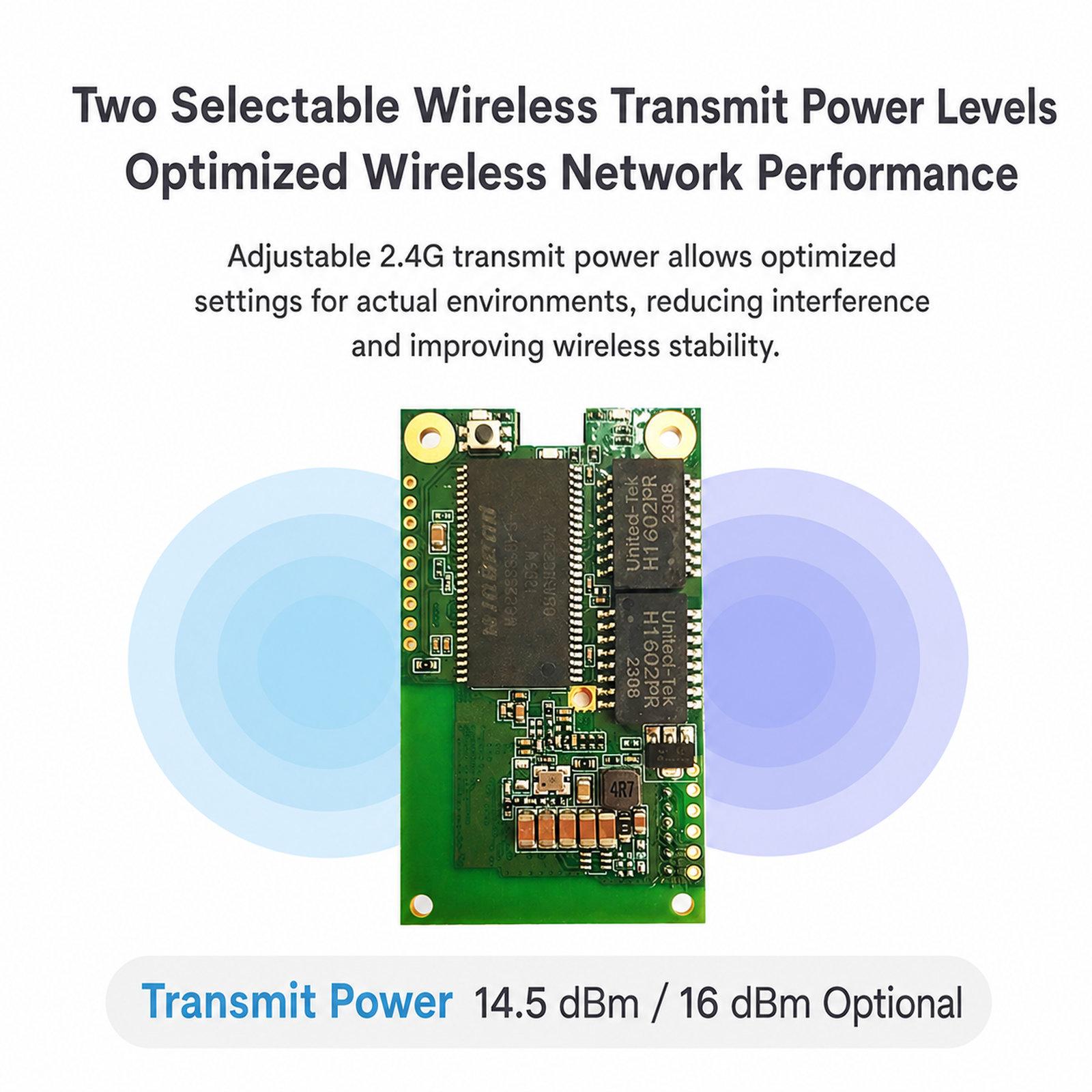

1. WiFi Frequency Band: 2.4GHz 2. Single/Dual Band: Single-band 3. Wireless Transmission Rate: 300Mbps 4. Functions: WiFi Router/Bridge/Repeater/AP 5. Wireless Transmit Power: 2.4GHz: 14.5/16dBm 6. Ethernet Port Type: 2 x 100Mbps ports 7. Antennas: H: 2 external; L: 2 internal 8. Antenna Connector Type: IPEX Gen 1 9. Antenna Interface Type: SMA (Female/Jack) 10. IP and MAC Layer Transparent Transmission: Supported 11. Max Stored Hotspots: 100 12. Max Scanned Hotspots: 128 13. Auto-reconnect Function: Supported 14. Firewall: Supported 15. Smart Fan Start/Stop: No 16. Serial Port: 1 x UART (TTL level) 17. Power Supply Voltage (Recommended Power): DC 5V-24V (5W) 19. Dimensions: Approx. 5.1 x 3.0 x 1.3cm Features: 1. Compact design tailored for embedded device installation; space-saving and easy to integrate 2. Utilizes 802.11n wireless technology; transmission rates up to 300Mbps in the 2.4GHz band 3. Supports multiple operating modes: Repeater/Bridge, AP, and Router 4. Supports USB 5V/1A and wide-range DC 5-24V power input, flexibly adapting to the power requirements of various industrial and consumer devices 5. Supports serial-to-Ethernet data conversion (one-to-one/one-to-many transparent transmission) and MAC-layer transparent transmission, enhancing data compatibility 6. Available in versions with either an on-board antenna (VM300-L) or an external antenna (VM300-H), featuring adjustable transmit power (14.5 dBm/16 dBm) to suit various application scenarios.

Specifications

SKU

TBD0607104501

Category

Computer & Networking › Networking Accessories › Network Hardware

Weight

0.094 kg

Delivery

Standard delivery
