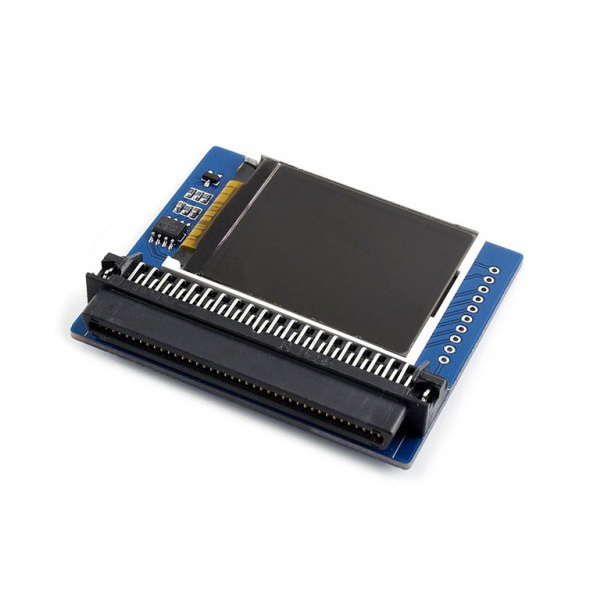

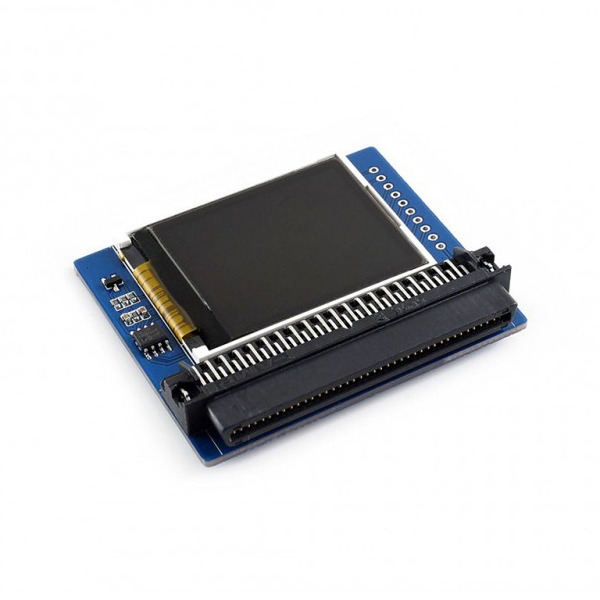

WAVESHARE 1.8inch 160x128 Colorful Display Module for Mmicro:Bit,65K Colors

Product Description

1. micro:bit edge connector, directly pluggable 2. Embedded driver ST7735S, supports 65K colors 3. Onboard SRAM 23LC1024, used as display cache, no more out of memory 4. SPI interface, takes up only a few IO pins 5. Backlight adjustment via PWM 6. Reserved solder pads for control interface, make it easy to connect with Arduino/Nucleo boards 7. Driver: ST7735S 8. Resolution: 160x128 9. Color display: RGB, 65k colors 10. Operating voltage: 3.3 v 11. Dimension: 61 x 51.5mm

Specifications

SKU

DIY1219

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.048 kg

Delivery

Standard delivery
