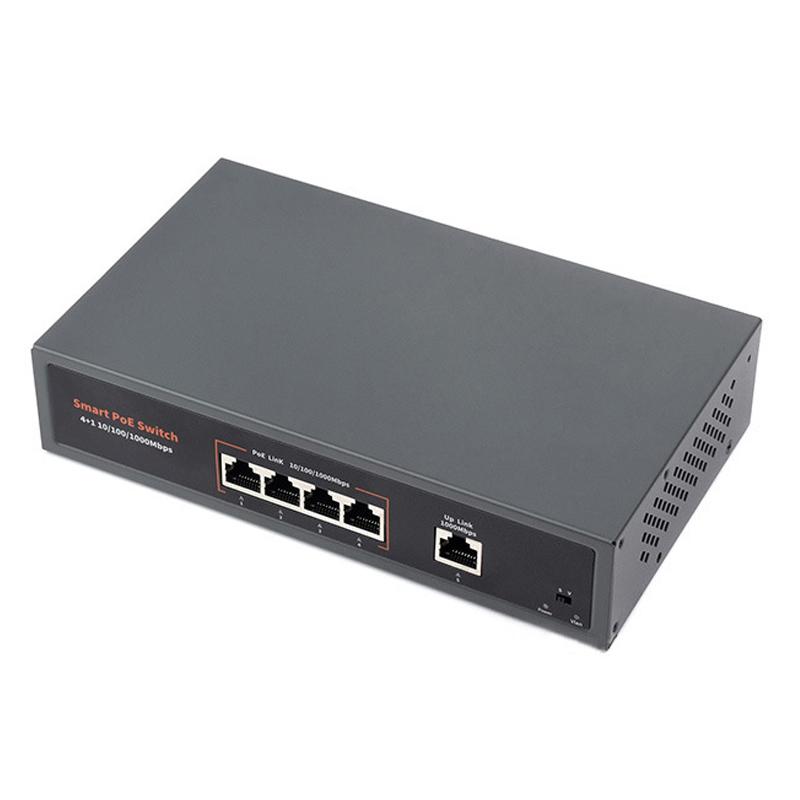

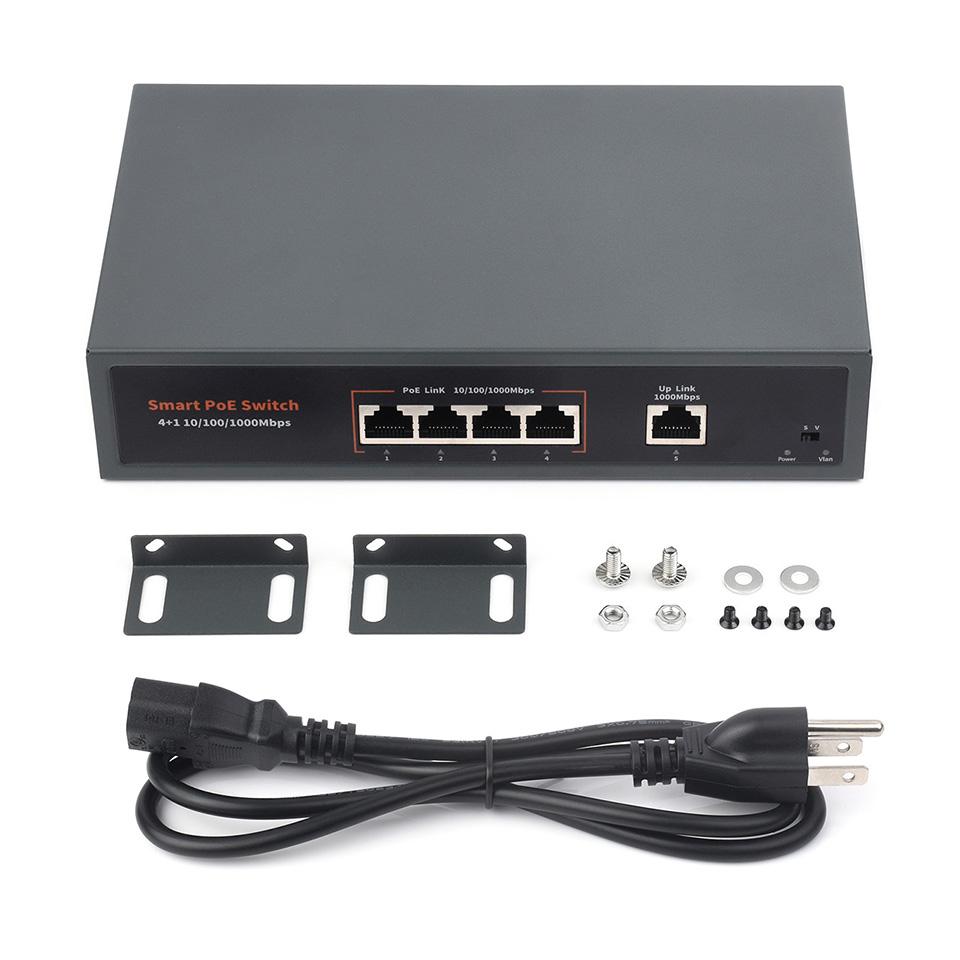

Waveshare 120W Industrial 4-Ports Gigabit Ethernet PoE Switch(US Plug)

Product Description

1. Network standards: 1EEE 802.3, 1EEE 802.3u, 1EEE 802.3x 2. Ports: 4 10/100/1000 Mbps RJ45 PoE ports; 1 10/100/1000 Mbps RJ45 uplink port 3. PoE power supply: 4 10/100/1000 Mbps RJ45 ports support PoE+ power supply; the power supply power of the whole machine is 120W peak, and the power supply power of a single port is 30W peak 4. PoE connection: support 1/2+, 3/6-pair and 4/5+, 7/8-pair end-spanning method 5. Performance: store and forward, support 2K MAC address table depth, 12Gbps backplane bandwidth 6. Forwarding rate: 10BASE-T: 14880pps/port; 100BASE-tx: 148800pps/port; 1000BASE-tx: 1488000pps/port 7. Port function: power supply priority mechanism, fast forwarding, MAC automatic learning and aging; IEEE802.3X full-duplex flow control and back pressure half-duplex flow control 8. Operating temperature: -20 to 55 degrees Celsius 9. Storage temperature: -20 to 75 degrees Celsius 10. Input: AC/IN 110V-240V 11. Output: DC 52V±5% 2.3A, less than or equal to 120W 12. Material: metal 13. Dimensions: 200 x 118 x 44mm 14. Weight: about 806g

Specifications

SKU

TBD0605777101A

Category

Computer & Networking › Router & Modem & Switch › Switch

Weight

1.004 kg

Delivery

Standard delivery
