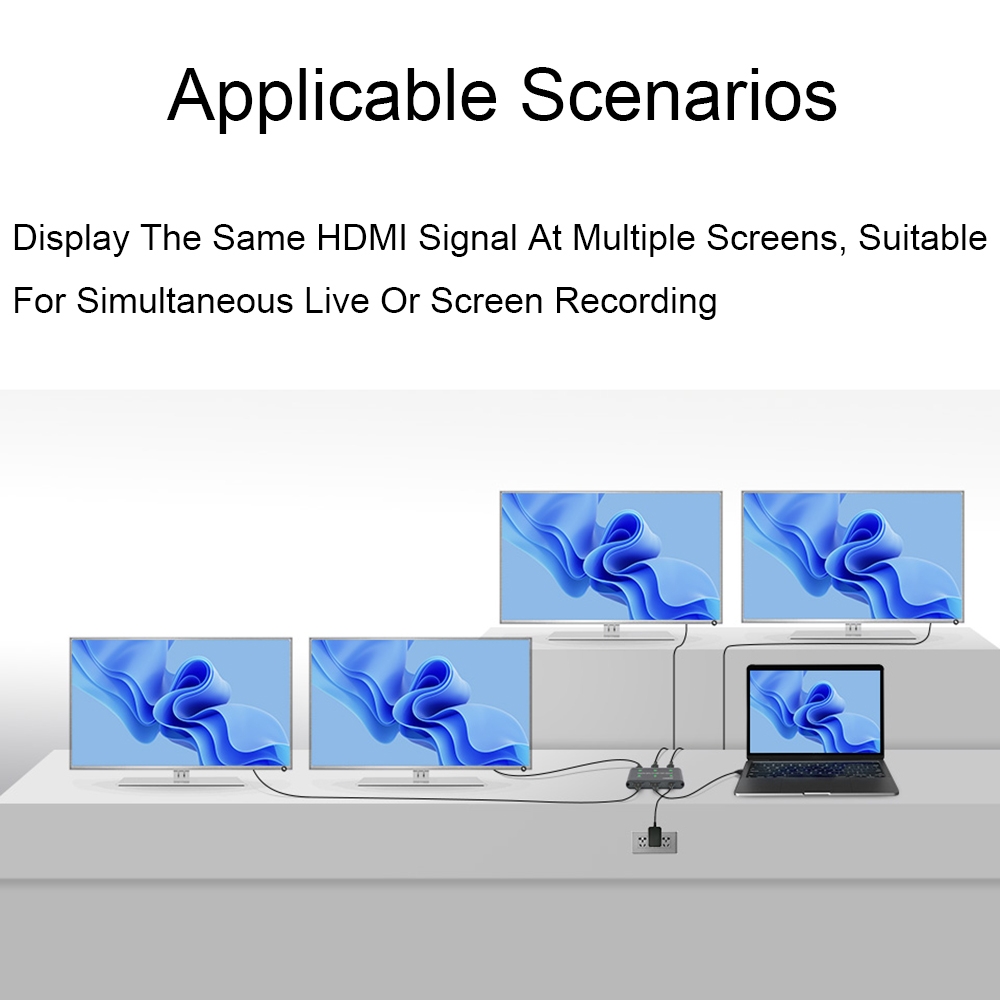

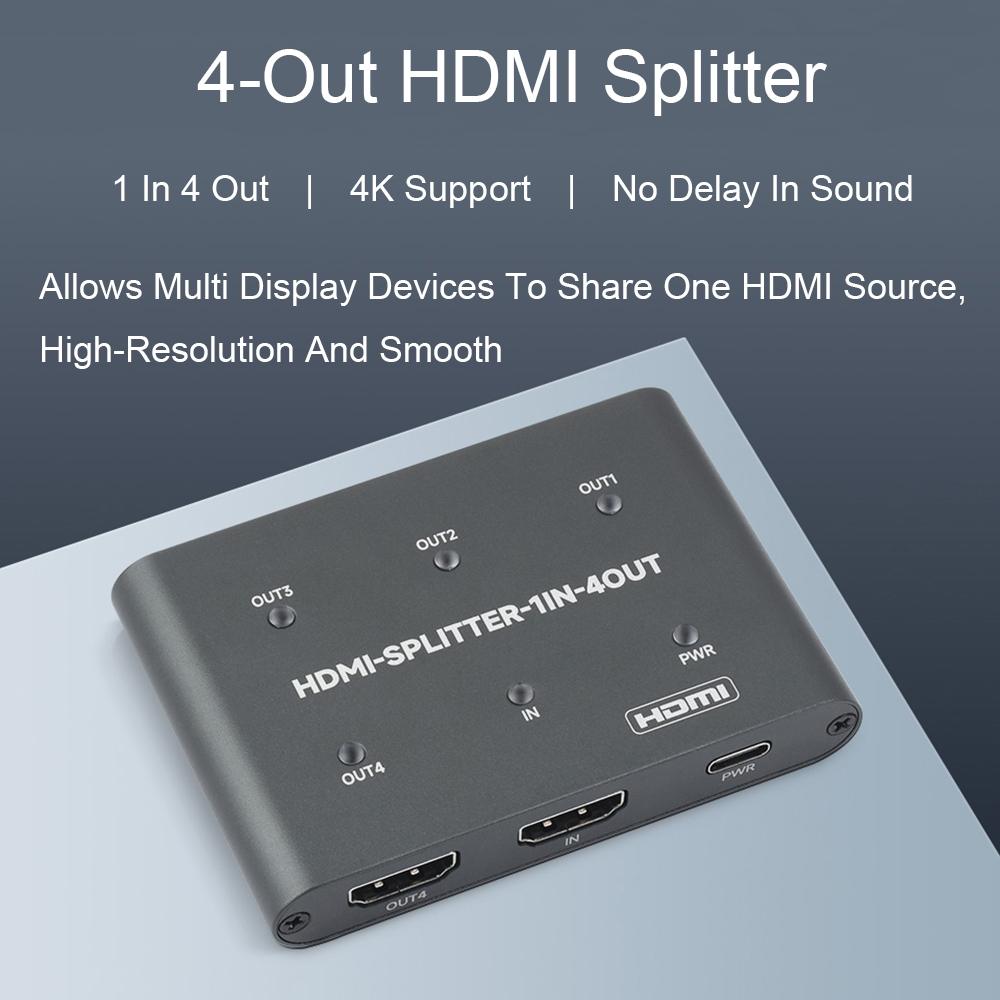

Waveshare 23738 4K HDMI Splitter, 1 In 4 Out, Share One HDMI Source

Product Description

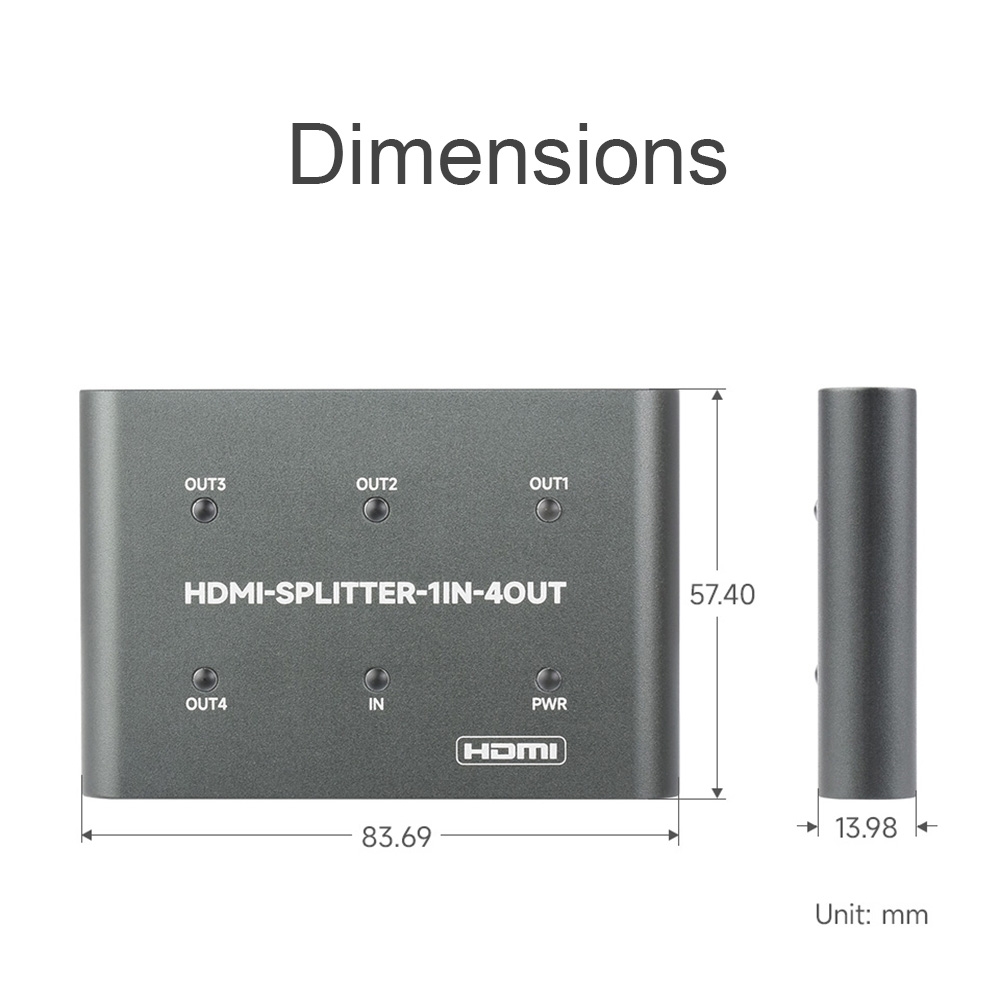

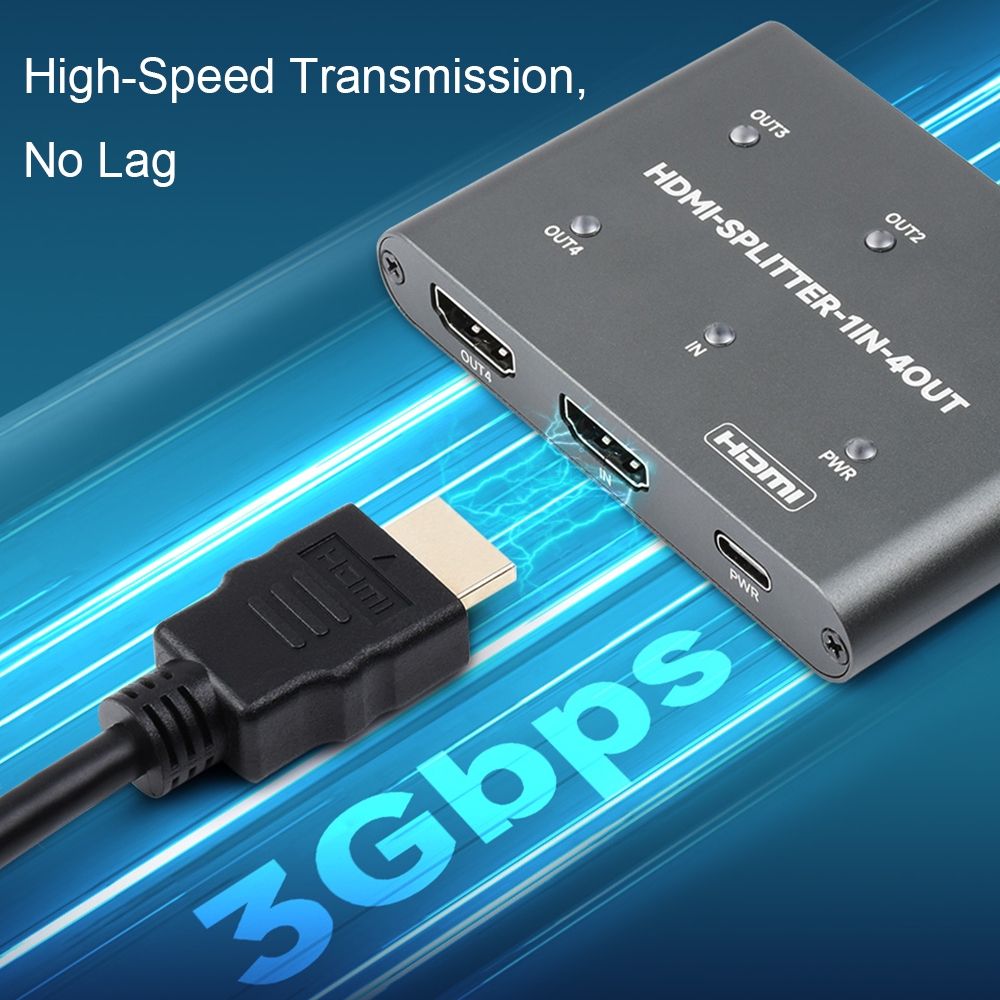

1. Data transfer rate up to 3Gbps 2. Compatible with HDMI1.4B and DVI 1.0 3. Support 4K/2K@30Hz and 4K/2K(YCbCr420)@60Hz resolution 4. Support 10/12/16 BIT color depth 5. Built-in input equalizer, which can automatically adjust the input signal to obtain higher quality TMDS input 6. Built-in output drive regulator, which can automatically adjust the output signal amplitude to obtain higher quality TMDS output 7. Product size: 83.69 x 57.40 x 13.98mm 8. Weight: 61 grams

Specifications

SKU

TBD05765338

Category

Computer & Networking › HDMI Series › Splitter

Weight

0.084 kg

Delivery

Standard delivery
