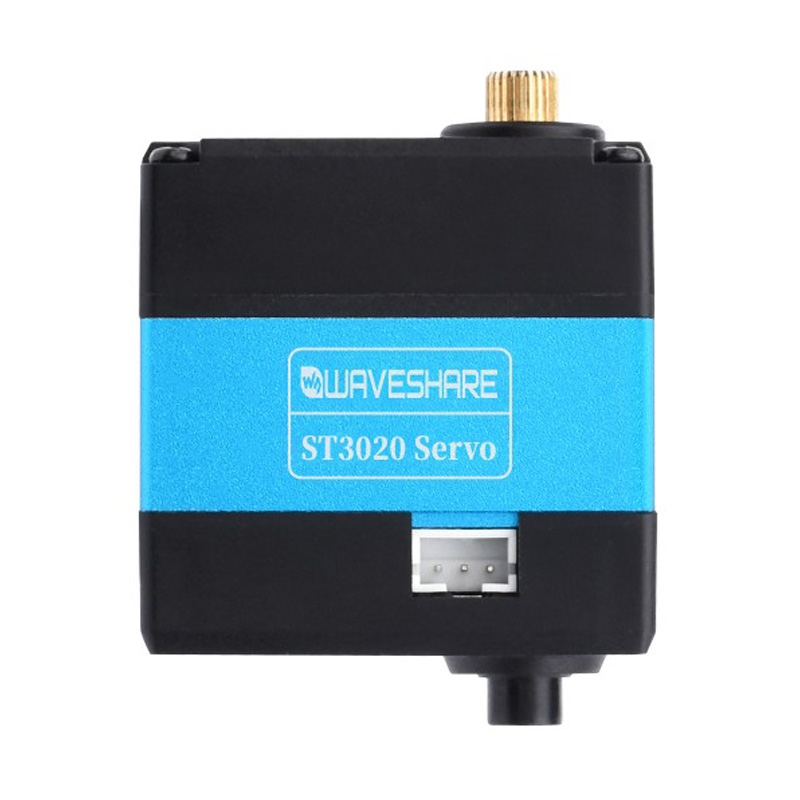

Waveshare 24703 25kg.cm Wide Range Voltage ST3020 Serial Bus Aervo

Product Description

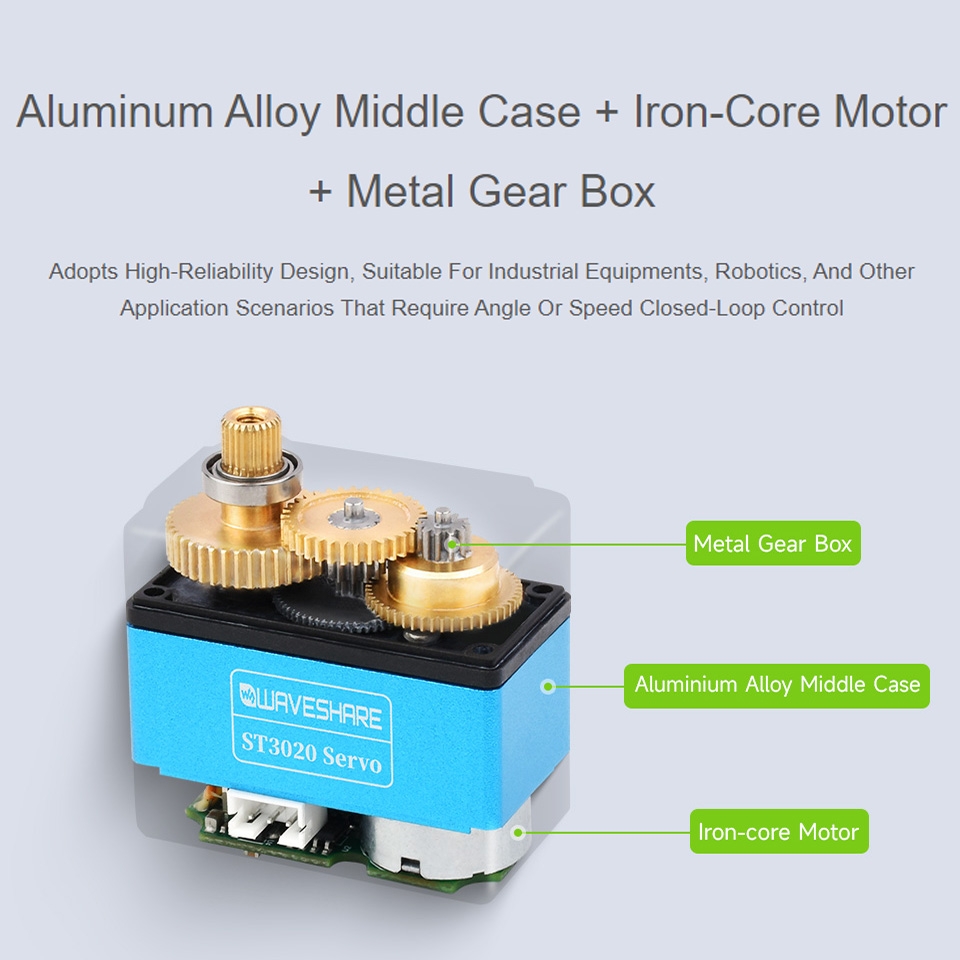

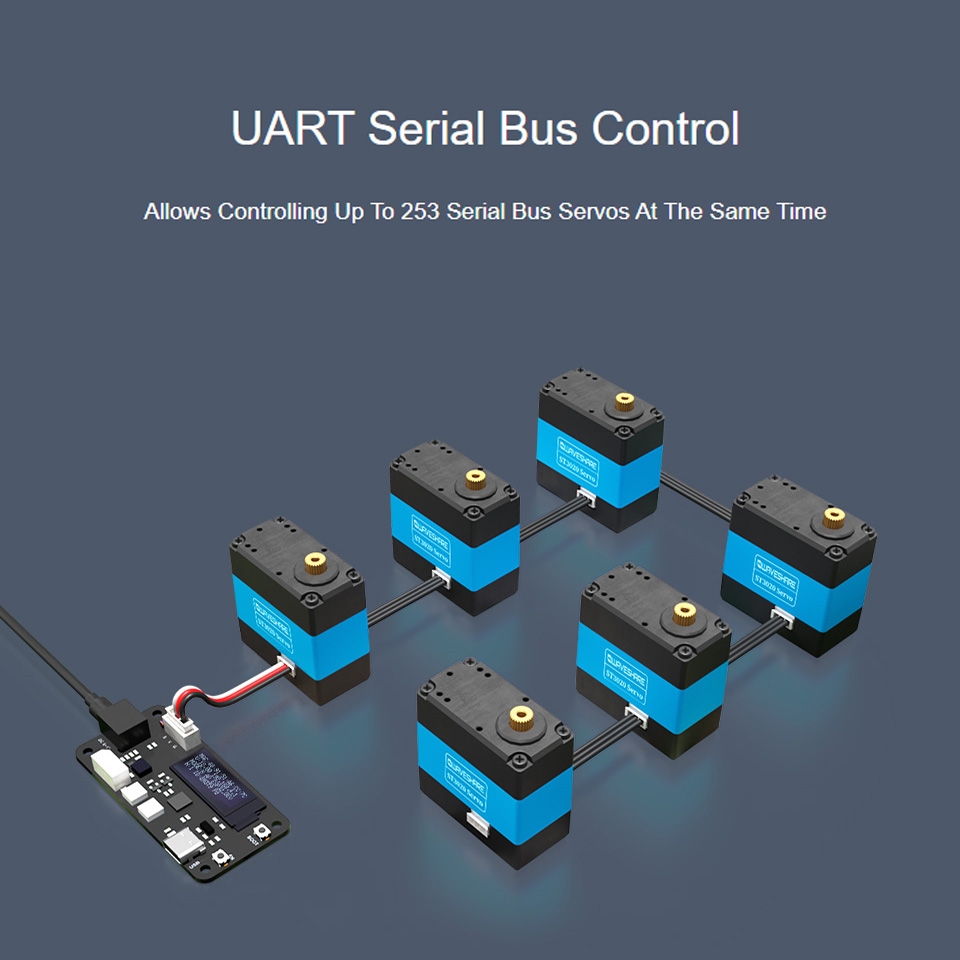

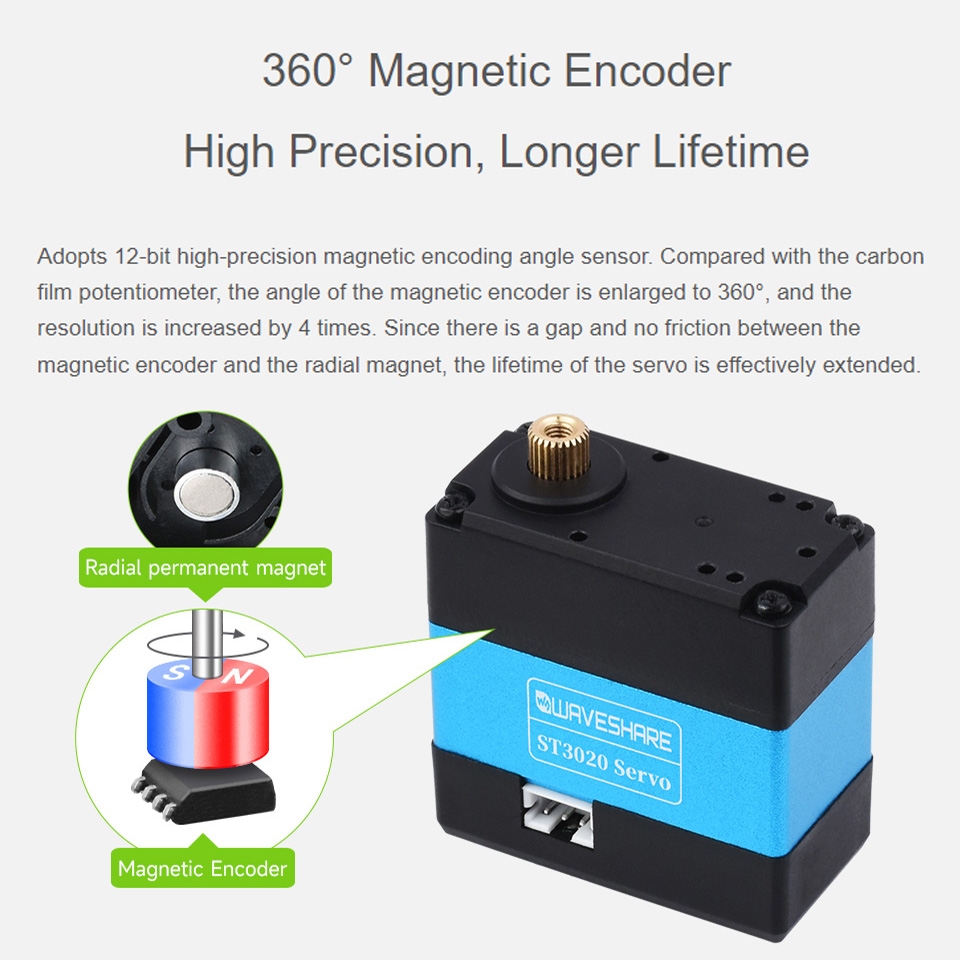

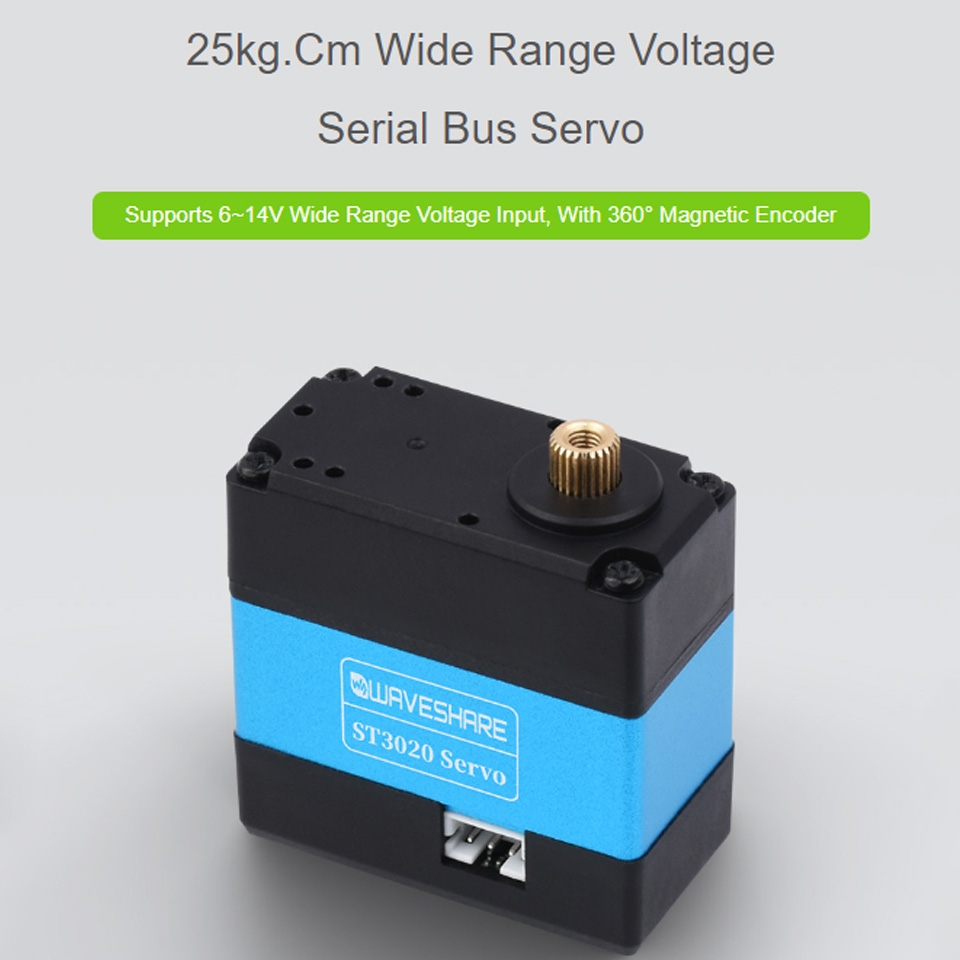

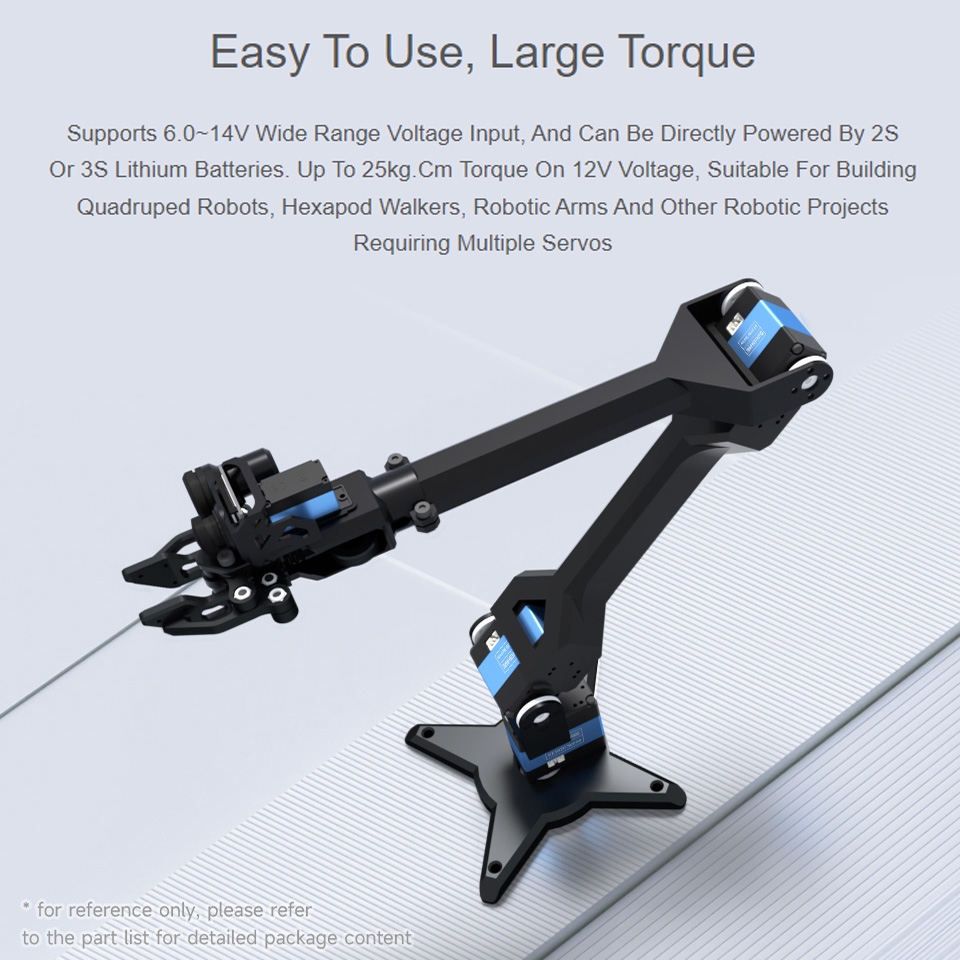

1. Torque: 25kg.cm@12V 2. Rotation angle: 360 degrees (0-4095) 3. Position sensor resolution: 0.088 degrees (360 degrees/4096) 4. Institutional restriction angle: no restriction 5. Working voltage: 6-14 V (typ. 12V) 6. Gear: high-precision metal gear 7. No-load speed: 0.167 seconds/60 degrees (60RPM)@12V 8. Encoder type: 12-bit magnetic encoder 9. ID range: 1-253 10. Baud rate: 38400bps-1Mbps (default 1Mbps) 11. Feedback: position, load, speed, input voltage, current, temperature 12. No-load current: 200mA@12V 13. Stalled rotor current: 2.7A@12V 14. KT: 9.26kg.cm/A 15. Weight: 97 grams

Specifications

SKU

TBD06006694

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.154 kg
