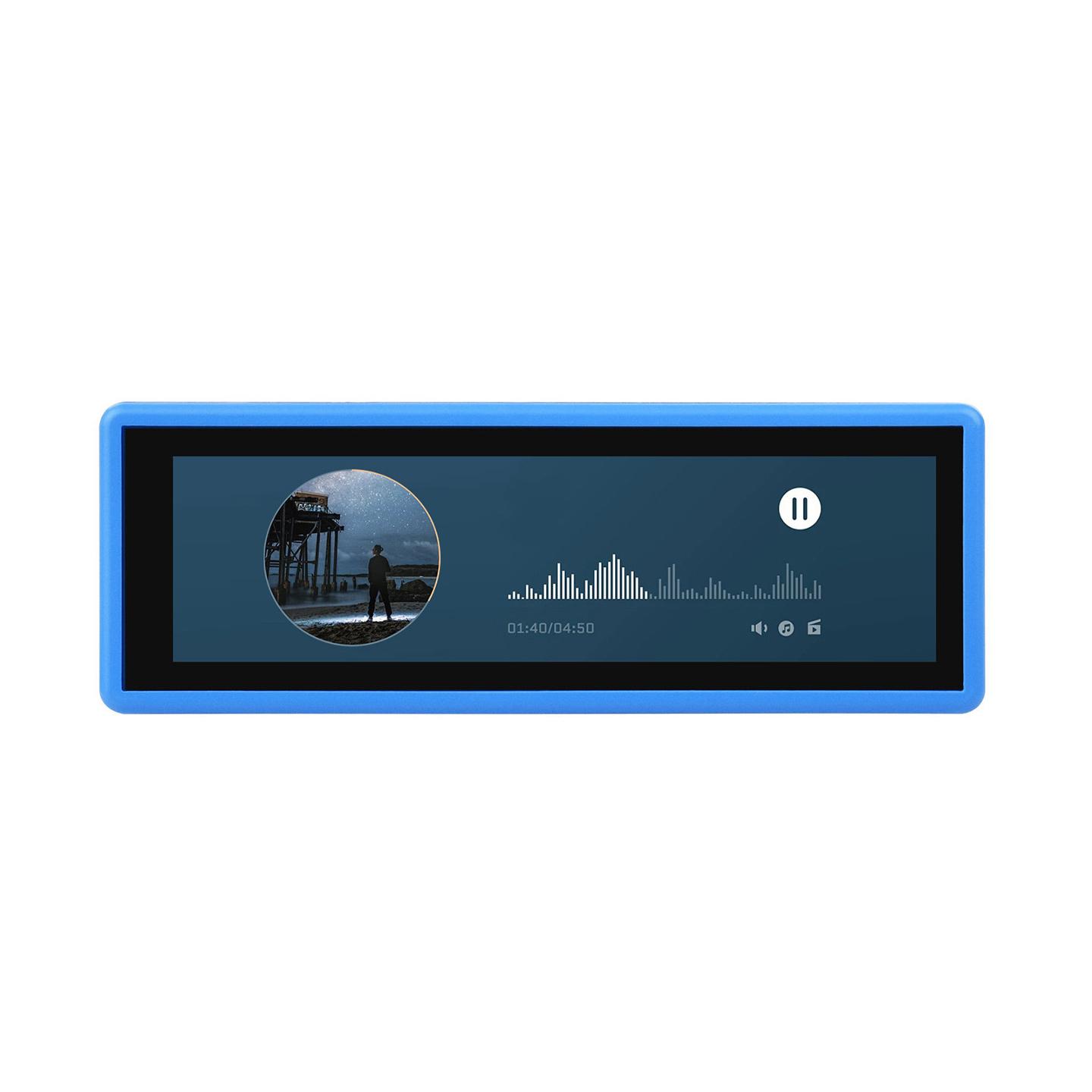

WAVESHARE 3.49 Nch Capacitive Touch Display RP2350 High Performance Development Board 172 X 640 Dual Core Dual Architecture, Spec: No Lithium Battery

Product Description

1. Display panel: LCD 2. Display resolution: 172 x 640 3. Display brightness: 350cd/square meter 4. Communication interface: QSPI 5. Touch interface: I2C 6. Display size: 3.49 inch 7. Display color: 16.7M 8. Contrast ratio: 1200:1 9. Driver chip: AXS15231B 10. Touch type: capacitive sensing 11. Size: about 9.85 x 3.48 x 3.18cm Features: 1. Using Raspberry Pi design RP2350B microcontroller chip 2. Unique dual-core, dual architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V processor, clock running frequency up to 150MHz, support for flexible switching between the two architectures 3. Built-in 520KB SRAM and 16MB on-chip Flash. 4. Adopting Type-C interface, no need to worry about forward and reverse plugging 5. 3.49 inch capacitive touch HD IPS screen on board, 172 x 640 resolution, 16.7M color, can clearly display color images 6. Built-in AXS15231B display driver integrated chip, using QSPI and I2C interface communication 7. On-board 3.7V MX1.25 lithium battery charging and discharging interface 8. USB1.1 host and slave device support 9. Support for low-power sleep and hibernation mode 10. Can be recognized as mass storage via USB for drag-and-drop download program 11. 16 multi-functional GPIO pins 12. 1 HSTX, 2 SPI, 2 12C, 2 UART, 6 12-bit ADCs, and 16 controllable PWM channels 13. Precision on-chip clocks and timers 14. Temperature Sensors 15. On-chip accelerated floating point library 16. 12 programmable 1/O (PIO) state machines for custom peripheral support

Specifications

SKU

TBD0606482602

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.204 kg
