Waveshare 33123 OS05A10 5MP USB Camera Supports USB2.0 Type-C Port And SH1.0 4PIN Header

Product Description

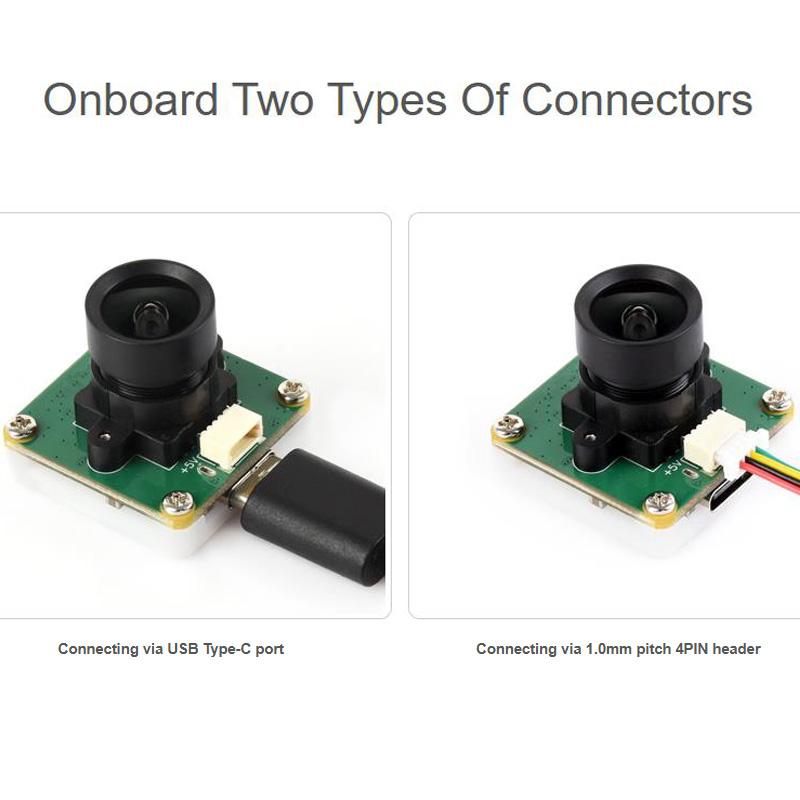

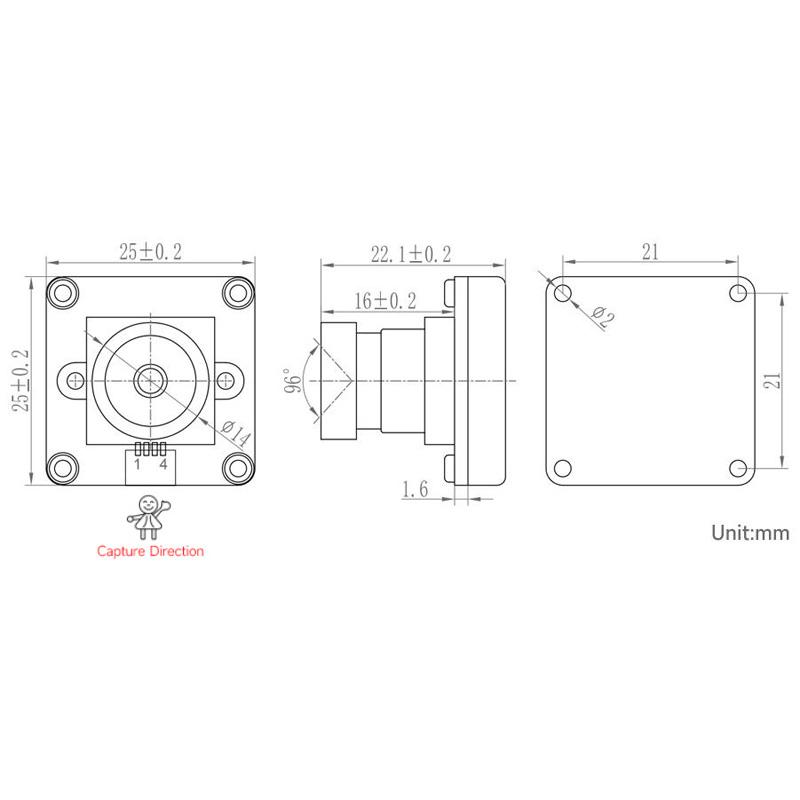

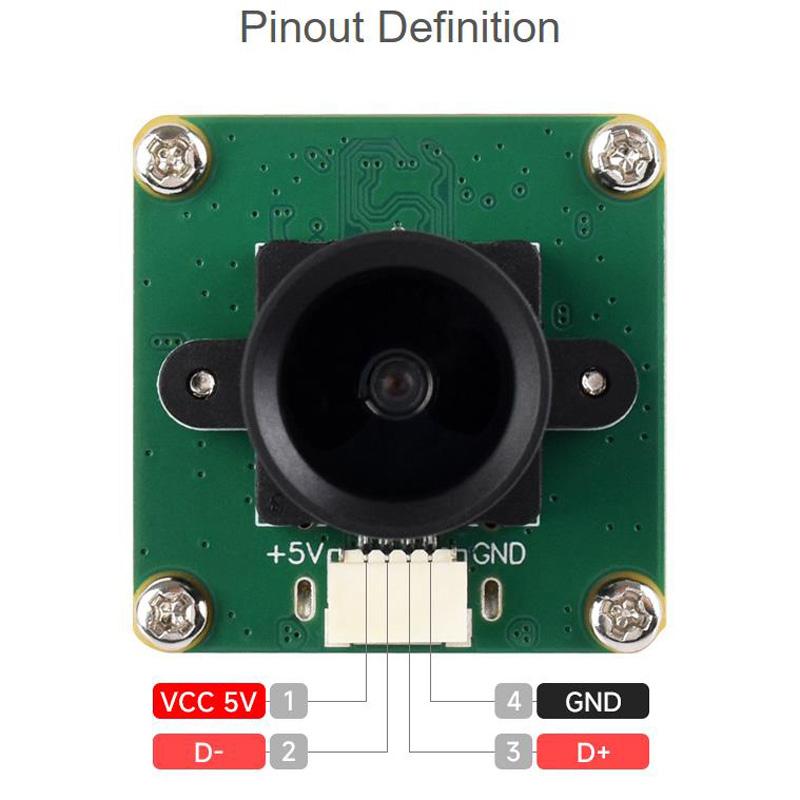

1. Pixel count: 5 million 2. Photographic sensor: OS05A10 3. Interface type: USB2.0 Type-C / SH1.0 4-pin connector 4. Sensor size: 1/2.7 inches 5. Aperture (F): 2.7 6. Focal length (EFL): 2.88mm 7. Field of view (FOV): 96° 8. Distortion: less than -0.2% 9. Focusing method: fixed focusing 10. Supported formats: MJPG, YUY2 11. Static image resolution: 2592 x 1944 12. Video recording support: 30 FPS 2592 x 1944; 30 FPS 1920 x 1080; 30 FPS 1280 x 720 13. Operating voltage: 5V ± 5% 14. Operating temperature: 0°C - 50°C 15. Module size: about 2.5 x 2.5 cm 16. Packaging list: OS05A10 5MP USB Camera (A) x 1; 4PIN dual-head cable x 1

Specifications

SKU

TBD0606705101

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.034 kg

Delivery

Standard delivery
