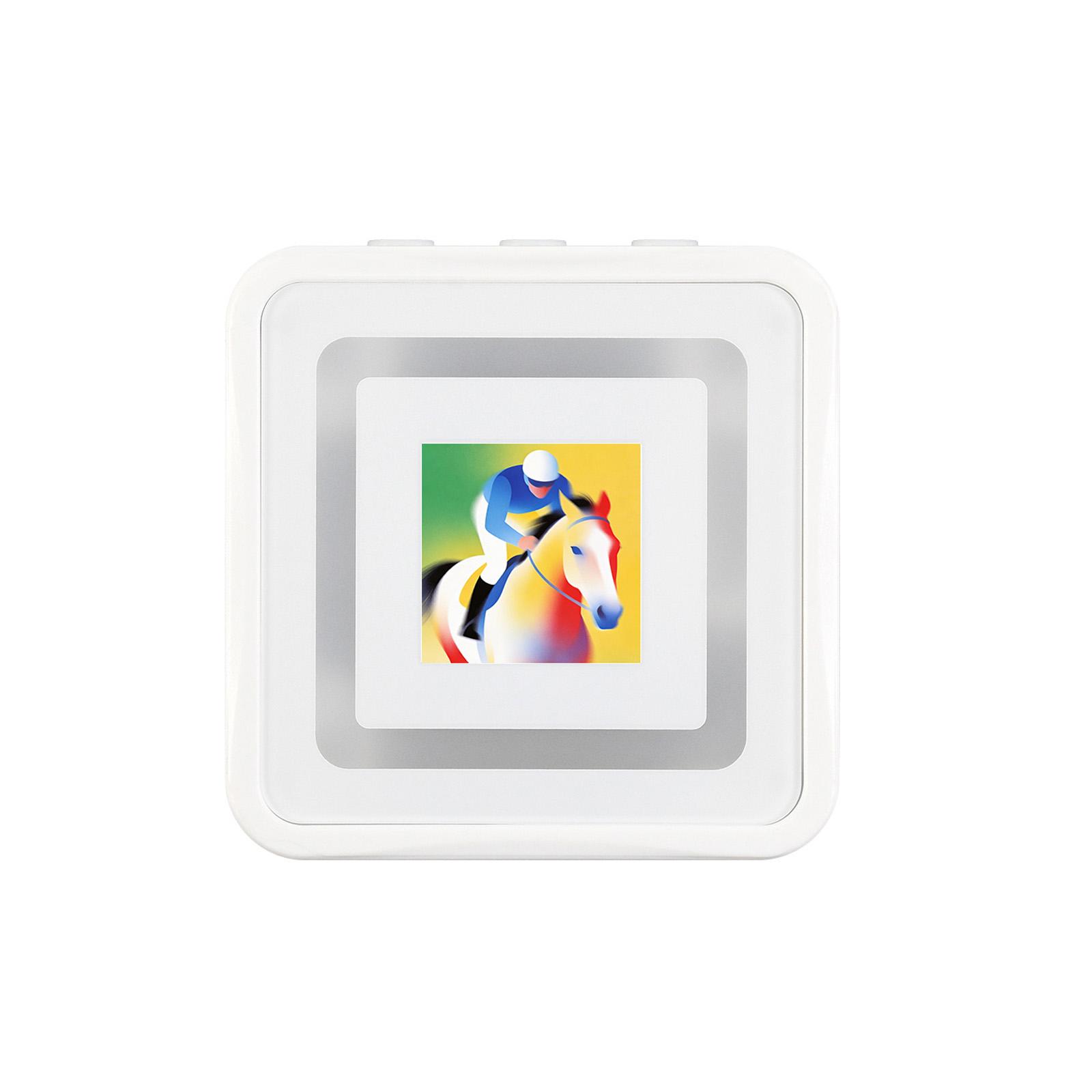

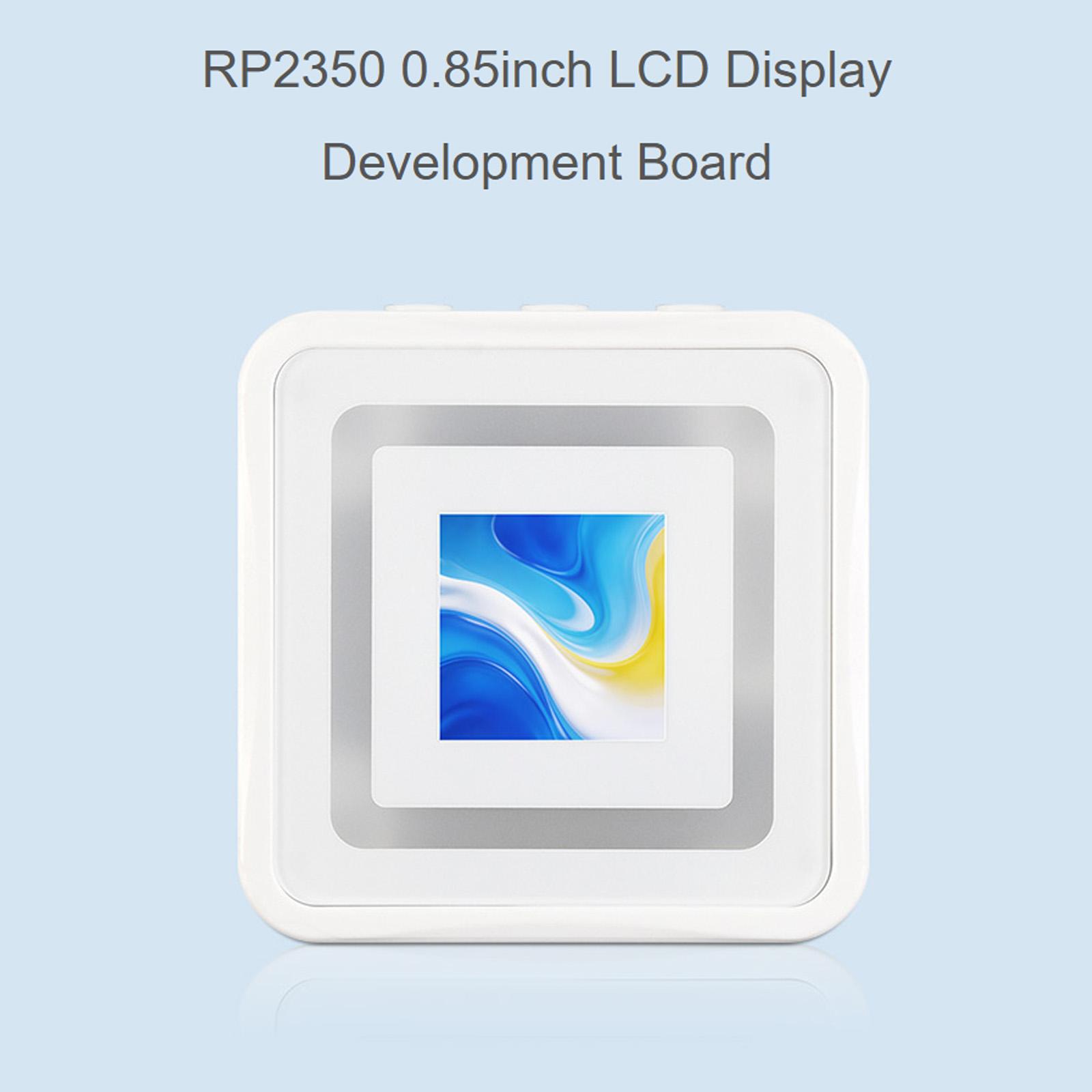

Waveshare 34441 RP2350 0.85inch LCD Display Development Board 128 × 128 Resolution, 65K Color, IPS Display Panel No Battery

Product Description

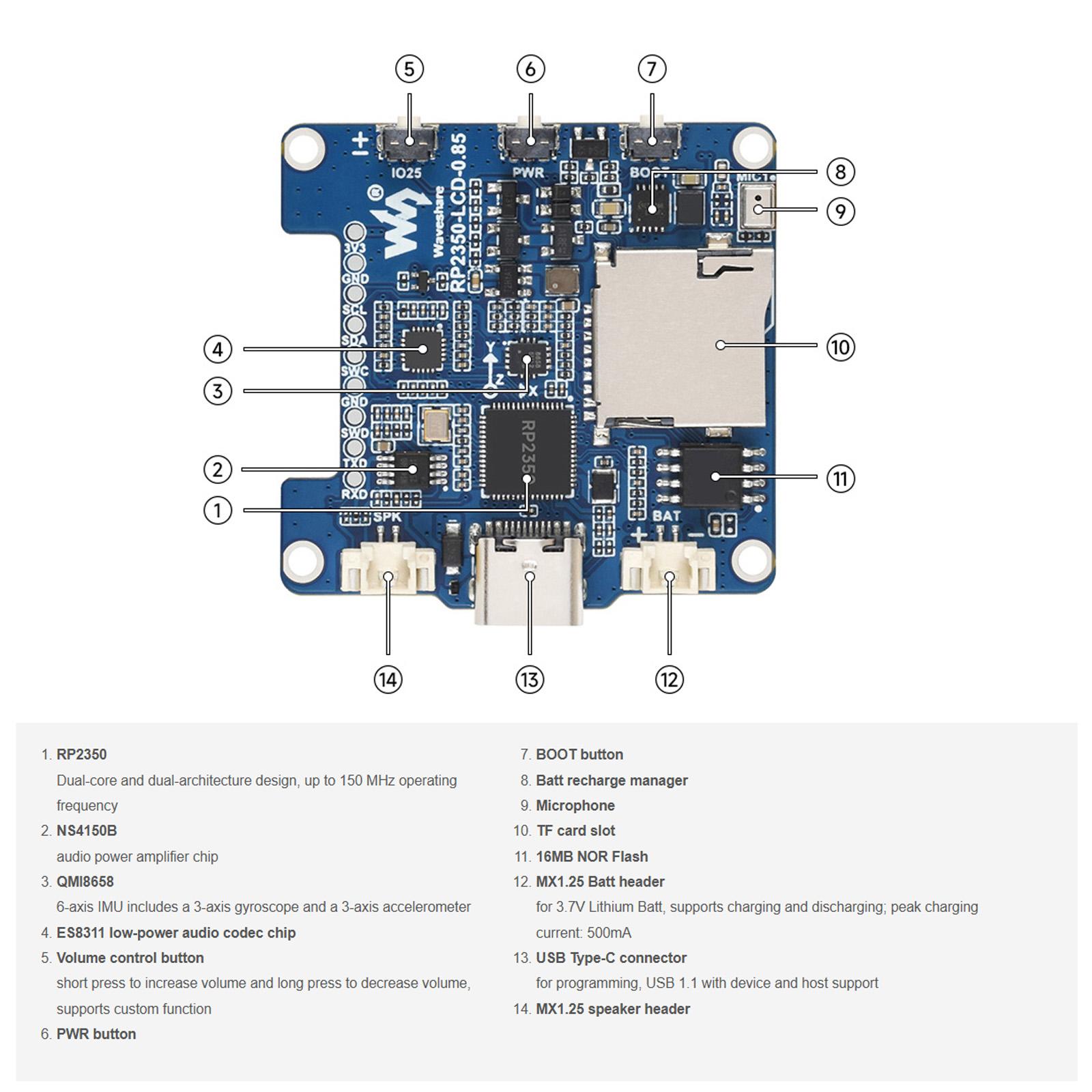

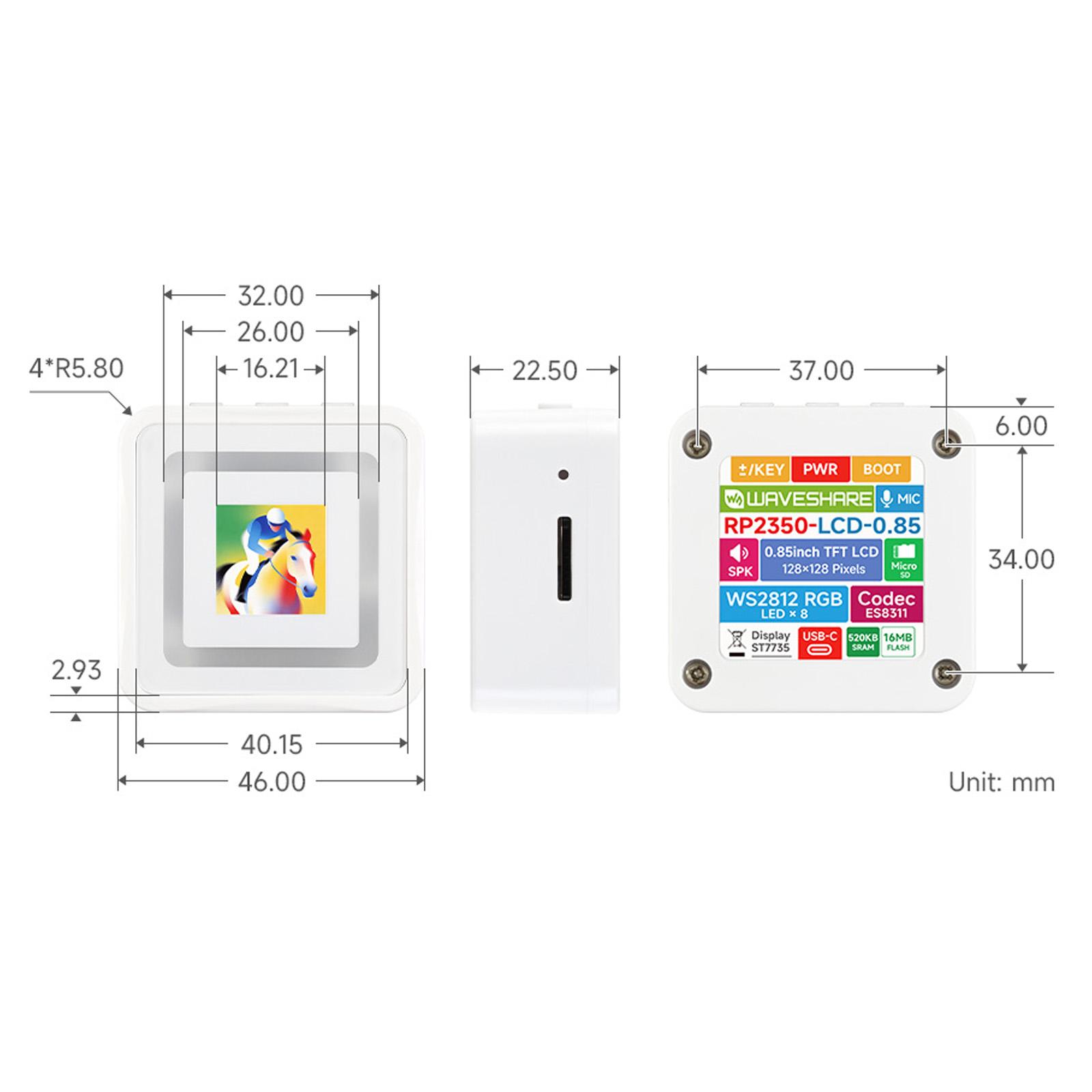

1. Powered by the RP2350 microcontroller chip developed by Raspberry Pi 2. Features a unique dual-core, dual-architecture design, equipped with dual-core ARM Cortex-M33 processors and dual-core Hazard3 RISC-V processors; operates at clock speeds up to 150MHz and allows flexible switching between the two architectures 3. Built-in 520KB SRAM and 16MB on-chip Flash 4. Uses a USB Type-C interface for modern convenience—no need to worry about connector orientation 5. Onboard 0.85-inch LCD screen with 128 × 128 resolution and 65K colors 6. Supports USB 1.1 Host and Device modes 7. Supports low-power sleep and dormant modes 8. Recognized as a mass storage device via USB for drag-and-drop programming 9. Includes 1x I2C, 1x UART, 2x 12-bit ADCs, and 2x controllable PWM channels 10. Precise on-chip clock and timers 11. Built-in temperature sensor for real-time chip temperature monitoring 12. 12 Programmable I/O (PIO) state machines for custom peripheral support LCD Screen Specifications: 1. Operating voltage: 3.3V/5V 2. Display size: 15.21 × 15.21 mm 3. Resolution: 128 × 128 pixels 4. Colors: 65K 5. Panel type: IPS 6. Pixel pitch: 39.6 × 118.8 μm 7. Interface: 4-wire SPI 8. Driver IC: ST7735

Specifications

SKU

TBD06069416

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.059 kg
