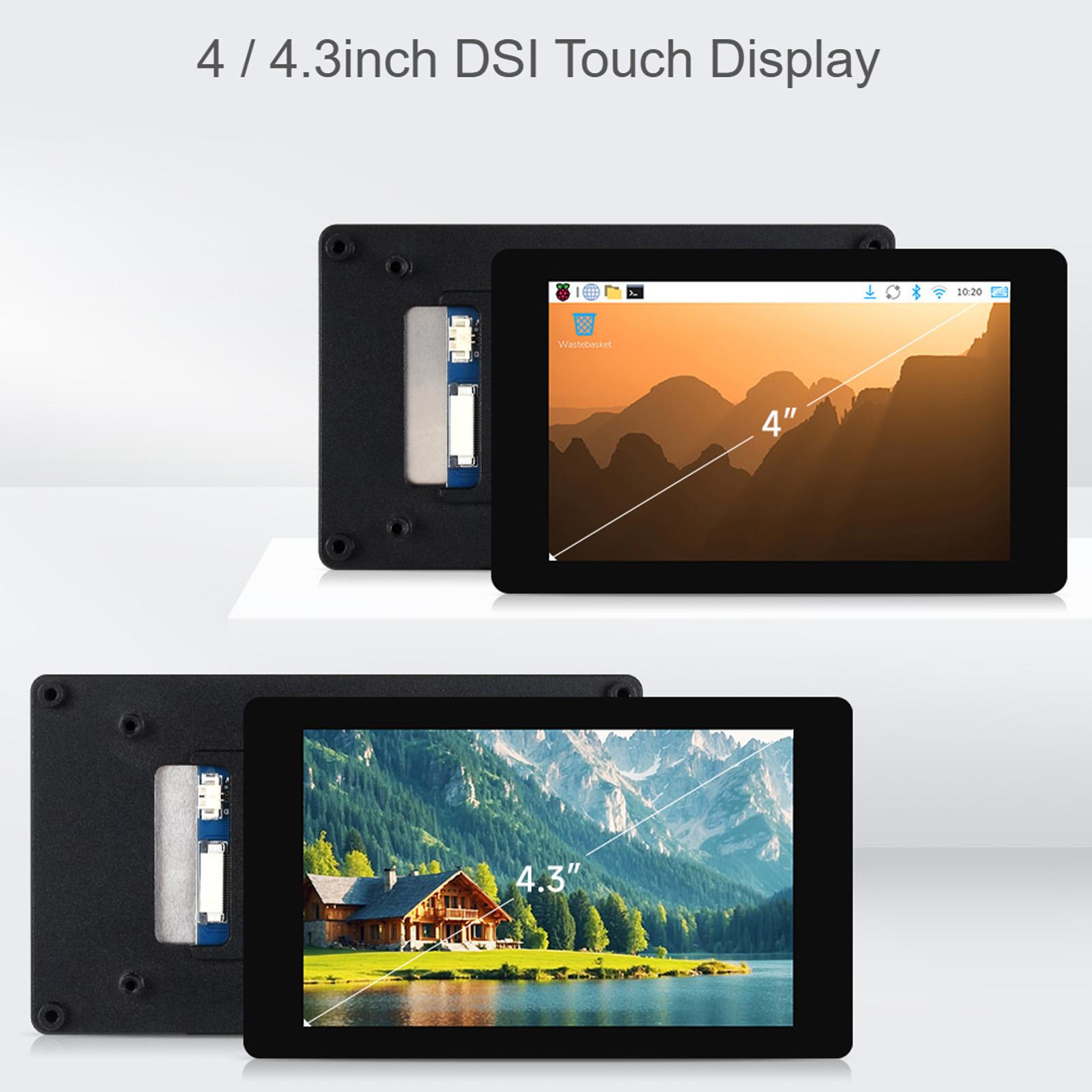

Waveshare 4.3inch DSI Capacitive Touch Display 480 × 800 Resolution, IPS Display Panel

Product Description

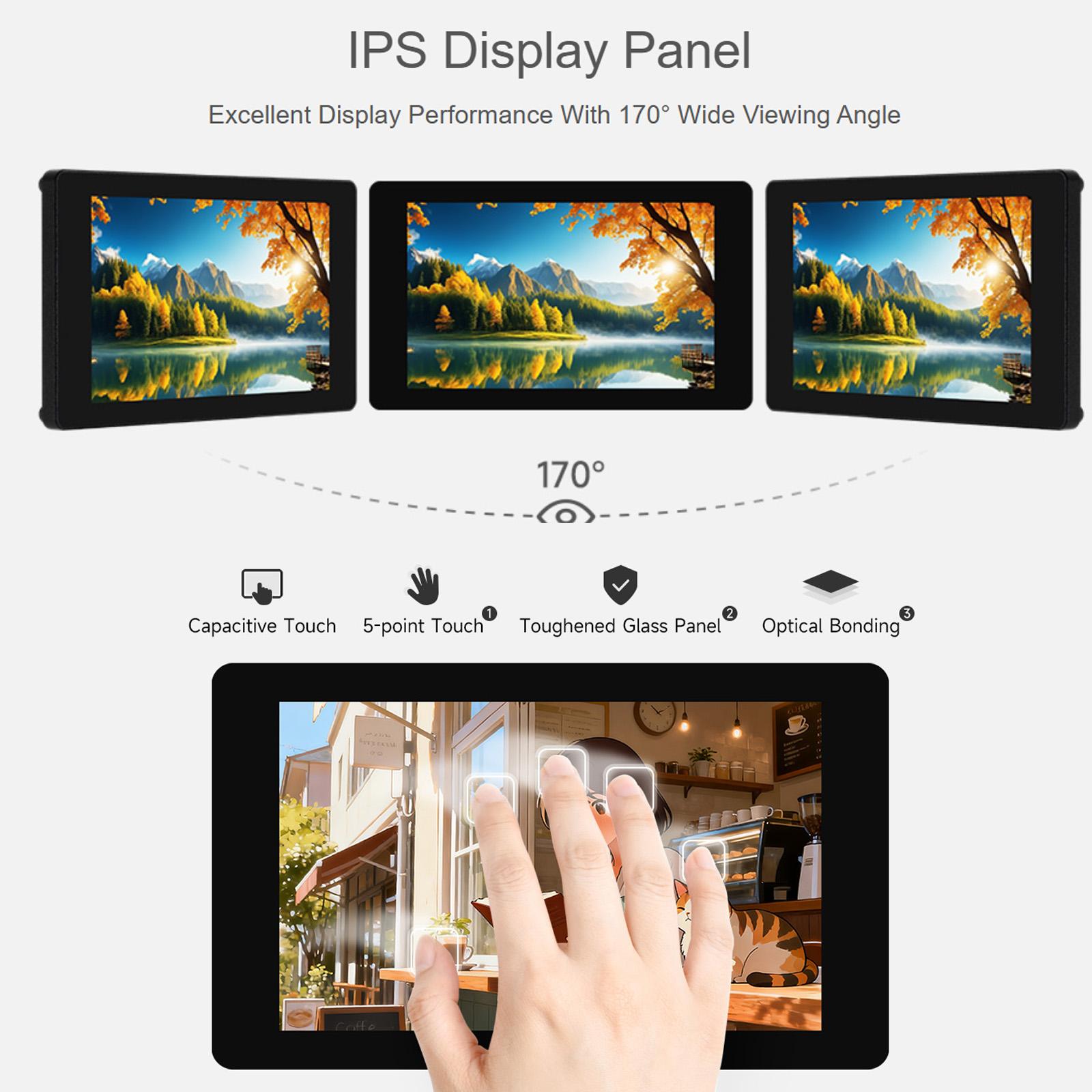

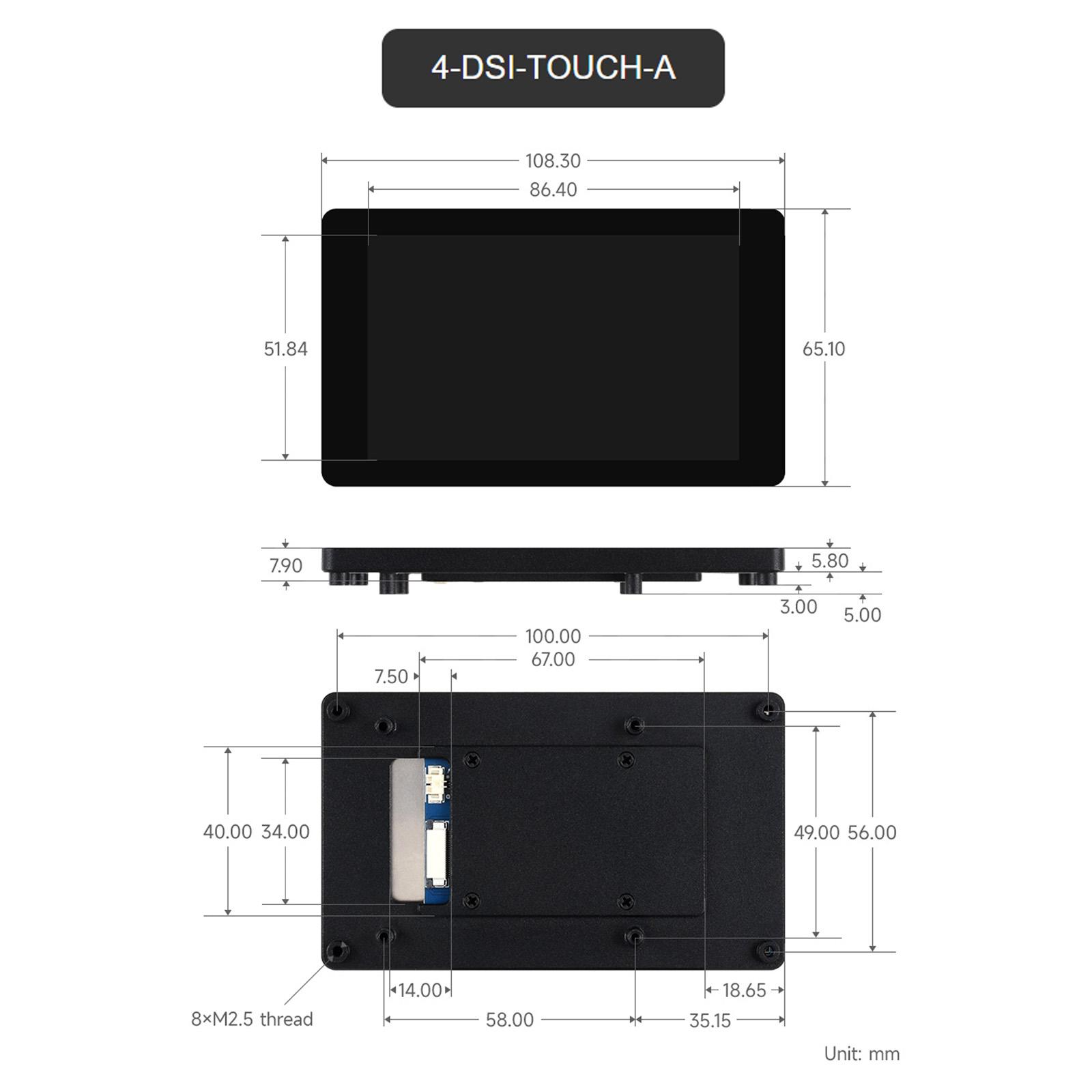

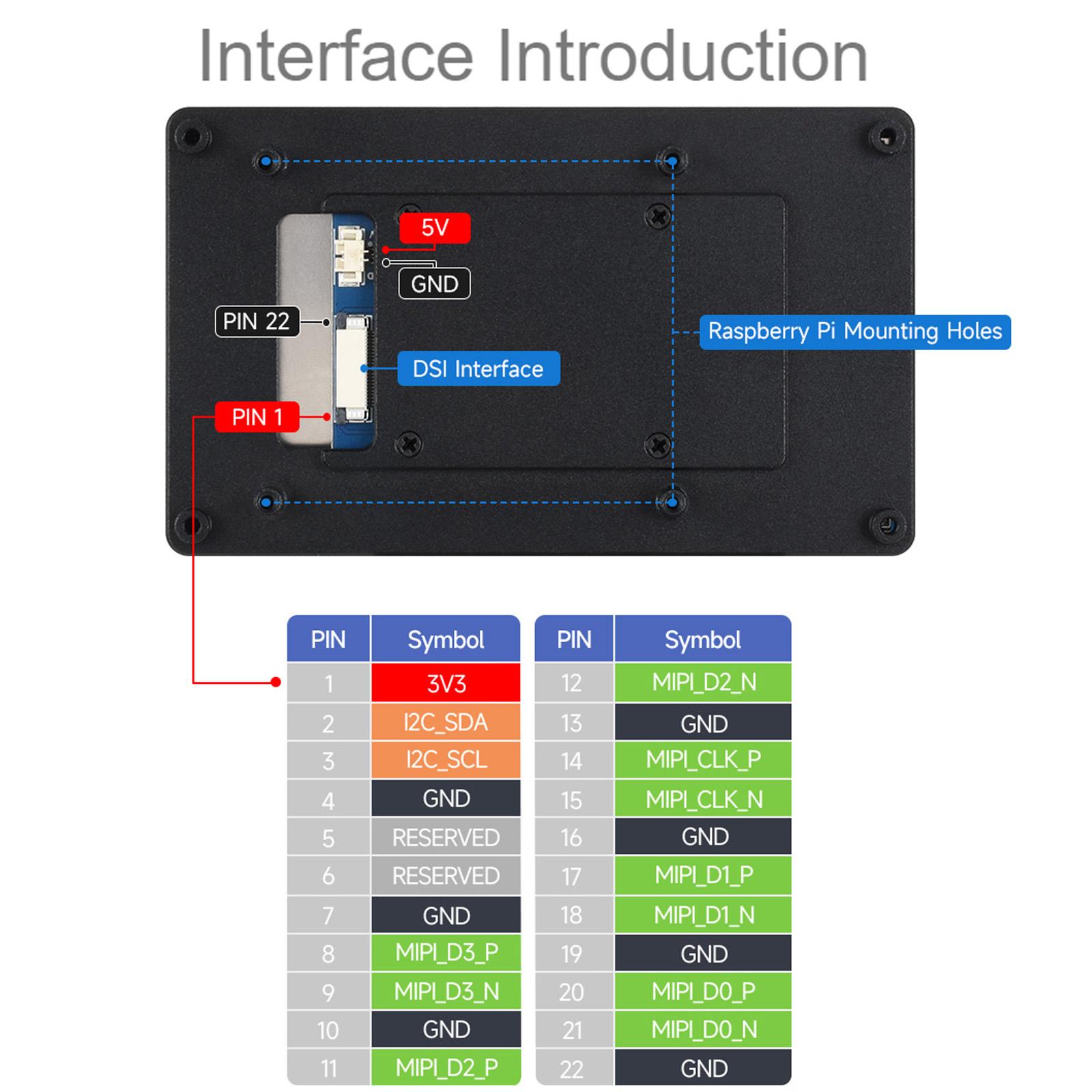

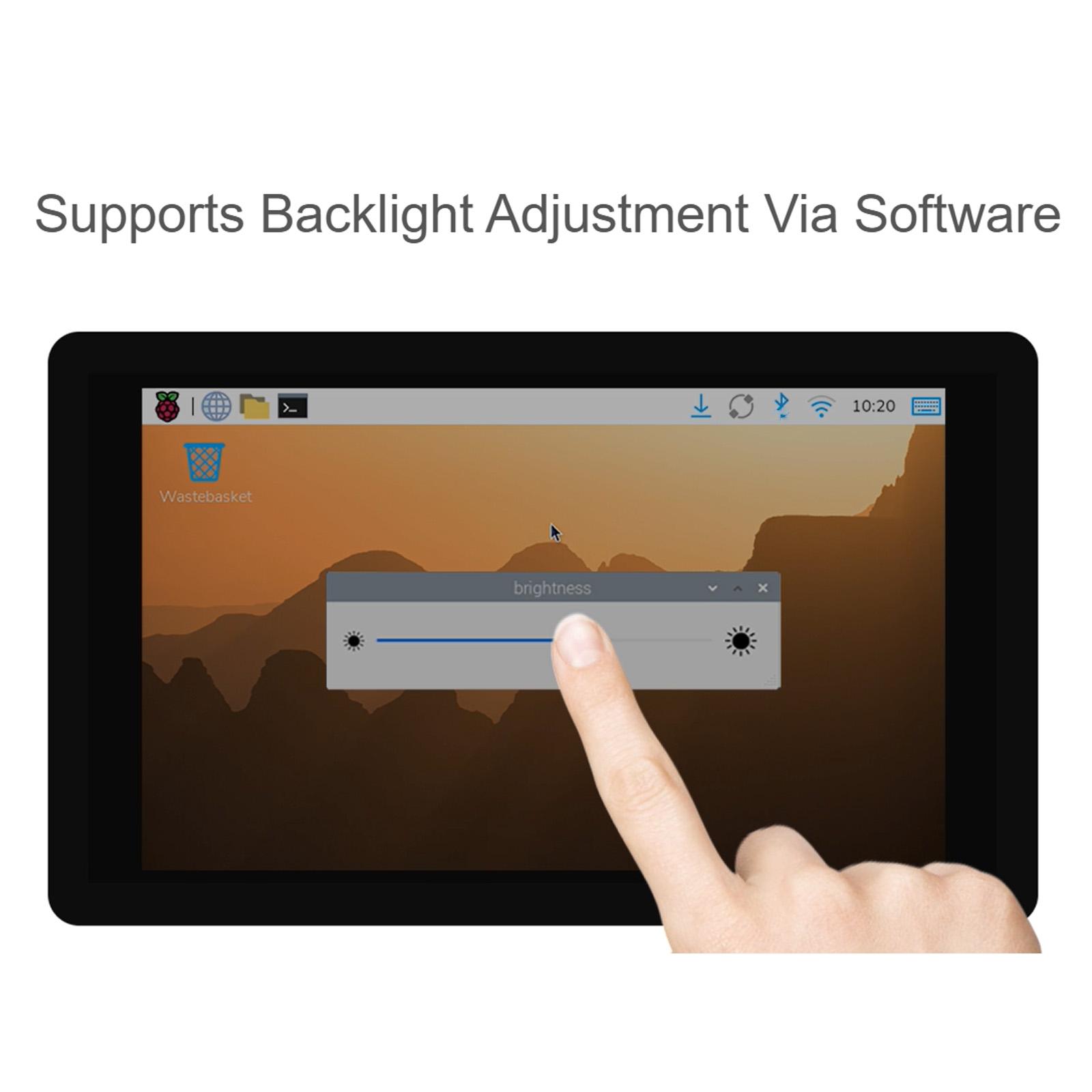

1. 4-inch/4.3-inch DSI touchscreen with 5-point capacitive touch control 2. IPS display panel with a hardware resolution of 480×800 3. Full lamination process for clearer image quality 4. Toughened glass touch panel with 6H hardness 5. DSI interface for LCD driving; refresh rate up to 60Hz 6. Supports software-controlled backlight brightness 7. Aluminum alloy back casing with a purely passive cooling design 8. Default display orientation is portrait; landscape mode can be enabled via software settings Screen Specifications: 1. Resolution: 480 × 800 pixels (H × V) 2. Contrast Ratio: 4-inch: 800:1; 4.3-inch: 1000:1 3. Display Driver IC: ST7701S 4. Touch Controller IC: GT911 5. Communication Interface: MIPI 2-lane 6. Brightness: 4-inch: 350 cd/m2; 4.3-inch: 500 cd/m2 7. Outline Dimensions: 4-inch: 108.30 × 65.10 mm; 4.3-inch: 116.50 × 68.90 mm 8. Display Area: 4-inch: 86.40 × 51.84 mm; 4.3-inch: 93.60 × 56.16 mm

Specifications

SKU

TBD0606943602

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.124 kg
