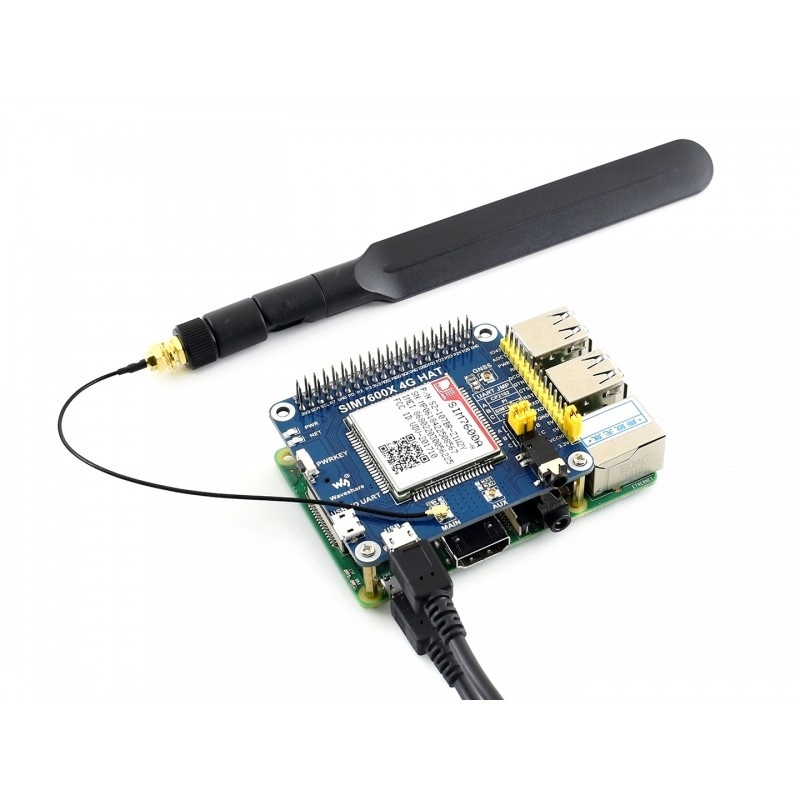

Waveshare 4G / 3G / GNSS HAT for Raspberry Pi, LTE CAT4, for North America

Product Description

4G/3G/GNSS HAT for Raspberry Pi, Based on SIM7600A-H Applicable Region 1. SIM7600A-H is mainly applicable in North America (US, CA, MX), SIM7600E-H is mainly applicable in Southeast Asia, West Asia, Europe, Africa, SIM7600CE-T is mainly applicable in China. 2. Please check the supported bands according to your local service provider, select the proper one when placing order. Overview 1. The SIM7600A-H 4G HAT is a 4G communication and GNSS positioning module, which supports LTE CAT4 up to 150Mbps for downlink data transfer. it is pretty low power consumption. 2. You can connect this 4G module with computer to surf the Internet, or attach it onto Raspberry Pi to enable functions like 4G high speed connection, wireless communication, making telephone call, sending SMS, global positioning, etc. Features 1. Raspberry Pi connectivity, compatible with Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+ 2. Support dial-up, telephone call, SMS, MMS, mail, TCP, UDP, DTMF, HTTP, FTP, etc. 3. Support GPS, BeiDou, Glonass, LBS base station positioning 4. Onboard USB interface, to test AT Commands, get GPS positioning data, and so on 5. Onboard CP2102 USB to UART converter, for serial debugging 6. Breakout UART control pins, to connect with host boards like Arduino/STM32 7. SIM card slot, supports 1.8V/3V SIM card 8. Onboard audio jack and audio decoder for making telephone call 9. 2x LED indicators, easy to monitor the working status 10. Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper 11. Baudrate: 300bps ~ 4Mbps (default: 115200bps) 12. Autobauding baudrate: 9600bps ~ 115200bps 13. Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) 14. Support SIM application toolkit: SAT Class 3, USAT 15. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32) Communications Specifications 1. Band: - LTE -- SIM7600A-H: --- LTE-FDD B2/B4/B12 -- SIM7600E-H: --- LTE-FDD B1/B3/B5/B7/B8/B20 --- LTE-TDD B38/B40/B41 -- SIM7600CE-T: --- LTE-TDD B38/B39/B40/B41 --- LTE-FDD B1/B3/B8 - WCDMA / TD-SCDMA / CDMA 2000 -- SIM7600A-H: --- UMTS/HSPA+ B2/B5 -- SIM7600E-H: --- UMTS/HSPA+ B1/B5/B8 -- SIM7600CE-T: --- UMTS/HSDPA/HSPA+ B1/B8 --- TD-SCDMA B34/B39 --- CDMA 1X/EVDO BC0 - GSM/GPRS/EDGE 900/1800 MHz 2. Generation: 4G, 3G, 2.5G, 2G 3. Emitting power: 0.25W, 0.5W@EGSM900, 0.4W@DCS1800, 2W@GSM900, 1W@DCS1800 4. Data Speed - LTE CAT 4 -- Uplink=

Specifications

SKU

ZY15598778

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.252 kg

Delivery

Standard delivery
