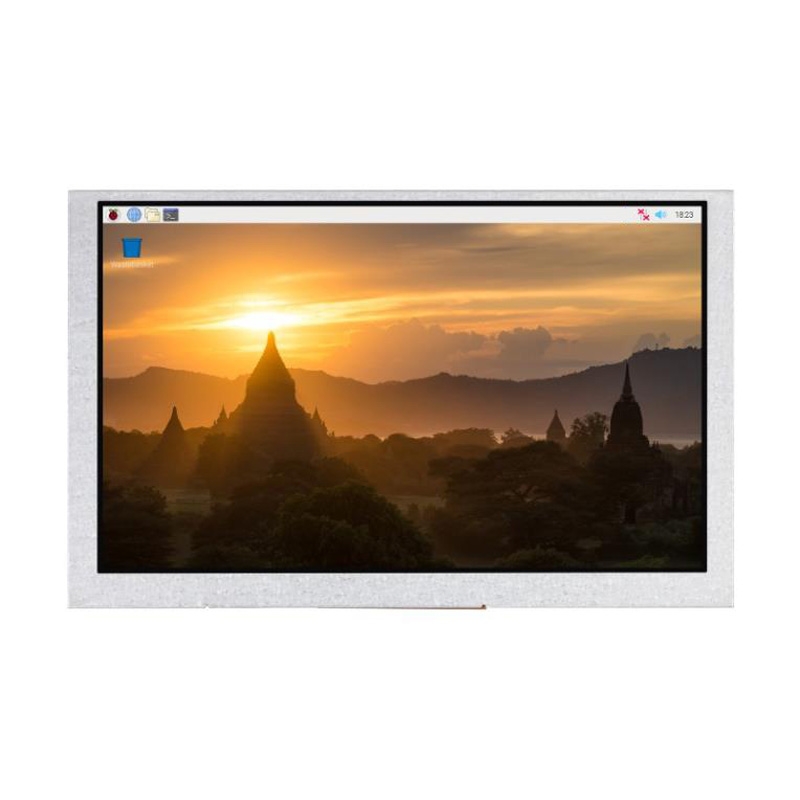

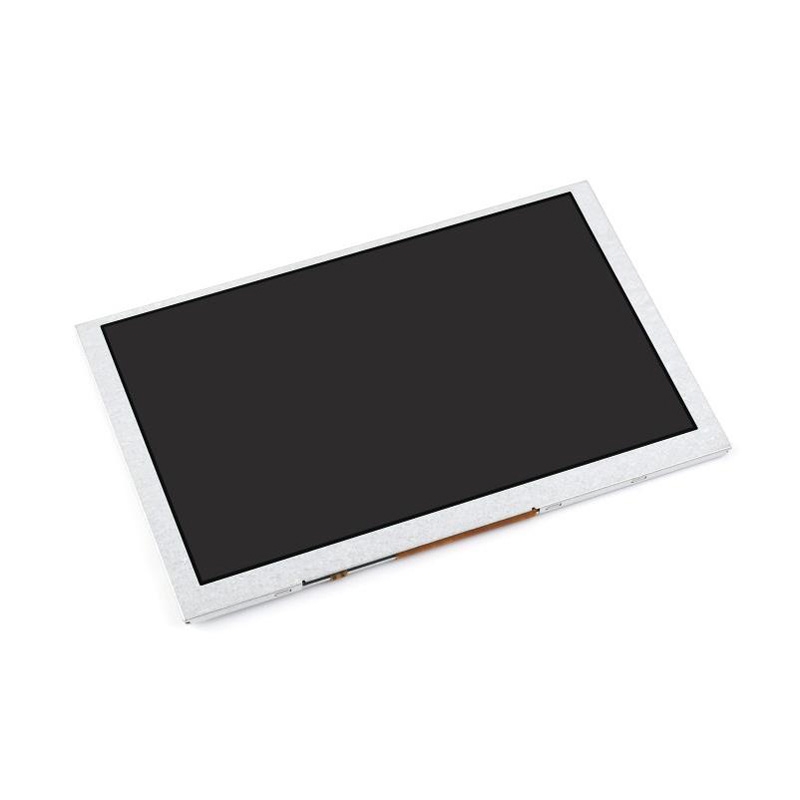

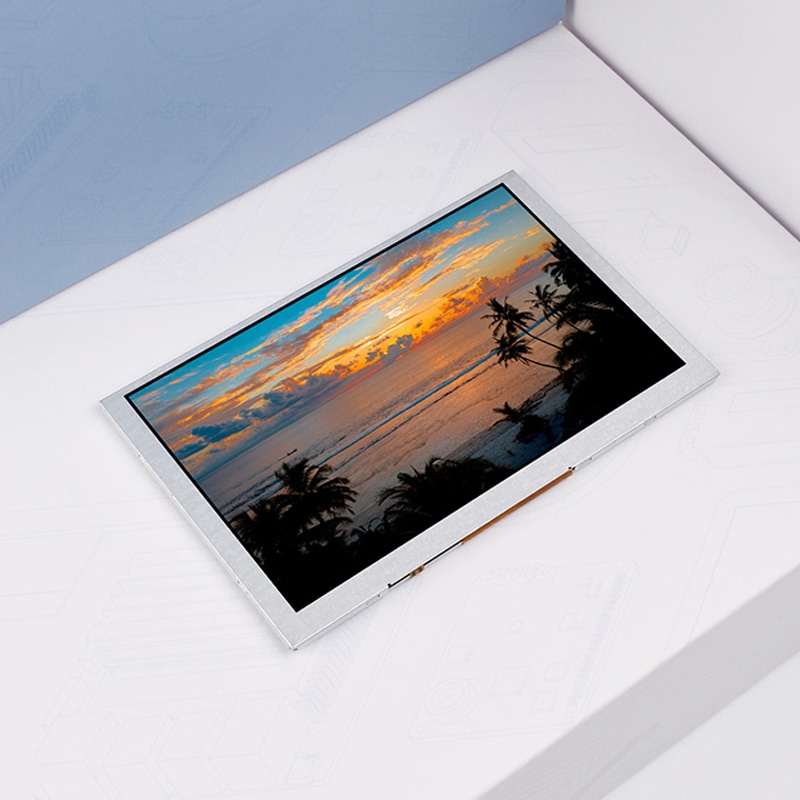

Waveshare 5 Inch DSI Display, 800 × 480 Pixel, IPS Display Panel, Style:No Touch

Product Description

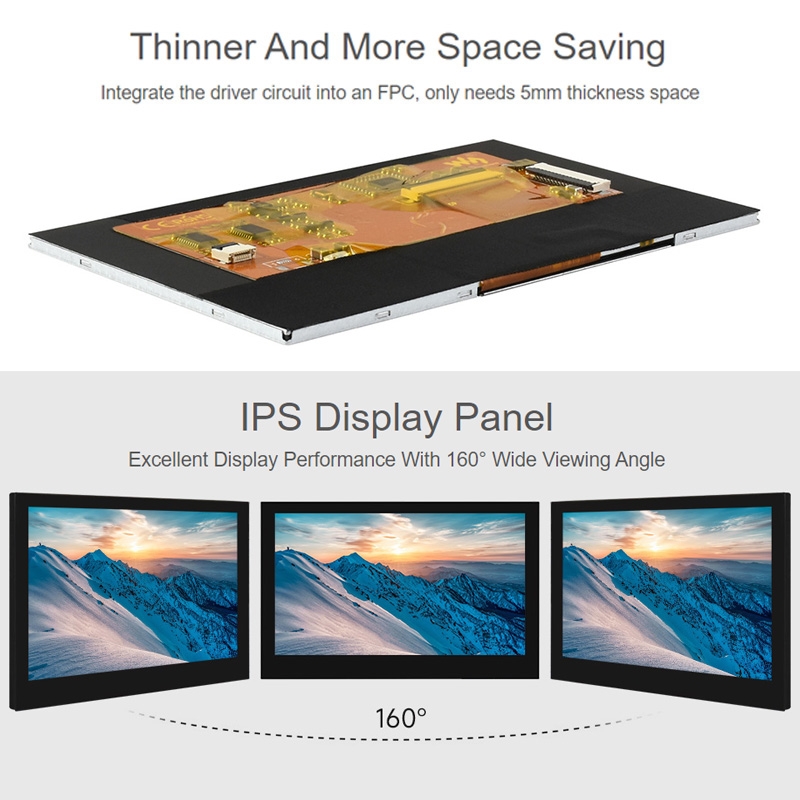

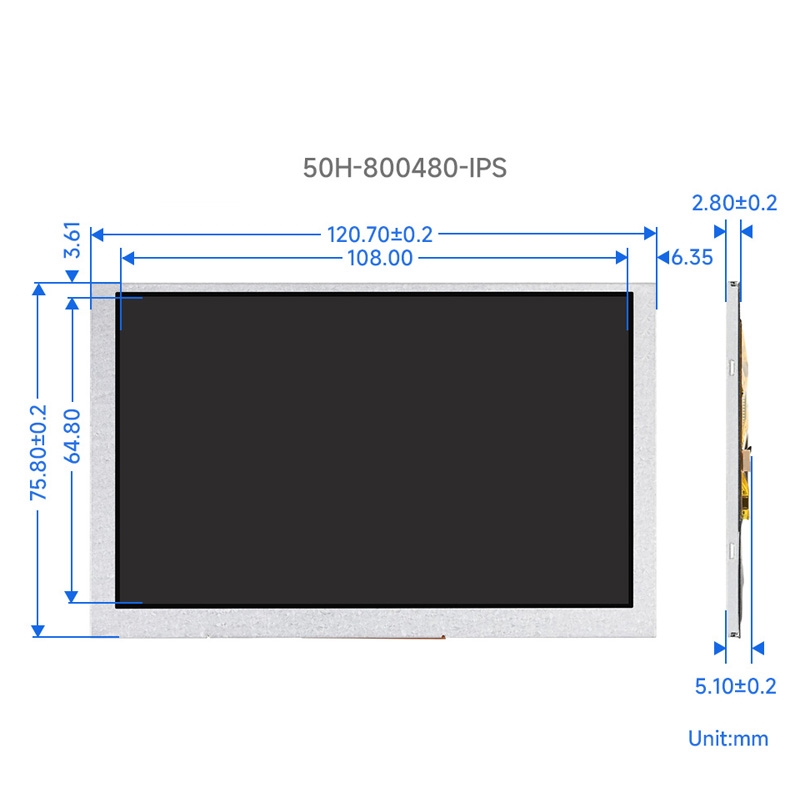

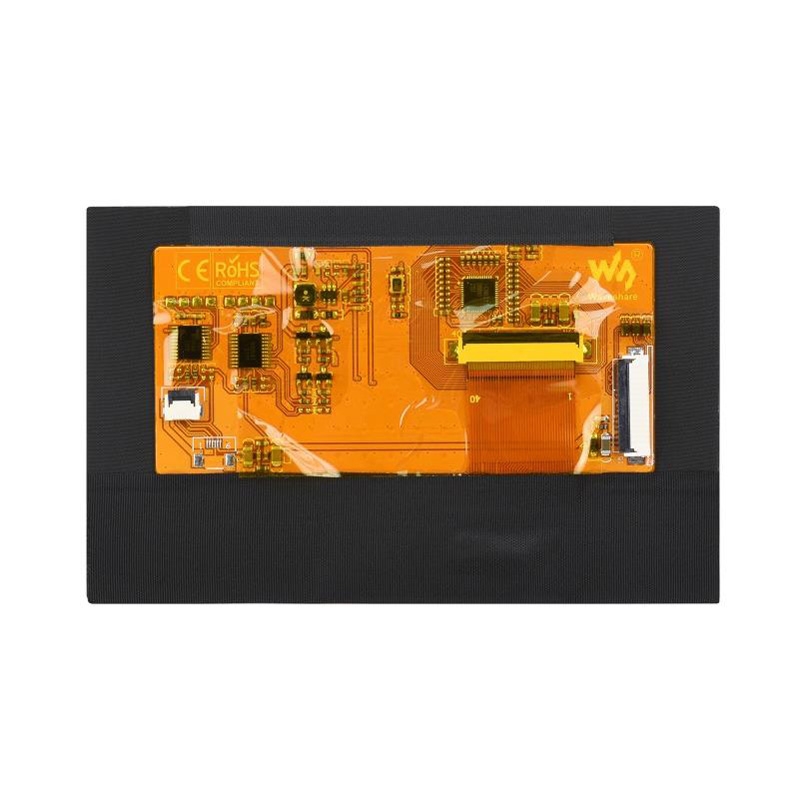

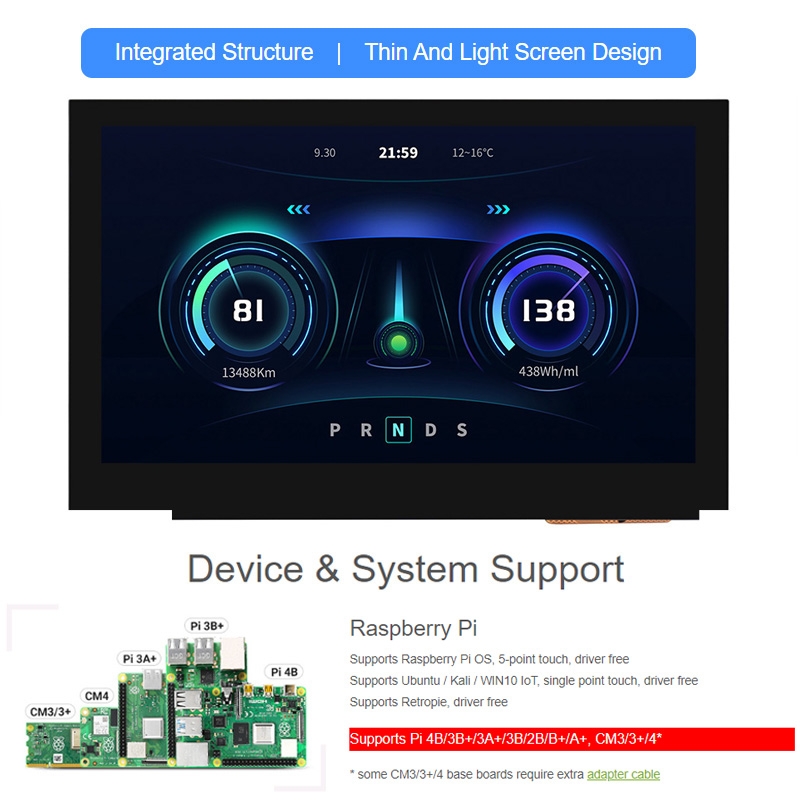

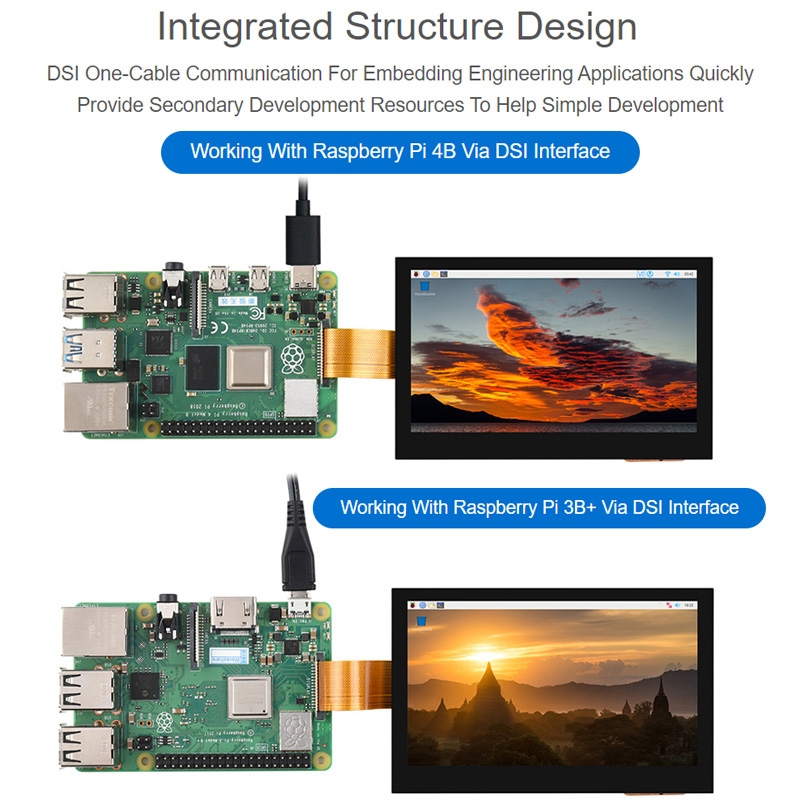

1. Resolution: 800 x 480 2. Display interface: DSI 3. Display panel: IPS 4. Viewing angle: 160 degrees 5. Touch screen models: - Touch type: capacitive touch - Touch points: 5 points touch - Touch interface: I2C - Touch panel: tempered glass panel 6. Application scenarios: smart home, automotive equipment, consumer electronics, industrial equipment, etc. 7. Screen size: about 5 inch 8. Size: no touch model about 12 x 7.58 x 0.51cm, touch model about 12.77 x 8.7 x 0.7cm Features: 1. IPS display panel with good display performance and wide viewing angle of up to 160 degrees 2. Integrated structure design, DSI one-line, easy to integrate integrated design, provide secondary development materials, help simple development 3. Thinner and more space-saving, the driver circuit is integrated into the FPC, about 5mm thickness space can be 4. Touch models capacitive five-point touch, flexible operation, through the I2C signal, lead to touch function, support five-point touch 5. Touch model backlight brightness can be adjusted by software 6. Support Raspberry Pi OS, 5-point touch, driver-free 7. Support Ubuntu / Kali / WIN10 IoT, single-touch, driver-free 8. Support Retropie, driver-free 9. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, some CM3/3+/4 backplanes need to buy adapter cable separately

Specifications

SKU

TBD0414479001

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.404 kg

Delivery

Standard delivery
