WAVESHARE 65K Colors 160 x 80 Pixel 0.96 inch LCD Display Module for Raspberry Pi Pico, SPI

Product Description

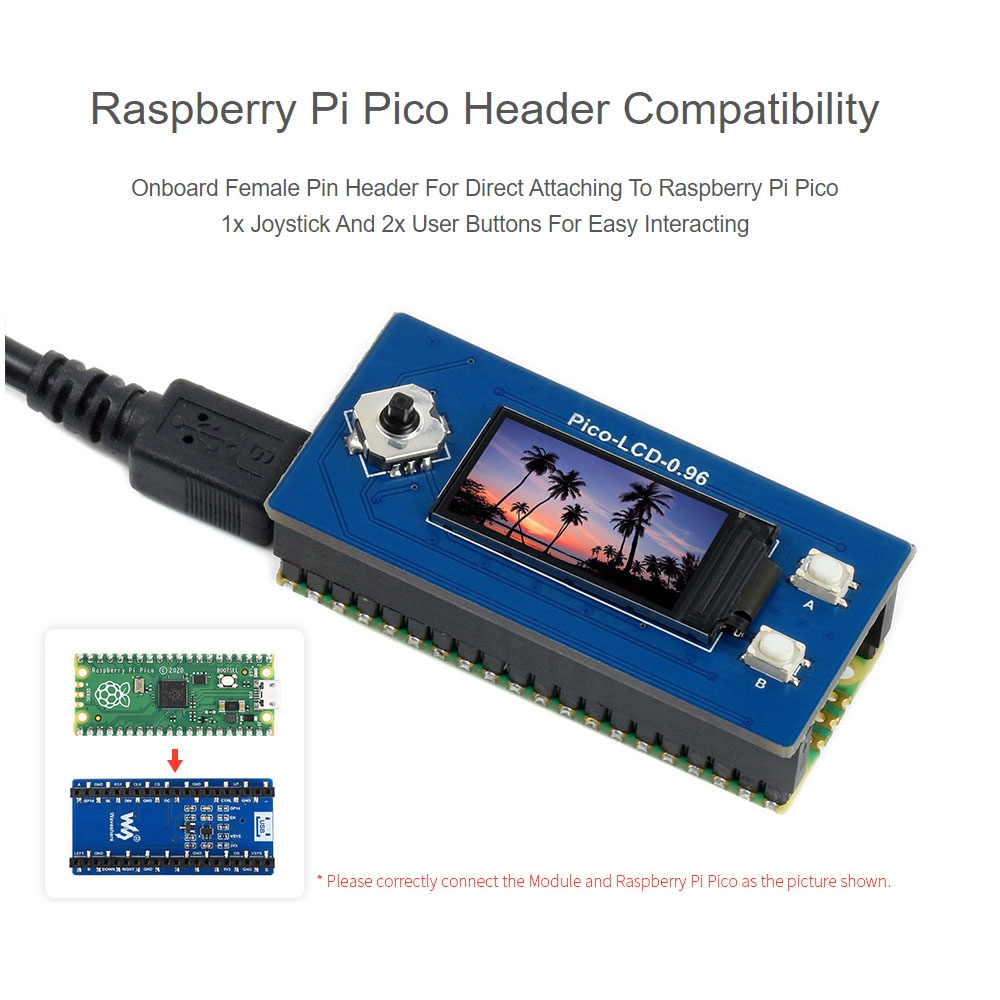

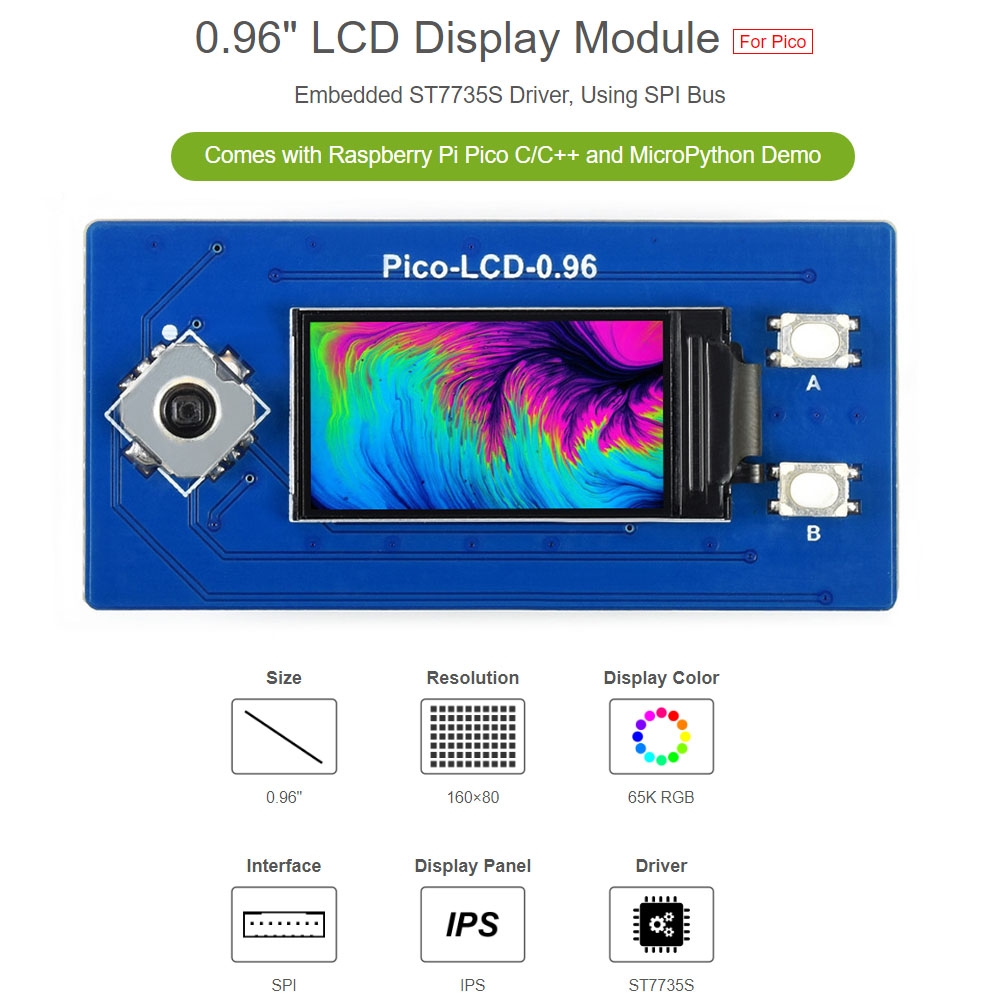

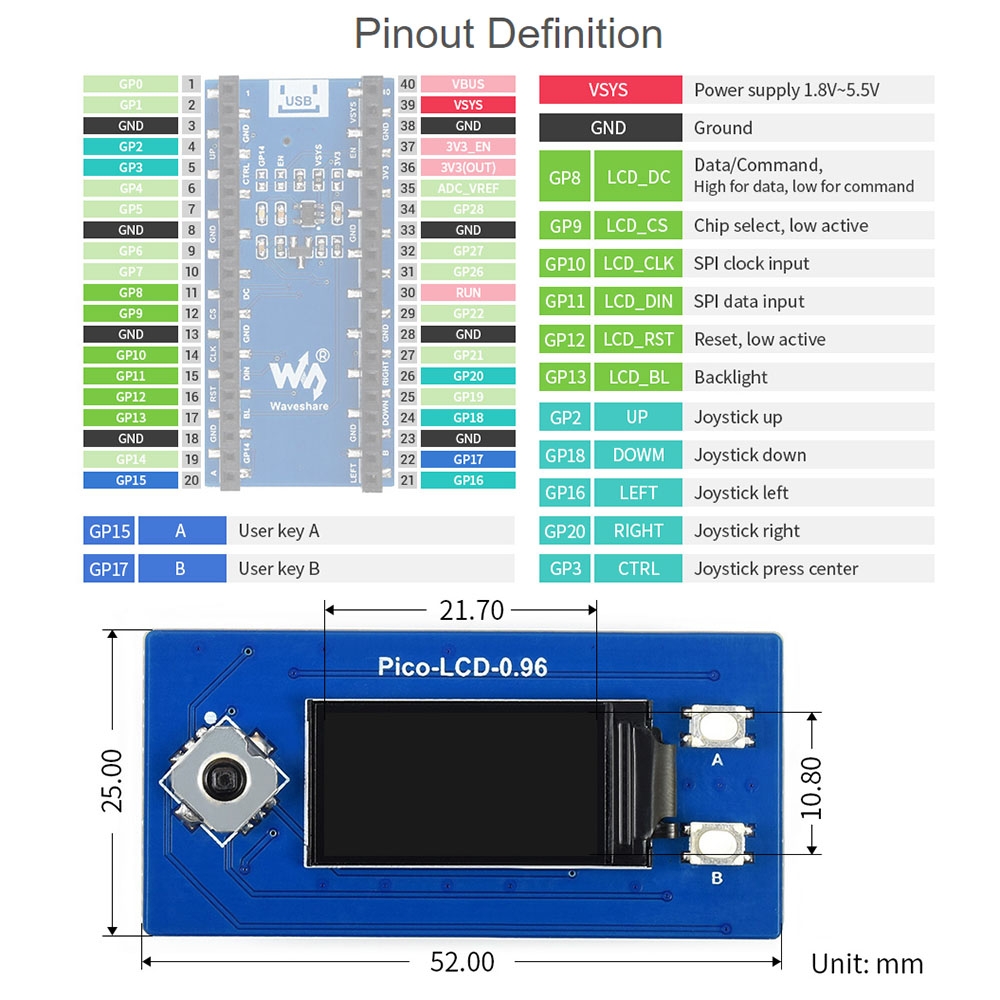

1. 160x80 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect 2. SPI interface, requires minimal IO pins 3. 1x joystick and 2x user buttons for easy interacting 4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples) Specification 1. Operating voltage: 2.6 ~ 5.5V 2. Resolution: 160x80 pixels 3. Display color: 65K RGB 4. Communication interface: 4-wire SPI 5. Display panel: IPS 6. Display size: 21.70 x 10.80mm 7. Pixel size: 0.1356 x 0.135mm 8. Driver: ST7735S 9. Size: 52.00 x 25.00mm

Specifications

SKU

DIY0199

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.029 kg

Delivery

Standard delivery
