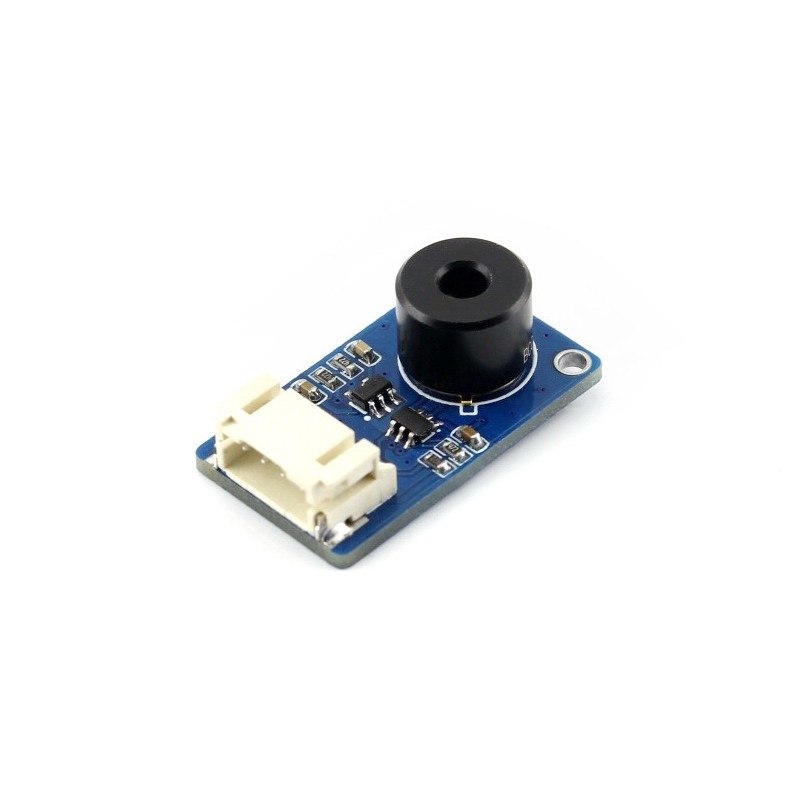

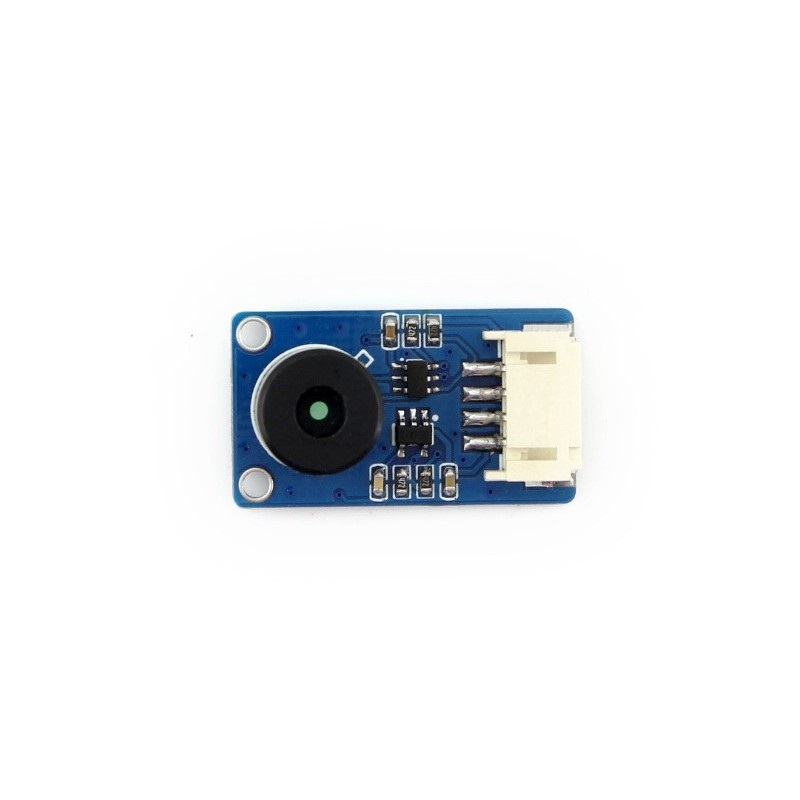

Waveshare Contact-less Infrared Temperature Sensor

Product Description

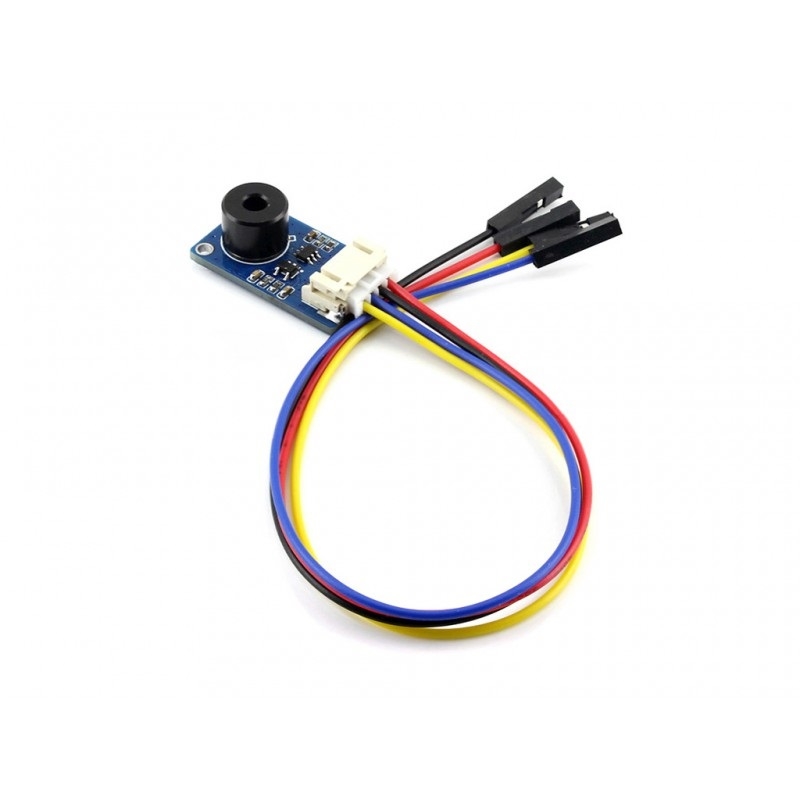

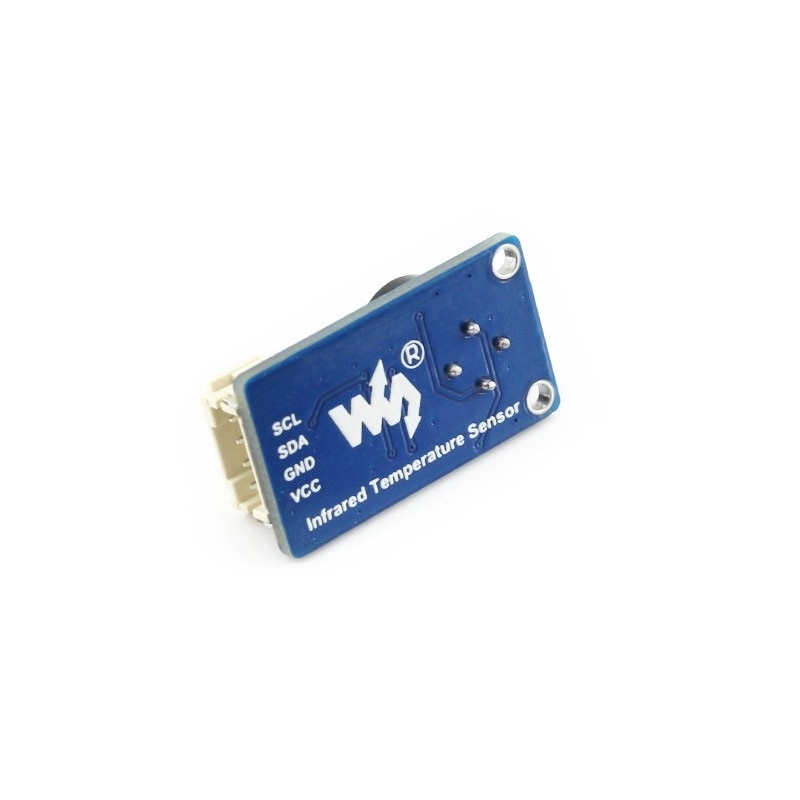

Overview 1. Measures the surface temperature of an object without touching it, depending on the emitted IR waves of the target - Also measures the average temperature over an area 2. Contact-less, high precision, high resolution, fast response 3. Calibrated before delivery, with gradient temperature compensation 4. Works with 3.3V/5V MCU system directly, thanks to the built-in level translation 1. Power: 3.3V ~ 5V 2. Measuring range (area): 40 degree C ~ 85 degree C 3. Measuring range (object): -70 degree C ~ 380 degree C 4. Resolution: 0.02 degree C 5. Precision: +/-0.5 degreeC ( 0~50 degreeC) 6. Field of view (FOV): 35 degree 7. Dimension: 28mm x 16 mm 8. Mounting holes size: 2.0mm Applications 1. High-precision contact-less temperature measurement 2. Industrial temperature control 3. Household appliances temperature control How to Use In the case of working with a MCU: 1. VCC: 3.3V ~ 5V 2. GND: GND 3. SDA: MCU.I2C data line 4. SCL: MCU.I2C clock line Package Contents 1. Infrared Temperature Sensor x 1 2. PH2.0 4PIN wire x 1

Specifications

SKU

ZY16355956

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.01 kg

Delivery

Standard delivery
