Waveshare DHT22 Temperature-Humidity Sensor

Product Description

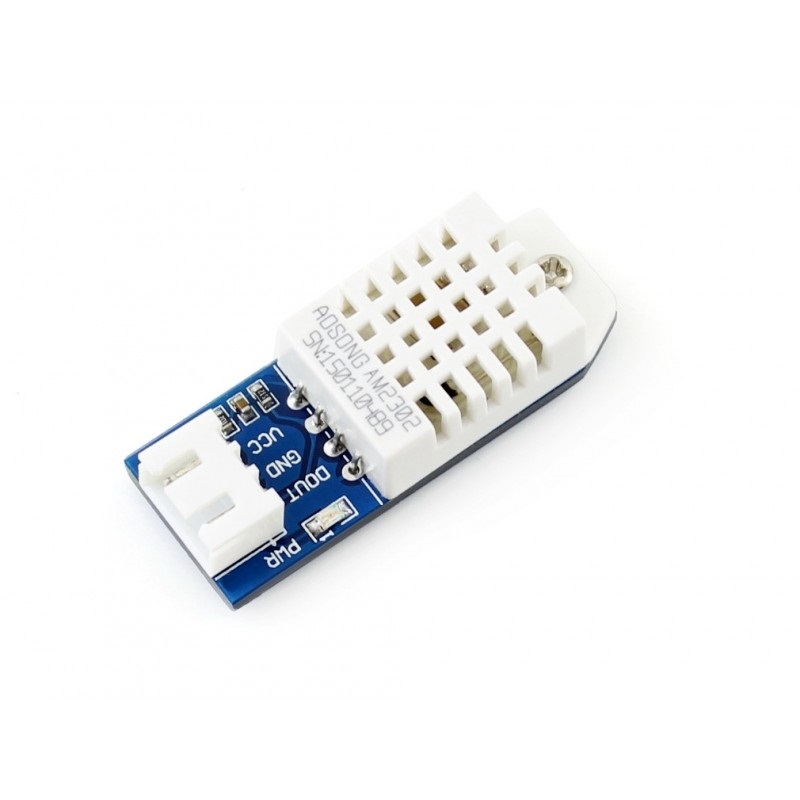

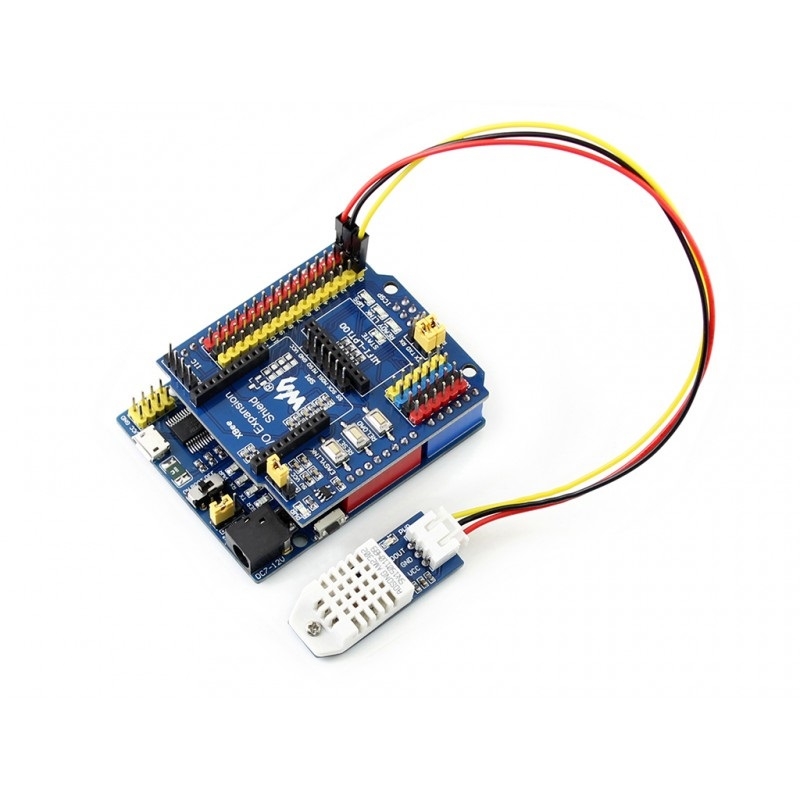

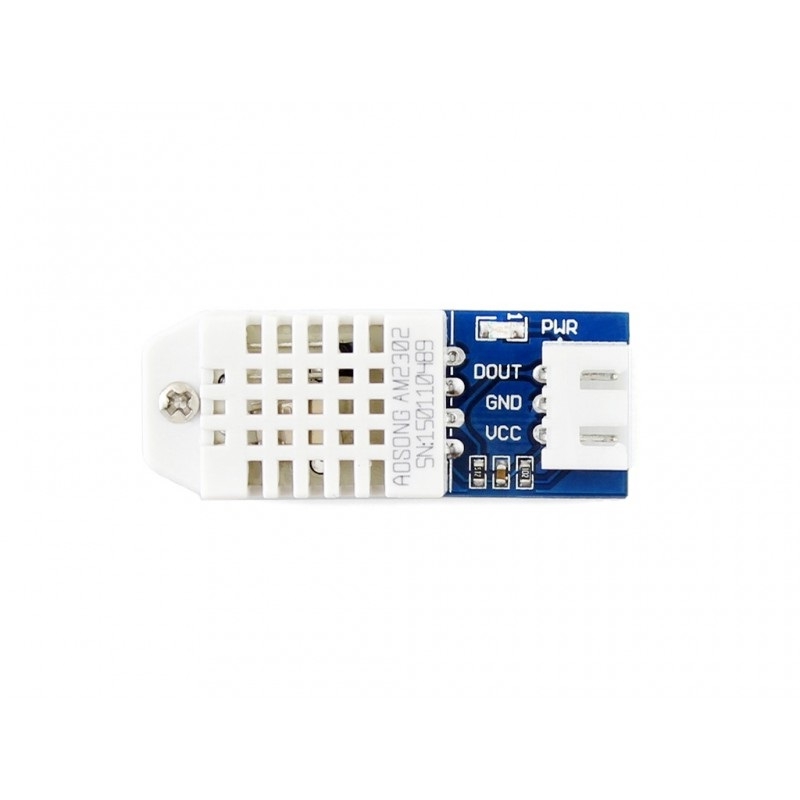

Overview 1. This is a calibrated digital temperature and humidity module with onboard sensor DHT22 (AM2302), which features higher accuracy and wider measuring range than DHT11. 2. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface. Specifications 1. Temperature - Resolution : 0.1degree C - Accuracy: +/-0.5 degree C - Measuring range: -40 degree C ~ 80 degree C 2. Humidity - Resolution: 0.1%RH - Accuracy: +/-2%RH (25degree C) - Measuring range: 0%RH ~ 99.9%RH 3. Operating voltage: 3.3V ~ 5.5 V 4. Recommended storage condition - Temperature: 10 degree C ~40 degree C - Humidity: 60%RH or below Applications 1. Weather station 2. Humidity controller 3. Test & detection device How to Use In the case of working with a MCU: 1. VCC: 3.3V ~ 5.5V 2. GND: GND 3. DOUT: MCU.IO

Specifications

SKU

ZY16356276

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.016 kg

Delivery

Standard delivery
