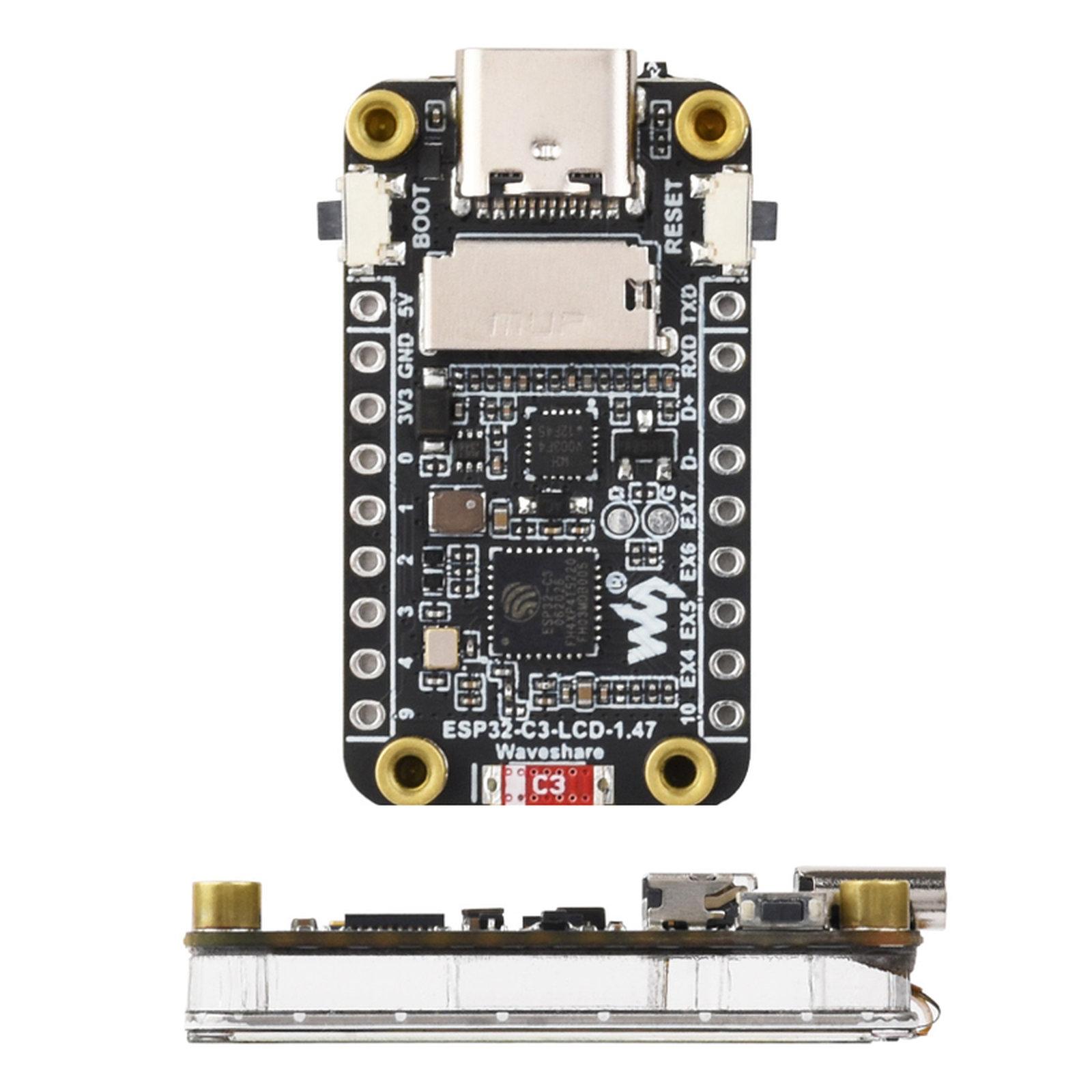

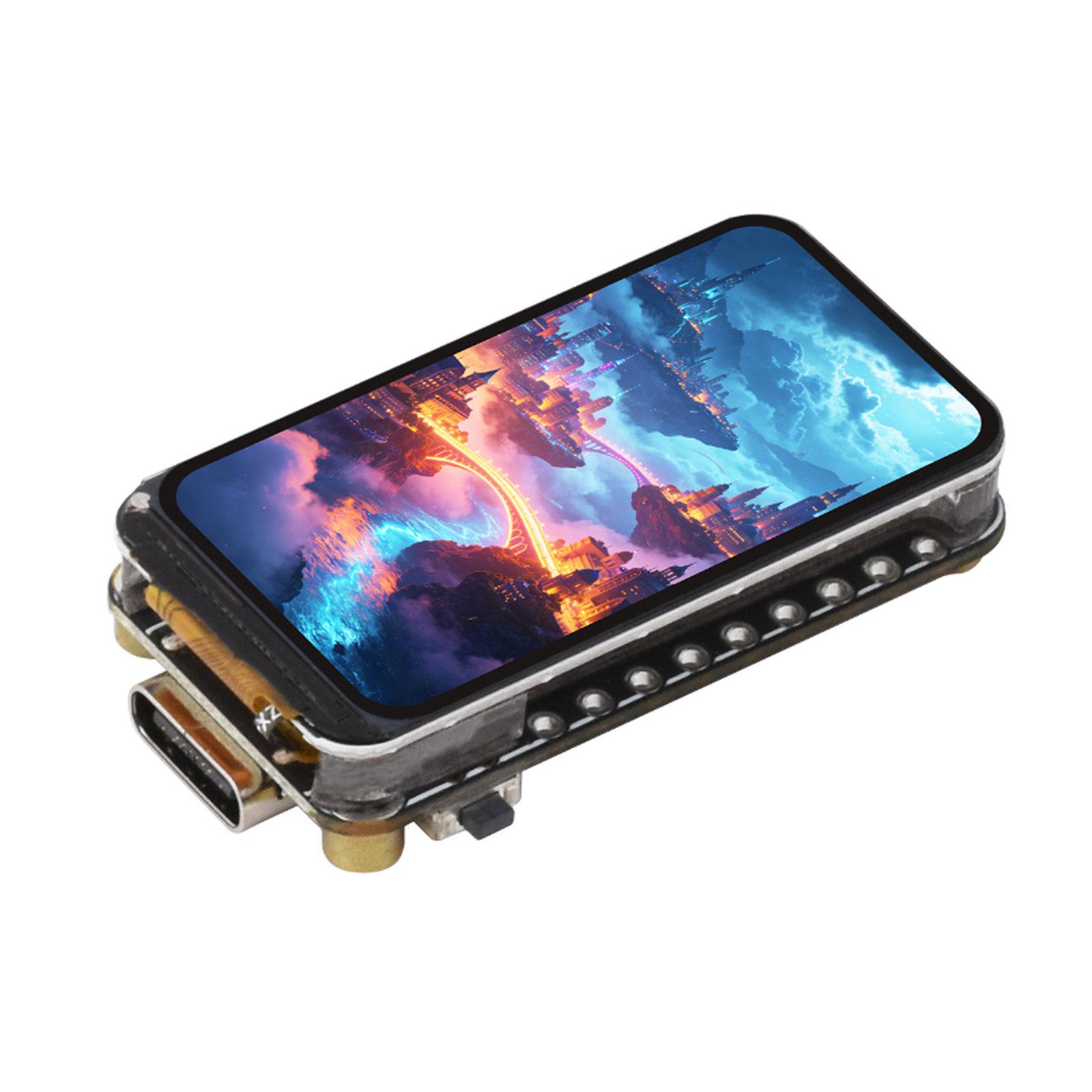

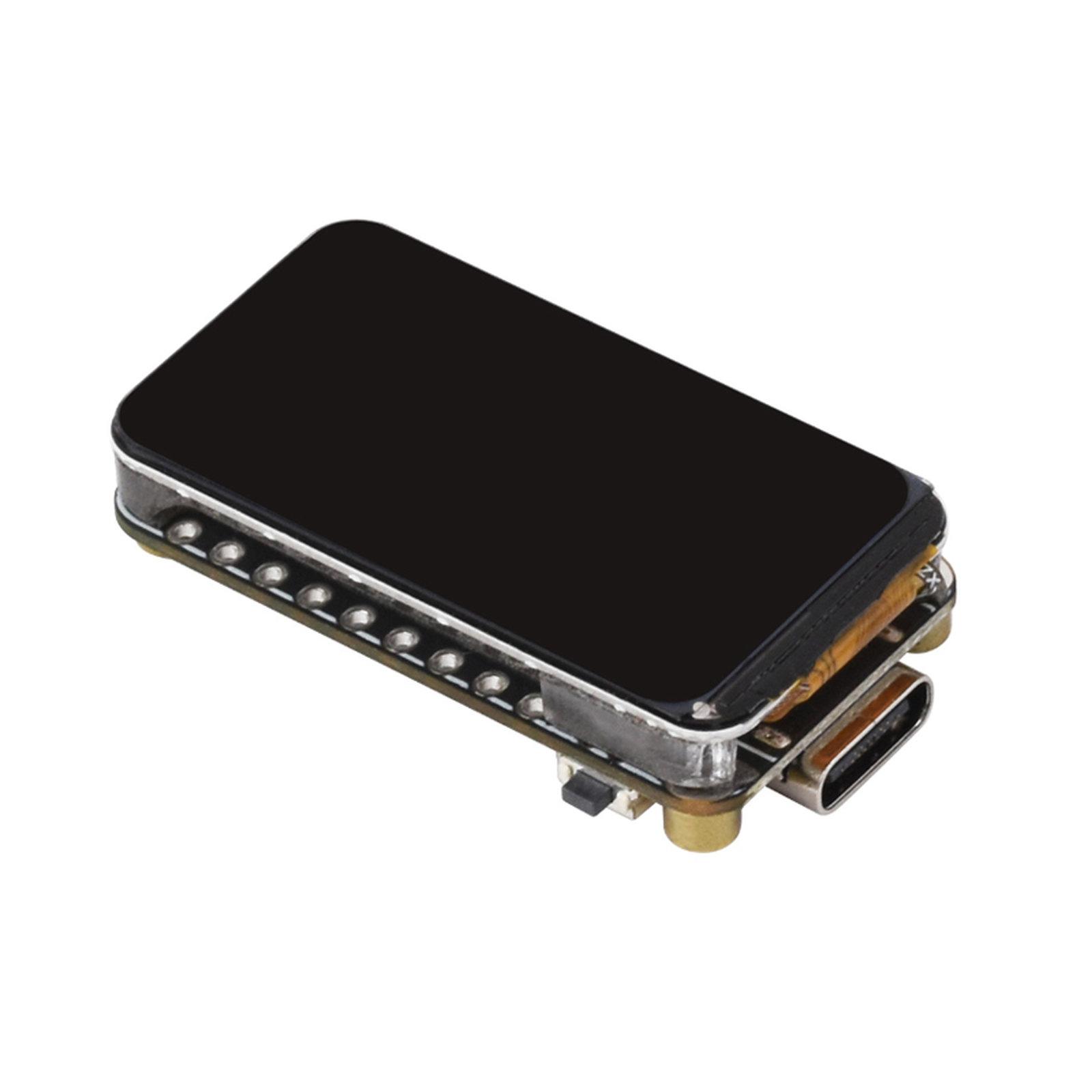

Waveshare ESP32-C3 1.47-Inch LCD Development Board, RISC-V 32-Bit Single-Core Processor, Version: Unsoldered Headers

Product Description

1. Interface: USB Type-C 2. Main control chip: ESP32-C3FH4 3. Screen type: ISP 4. Screen resolution: 172 x 320 5. Display chip: ST7798 6. Equipped with ESP32-C3FH4 as the main control chip, featuring a 32-bit RISC-V single-core low-power SoC with a maximum frequency of 160 MHz 7. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth BLE 5 wireless communication 8. Built-in 400KB SRAM and 384KB ROM, and stacked 4MB Flash 9. Board equipped with ceramic antenna, facilitating integration into user-defined baseboards or embedded devices 10. Integrated USB full-speed serial controller for convenient program downloading and debugging 11. Exports 15 GPIOs, allowing flexible expansion of various peripheral functions 12. Provides abundant peripheral resources, including 3 x SPI, 1 x I2C, 2 x UART, 1 x I2S, 2 x ADC, etc. 13. Microcontroller development board supporting 2.4GHz Wi-Fi and Bluetooth BLE 5, integrating a large-capacity Flash and a 1.47-inch LCD display, capable of smoothly running GUI interface programs such as LVGL 14. Combined with rich peripheral interfaces, it enables rapid development of applications based on ESP32-C3 for human-computer interaction, IoT terminals, and intelligent displays 15. ESP32-C3 integrates 2.4GHz Wi-Fi and supports long-range Bluetooth 5 (LE) 16. It also supports Bluetooth Mesh protocol and Espressif Wi-Fi Mesh, maintaining excellent RF performance even at higher operating temperatures

Specifications

SKU

TBD0606246501

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.054 kg
