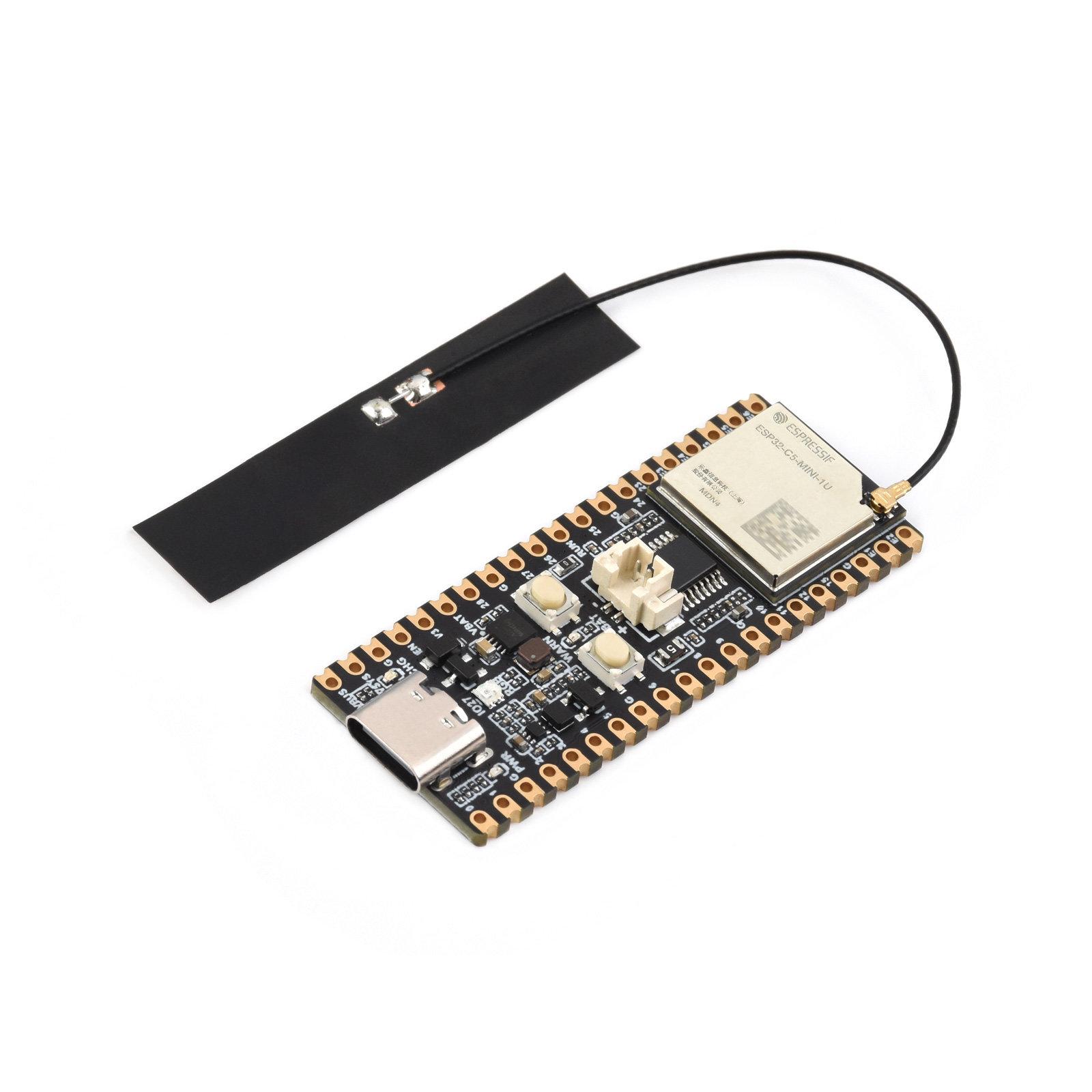

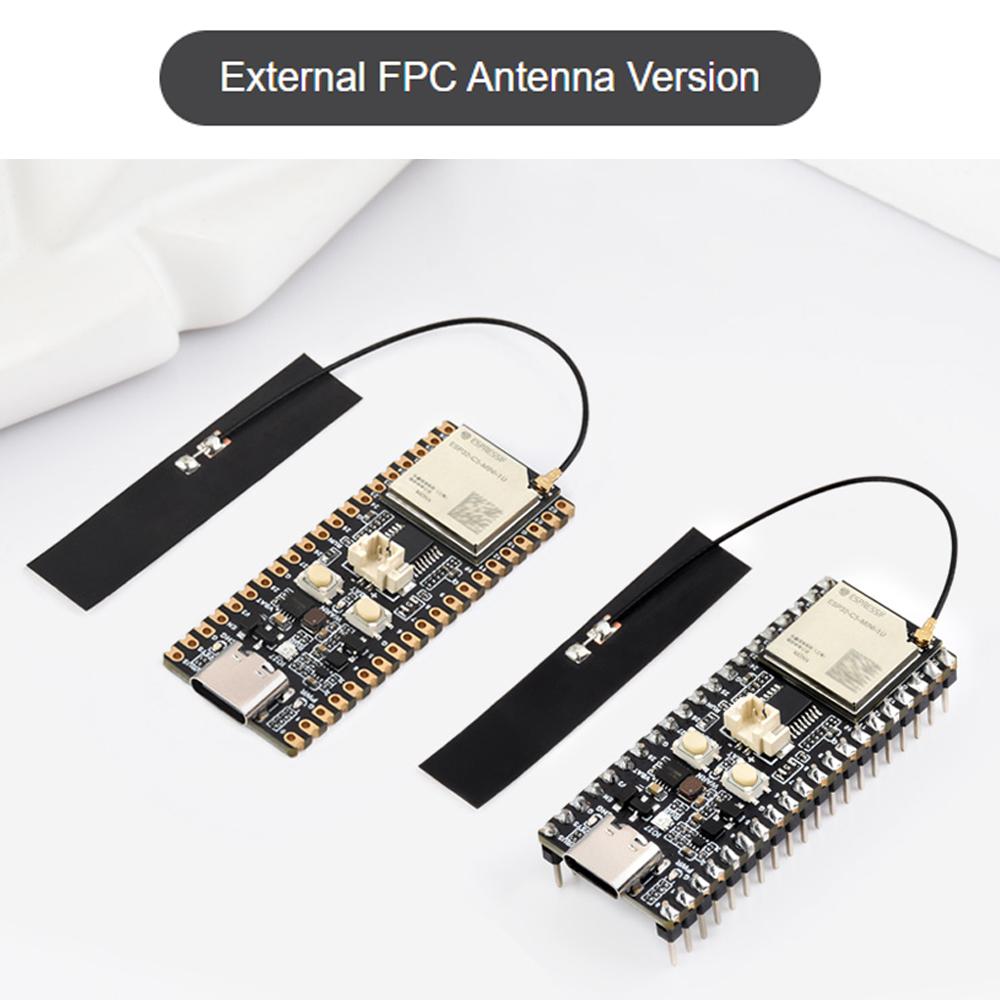

Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board External FPC Antenna Without Pinheader

Product Description

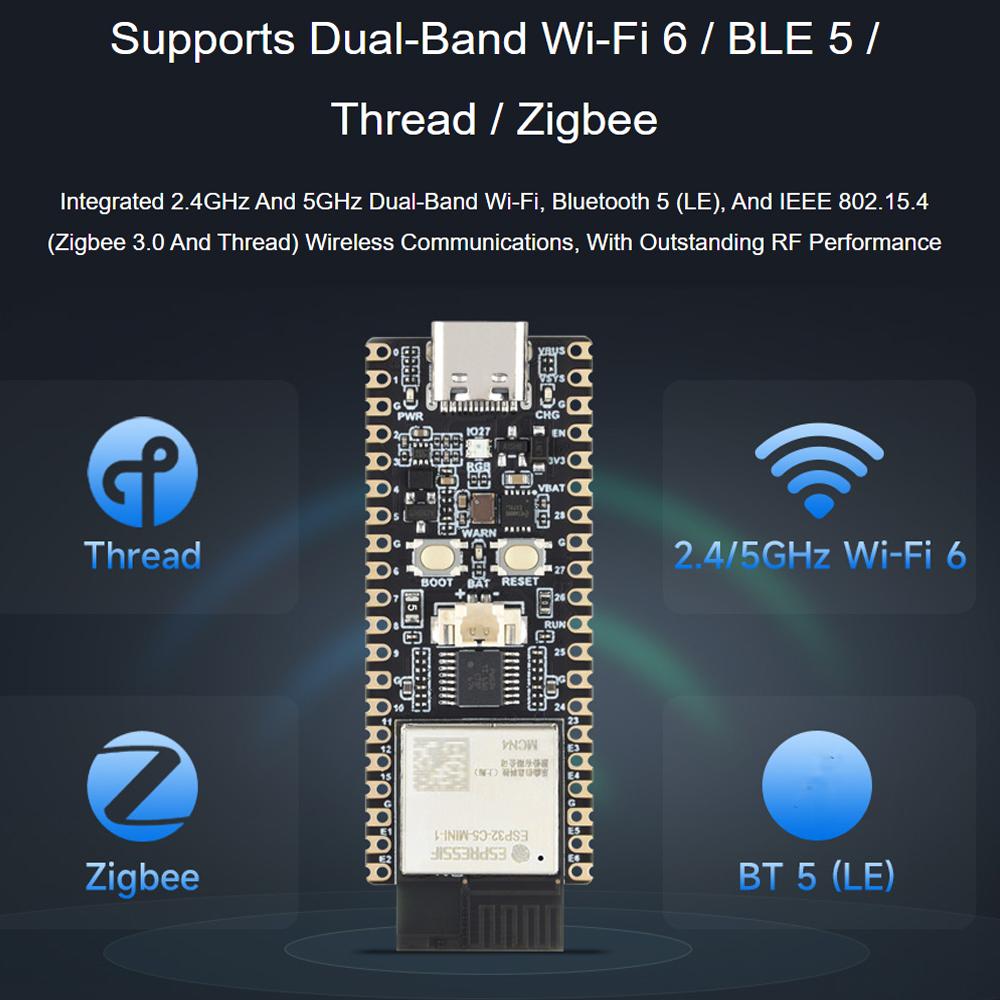

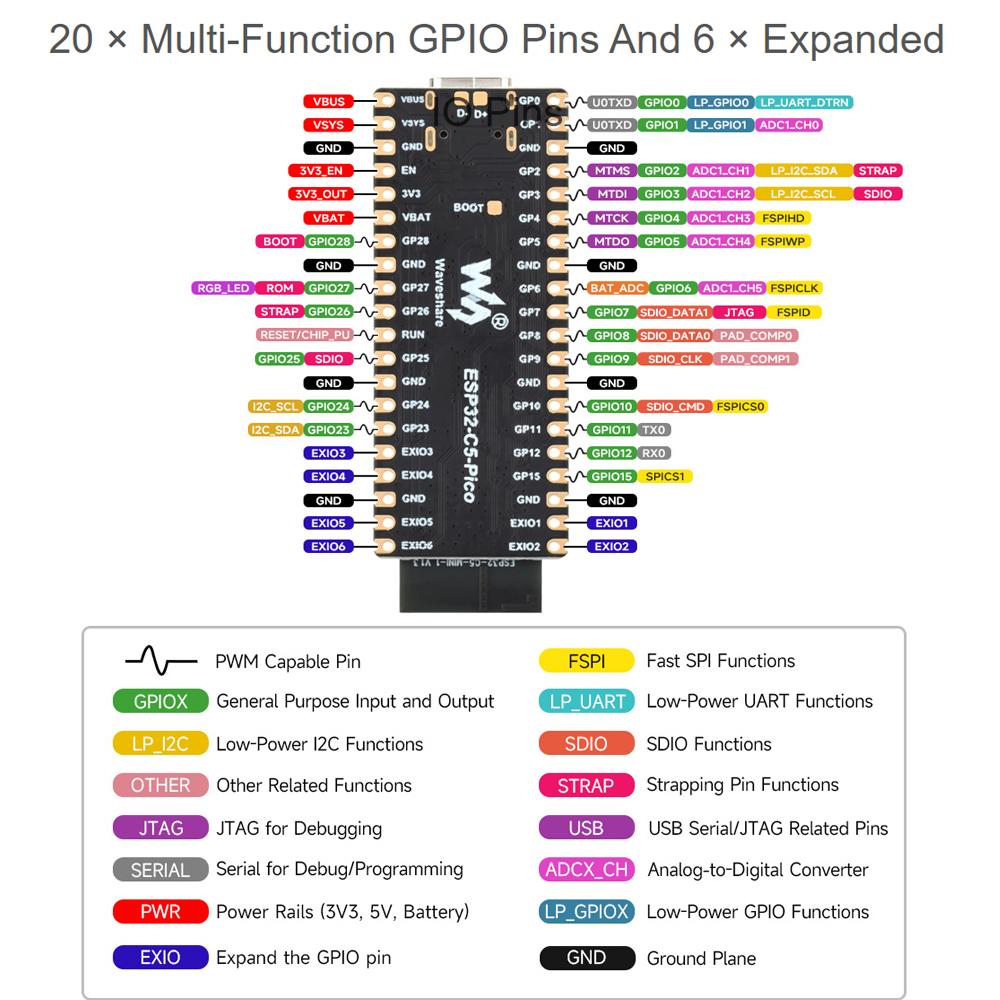

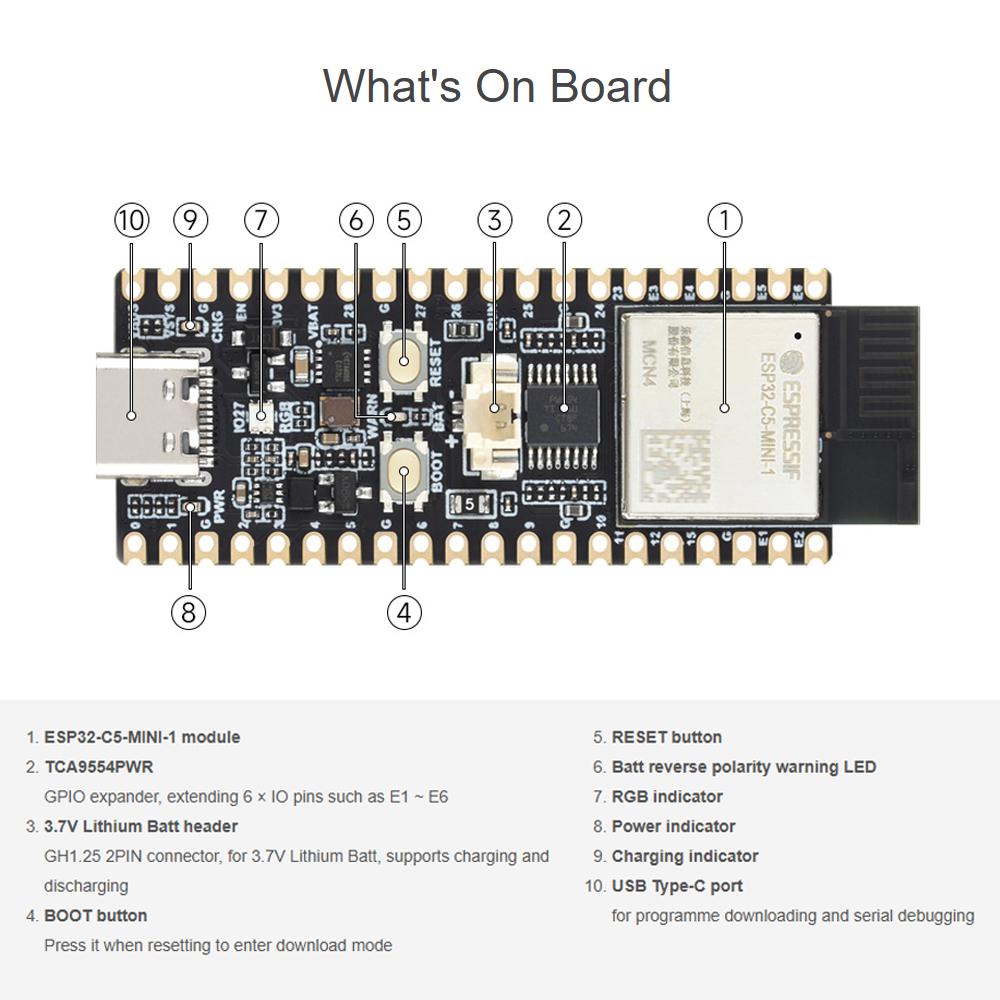

1. Uses ESP32-C5-MINI-1 series module as the main controller, powered by a RISC-V 32-bit single-core processor with main frequency up to 240 MHz. 2. Integrates 320 KB ROM, 384 KB HP SRAM, 16 KB LP SRAM, and 4 MB Flash memory. 3. Supports 2.4 GHz and 5 GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance. 4. Utilizes a USB Type-C interface, eliminating worry about plug orientation, and supporting convenient power supply, development, and debugging. 5. Onboard MP1605GTF-Z high-efficiency DC-DC power supply chip, delivering load current up to 2A. 6. Onboard ETA6098 power management circuit, supporting lithium battery power supply, charging status indication, and battery voltage sampling. 7. Routes out multiple GPIOs and expands 6 additional IOs via TCA9554 for easy peripheral connection. Features rich peripheral interfaces including USB, UART, I2C, SPI, ADC, and PWM for flexible functional implementations. 8. Stamp-hole (castellated hole) design allows direct soldering and integration onto user-designed baseboards. 9. Supports multiple low-power operating modes to balance communication distance, data rate, and power consumption, meeting energy requirements for various application scenarios. 10. Compatible with most of the Raspberry Pi Pico expansion board ecosystem, ideal for AIoT (Artificial Intelligence of Things) application development. FPC Dual-Band Wi-Fi Antenna Parameters: 1. Frequency Range: 2400-2500 MHz / 5200-5800 MHz 2. Max Power: 5W 3. Antenna Dimensions: 48.0 x 10.0 x 0.2 mm 4. Cable Length: 80 mm 5. VSWR: Less than 3 6. Connector Specification: IPEX Generation 4 7. Peak Gain: 6.49 dBi (2.4G band) / 8.24 dBi (5.8G band) 8. Antenna Material: FPC 9. Output Impedance: 50 ohms 10. Operating Temperature: -30 to +80 degrees Celsius 11. Polarization Type: Vertical 12. Radiation Direction: Omnidirectional

Specifications

SKU

TBD0607196301

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.024 kg
