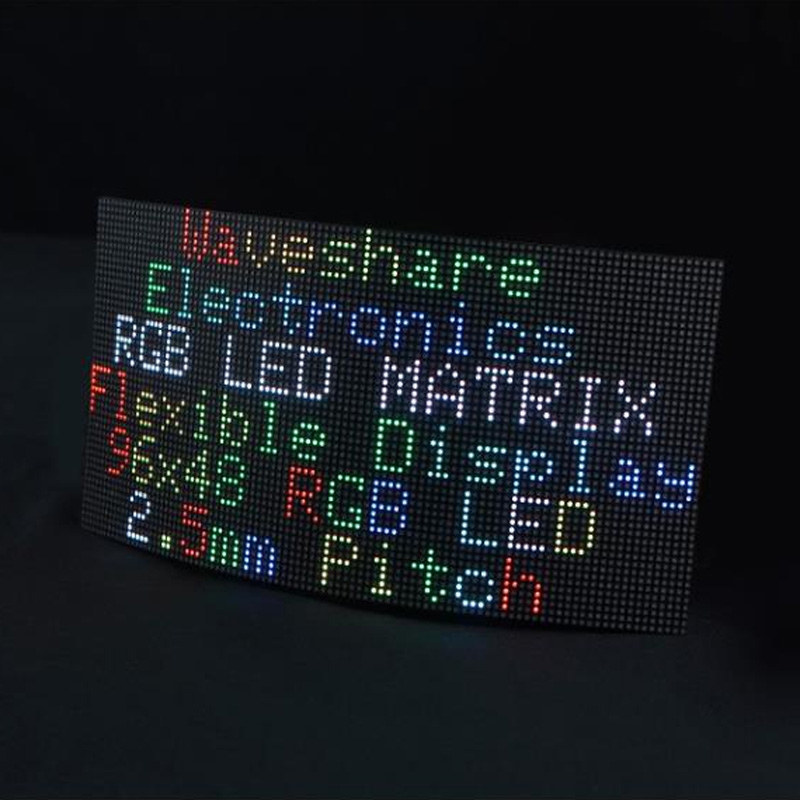

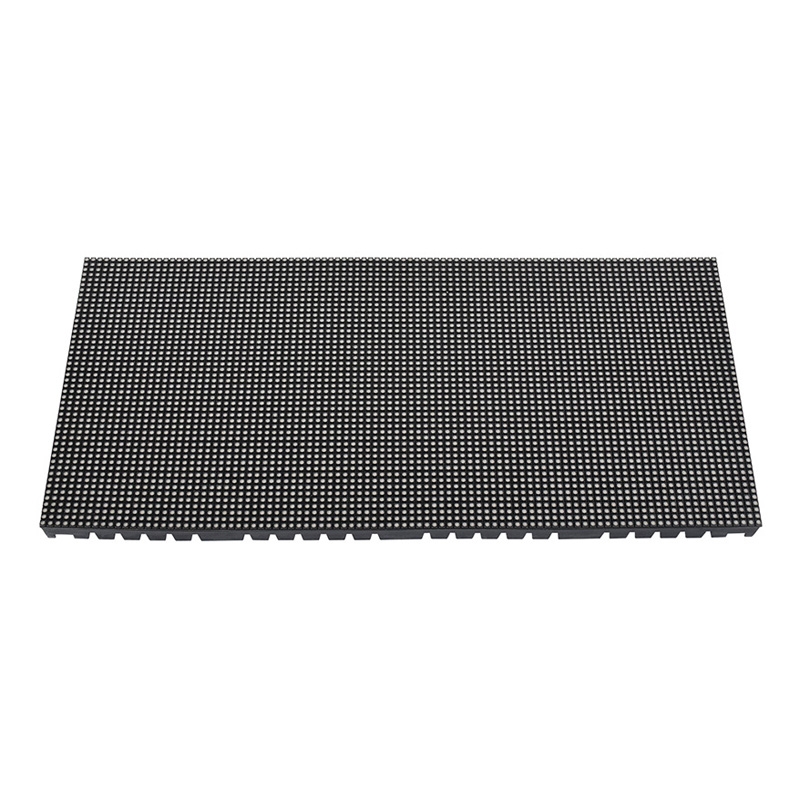

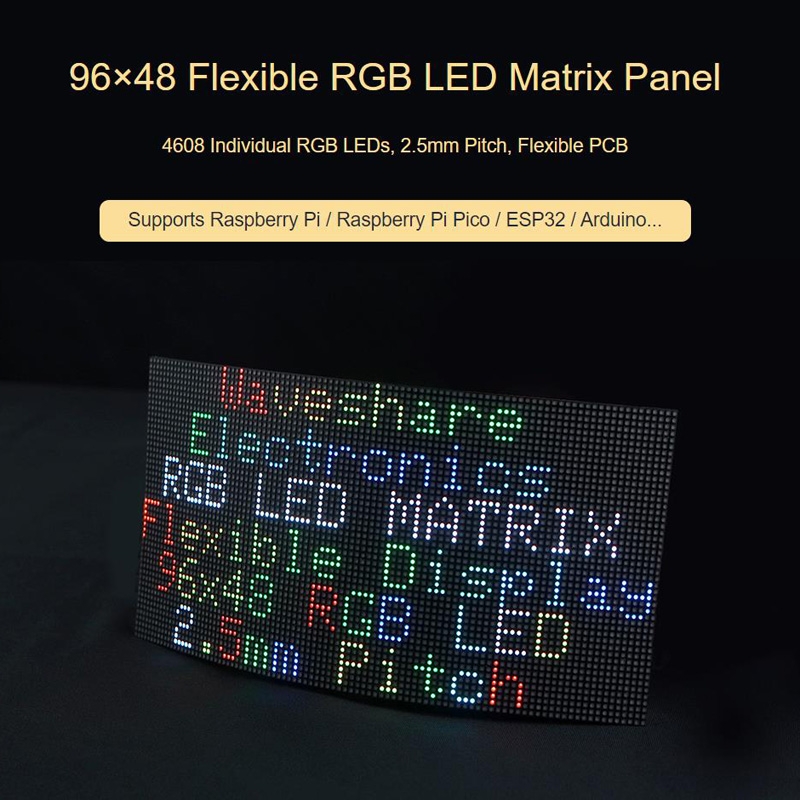

Waveshare Flexible RGB Full-color LED Matrix Panel, 2.5mm Pitch, 96x48 Pixels, Adjustable Brightness Bendable PCB

Product Description

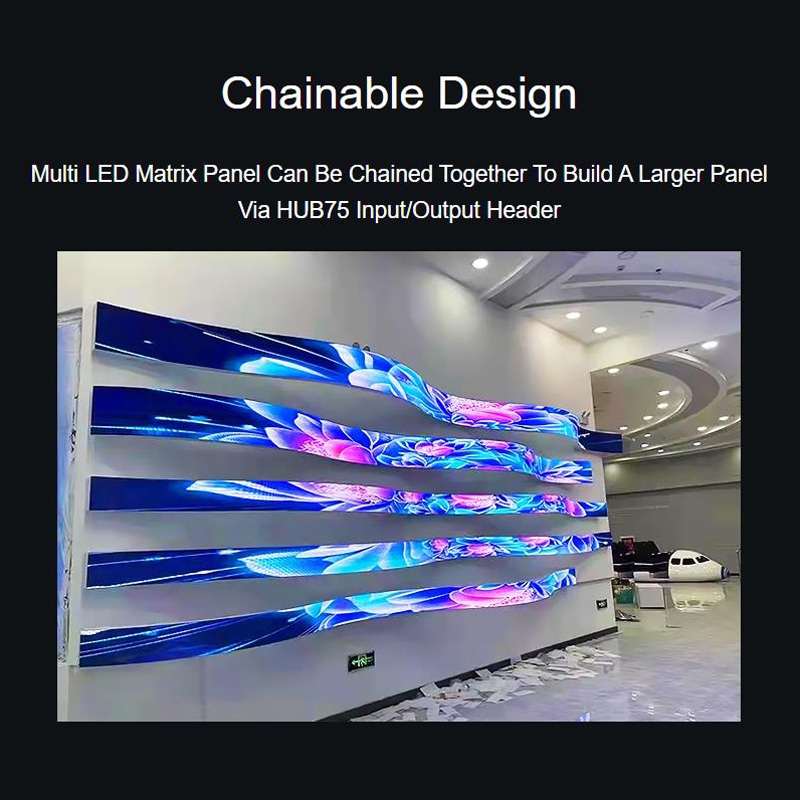

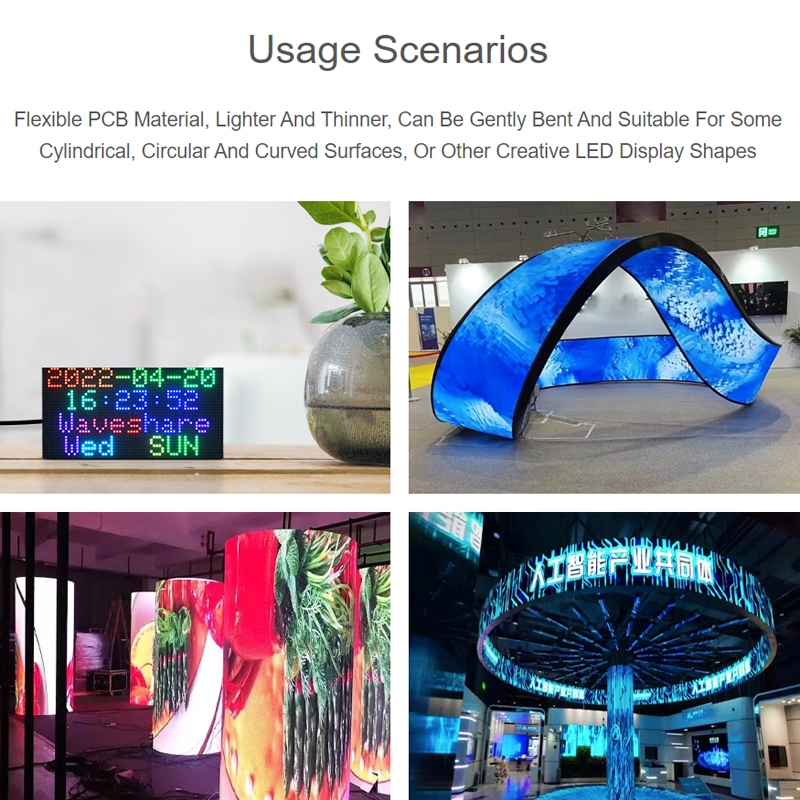

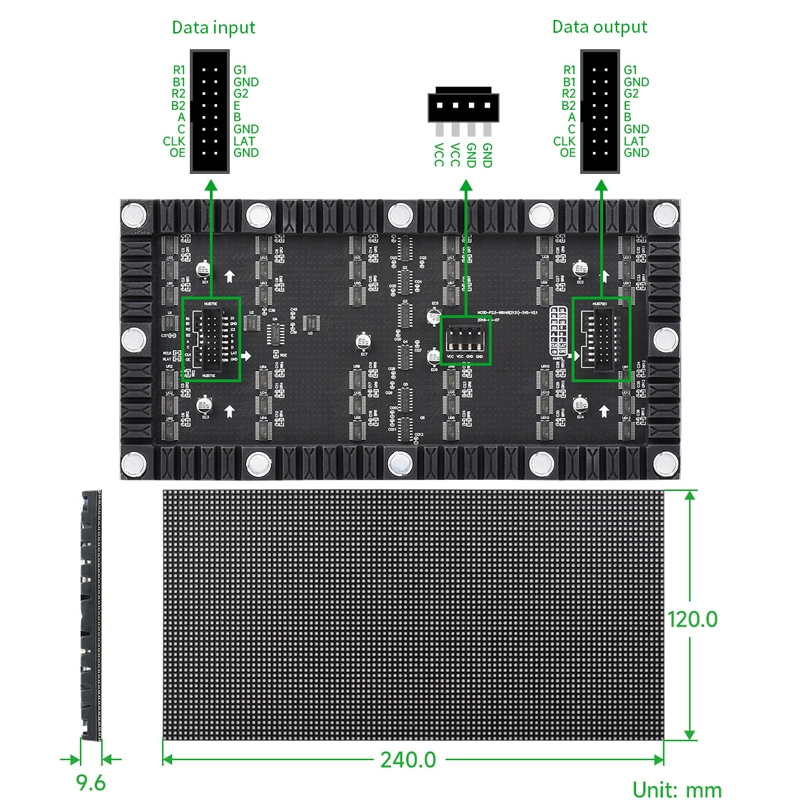

1. Pixel: 96 x 48=4608 dots 2. Pitch: 2.5mm 3. Pixel format: 1R1G1B 4. Viewing angle: greater than 140 degrees 5. Control mode: synchronous 6. Drive: 1/16 scan 7. Connector: HUB75 8. Power supply: 5V / 2.5A (VH4 connector input) 9. Power: within 20W 10. Size: 24 x 12cm Features: 1. 4608 independent RGB led, full color display, brightness adjustable 2. 96x48 pixels, 2.5mm pitch, allows displaying text, color image or animation 3. 240x120mm size, moderate size, suitable for DIY desktop display or wall mount display 4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support 5. Flexible PCB material, can be gently bent, suitable for some application scenarios such as cylinders, spheres and other curved surfaces 6. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)

Specifications

SKU

TBD01350857

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.377 kg

Delivery

Standard delivery
