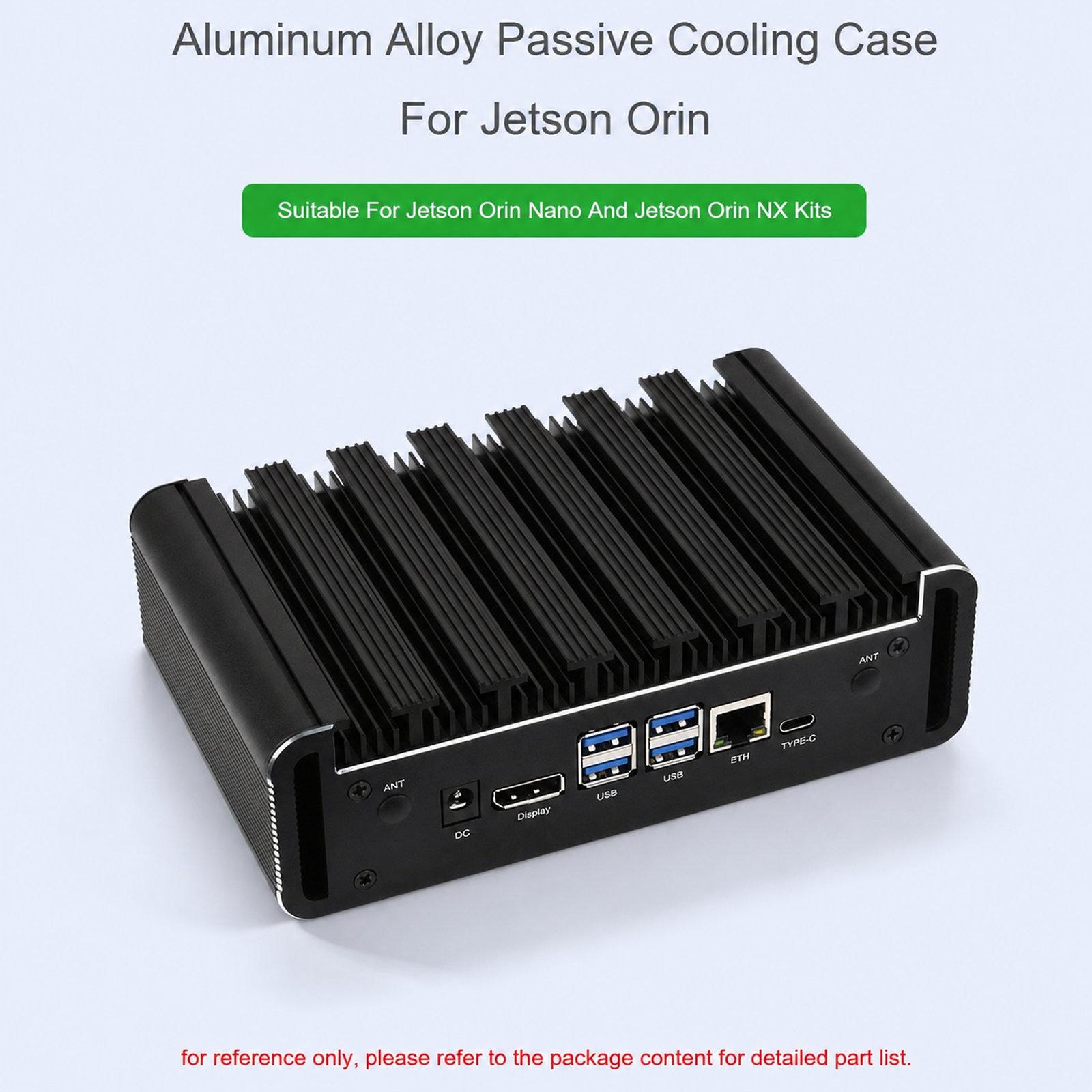

WAVESHARE For Jetson Orin Nano / NX Aluminum Alloy Passive Cooling Case Onboard Power Button With Indicator

Product Description

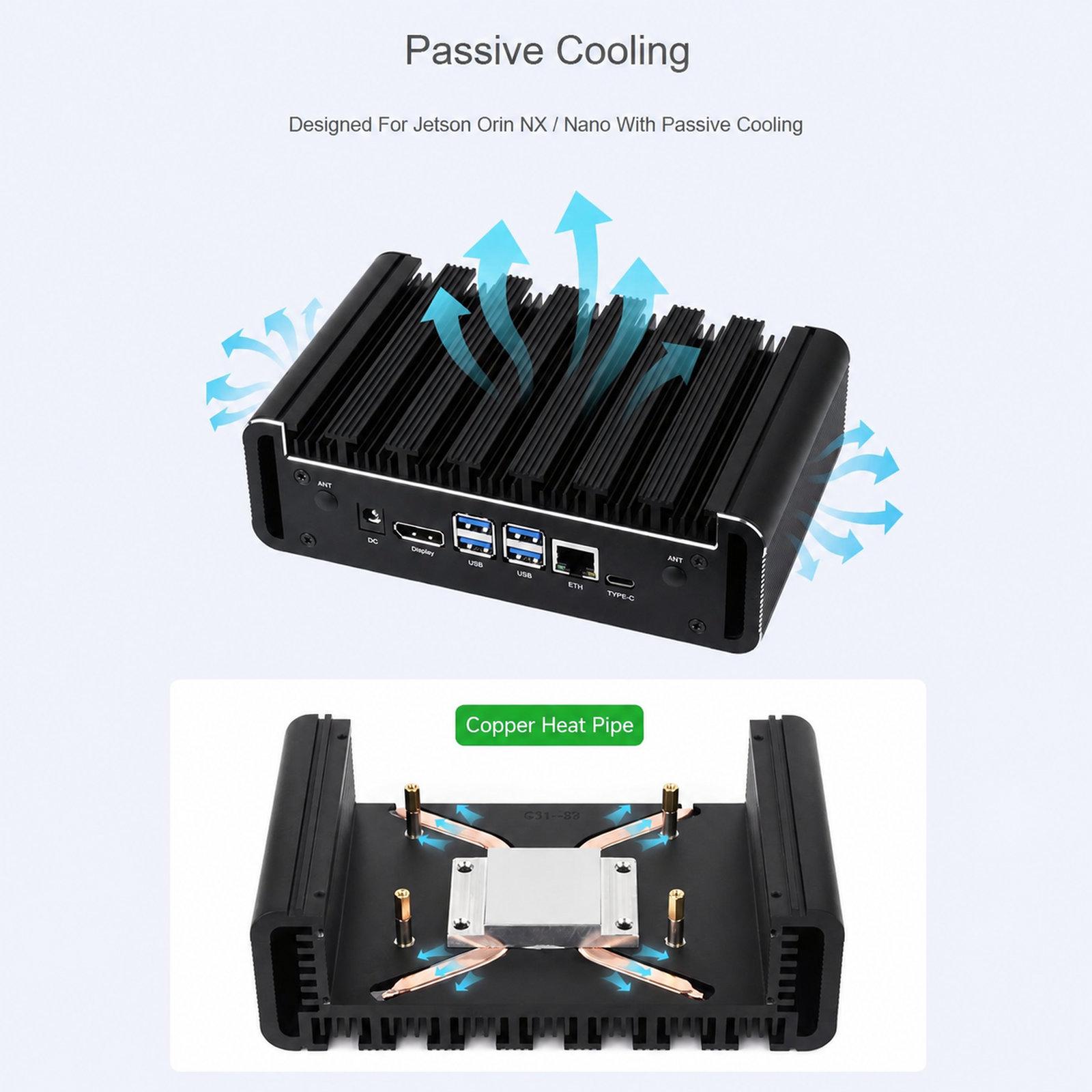

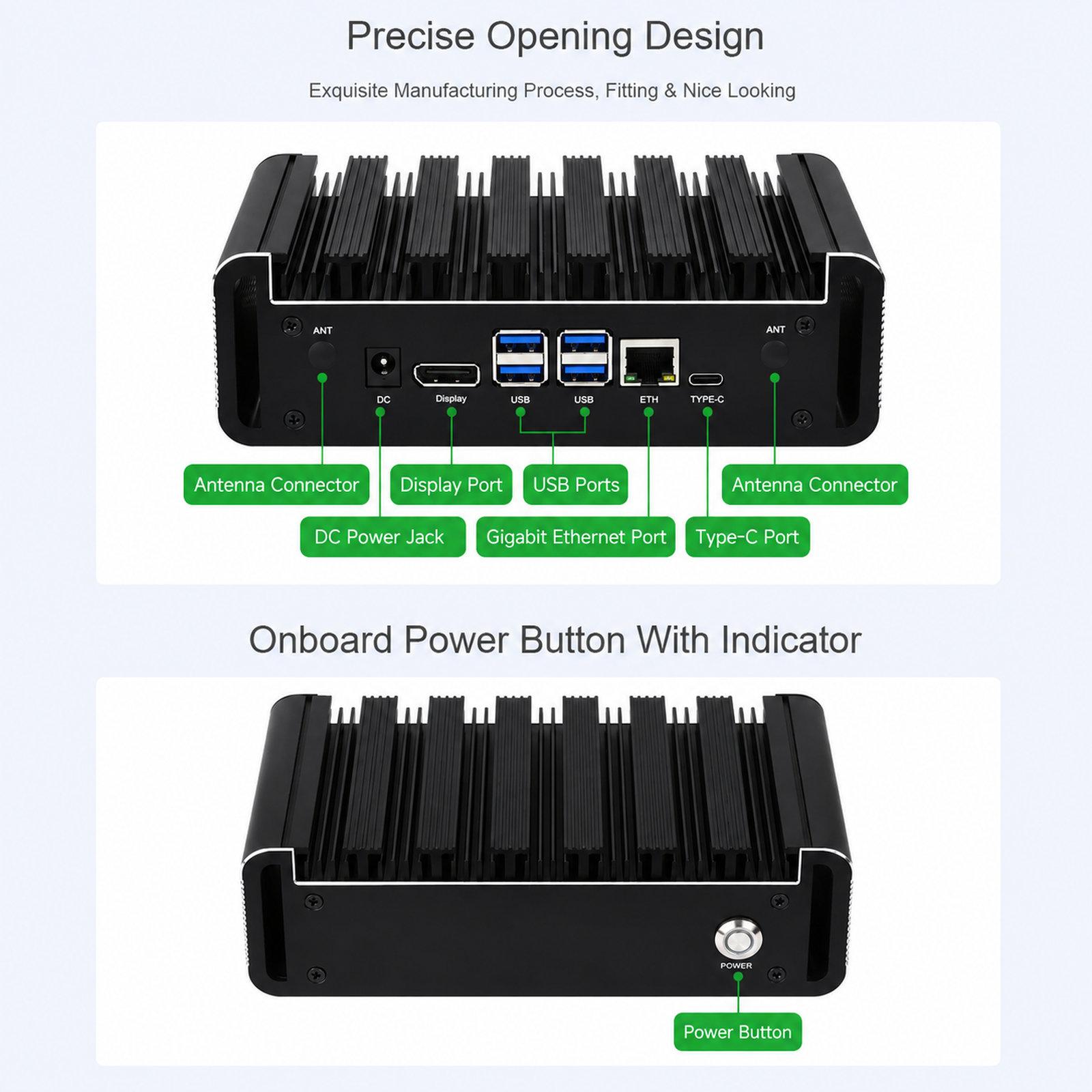

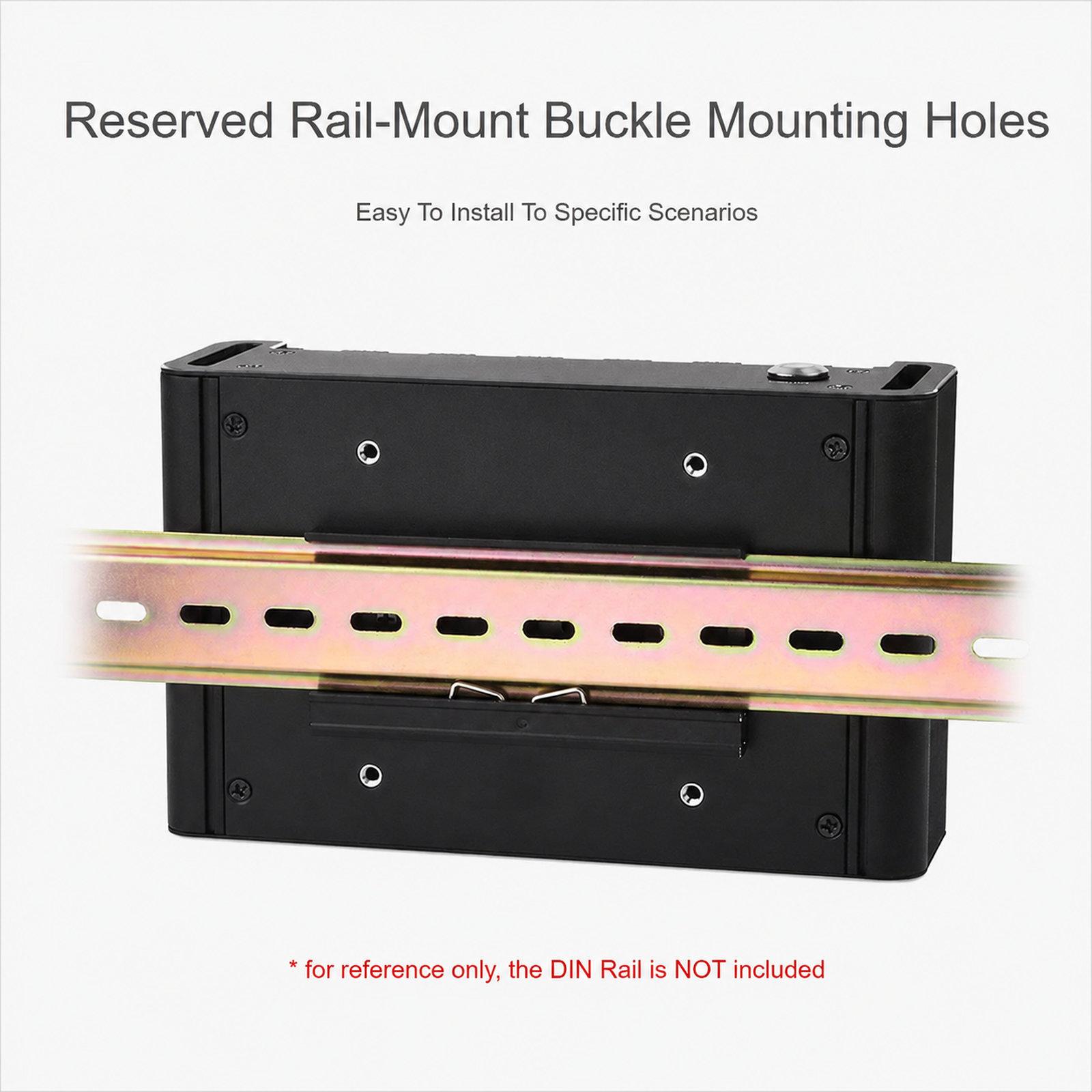

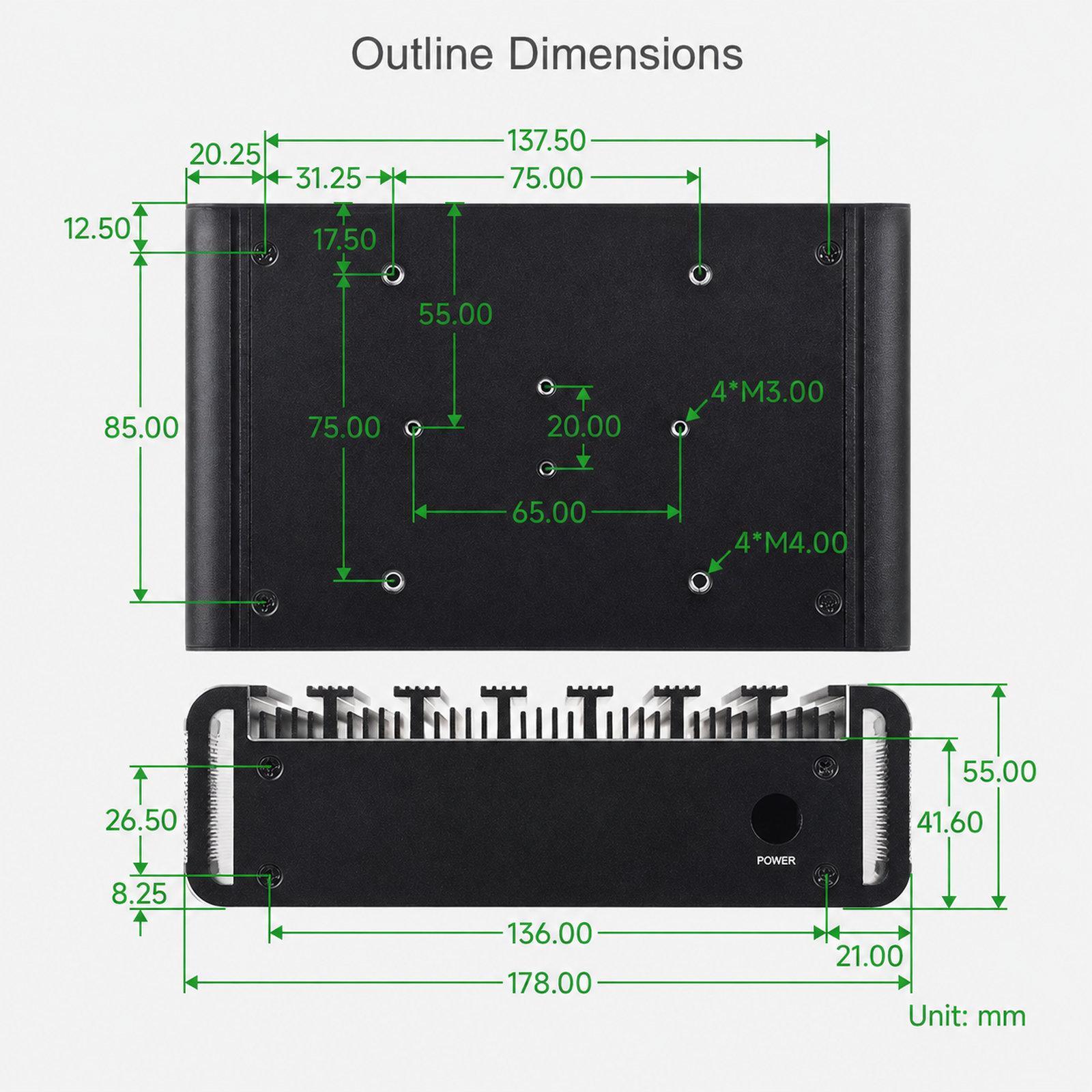

1. Designed for Jetson Orin Nano / NX developer kits, featuring precise cutouts and ample clearance for various interfaces. 2. Combines an aluminum alloy finned enclosure with a copper heat pipe at the base to achieve silent, efficient, fanless heat dissipation. 3. Features an onboard illuminated metal power switch, providing clear status indication and convenient power control. 4. Includes mounting holes for standard industrial DIN rails, enabling installation in diverse deployment environments. 5. Precision cutouts for the DC power input, DisplayPort, USB, Ethernet, Type-C, and dual SMA antenna ports balance interface protection with ease of access. 6. Dimensions: Approx. 17.8 x 8.5 x 5.5 cm.

Specifications

SKU

TBD06071096

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.504 kg

Delivery

Standard delivery
