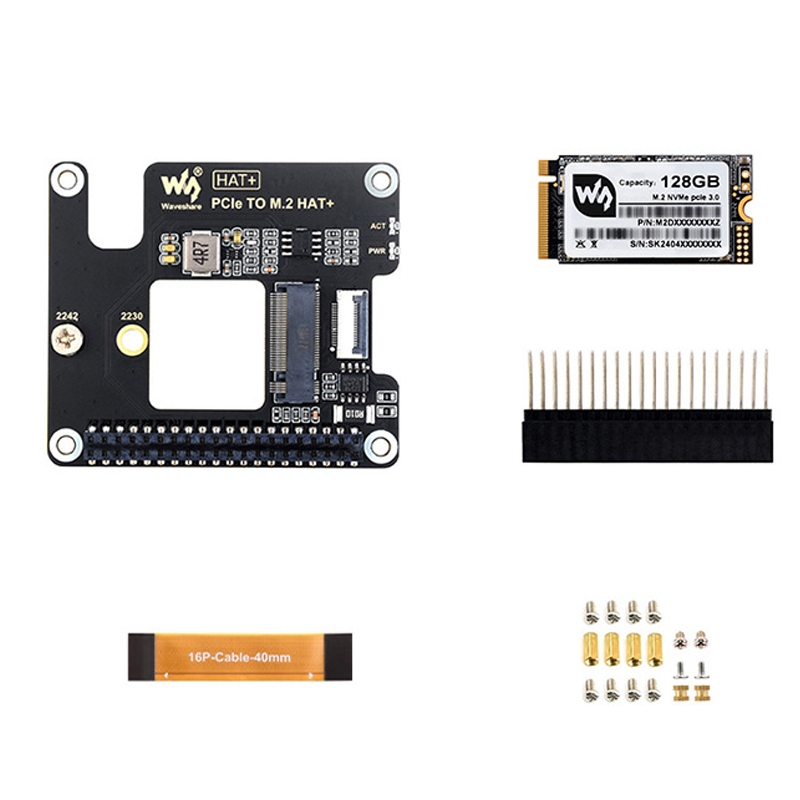

Waveshare For Raspberry Pi 5 PCIe To M.2 Adapter, NVMe Protocol M.2 SSD Basic Kit + 128GB

Product Description

1. Compatible with Raspberry Pi 40 PIN GPIO interface, plug and play 2. Integrated EEPROM storage chip, automatically loads board configuration, simplifies development process 3. Supports Raspberry Pi 40 PIN GPIO interface power supply 4. Based on PI5s 16 PIN PCle interface design, can be connected to P15 through 16PIN cable 5. Supports NVMe hard disk protocol 6. Compatible with 2230/2242 size M.2 hard disk, supports Gen2 and Gen3 modes, supports booting PI5 from SSD 7. Onboard dual LED indicator, the working status of the device is clear at a glance 8. Onboard power monitoring chip and EEPROM, real-time control of hard disk power status is more convenient, and the operation is more stable 9. Product size: 65 x 56.5 x 49mm 10. Weight: 22g, 38g, 38g

Specifications

SKU

TBD0605404302

Category

Consumer Electronics › Arduino & SCM Supplies › Raspberry Pi Accessories

Weight

0.054 kg

Delivery

Standard delivery
