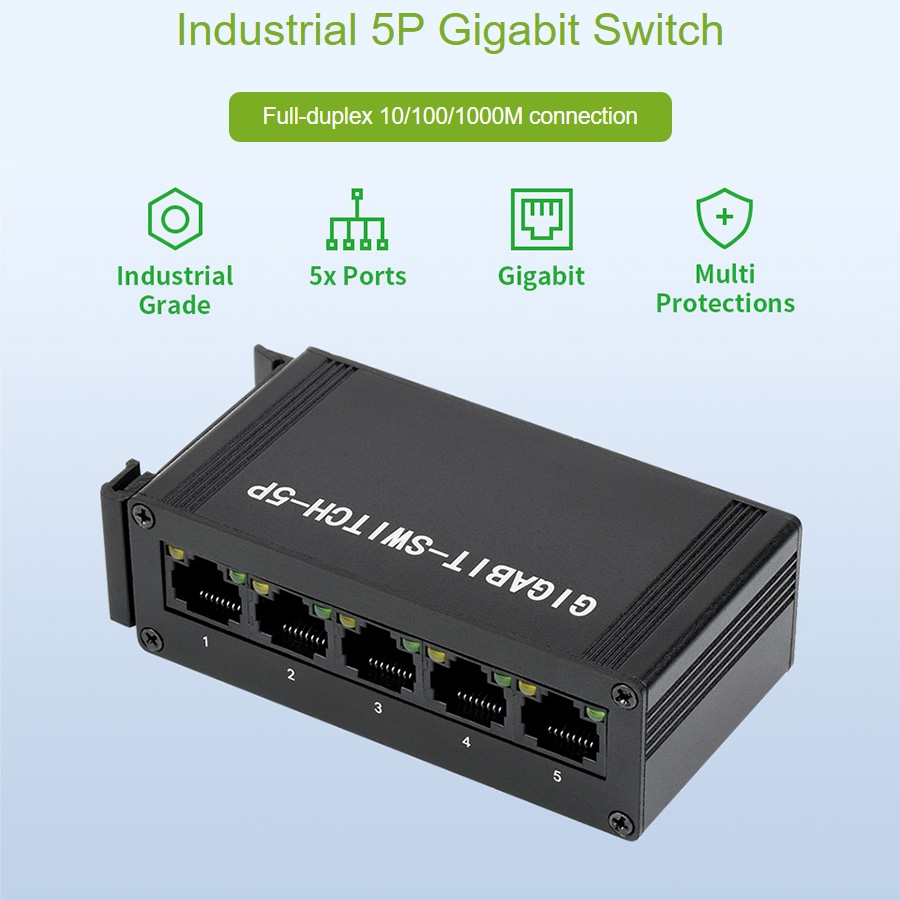

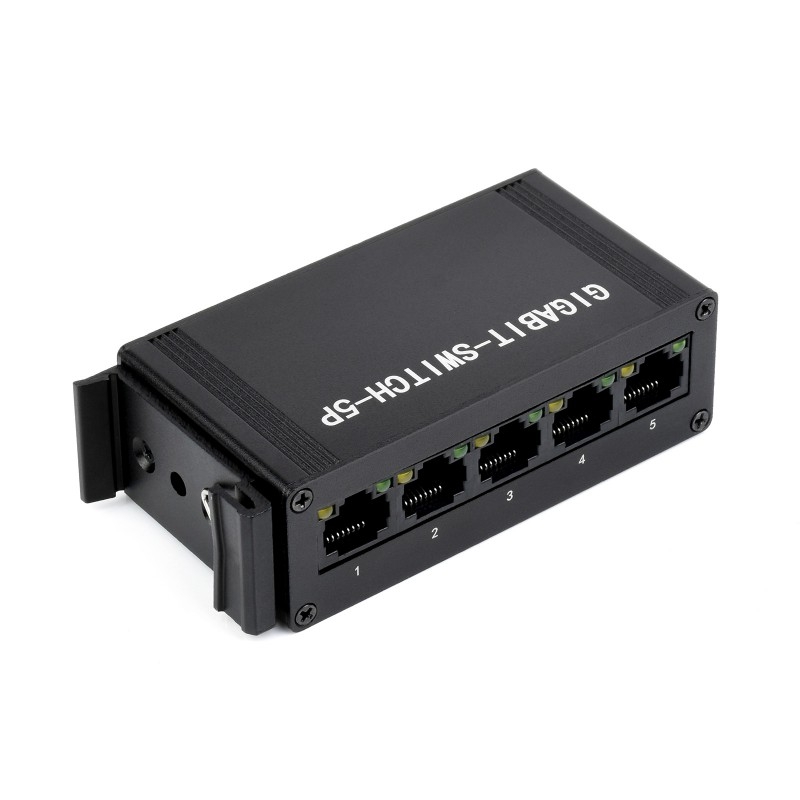

Waveshare Industrial 5P Gigabit Ethernet Switch, Full-Duplex 10/100/1000M, DIN Rail Mount

Product Description

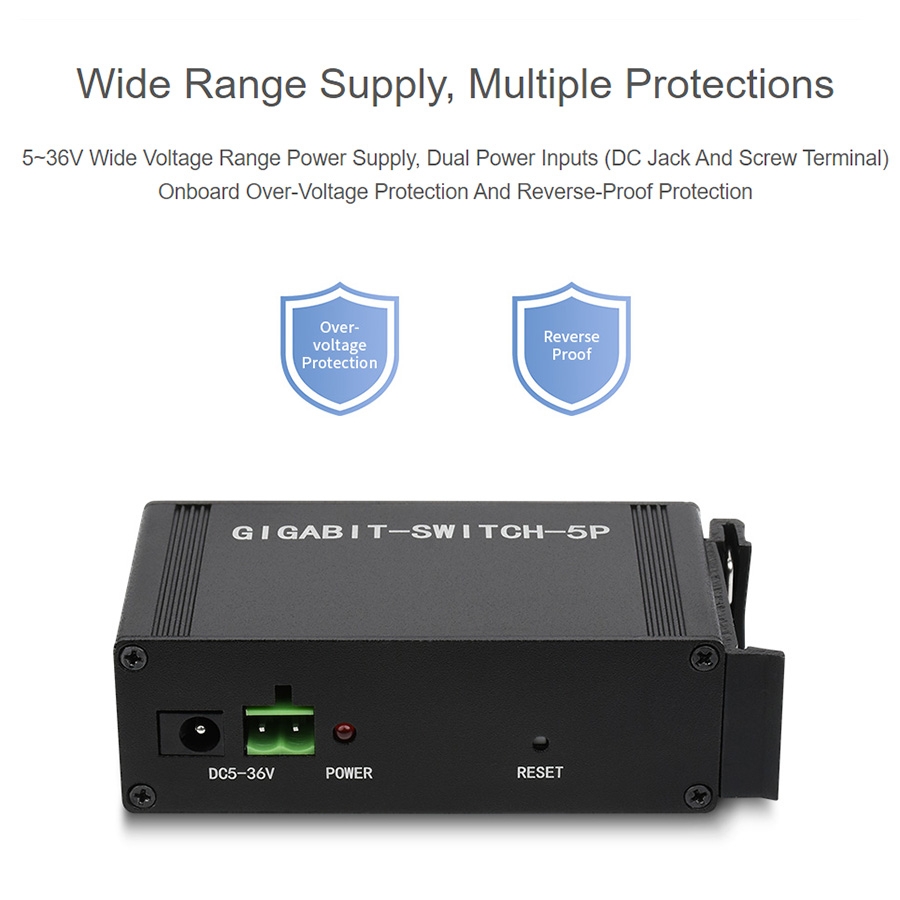

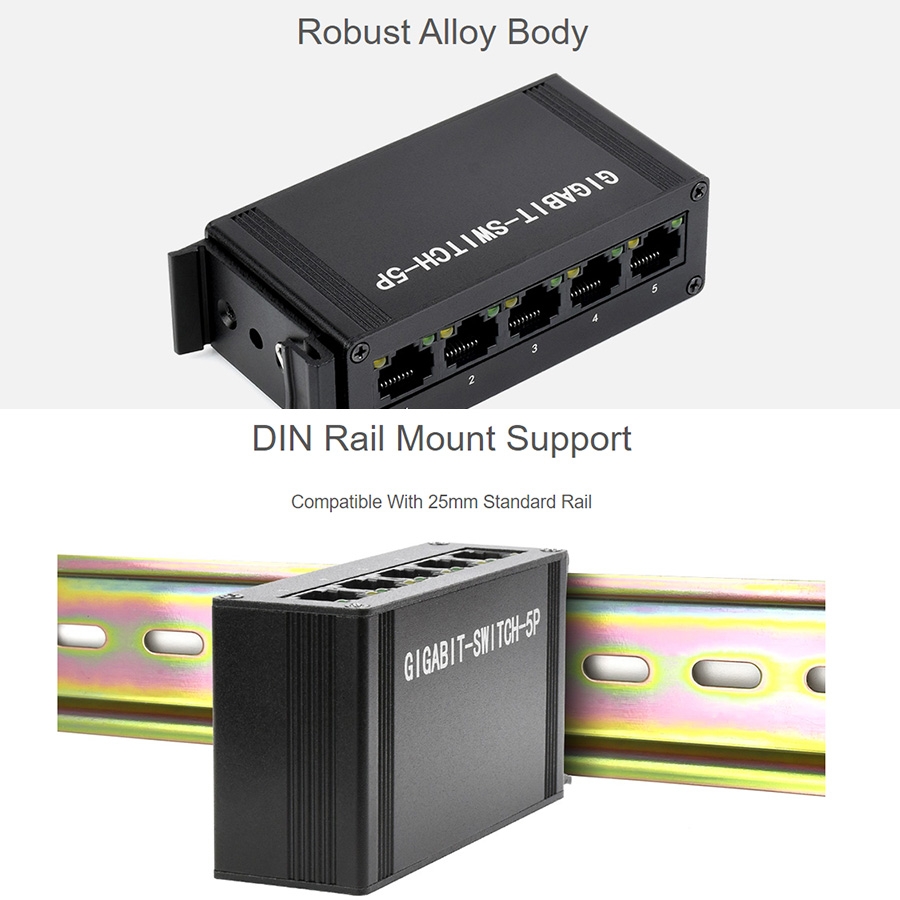

Features 1. Onboard switch chip, 5x ports 10/100/1000M non-blocking switch architecture 2. Full-duplex 10/100/1000M support for each port (the half-duplex 100M connection is only supported on 10/100M mode) 3. Full/Half-duplex operations with IEEE 802.3x flow control and back pressure support 4. Allow forwarding 9216 bytes huge data packet on linear speed 5. Over-voltage protection, effectively preventing damages caused by other high voltage power supply 6. Industrial grade alloy case, solid and durable, with DIN rail mount support for easy installing 7. 5~36V wide voltage power supply, dual power interface (DC interface and terminal block) onboard overvoltage protection, reverse connection protection. 8. Support 25mm standard rail. Package List 1. Gigabit-Switch-5P x 1 2. Power supply screw terminal x 1 3. 12V 1A power adapter x 1

Specifications

SKU

DIY0288

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.237 kg

Delivery

Standard delivery
