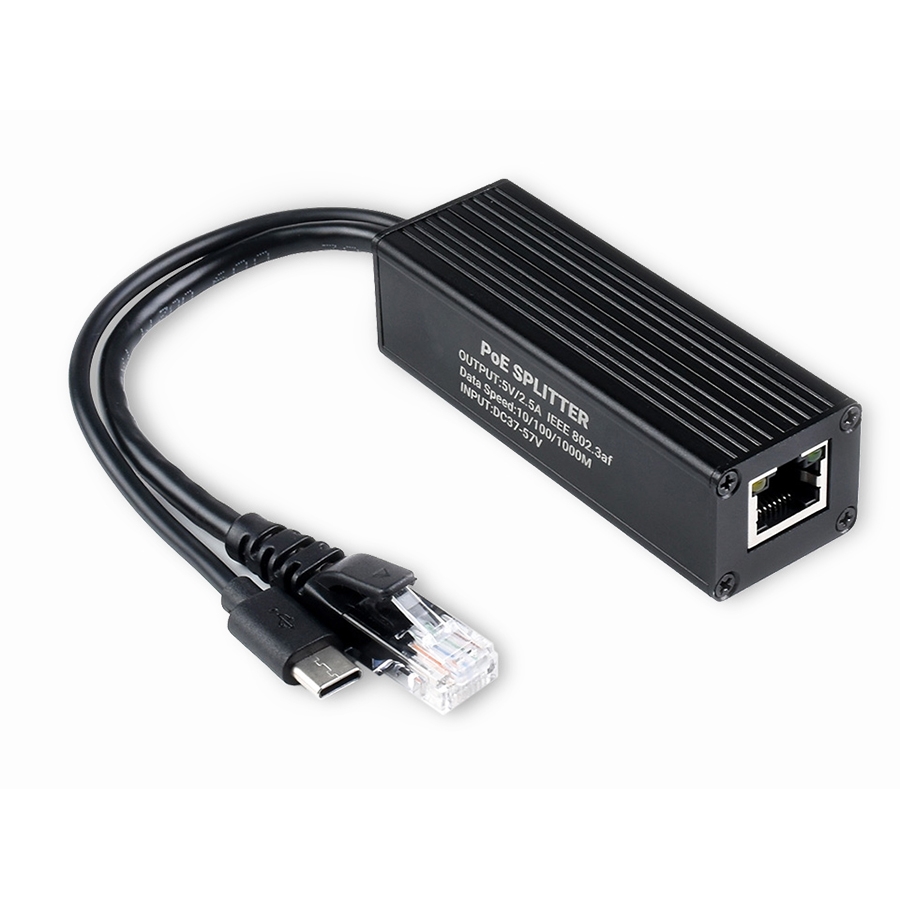

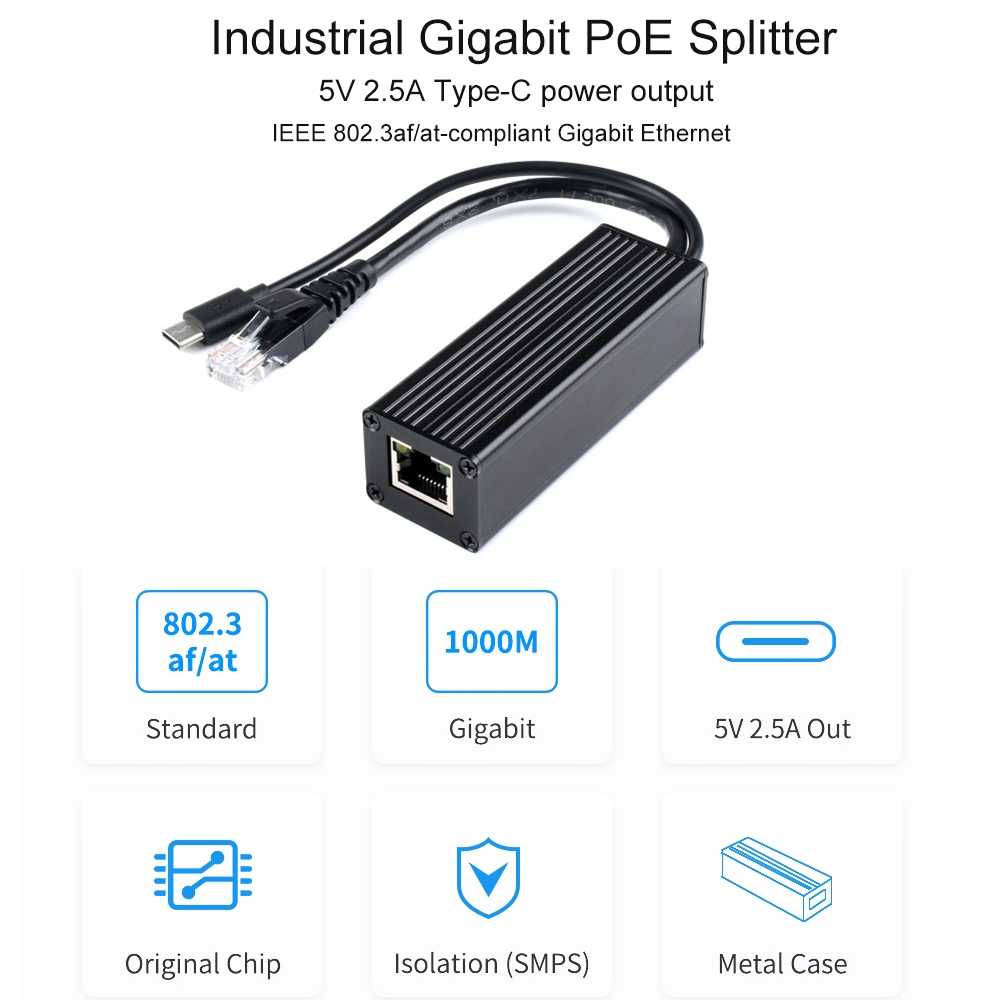

Waveshare Metal Case Gigabit PoE Splitter, 5V 2.5A Type-C Out

Product Description

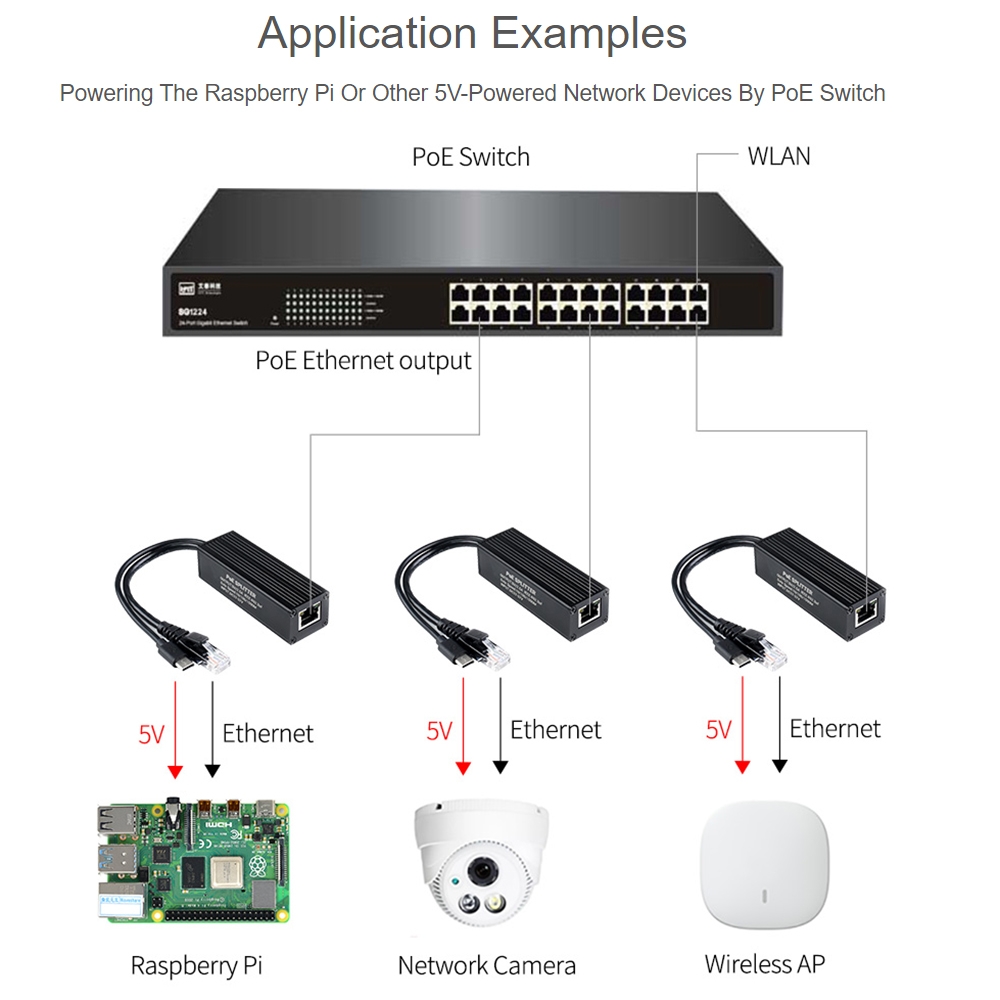

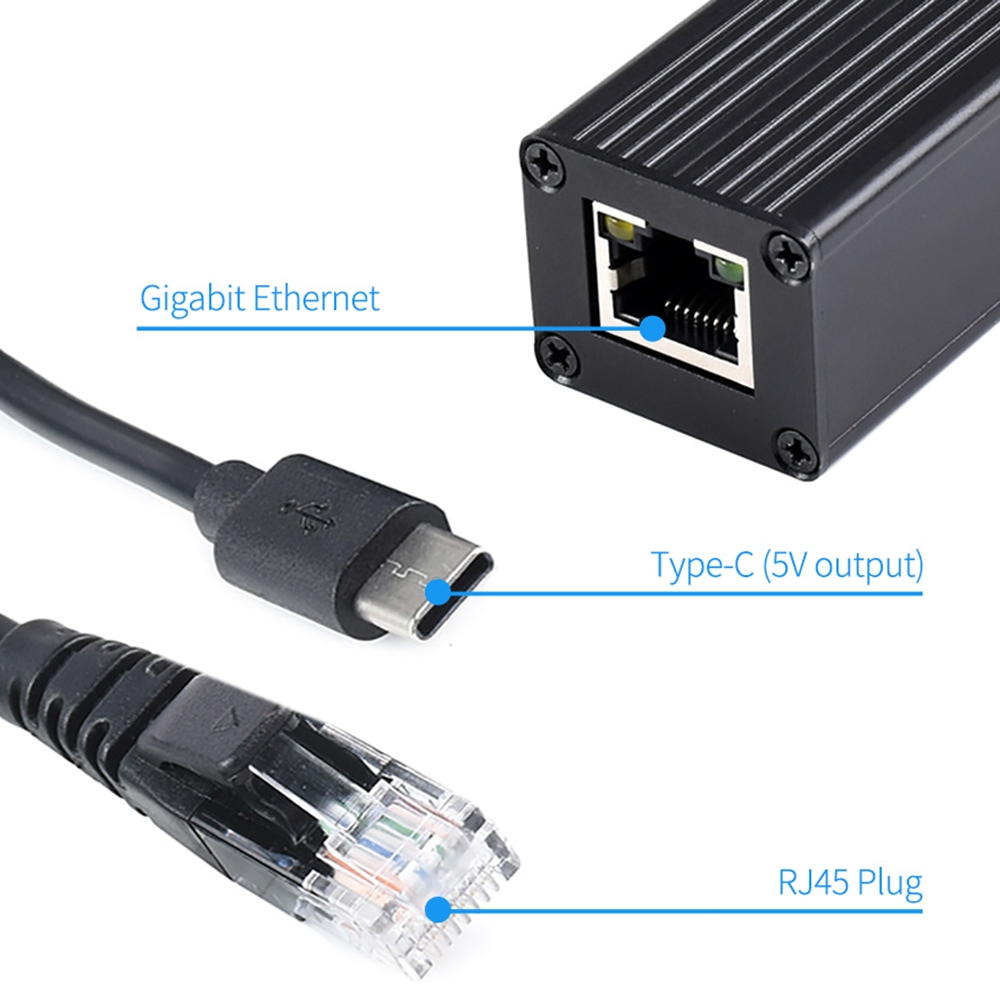

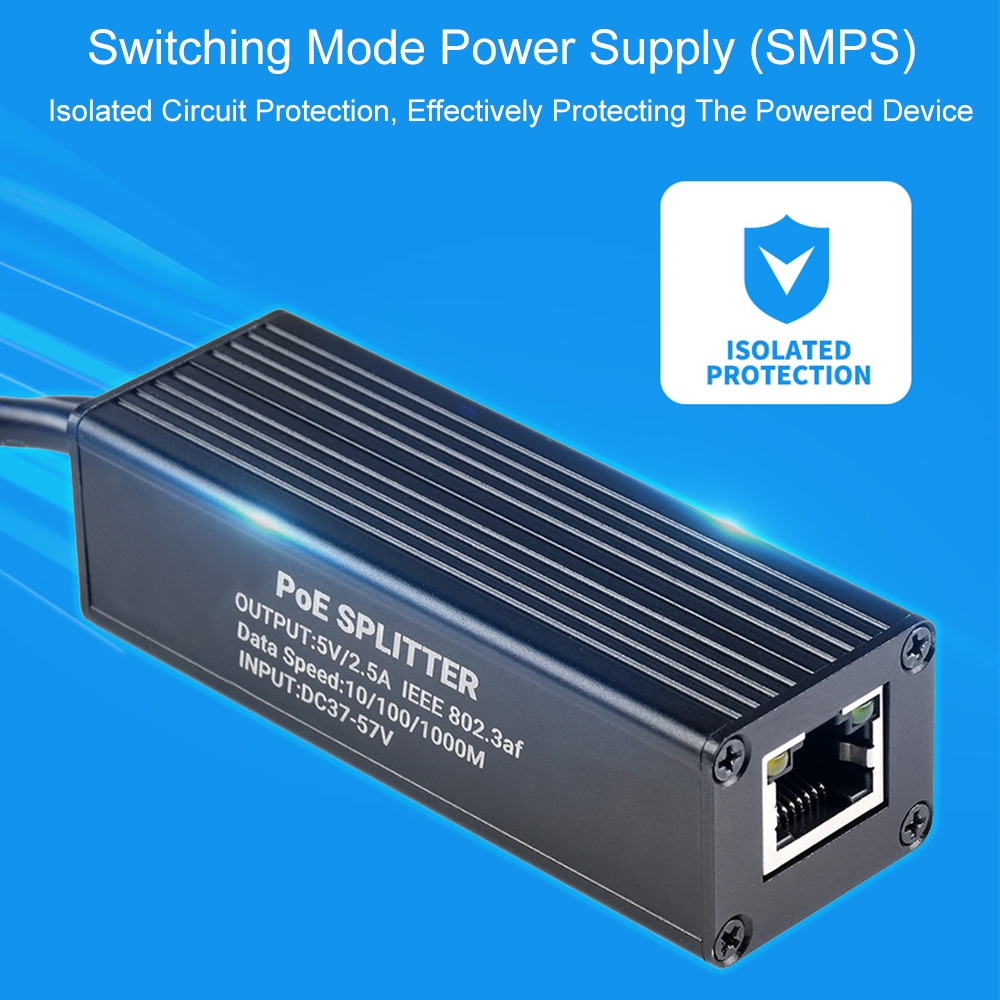

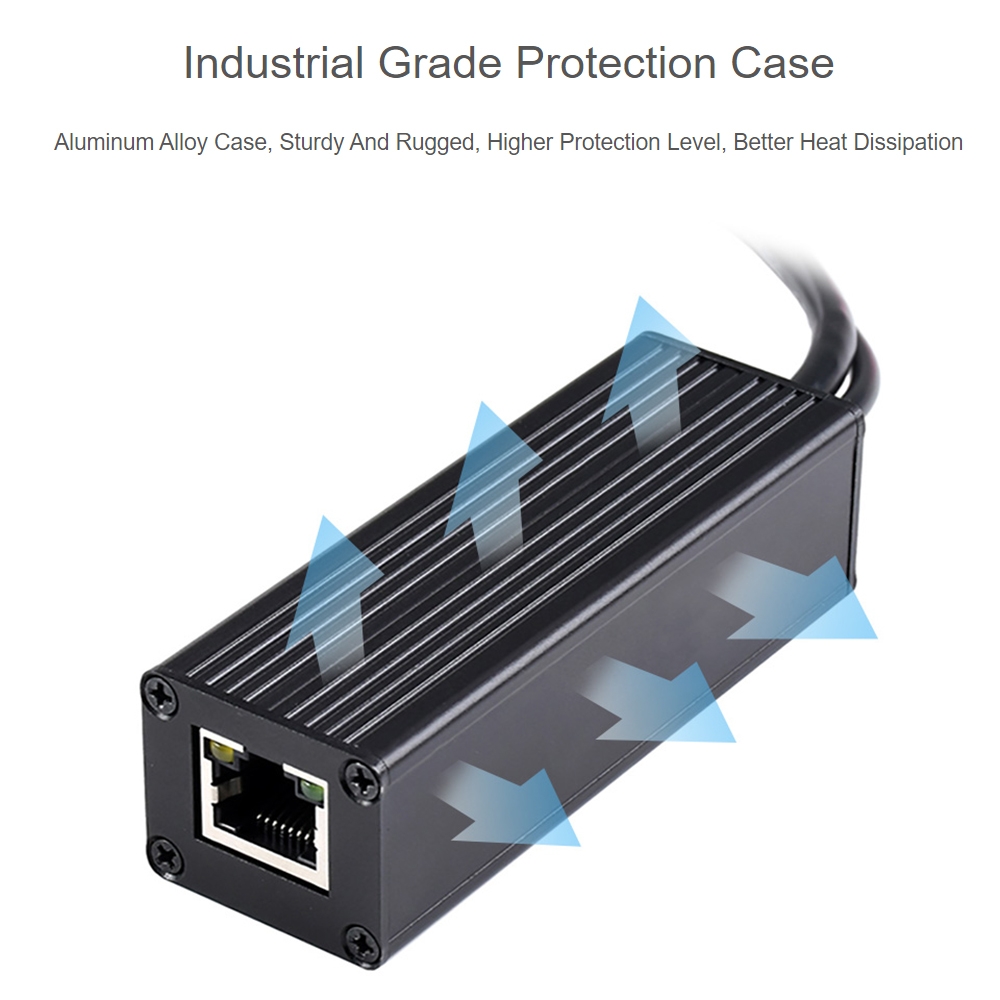

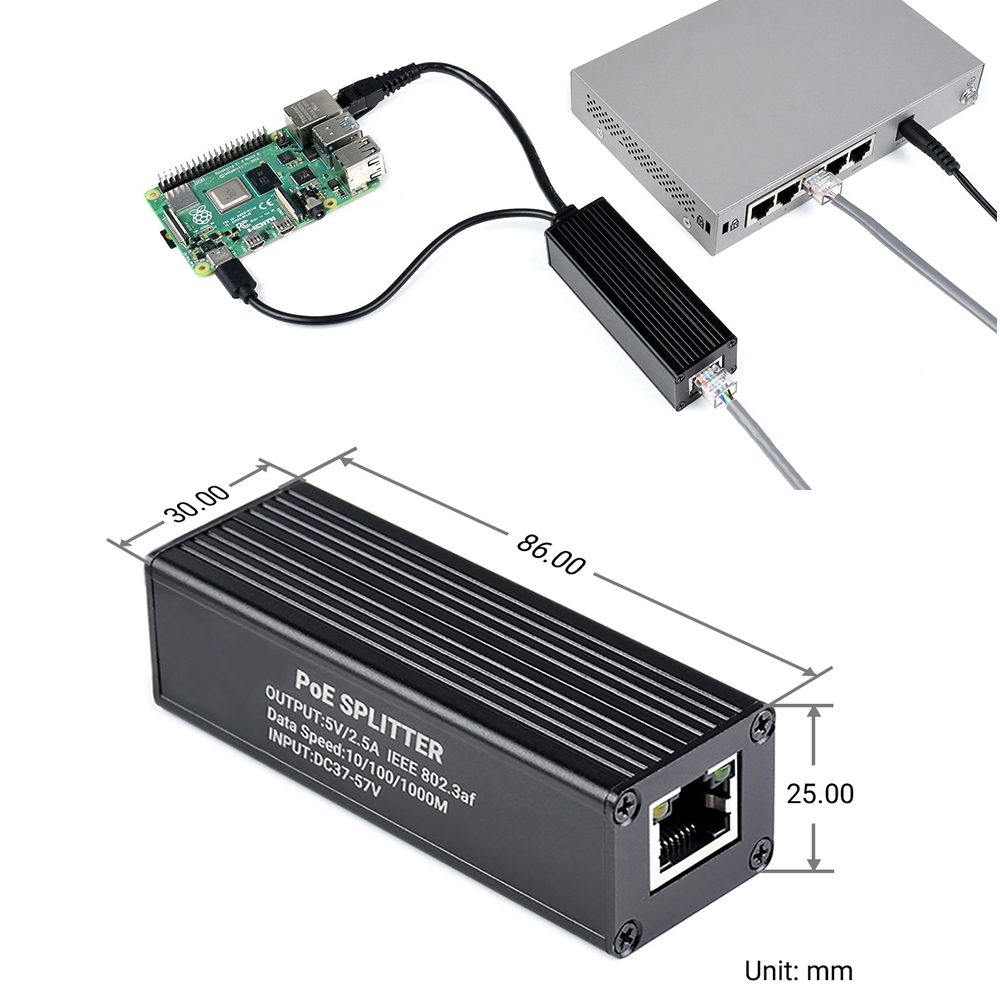

Features 1. Incorporates original chip Si3404, high-efficiency, high-safety, stable-performance 2. 10/100/1000Mbps auto-negotiation Ethernet port 3. 802.3af/at-compliant PoE (Power over Ethernet) standard 4. Isolated SMPS (Switching Mode Power Supply), effectively protecting the powered device 5. 5V DC output, suitable for powering Raspberry Pi and other small-scale network devices 6. Black dull-polish metal case, sturdy and rugged, higher protection level, better heat dissipation Specifications 1. Power Supply: Support 1/2(+); 3/6(-); 4/5(+); 7/8(-) powering 2. POE input voltage: 37V ~ 57V 3. Type-C output: 5V 2.5A (MAX) 4. Cable: Cat-5 UTP 5. Standard: IEEE 802.3 af/at PoE Ethernet 6. Data rate: 10/100/1000Mbps 7. LED indicator: PoE power input indicator 8. Size: 86 x 30 x 25mm (l x w x h) 9. Operation temperature: -40 degree C ~ 85 degree C

Specifications

SKU

DIY0216

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.099 kg

Delivery

Standard delivery
