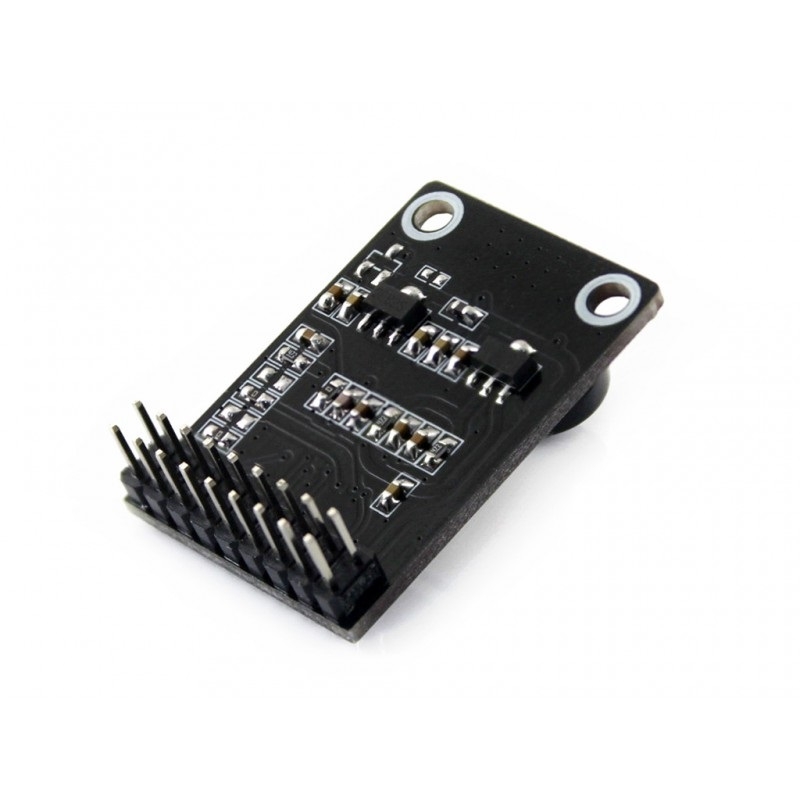

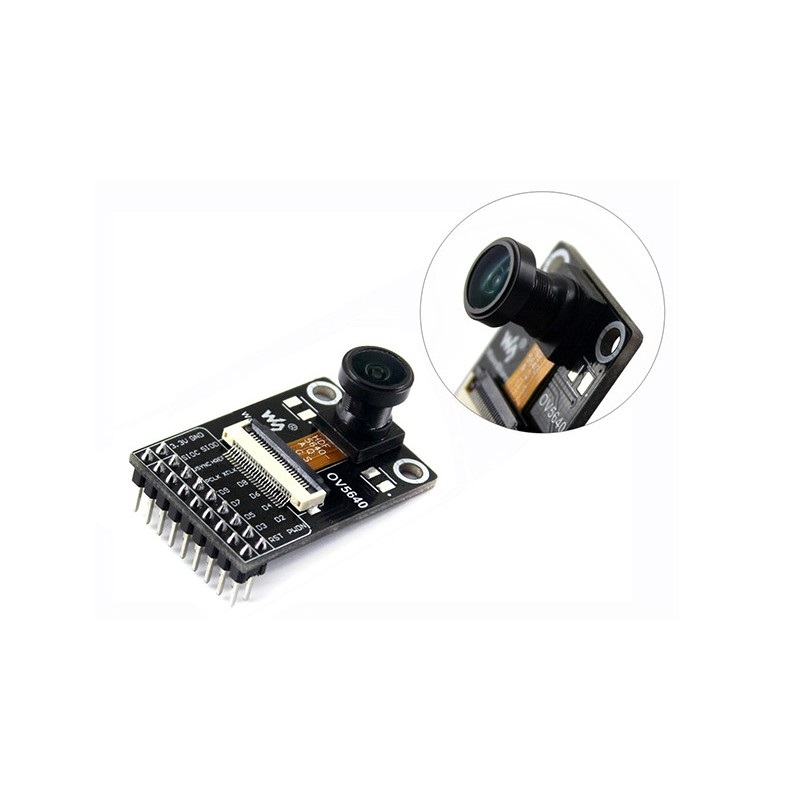

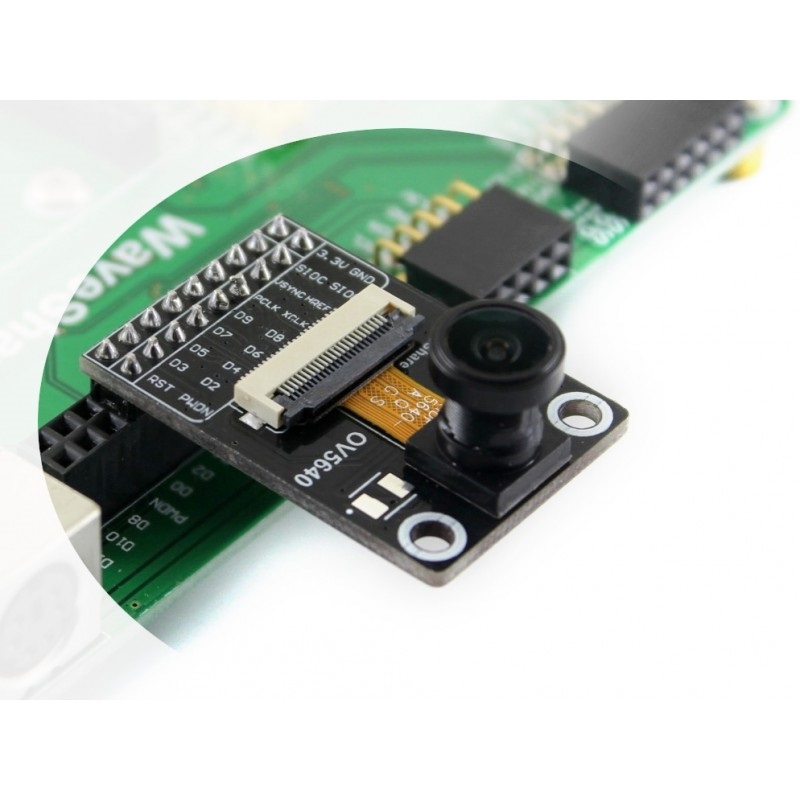

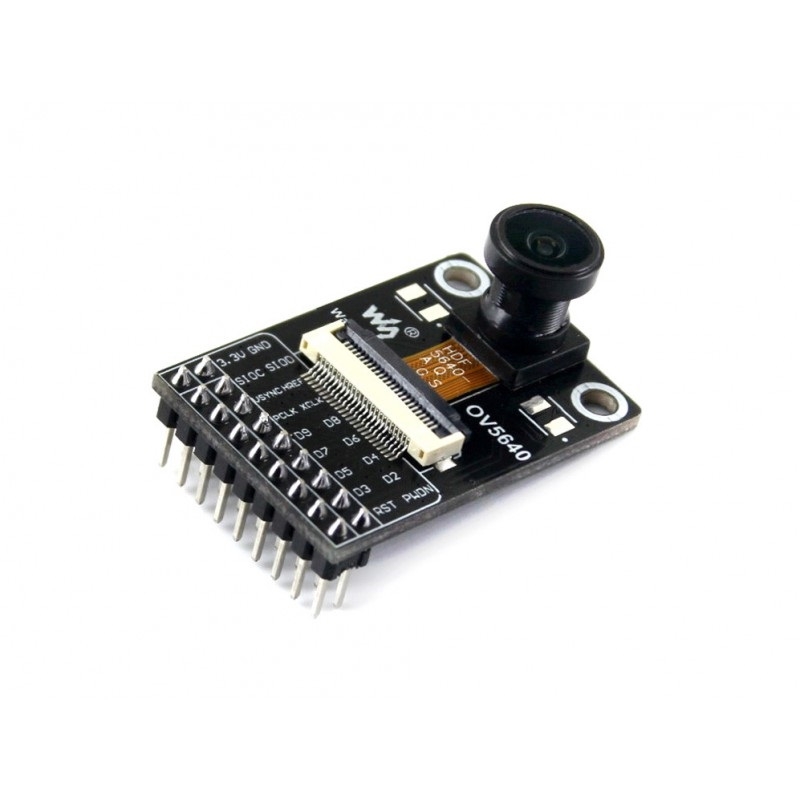

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

Product Description

Features 1. Pixels: 5 megapixel 2. Resolution: 2592x1944 3. Sensor: OV5640 - 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise - Automatic image control functions: AEC, AWB, ABF, ABLC, etc. - Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. - Supports image scaling, panning, windowing, etc. 4. Lens: - CCD size: 1/4inch - Aperture (F): 2.5 - Focal Length: 2.0mm - Diagonal: 170 degree (fisheye) 5. Output Formats: - YUV(422/420)/YCbCr422 - RGB565/555/444 - CCIR656 - RAW RGB - Compressed Data 6. Operating Voltage: 3.3V 7. Control Interface: SCCB (I2C compatible) 8. Data Interface: DVP 8-bit 9. Dimension: 35.70mm x 23.90mm

Specifications

SKU

ZY15900084

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.012 kg

Delivery

Standard delivery
