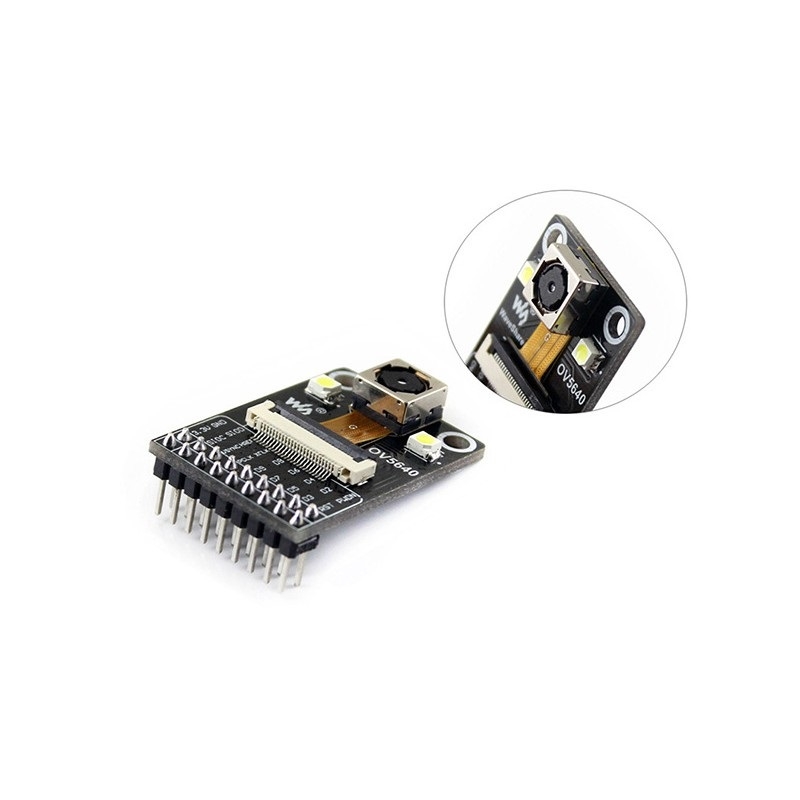

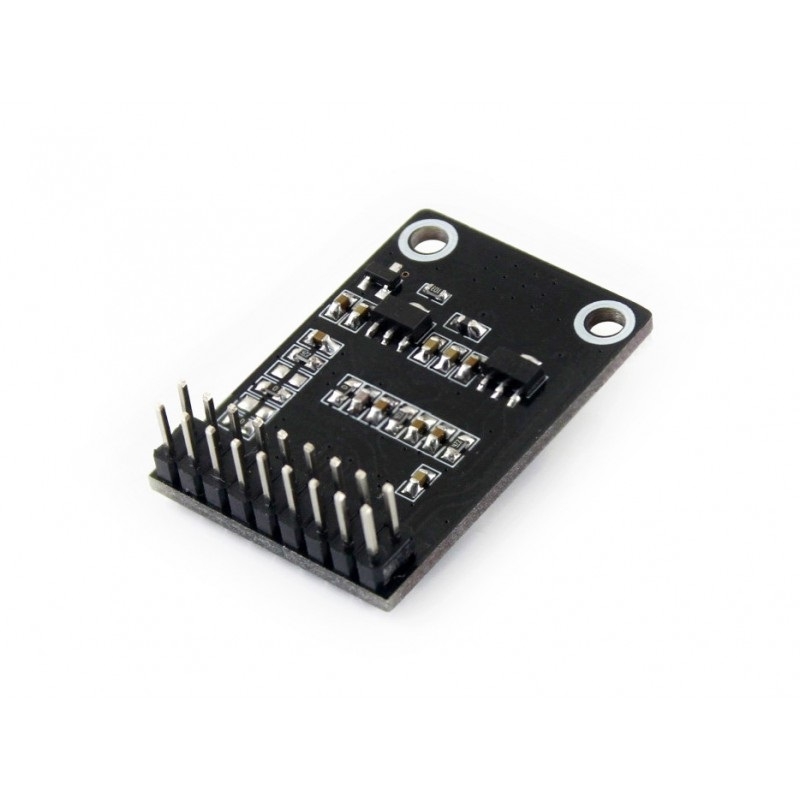

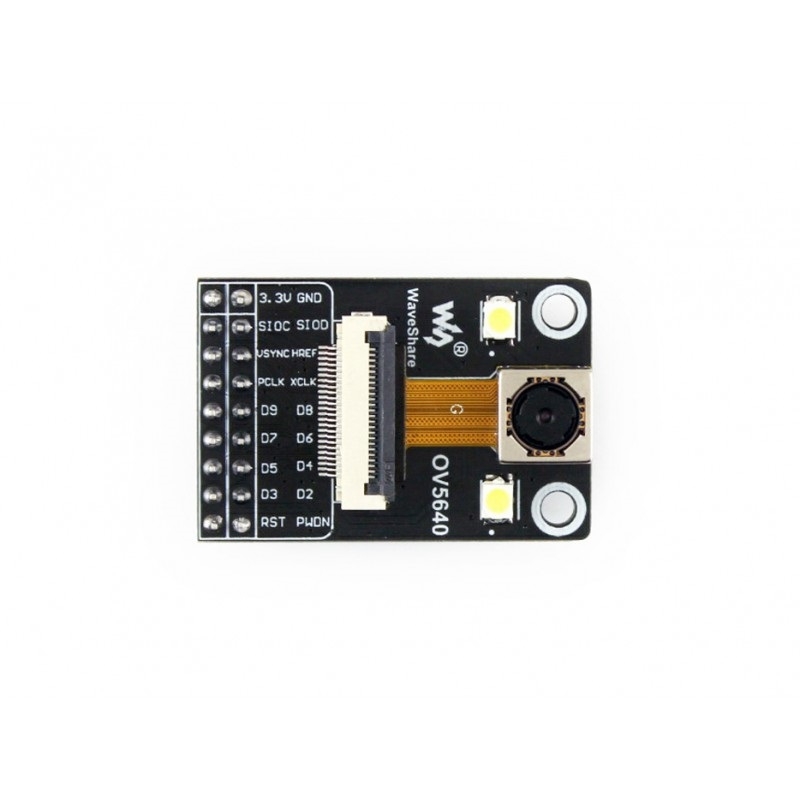

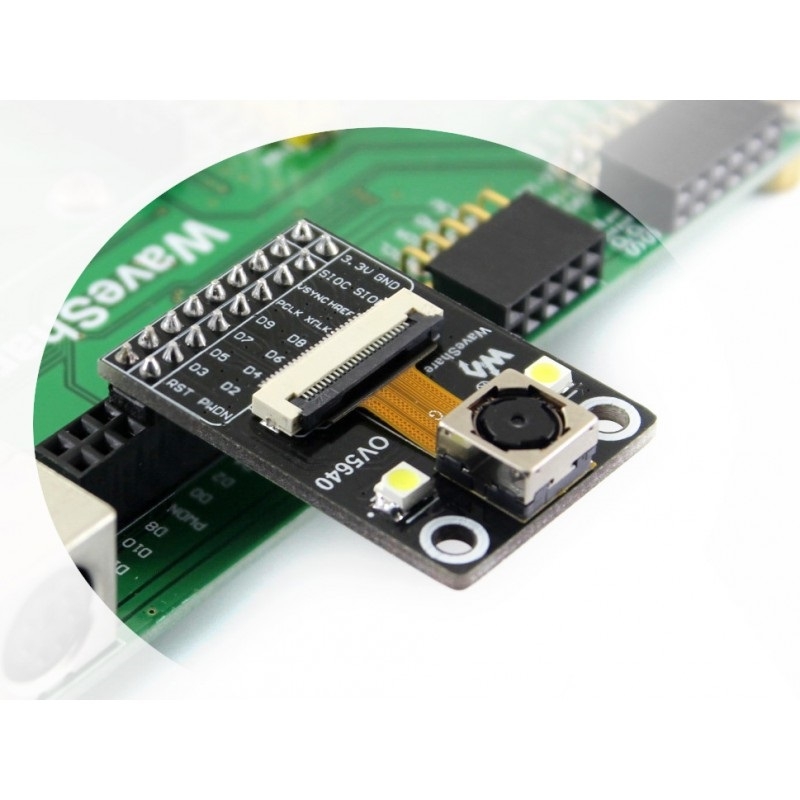

Waveshare OV5640 Camera Module Board (C), 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED

Product Description

Camera Module Based on OV5640 Image Sensor, 5 Megapixel (2592x1944), Auto Focusing with Onboard Flash LED Features 1. Pixels: 5 megapixel 2. Resolution: 2592x1944 3. Auto focusing by detecting the object distance 4. Onboard flash LED, allowed to take pictures in the dark 5. Sensor: OV5640 - 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise - Automatic image control functions: AEC, AWB, ABF, ABLC, etc. - Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc. - Supports image scaling, panning, windowing, etc. 6. Lens: - CCD size: 1/4inch - Aperture (F): 2.8 - Focal Length: 3.37mm (adjustable) - Diagonal: 67.4 degree 7. Output Formats: - YUV(422/420)/YCbCr422 - RGB565/555/444 - CCIR656 - RAW RGB - Compressed Data 8. Operating Voltage: 3.3V 9. Control Interface: SCCB (I2C compatible) 10. Data Interface: DVP 8-bit 11. Dimension: 35.70mm x 23.90mm

Specifications

SKU

ZY15899933

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.01 kg

Delivery

Standard delivery
