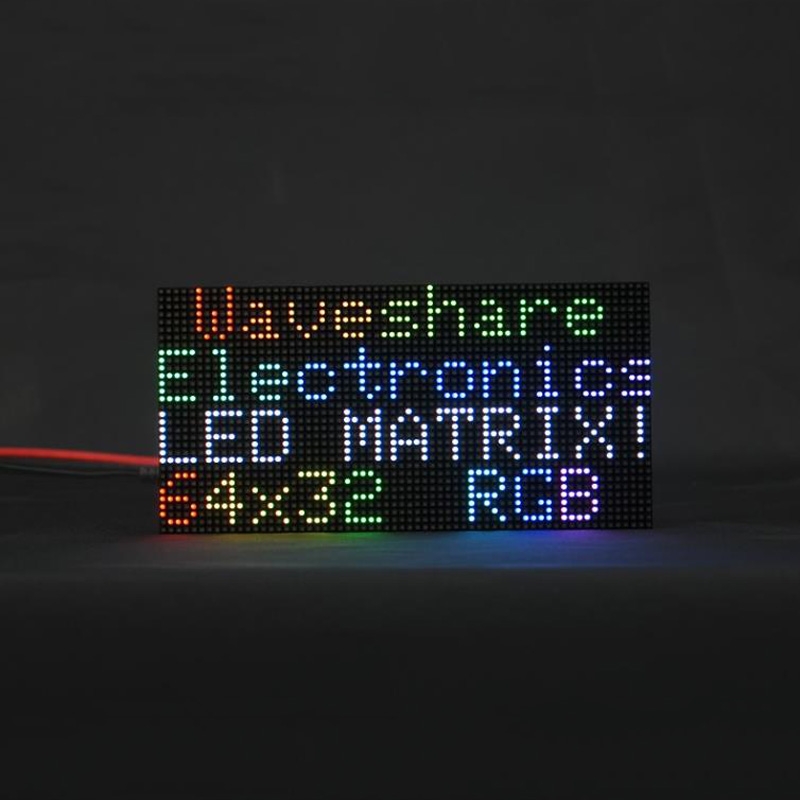

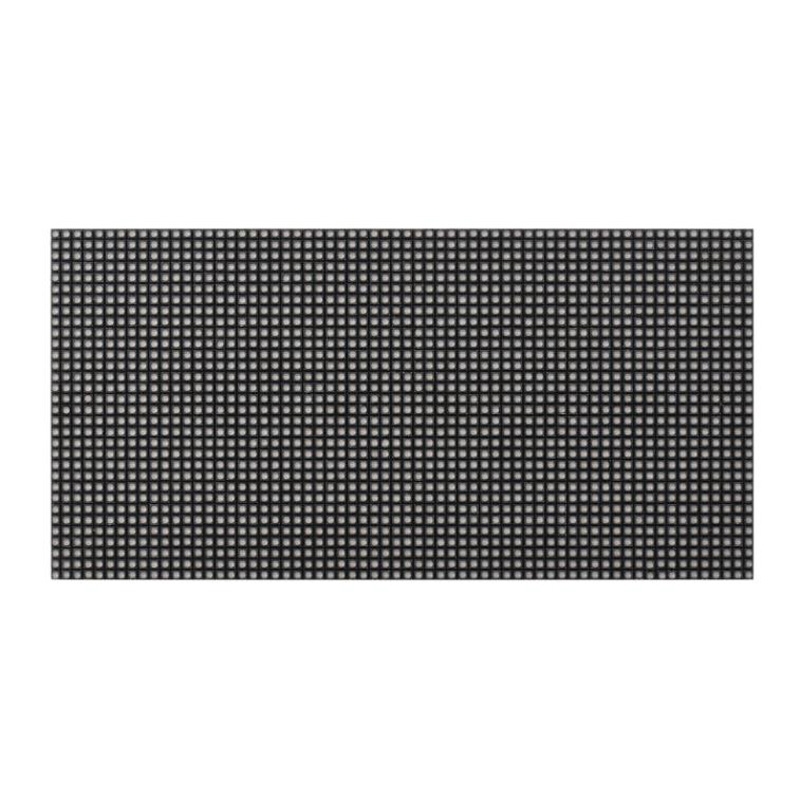

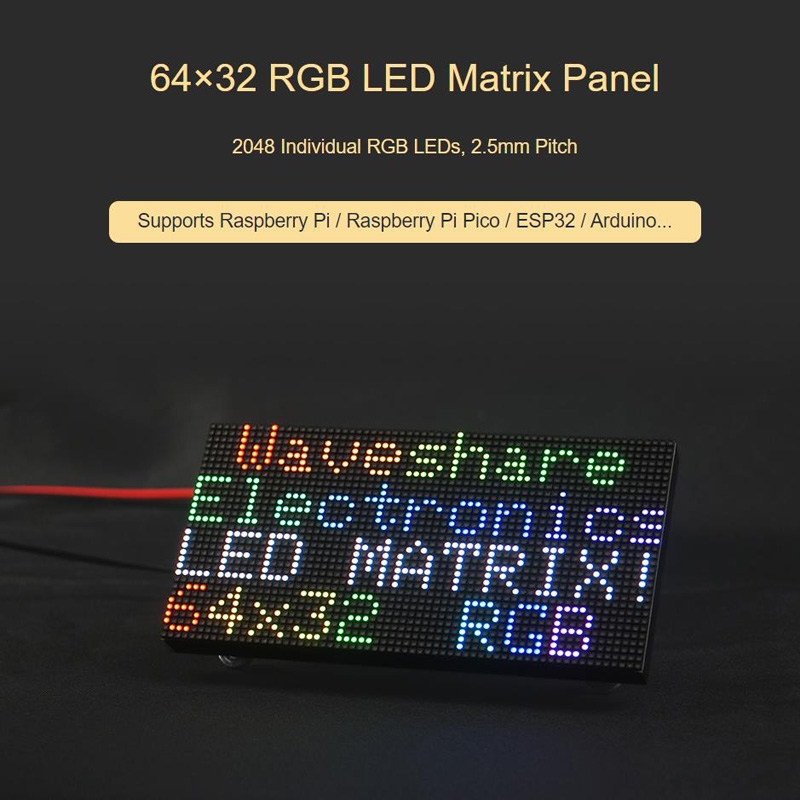

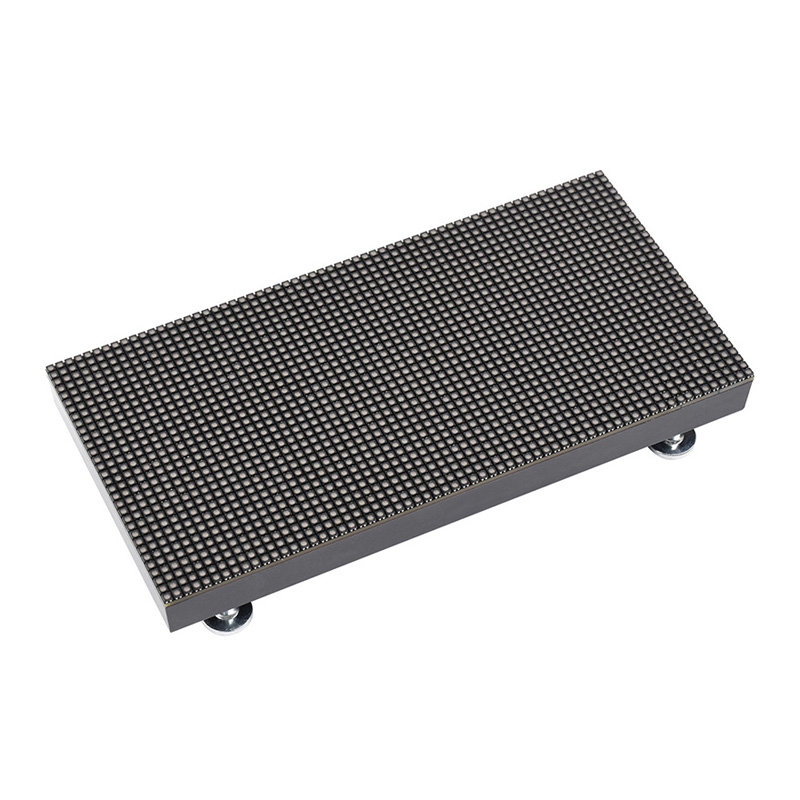

Waveshare RGB Full-color LED Matrix Panel, 2.5mm Pitch, 64x32 Pixels, Adjustable Brightness, 23707

Product Description

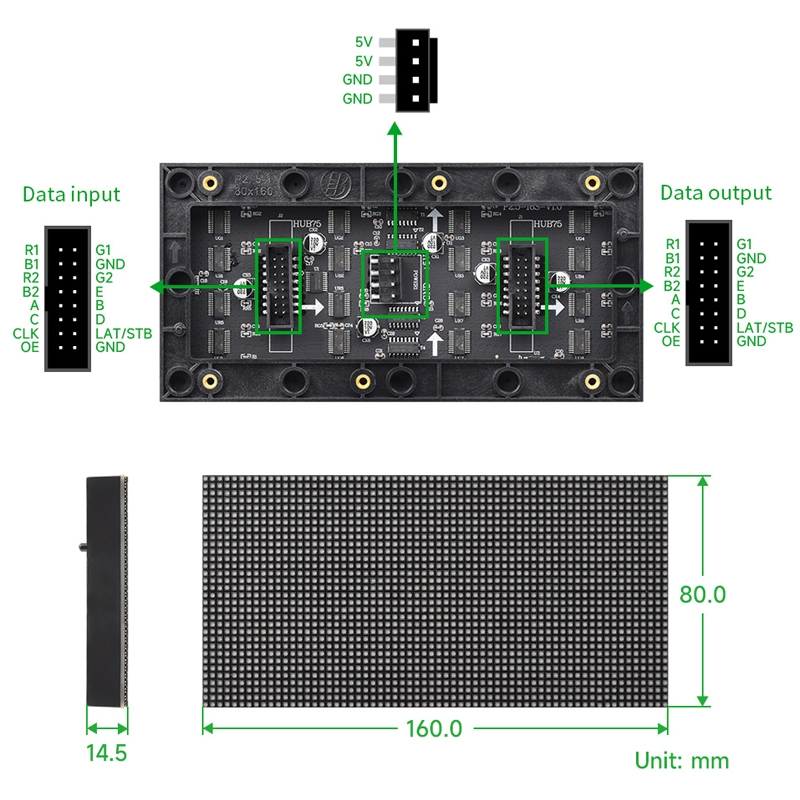

1. Pixel: 64 x 32=2048 dots 2. Pitch: 2.5mm 3. Pixel format: 1R1G1B 4. Viewing angle: greater than 140 degrees 5. Control mode: synchronous 6. Drive: 1/16 scan 7. Connector: HUB75 8. Power supply: V / 2.5A (VH4 connector input) 9. Power: within 12W 10. Size: 16 x 8cm Features: 1. 2048 independent RGB led, full color display, adjustable brightness 2. 64x32 pixels, 2.5mm pitch, allows displaying text, color images or animations 3. 160x80mm size, moderate size, suitable for DIY desktop display or wall mount display 4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support 5. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)

Specifications

SKU

TBD01350638

Category

Consumer Electronics › Electronics Module › Other Accessories

Weight

0.404 kg

Delivery

Standard delivery
