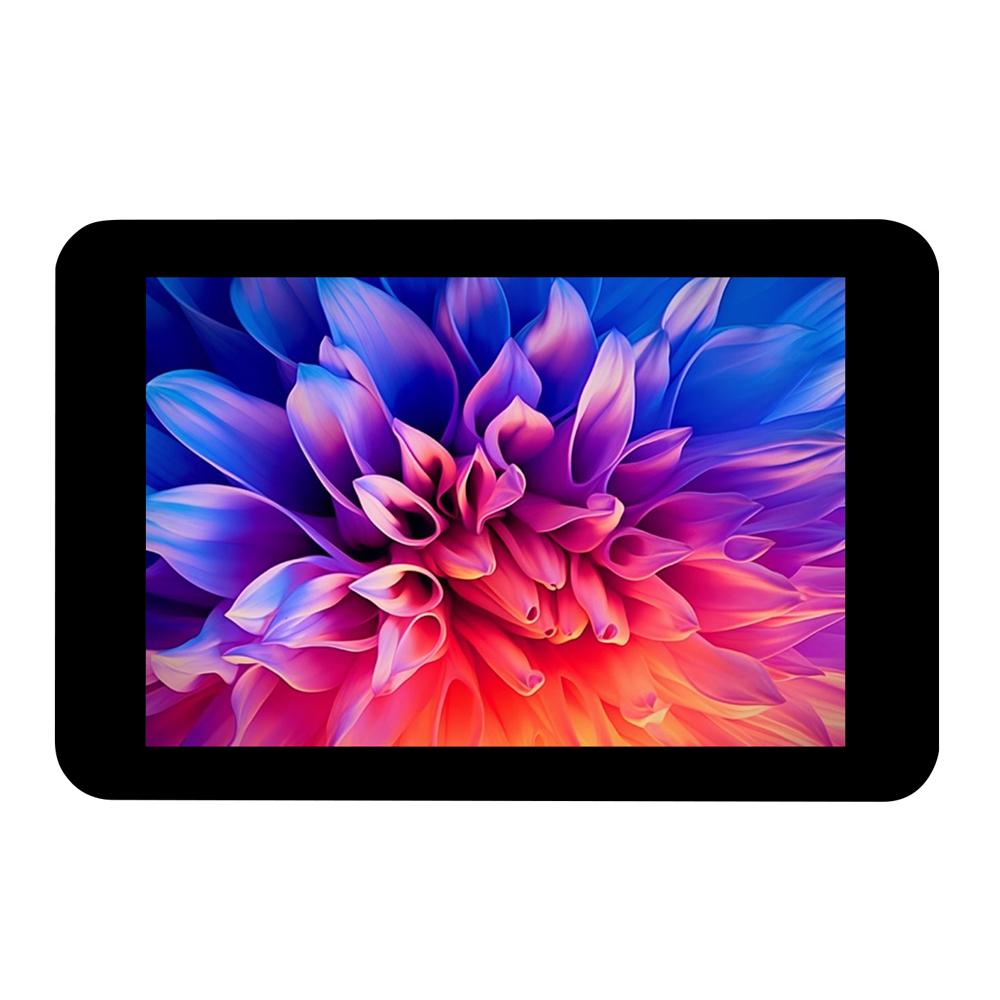

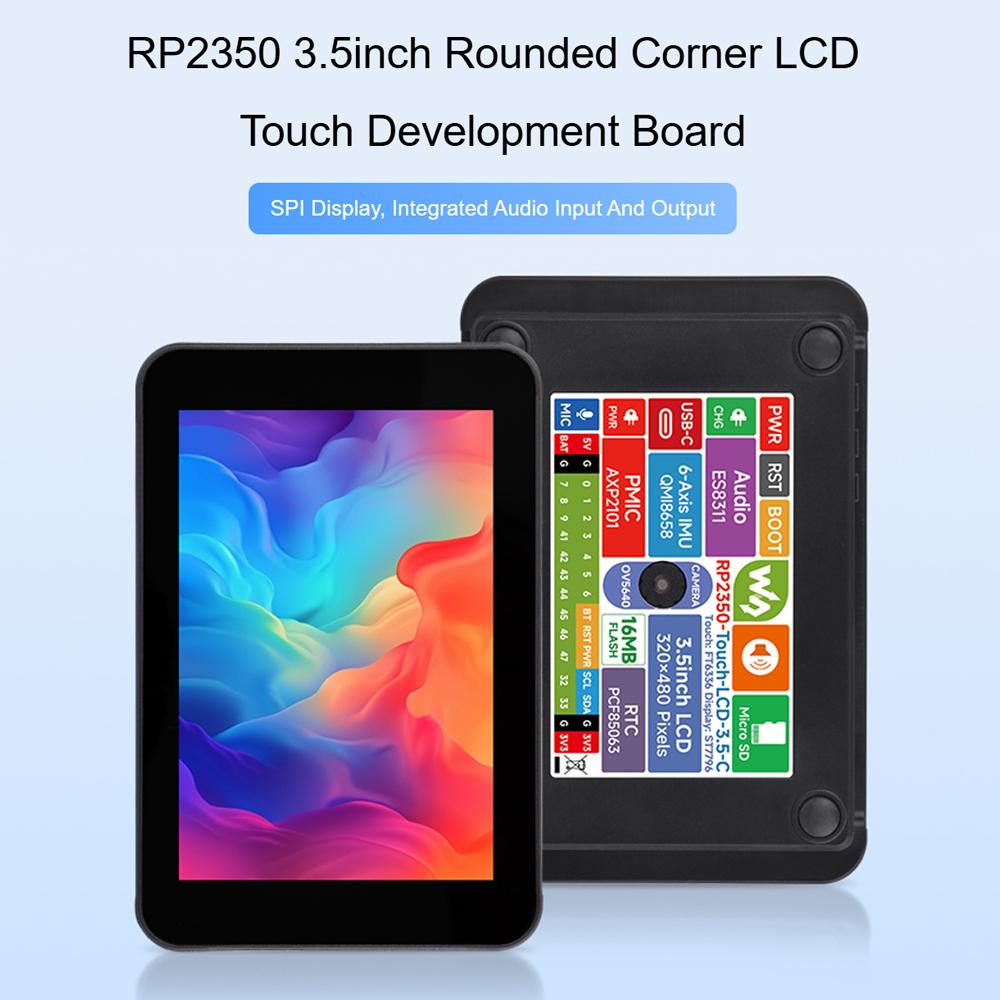

Waveshare RP2350 Dual-Core Development Board With 3.5-Inch 320x480 LCD, 65K Color Display Standard Ver

Product Description

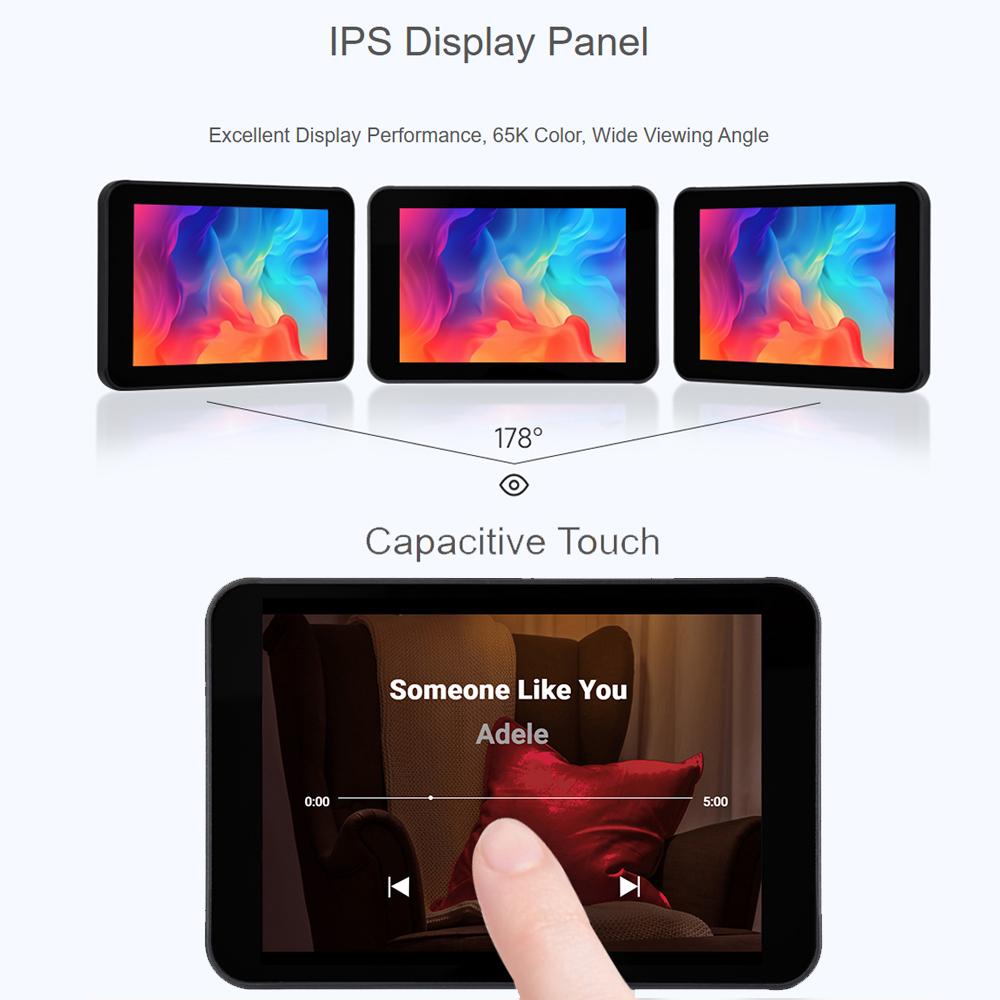

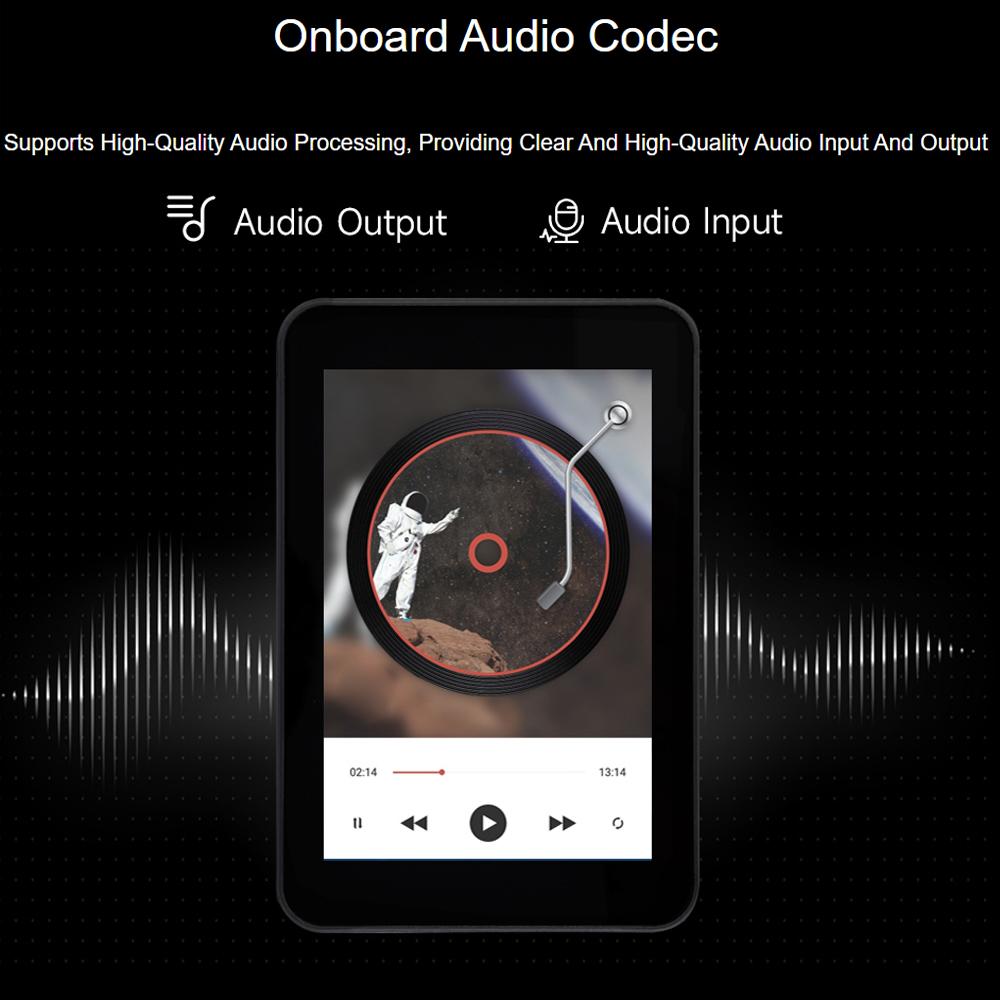

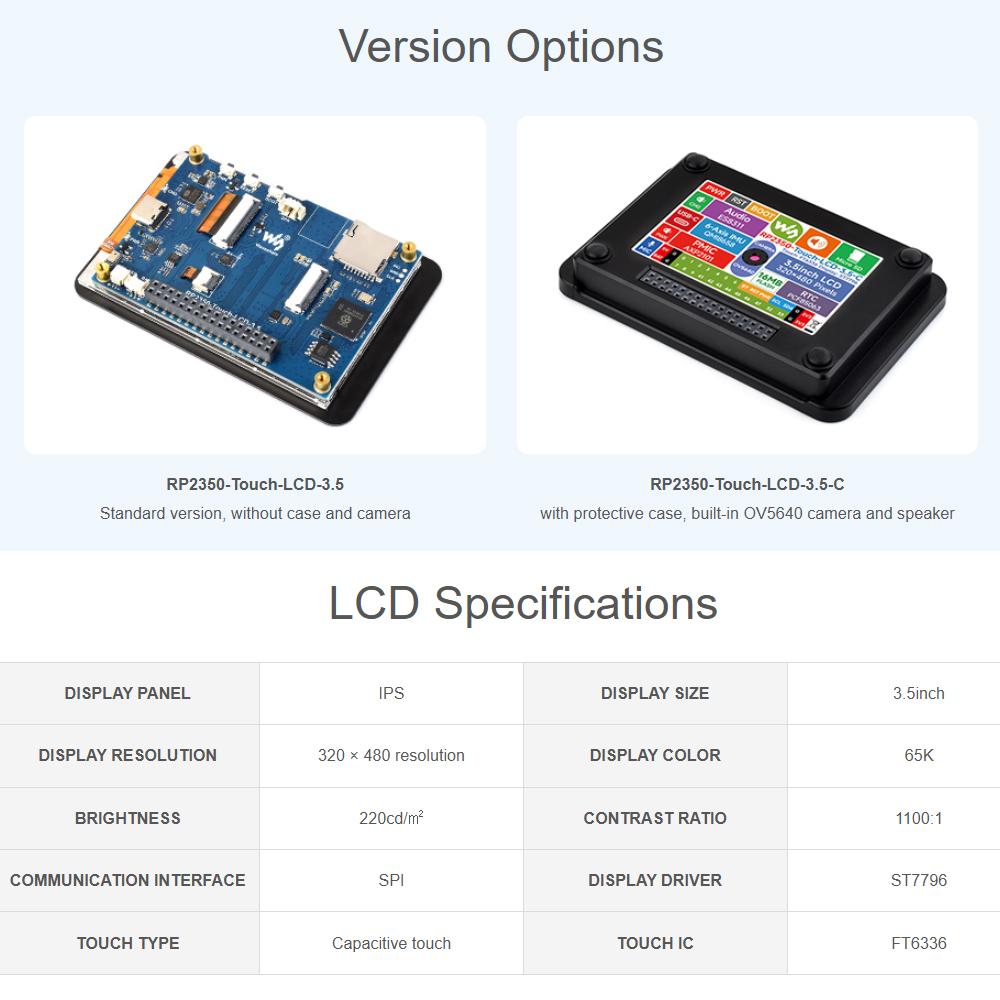

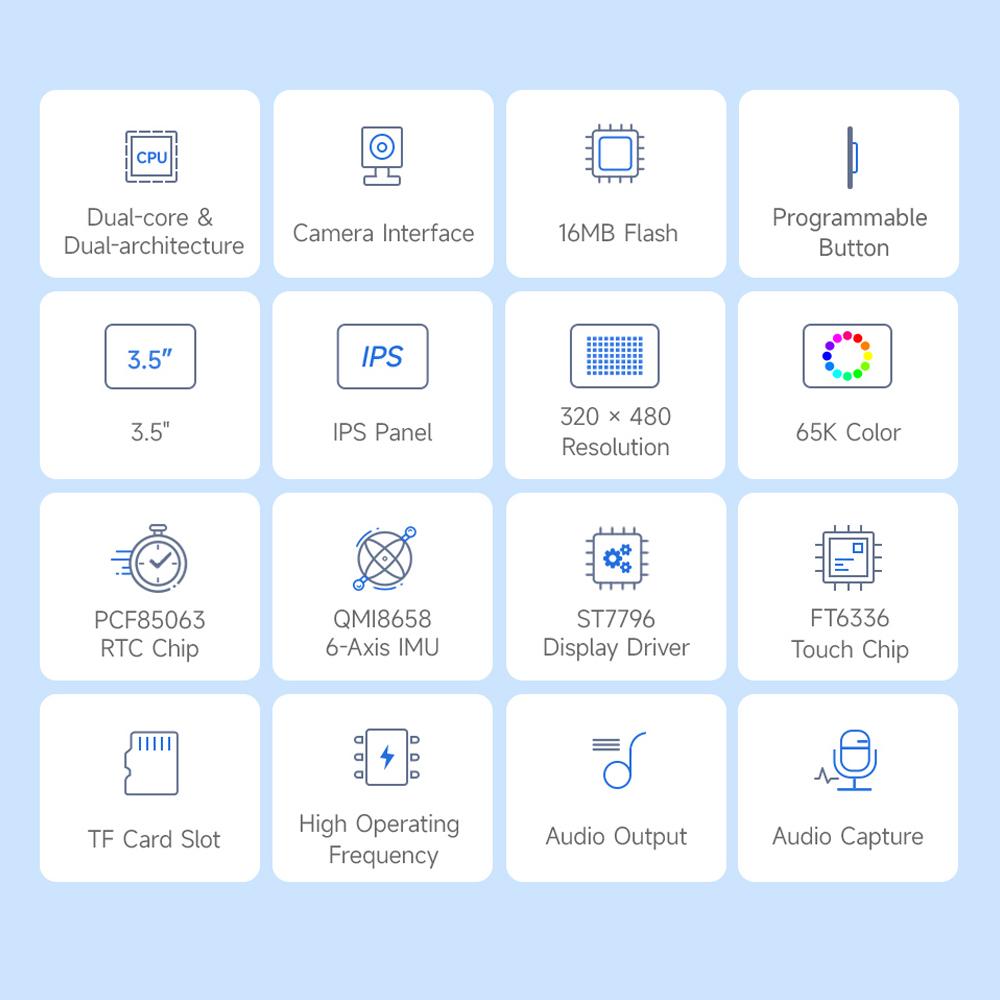

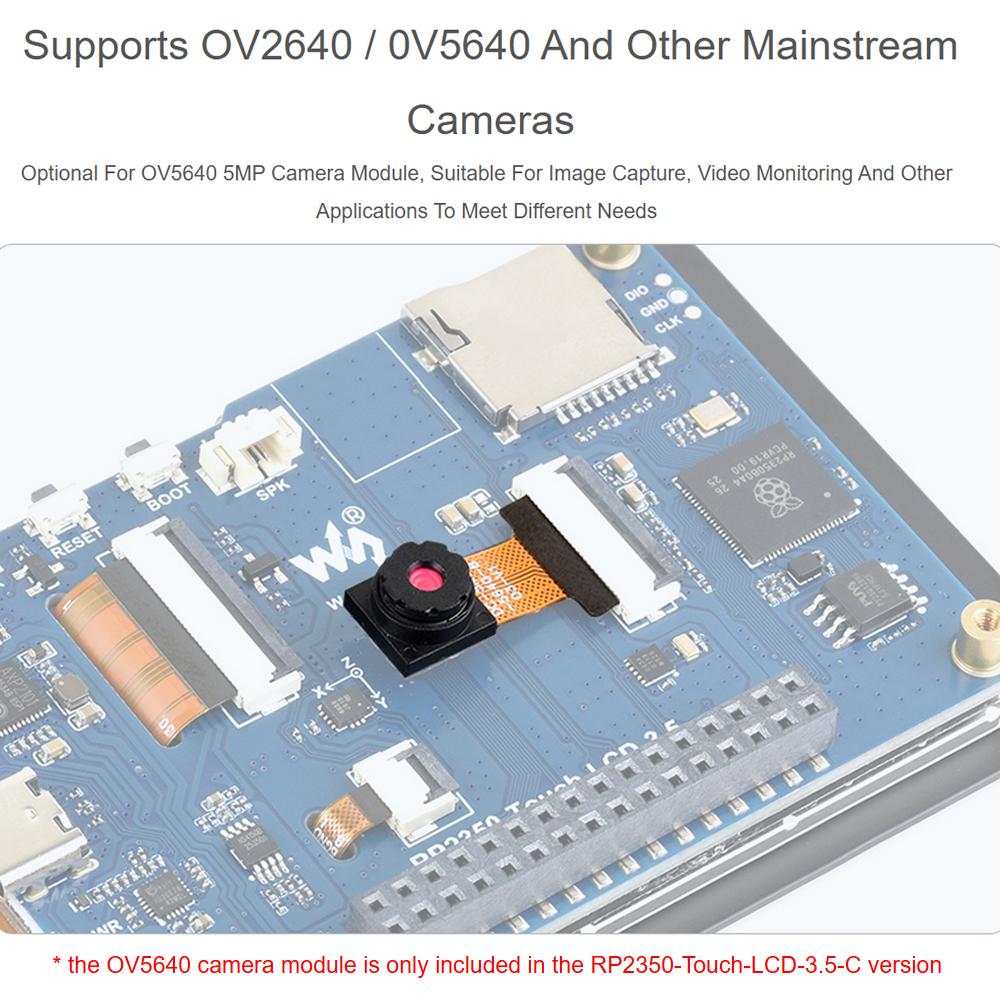

1. This product is a high-performance, highly integrated microcontroller development board independently designed by Waveshare. Within its compact form factor, it integrates peripherals including a 3.5-inch capacitive HD IPS display, highly integrated power management IC, low-power audio codec, camera interface, 6-axis IMU (3-axis accelerometer + 3-axis gyroscope), RTC, and Micro SD card slot, facilitating development and product integration. 2. Features Raspberry Pi-designed RP2350B microcontroller chip 3. Unique dual-core/dual-architecture: Dual ARM Cortex-M33 cores + dual Hazard3 RISC-V cores, both operating at up to 150MHz, enabling flexible architecture switching 4. Built-in 520KB SRAM and 16MB on-chip Flash 5. Type-C interface eliminates orientation concerns 6. Onboard 3.5-inch capacitive touch HD IPS screen with 320 × 480 resolution and 65K colors for clear image display 7. Integrated ST7796 display driver and FT6336 capacitive touch controller using SPI and I2C interfaces respectively, minimizing pin consumption 8. Camera interface compatible with mainstream modules (e.g., OV2640, OV5640) for image/video capture 9. Onboard 3.7V MX1.25 lithium battery charge/discharge interface 10. USB 1.1 host/device support 11. Low-power sleep/hibernation modes 12. Programmable via drag-and-drop when recognized as USB mass storage 13. 22 multifunctional GPIO pins: 2×SPI, 2×I2C, 2×UART, 7×12-bit ADC, 18×PWM channels 14. Precision on-chip clock/timer modules 15. Built-in temperature sensor for real-time chip monitoring 16. 12 programmable I/O (PIO) state machines for custom peripheral support

Specifications

SKU

TBD0603513501

Category

Consumer Electronics › Arduino & SCM Supplies › LCD & LED Display Module

Weight

0.104 kg

Delivery

Standard delivery
