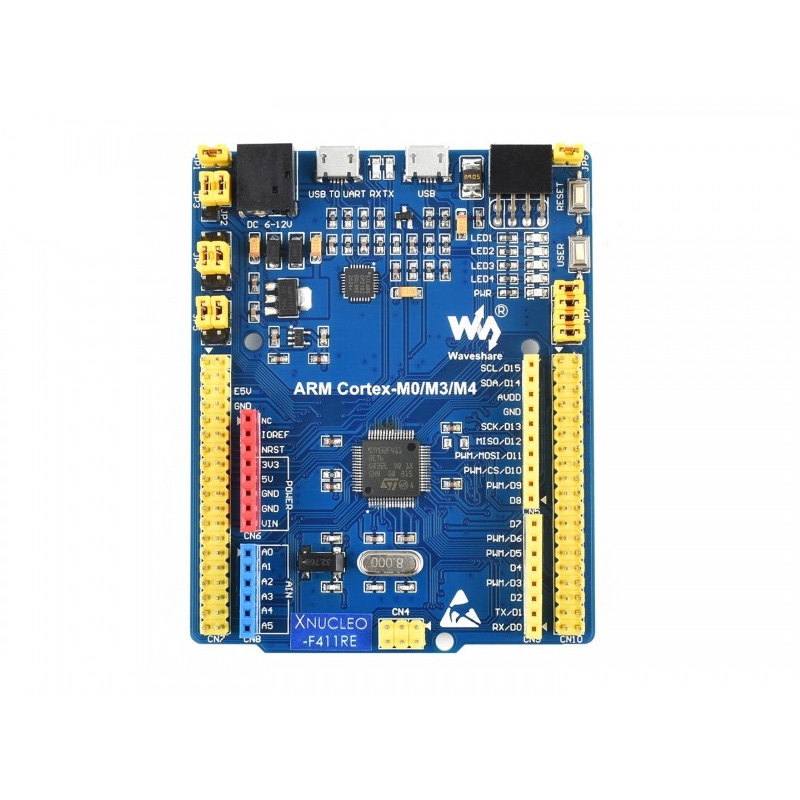

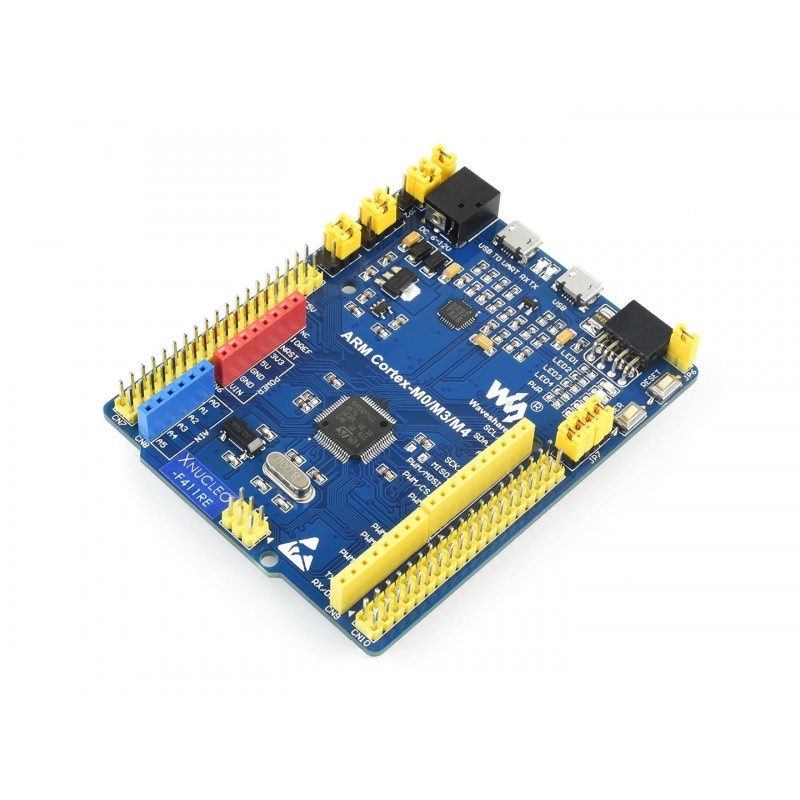

Waveshare XNUCLEO-F411RE Improved STM32 NUCLEO Board

Product Description

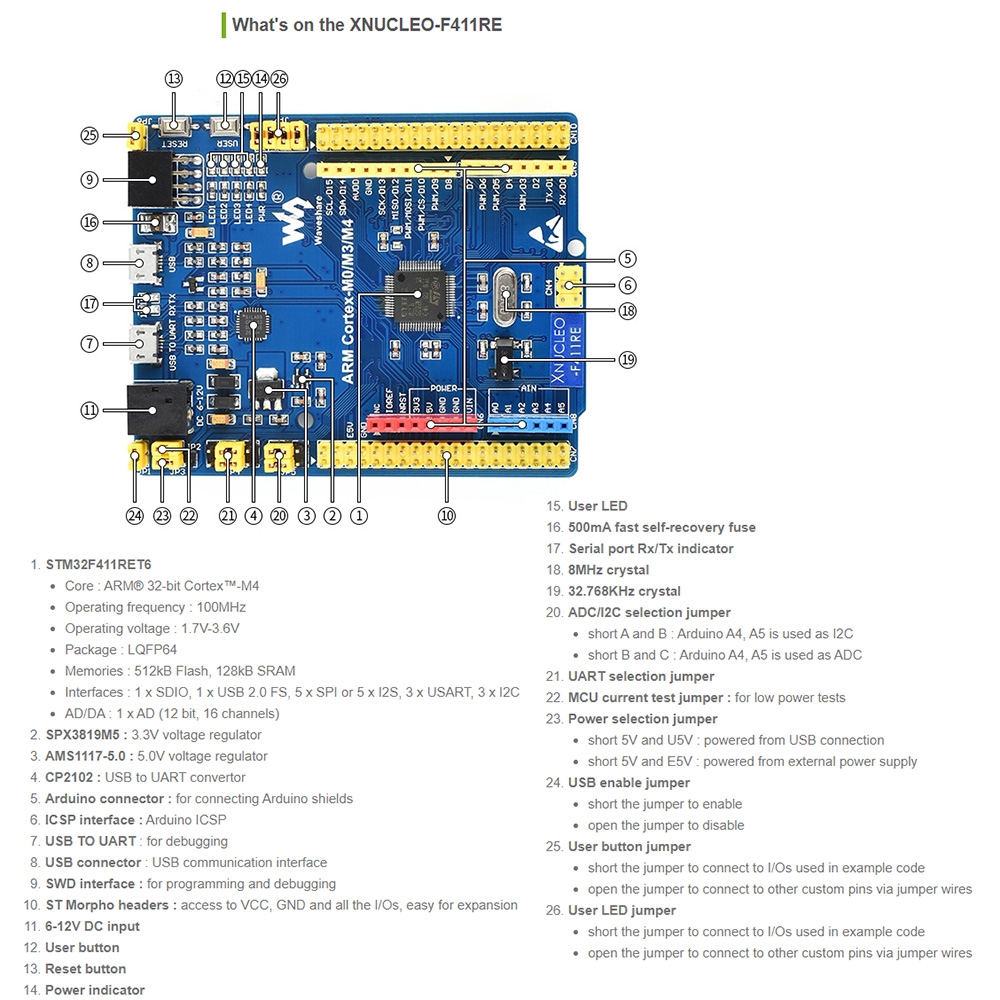

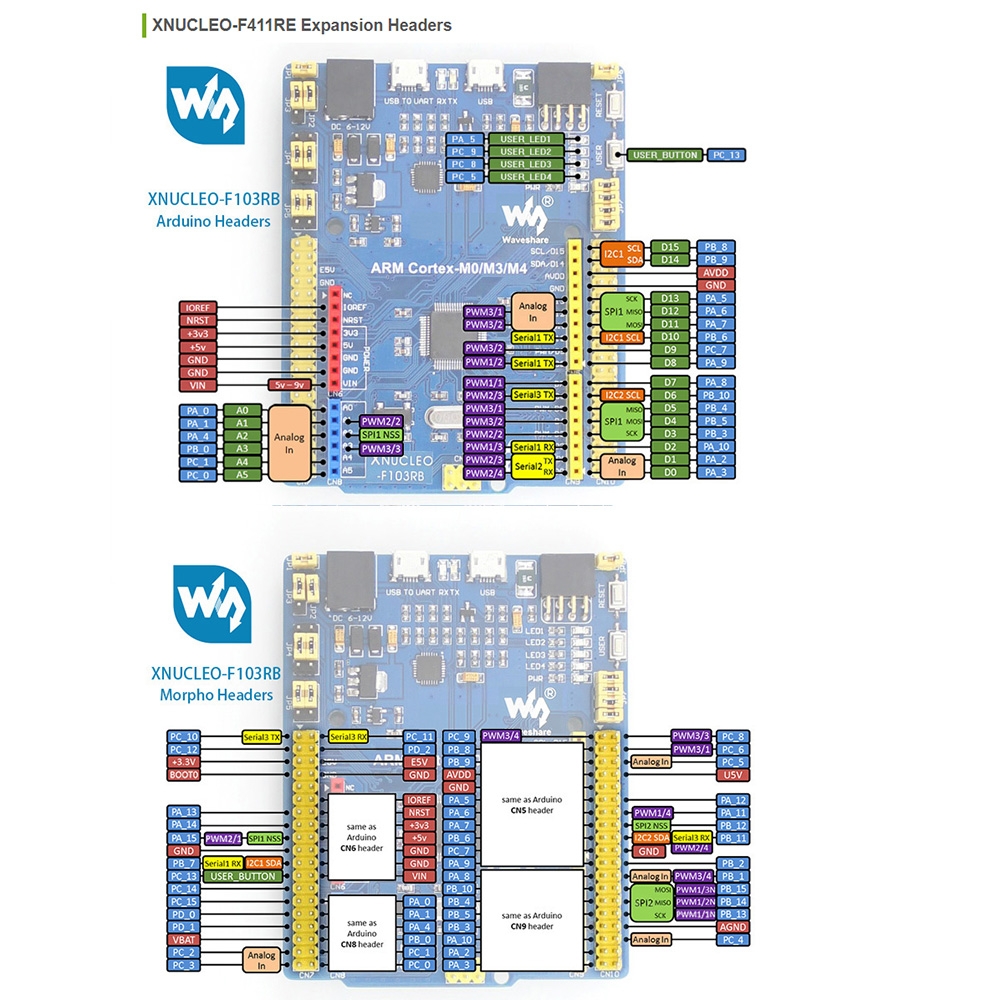

Features 1. Compatible with NUCLEO-F411RE, onboard Cortex-M4 microcontroller STM32F411RET6 2. Arduino connectivity support, easy to connect with various Arduino shields and access the massive Arduino resources 3. ST Morpho headers provide full access to all STM32 I/Os, easy for peripheral expansion 4. Support mbed, build prototype quickly by mbed SDK and online tools 5. Comprehensive free software HAL library including a variety of so ftware examples 6. Comes with a separated ST-LINK/V2 module Specifications 1. Arduino compatibility: UNO, Leonardo 2. Arduino ICSP interface: Yes 3. USB connectivity: Yes 4. USB connector: Micro USB 5. Morpho headers mark: Most 6. Common interfaces are connected via: Jumpers 7. UART debugging: Available while in-circuit debugging 8. 8MHz crystal: Yes 9. 32.768KHz crystal: Yes 10. USB fuse: Yes (500mA) 11. LEDs: 4 12. UART indicator: Yes 13. DC input: Yes 14. Button position: Close to PCB edge 15. ST-LINK: Separated 16. Comes with USB cable: Yes Package List 1. XNUCLEO-F411RE x 1 2. ST-LINK/V2 (mini) x 1 3. USB Type A Plug to Micro B Plug Cable x 1 4. USB Type A Plug to Receptacle Cable x 1

Specifications

SKU

DIY0540

Category

Consumer Electronics › Electronics Module › Modules Expansions Accessories

Weight

0.189 kg

Delivery

Standard delivery
