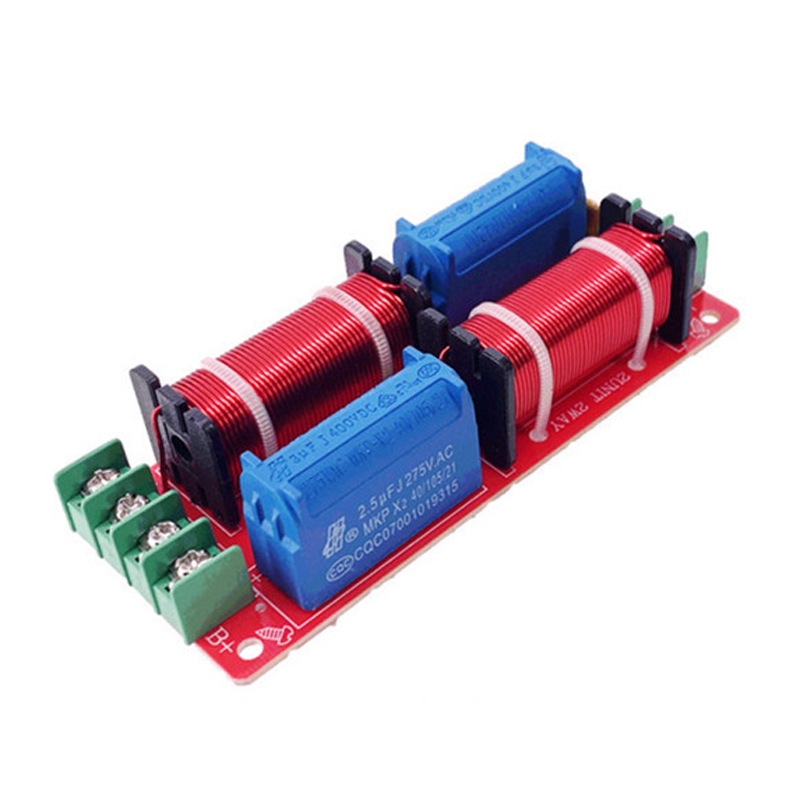

WEAH-2503 High and Low 2-way Speaker Crossover Hi-Fi Home Audio Solderless Divider(C Type Blue Capactior)

Product Description

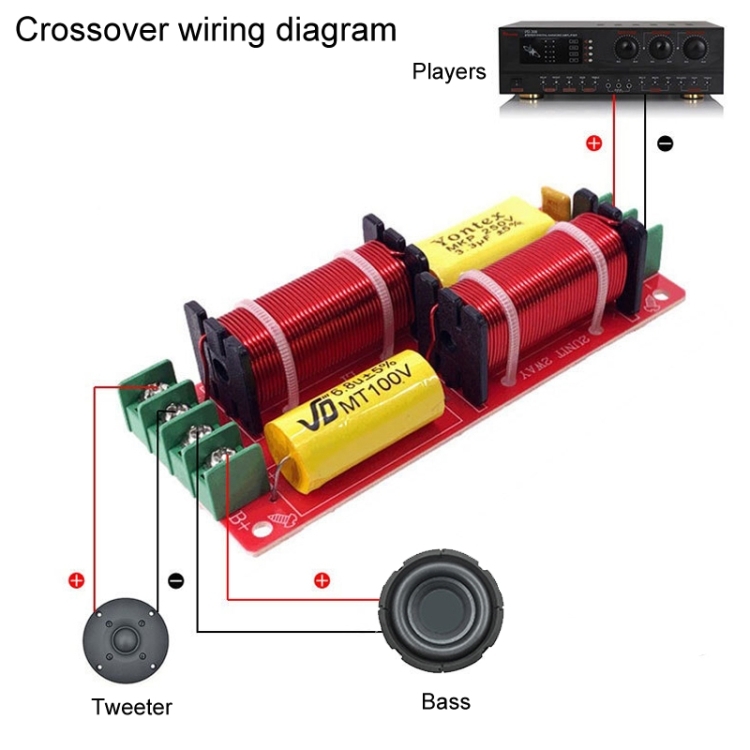

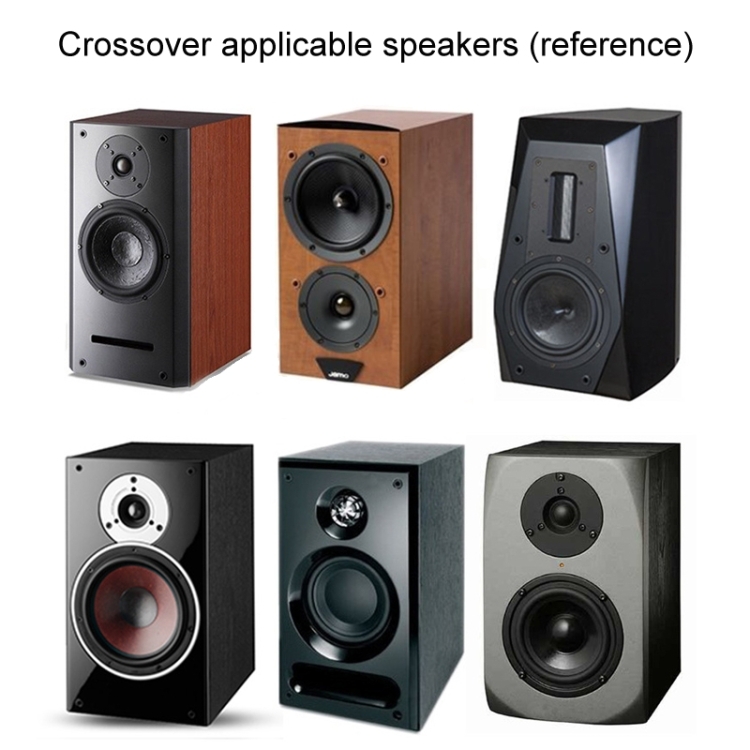

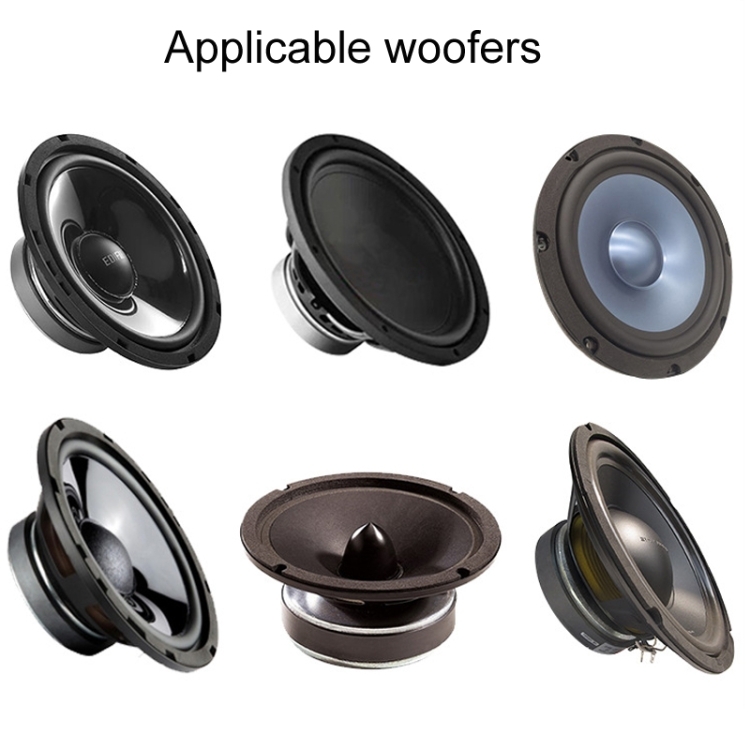

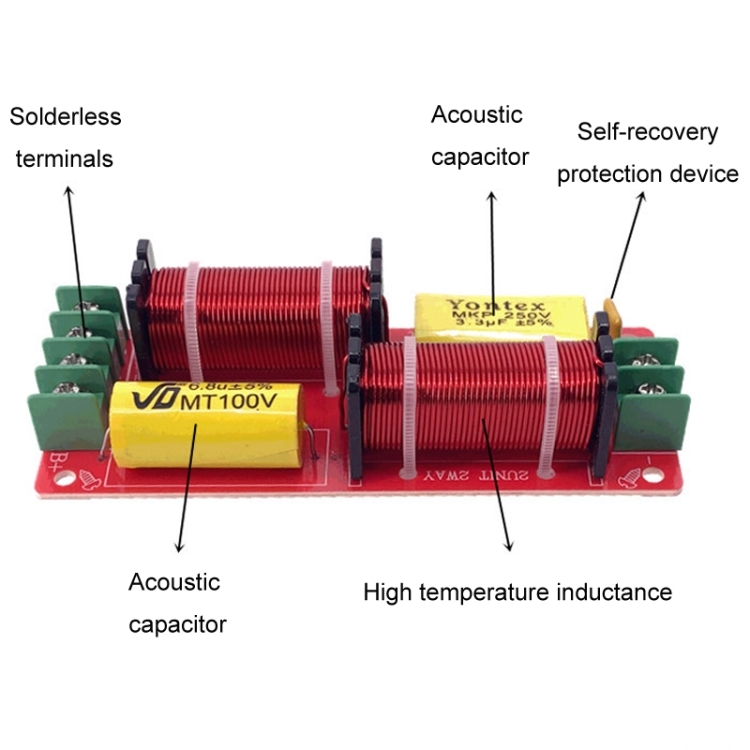

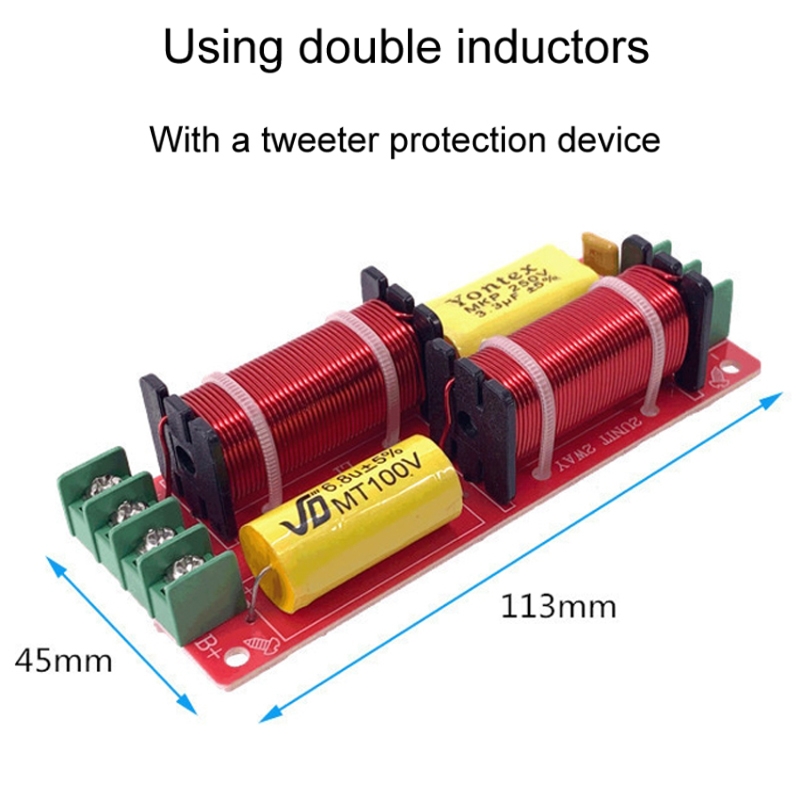

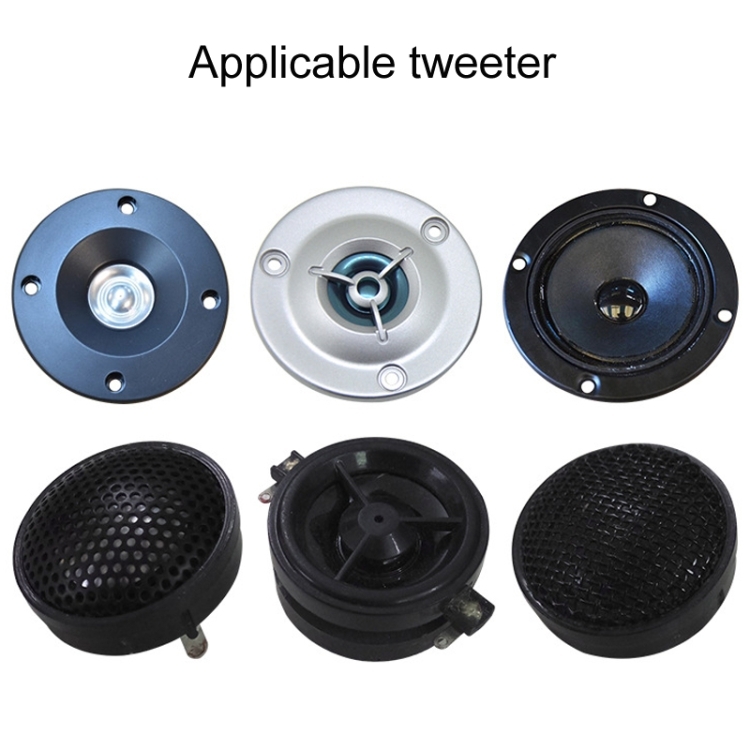

1. Application: speaker high and low DIY 2. Power: 150W 3. Applicable impedance: 4-8 ohms 4. Applicable speaker: 5-8 inch 5. Crossover point: 2600Hz (yellow); 3000Hz (red/blue) 6. The use of dual inductance audio metal film capacitors, also has a treble protection device 7. Inductors fixed with double ties, effectively preventing common vibration 8. Wiring end product identification: IN input, T to the treble, B to the bass, black for the negative pole 9. Non-soldering terminals, very easy to use 10. Size: 113 x 45mm

Specifications

SKU

TBD0605173801C

Category

Consumer Electronics › DIY Parts & Components › Audio Crossover

Weight

0.124 kg

Delivery

Standard delivery
